nevalux nyota C400 4K 90

nevalux nyota C400 4K 90

Product code 221585

Technical data Illustrations Wiring diagrams Downloads
nevalux

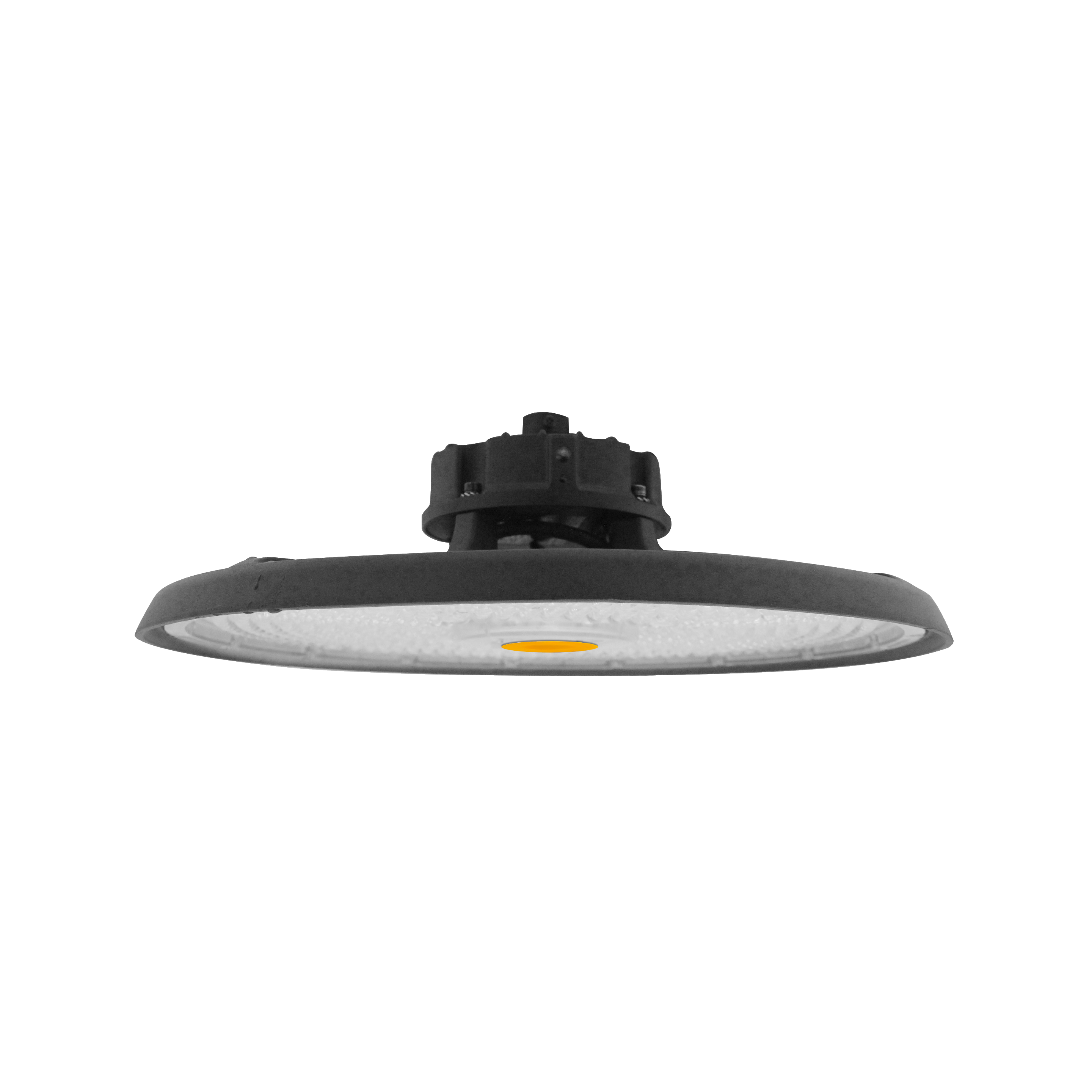

nevalux nyota C400 4K 90

High-bay light for industry and warehouses. Very bright, DALI or Connect version.

Product code 221585

Price: Please log in to see prices

Beam angle

60° 90° 120°

Control technology

Dali-Leuchte Smartlink Connect

The powerful high-bay luminaire nevalux nyota is designed for the illumination of rooms with high ceilings. With its 32,000 lumens, this luminaire is the ideal choice for all types of industrial, exhibition and logistics halls. Thanks to the DALI driver integrated as standard, the light intensity can be ideally adapted to the respective conditions. The IP65 water jet protection combined with the IK09 shock resistance rating make this luminaire almost indestructible.

  • Intelligent high bay luminaire for inspiring lighting solutions in industry
  • Available as intelligent Connect or conventional DALI variant
  • Connect variant with powerful IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
  • 32'000 lumens at 160 lm/W
  • 3 different optics to choose from
  • Robust, high-quality construction IP65 and IK09

Variants

Version DALI without intelligence
Luminous flux 32000 lm

Dimensions

Dimensions Ø × H 400 x 137 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 200 W
Replaceable driver Yes
Maximum number of luminaires per circuit breaker C10: 5x, C13: 6x, C16: 8x, C25: 12x, B10: 3x, B13: 4x, B16: 5x, B25: 7x

Sensor technology

With motion detector No
With light sensor No

Connectivity

Networking via DALI

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80 - 89
Illuminant LED
Luminous flux 32000 lm
Luminaire luminous efficacy 160 lm/W
Glare value UGR < 22

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes
With emergency light No

Housing & material

Impact resistance IK09
Protection class (IP) IP65
Protection class I
Ambient temperature -20...+50 °C
Housing material Steel
Cover material Clear lens
Mounting type Ceiling / Wall / Pendant mounting
Colour Black

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class C

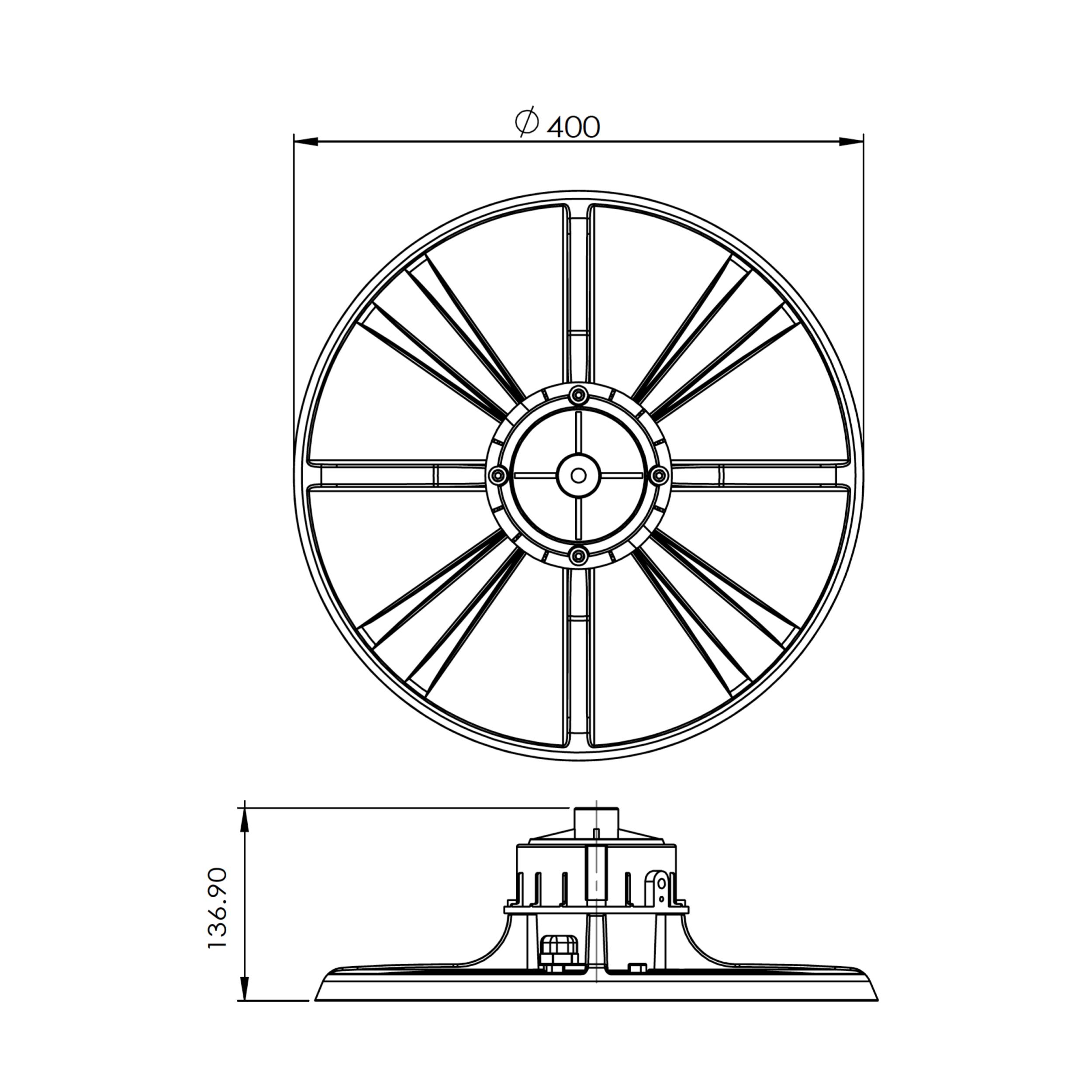

Technical drawing

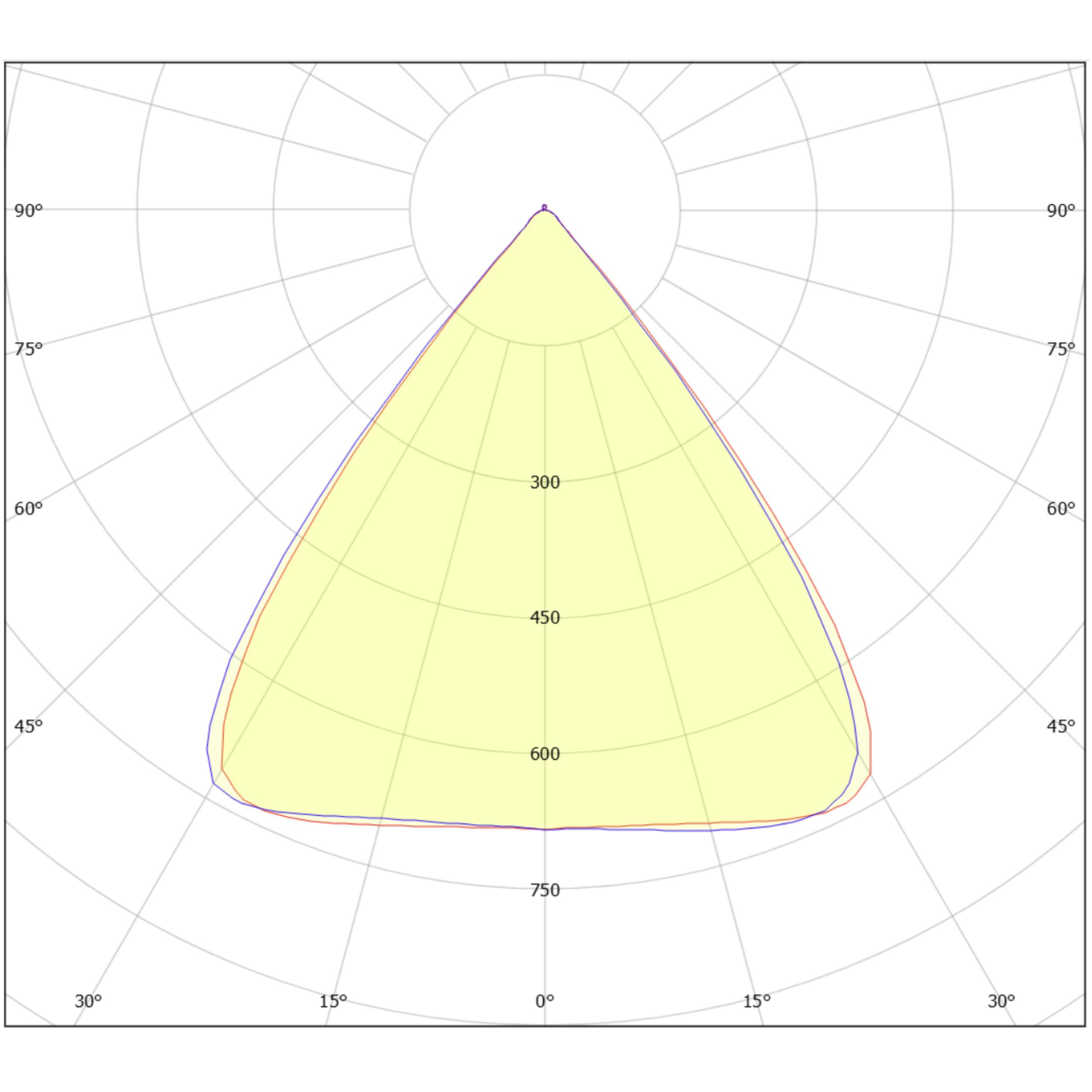

Lichtverteilungskurve

Sensor detection range

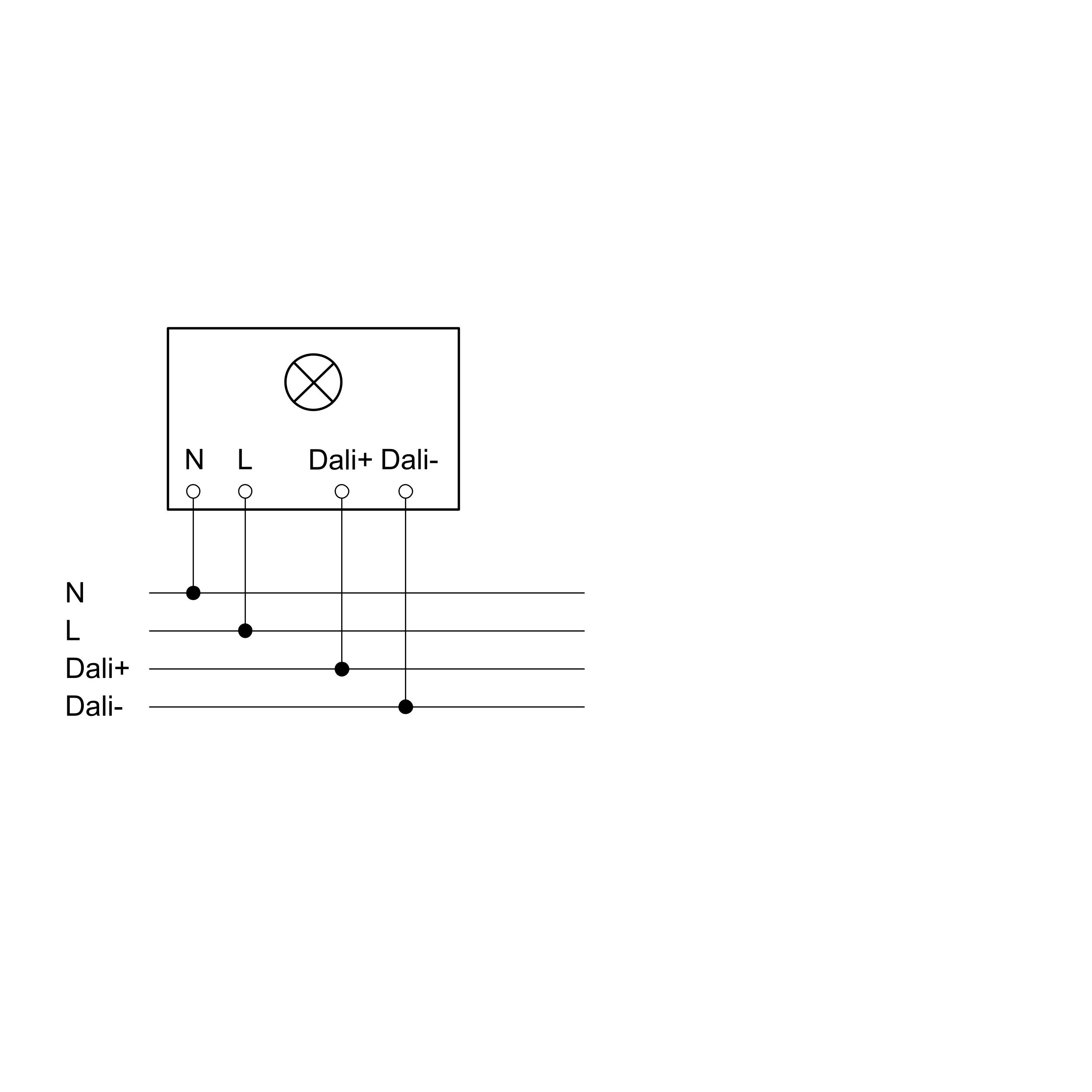

Wiring diagram 1

Wiring diagram

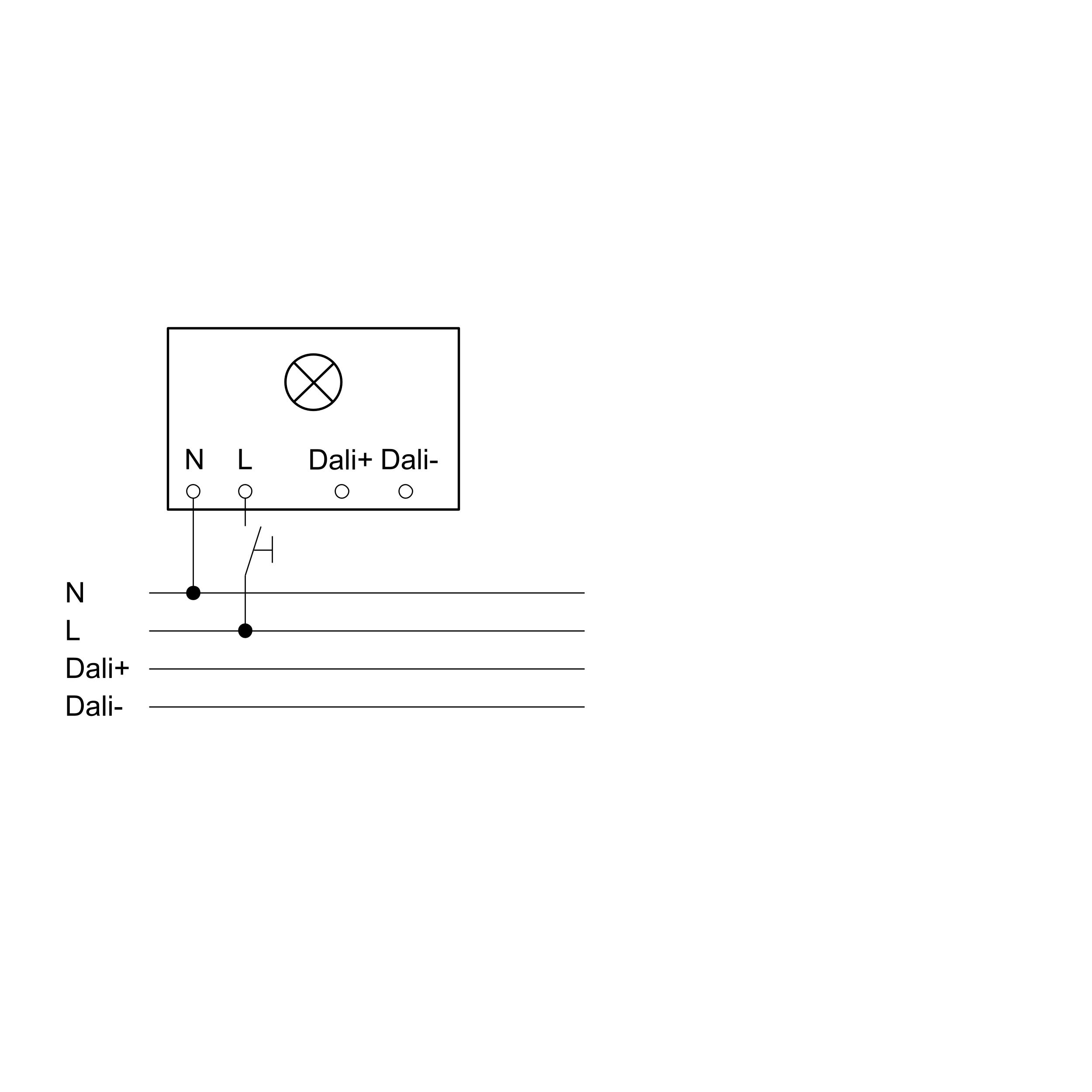

Wiring diagram 2

Wiring diagram
