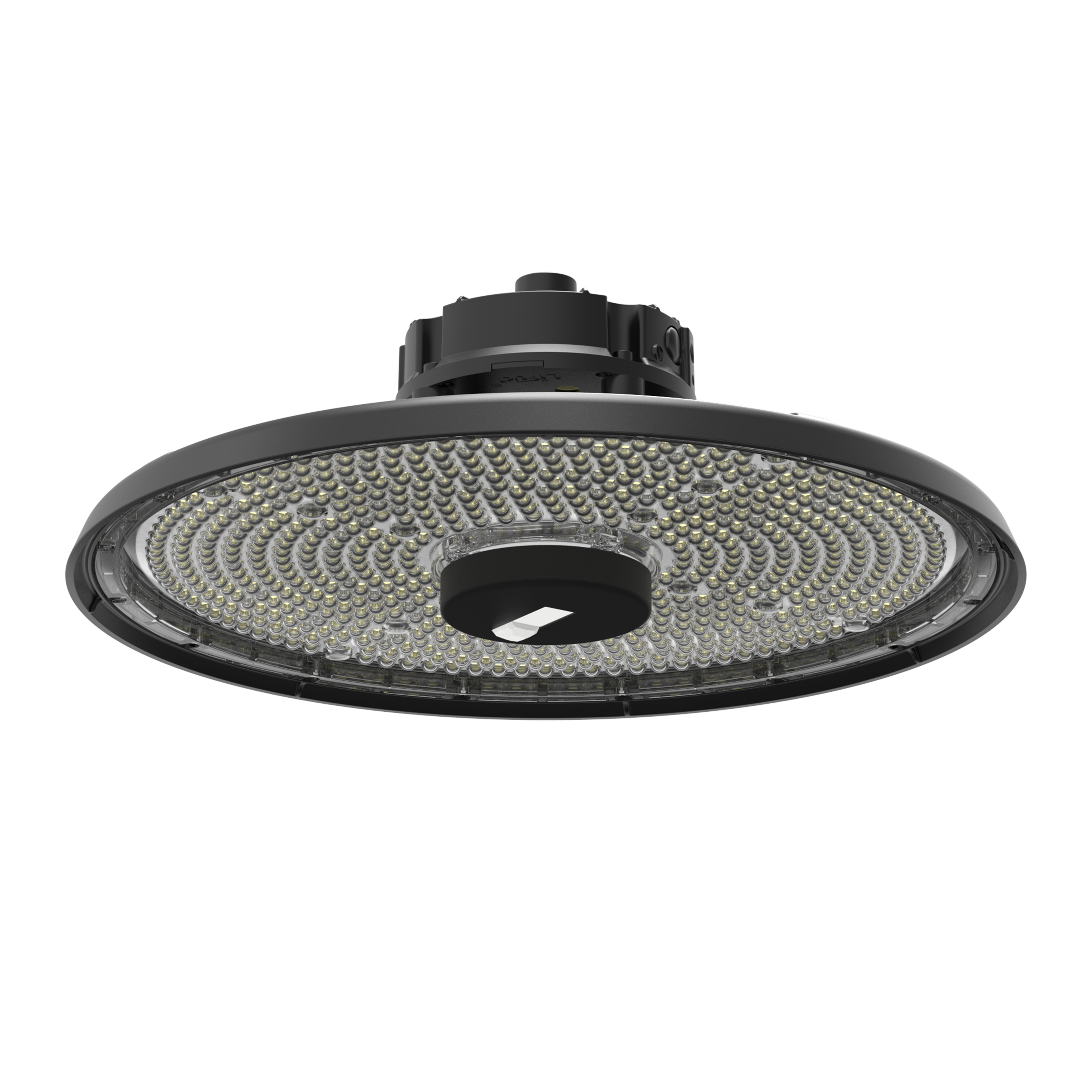

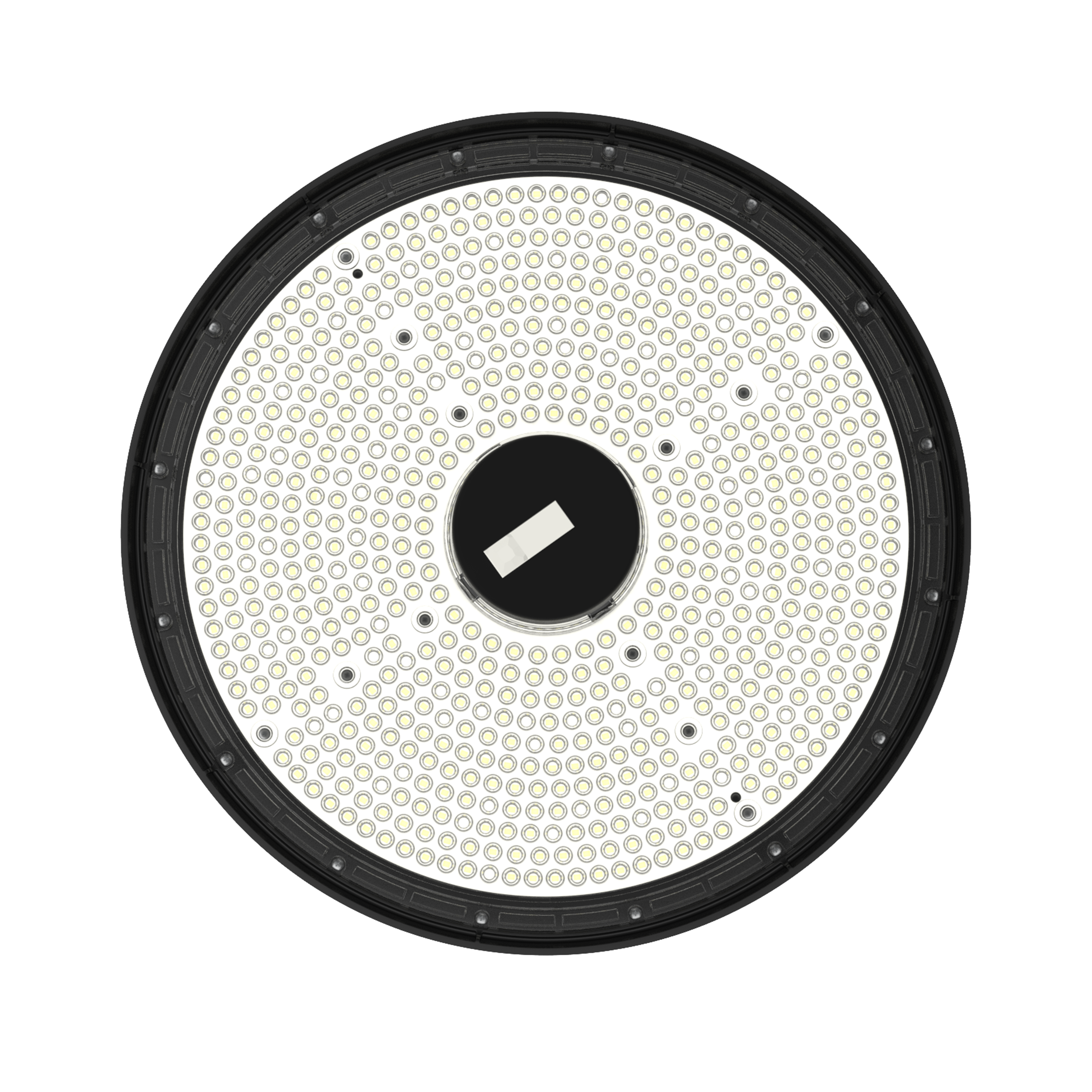

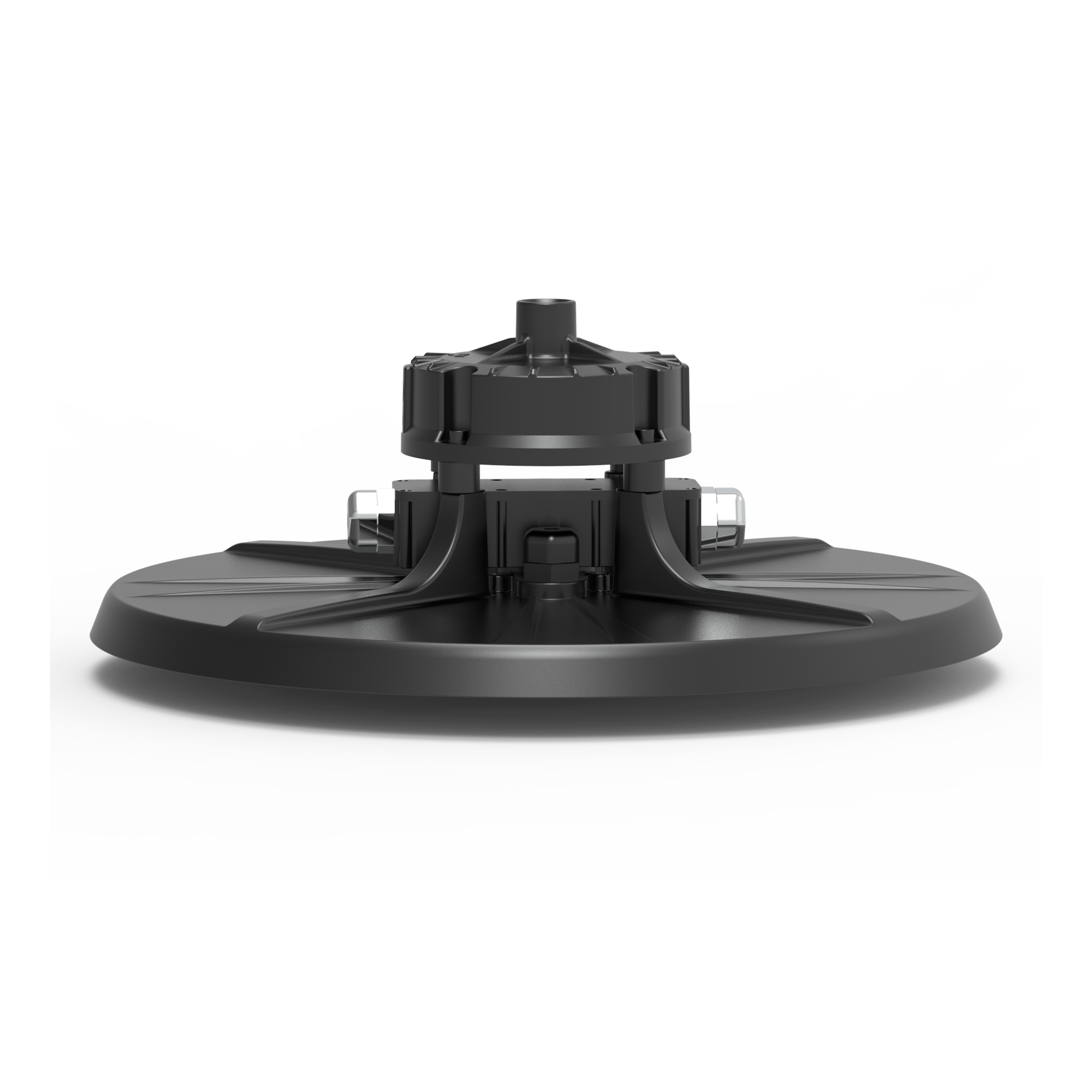

Nevalux nyota connect C400 4K 90

Product code 221516

Version

Connect incl. light control DALI without intelligence

The intelligent high bay luminaire nyota from nevalux makes the refurbishment of large industrial, logistics and exhibition halls child's play. Old spotlights can easily be replaced by new luminaires. This creates the most modern lighting management system of today. During commissioning, groups are formed, follow-up times are defined and the brightness for constant light control is set. Energy savings of more than 80% compared to old technologies are the order of the day. The IP65 jet water protection in combination with the IK09 shock resistance rating make this luminaire almost indestructible.

Intelligent high bay luminaire for inspiring lighting solutions in industry
Available as intelligent Connect or conventional DALI variant
Connect variant with powerful IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
32'000 lumens at 160 lm/W
3 different optics to choose from
Robust, high-quality construction IP65 and IK09

Variants

Luminous flux 32000 lm

Dimensions

Dimensions Ø × H 400 x 166 mm

Electrical

Mains connection 200...240 V / 50 – 60 Hz

Power 200 W

Replaceable driver Yes

Maximum number of luminaires per circuit breaker C10: 5x, C13: 6x, C16: 8x, C25: 12x, B10: 3x, B13: 4x, B16: 5x, B25: 7x

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Radial range 4 x 4 m (16 m²)

Tangential range 6 x 6 m (36 m²)

Mounting height < 10 m

Presence range 4 x 4 m (16 m²)

With light sensor Yes

Connectivity

With radio network control Yes

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

Illuminant LED

Luminous flux 32000 lm

Beam angle 90°

Luminaire luminous efficacy 160 lm/W

Glare value UGR < 22

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes

With emergency light No

With program-controlled lighting control Yes

Housing & material

Impact resistance IK09

Protection class (IP) IP65

Protection class I

Ambient temperature -20...50 °C

Housing material Steel

Cover material Lens transparent

Mounting type Ceiling / Wall / Pendant

Colour black

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class C

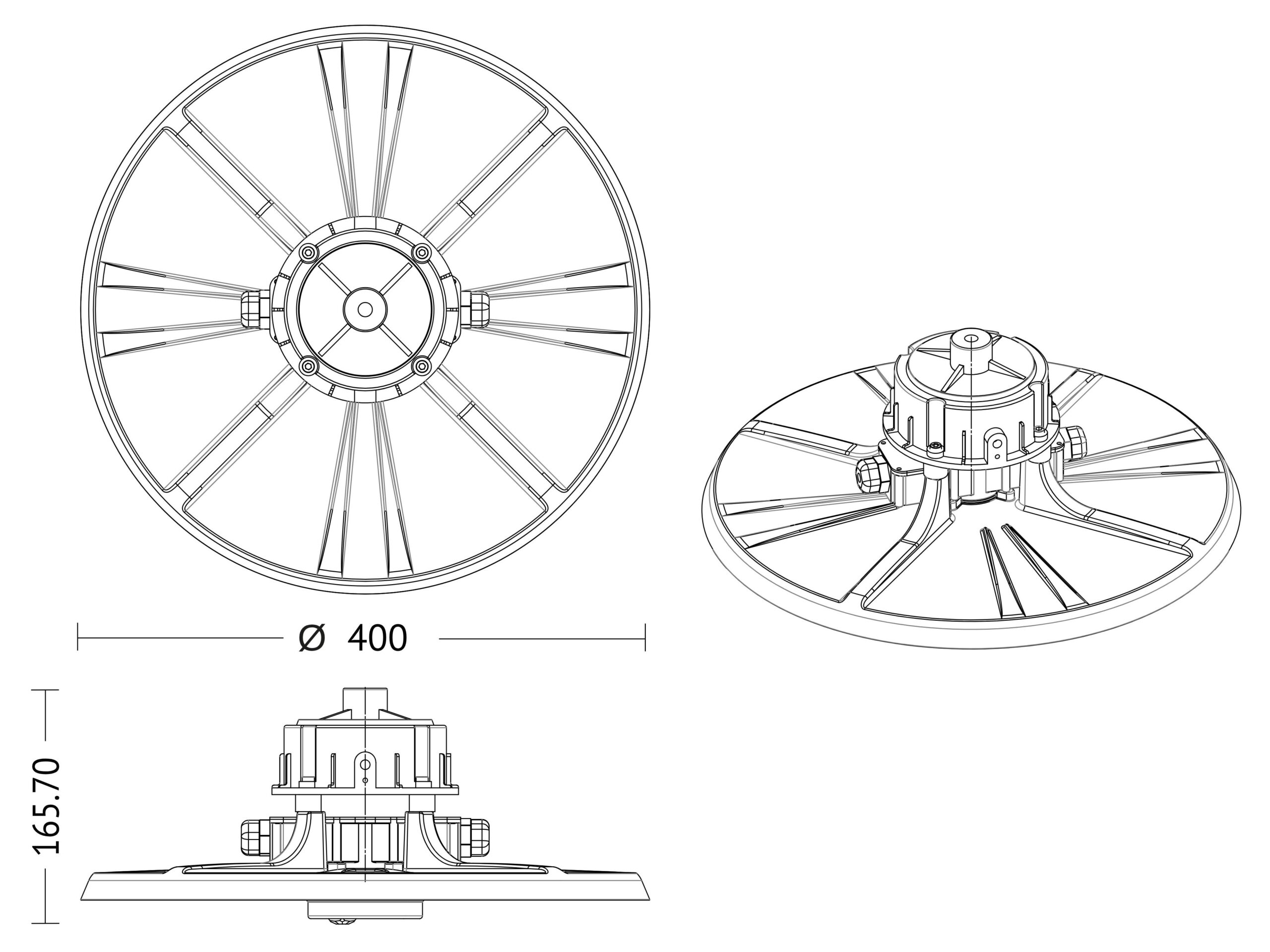

Technical drawing

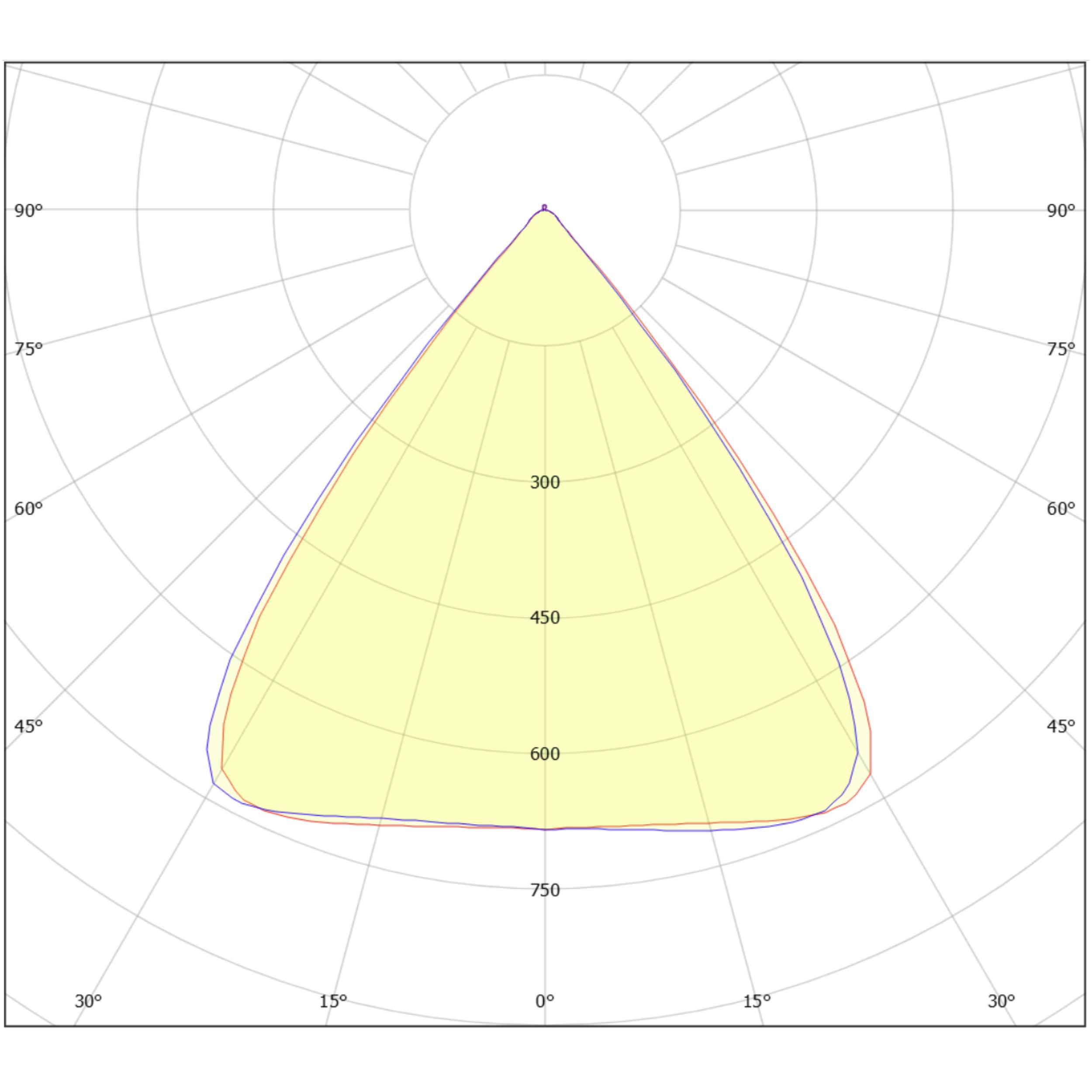

Lichtverteilungskurve

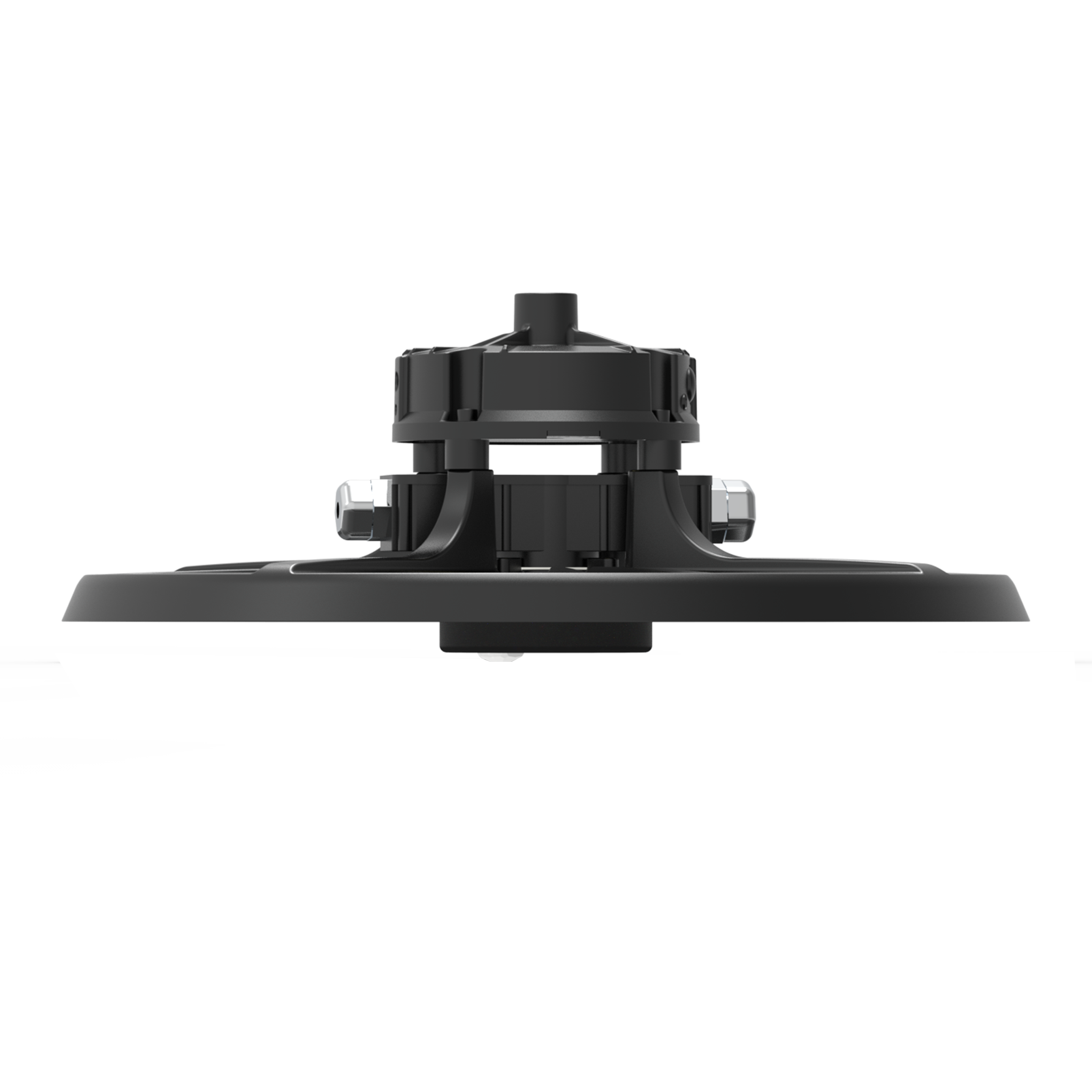

Sensor detection range

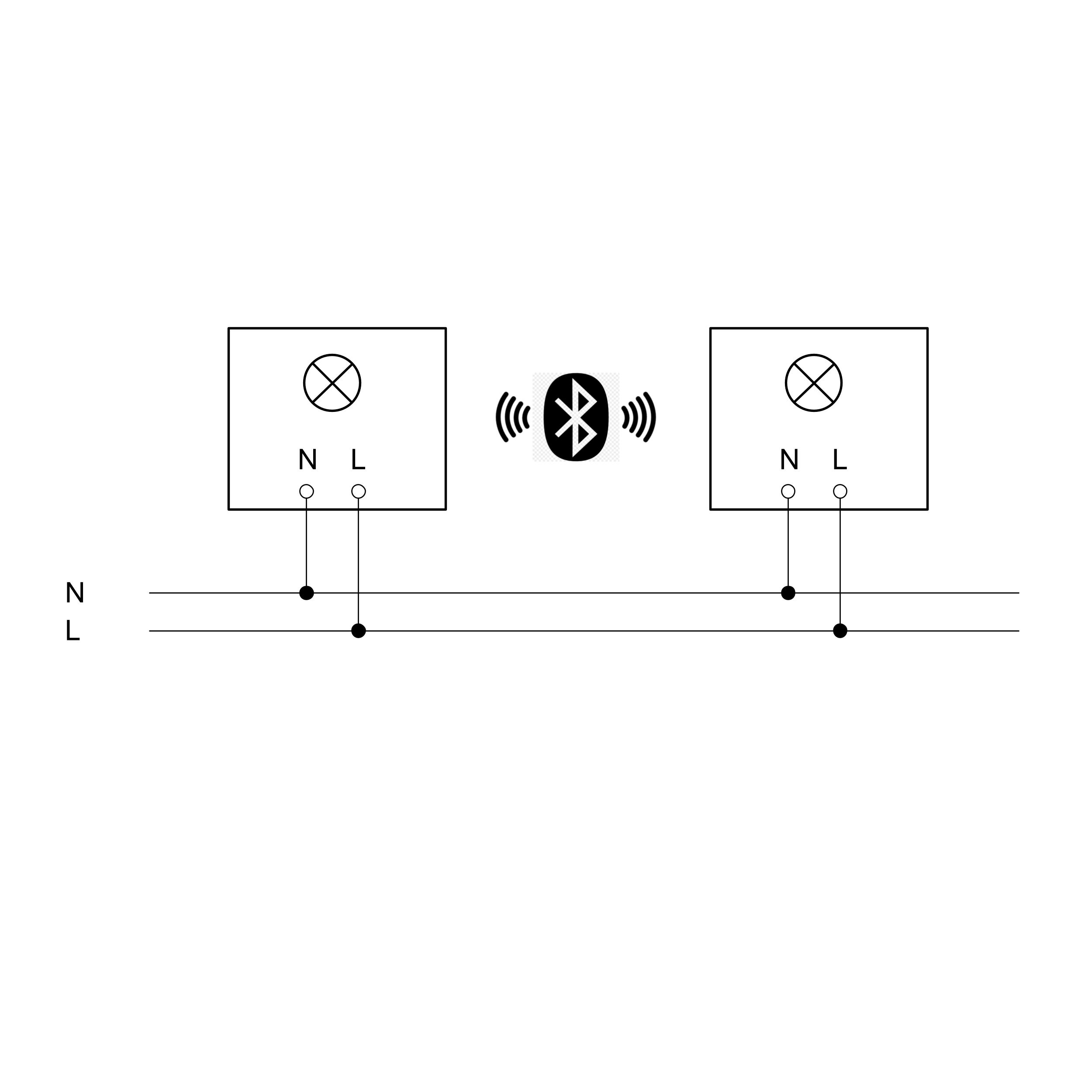

Wiring diagram 1

Wiring diagram networking radio

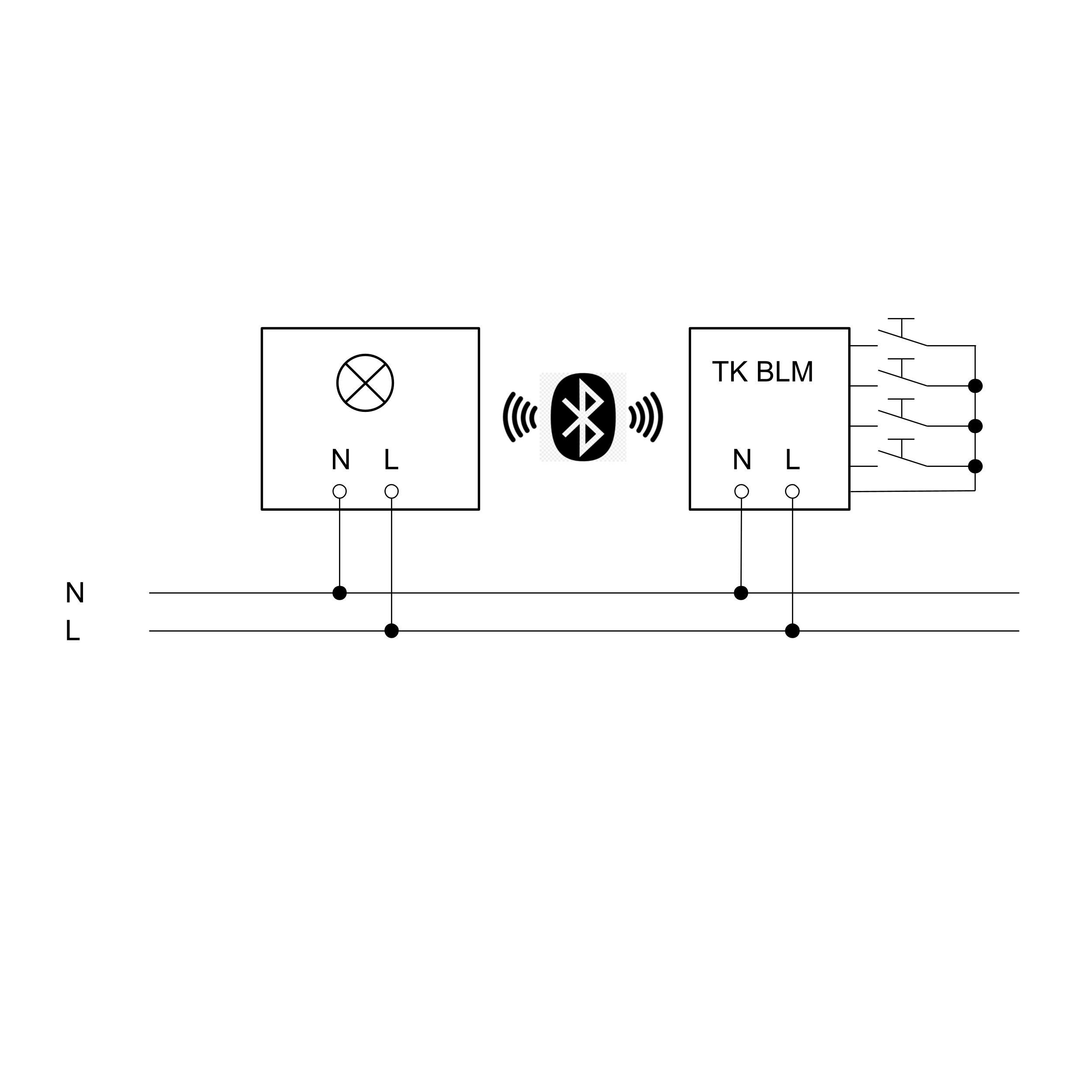

Wiring diagram 2

Wiring diagram pushbutton coupler

Data sheet User manual LDT file (light distribution)
