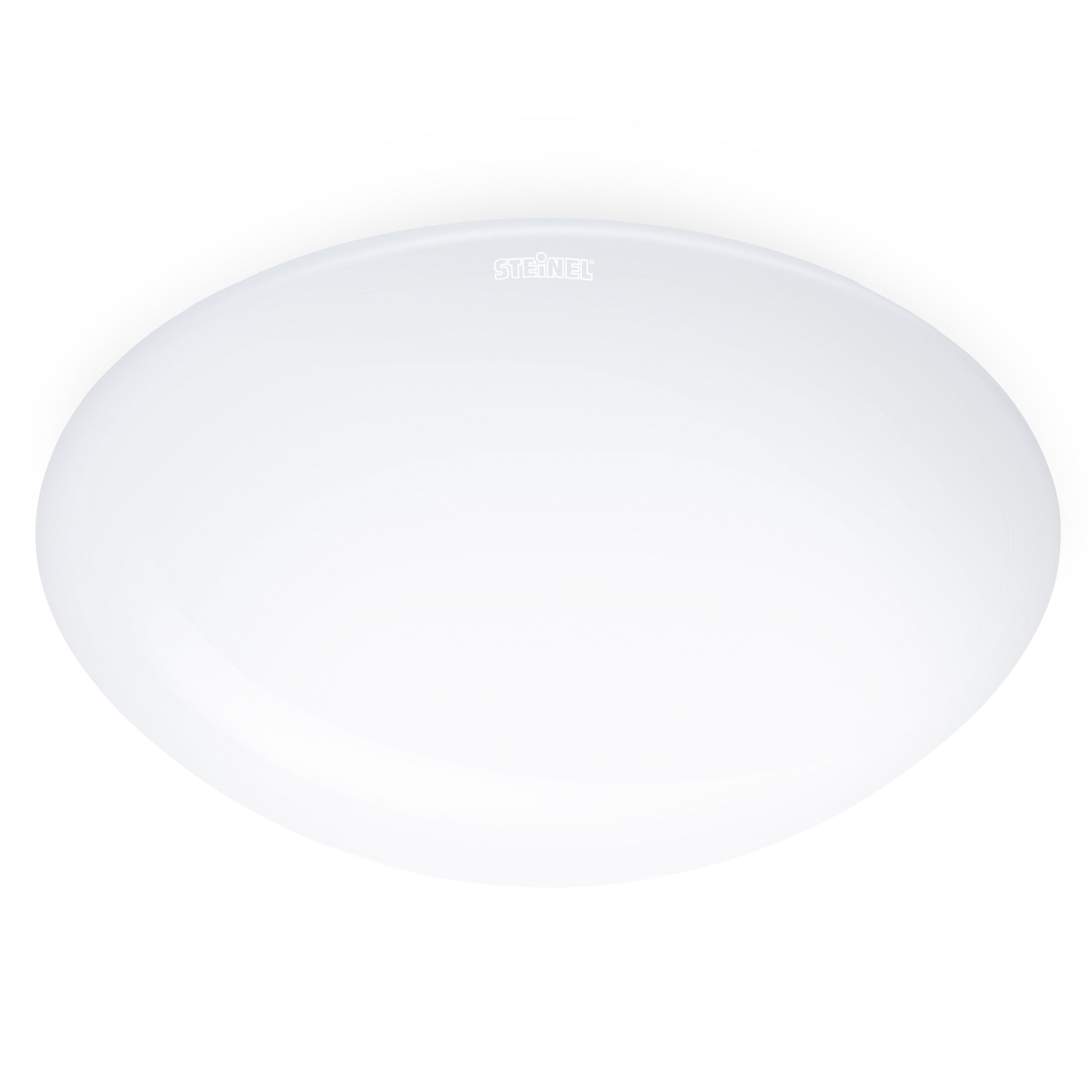

Nevalux RS 100 L
ELDAS® no. 920 622 109
EAN-No. 4007841 730116
This product is being replaced by a successor product.
Go to successor product · RS 16 L S (738013)Timeless light design. High-frequency indoor light RS 100 L, ideal for corridors, hallways, stairwells and bathrooms, 360° angle of coverage, infinitely variable electronic reach setting from 1 - 8 m, selectable time and twilight threshold, capability of connecting additional loads (e.g. extractor fan).
- High-quality opal glass shade
- Long-life aluminium enclosure
Dimensions
Dimensions Ø × H
310 x 125 mm
Electrical
Mains connection
230 – 240 V , 50 / 50 Hz
Power
100 W
Switching output 1 resistive
800 W
Sensor technology
Sensor technology
High frequency
Transmission power
< 1 mW
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Electronic scalability
Yes
Mechanical scalability
No
Connectivity
Networking
Yes
Lighting technology
With illuminant
No
Illuminant
All-purpose lamp
Base
E27
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 sec – 15 min
Housing & material
Impact resistance
IK00
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-10 – 50 °C
Housing material
Plastic
Cover material
Glass opal
Scope of delivery & warranty
Manufacturer warranty
3 years
