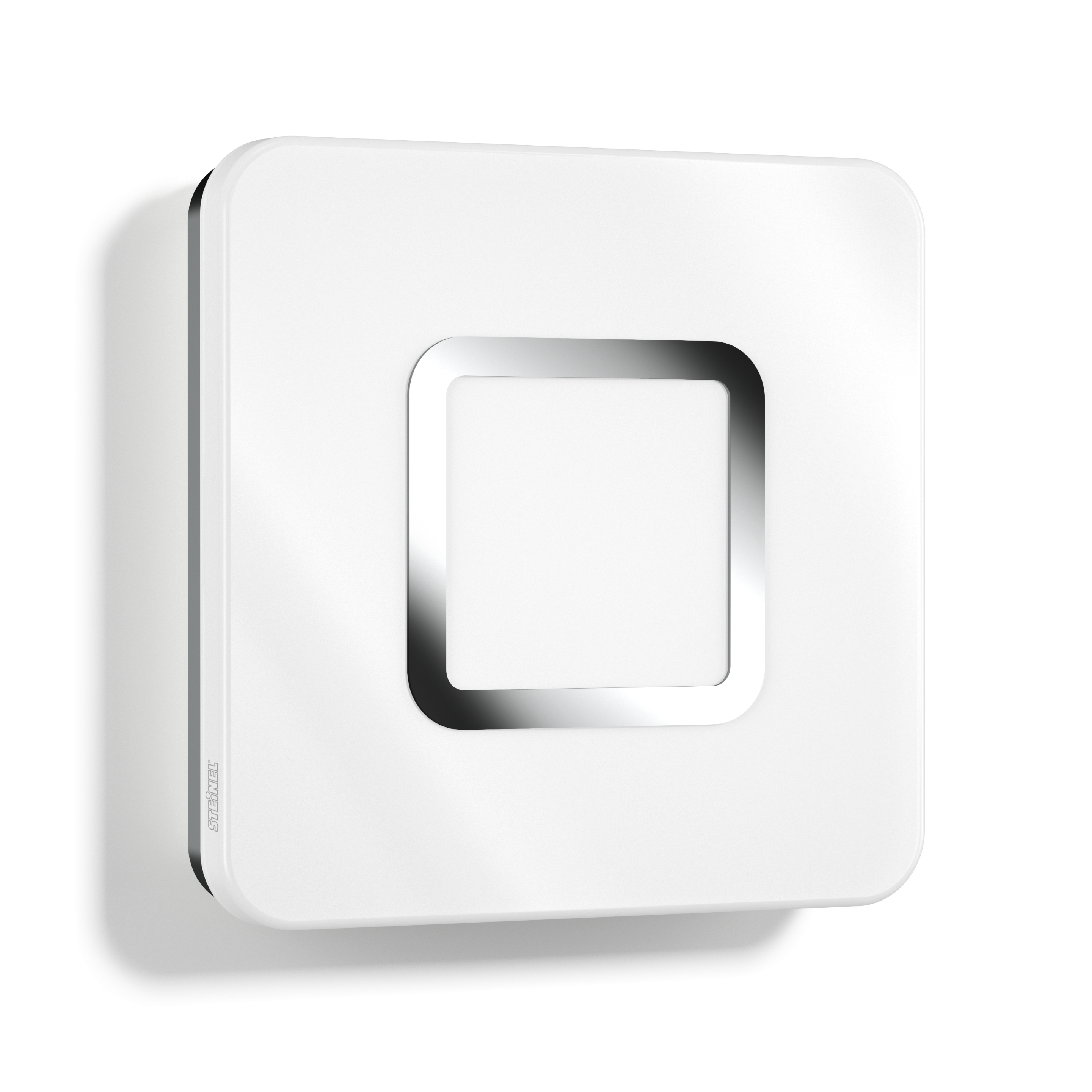

Nevalux RS LED M1 Chrome

ELDAS® no. 941 301 179

EAN-No. 4007841 052485

This product is being replaced by a successor product.

Go to successor product · RS M1 S Stainless steel (052492)

Tasteful design for indoors. High-quality and, at only 9,5 W, extremely energy-efficient RS LED M1 indoor light in stainless-steel or chrome finish. With a 360° high-frequency sensor inside the enclosure (ø 3 - 8 m reach). Night-light function and 4-hour manual override (3000 K). Light output of 560 lm for classy ambient lighting and perfect illumination in corridors, hallways or stairwells.

Including STEINEL LED system
LED ambient light
4-hour manual override (optional)
Optional basic lighting level 10 %
High-quality materials

Identification

Variant Chrome

Variants

Luminous flux 560 lm

Dimensions

Dimensions L × W × H 200 x 200 x 53 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Power 9,5 W

Sensor technology

Sensor technology High frequency

Transmission power < 1 mW

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Electronic scalability Yes

Mechanical scalability No

Connectivity

Networking Yes

Lighting technology

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Luminous flux 560 lm

Lifetime

LED lifetime max. °C 65000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 sec – 15 min

Base light function Yes

Base light function time 10/30 min, all night

Housing & material

Impact resistance IK00

Protection class (IP) IP20

Protection class II

Ambient temperature -10 – 30 °C

Housing material Plastic

Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 3 years

Sensor detection range

Data sheet User manual
