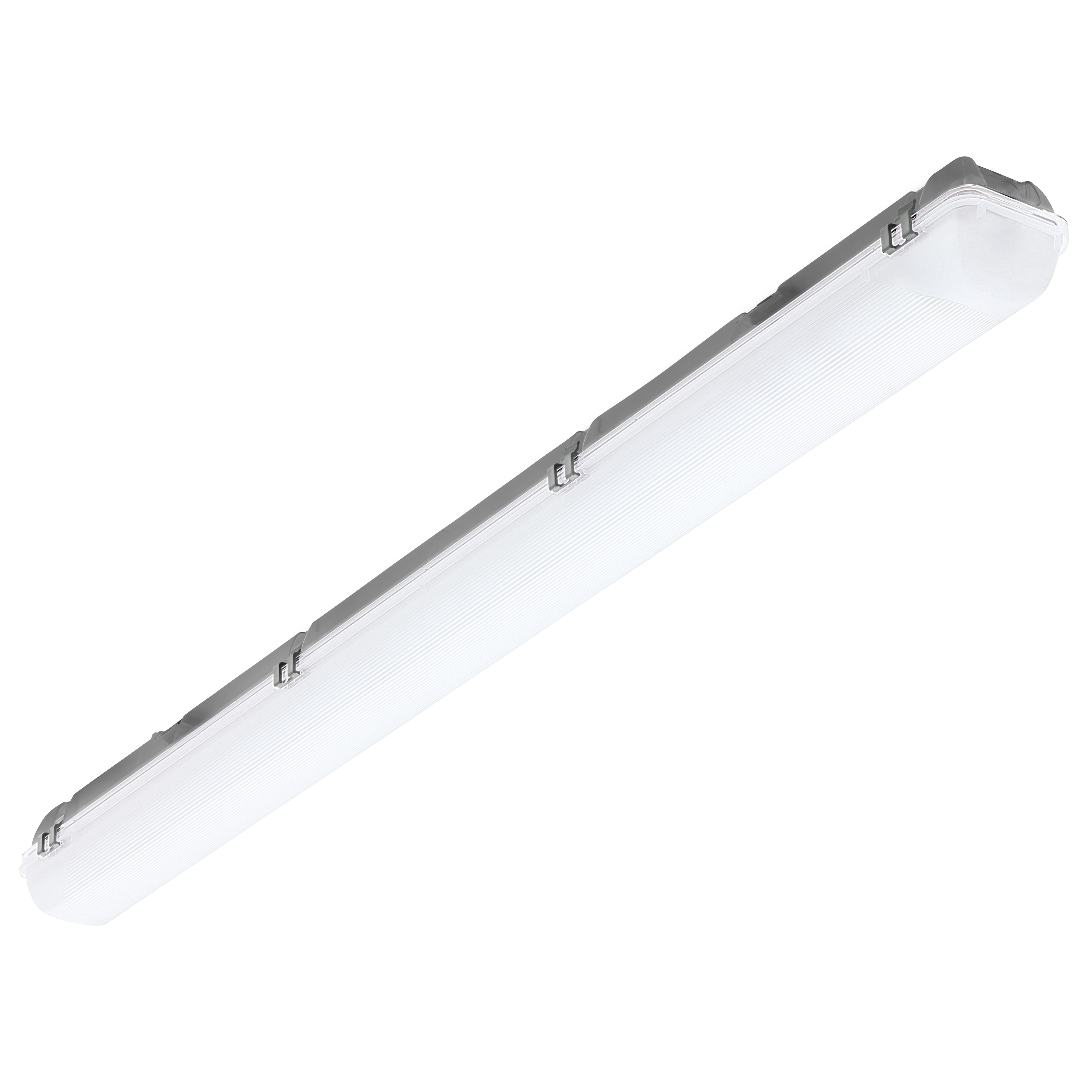

Nevalux RS PRO 5800 LED Slave

ELDAS® no. 941 331 979

EAN-No. 4007841 007669

This product is being replaced by a successor product.

Go to successor product · RS PRO Connect 5100 LED Sensor Verso (220482)

Dynamic lighting intelligence. RS PRO 5800 LED high-frequency SensorLight, ideal for corridors, thoroughfares and stairwells as well as WC facilities, washrooms and warehouses or multi-storey car parks and cold rooms. 33 W for 4065 lm of light, optional 10?% – 50 % basic light level, integrated DALI interconnection capability, swarm function for dynamic light, RGS – Remote Group Setting function, lighting groups, including basic light level, can be synchronised, adjustment by optional RC 10 remote control.

Including STEINEL LED system
Optional remote control
Interconnectable via DALI, max. 15 slaves?/master
Impact-resistant material rated to IK07
Intelligent swarm function

Identification

Variant Slave

Variants

Luminous flux 4065 lm

Dimensions

Dimensions L × W × H 1,278 x 105 x 105 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Power 33 W

Sensor technology

With motion detector No

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Luminous flux 4065 lm

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch No

Time setting 5 sec – 15 min

Functions Group parameterisation, Neighbouring-light function, Presence function

Housing & material

Impact resistance IK07

Protection class (IP) IP66

Protection class I

Ambient temperature -20 – 30 °C

Housing material Plastic

Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 5 years

Sensor detection range
