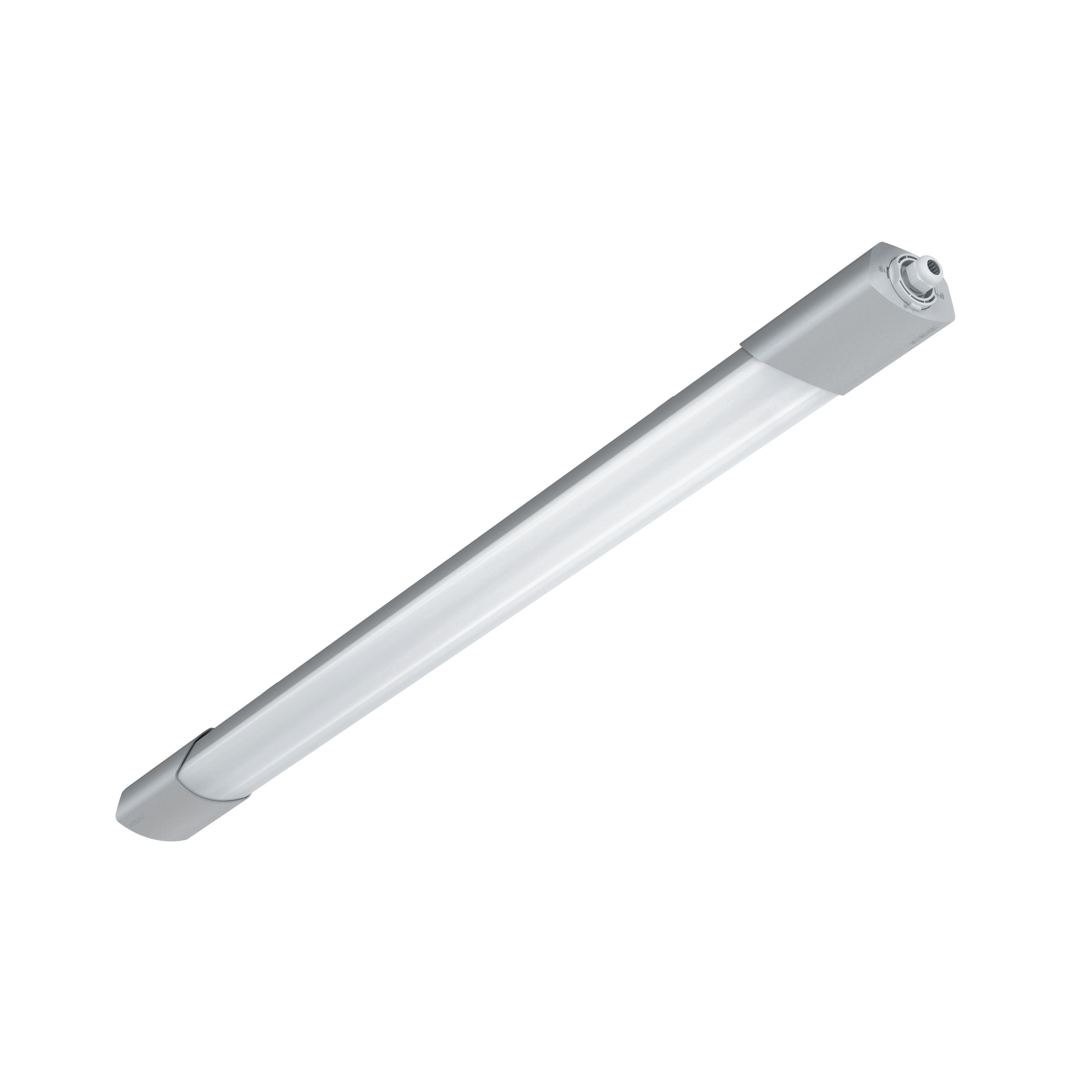

Nevalux RS PRO Connect 5100 LED Sensor Verso

Nevalux RS PRO Connect 5100 LED Sensor Verso

EAN-No. 220482

Technical data Illustrations Downloads Accessories
Nevalux

Nevalux RS PRO Connect 5100 LED Sensor Verso

EAN-No. 220482

This product is being replaced by a successor product.

Go to successor product · RS PRO 5100 SC with motion detector & Bluetooth Verso (221392)

New diffuser luminaire. New options. The sensor-switched LED diffuser luminaire is sturdy, practical, easy to install, interconnectable via Bluetooth, conveniently set by smartphone, extremely energy-efficient and no problem whatsoever to service. Ideal for refurbishment in multi-storey car parks, basements, industrial and sports buildings, garages and corridors. 360° high-frequency sensor, 10 m reach. With 4200 lm from 30 W in a colour temperature of 4000 K (neutral white). Presence mode rules out any unintentional deactivation.

  • Including STEINEL LED system
  • Interconnectable and adjustable via Bluetooth
  • Impact-resistant material rated to IK07
  • Optional basic lighting level 10 - 50 %
  • Optional basic light level 50 - 100%
  • Adjustable mounts for easy installation

Identification

Variant Sensor Verso

Variants

Luminous flux 4200 lm

Dimensions

Dimensions L × W × H 1,370 x 87 x 58 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz
Power 30 W

Sensor technology

Sensor technology High frequency
Transmission power < 1 mW
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Mechanical scalability No

Connectivity

Networking Yes

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control
Luminous flux 4200 lm

Lifetime

LED lifetime max. °C 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 60 min
Base light function Yes
Base light function time 10-30 min, all night
Functions Neighbouring-light function, Presence function, Group parameterisation
Settings via Bluetooth
With remote control Yes

Housing & material

Impact resistance IK07
Protection class (IP) IP40
Protection class II
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material Plastic, structured

Scope of delivery & warranty

Manufacturer warranty 5 years

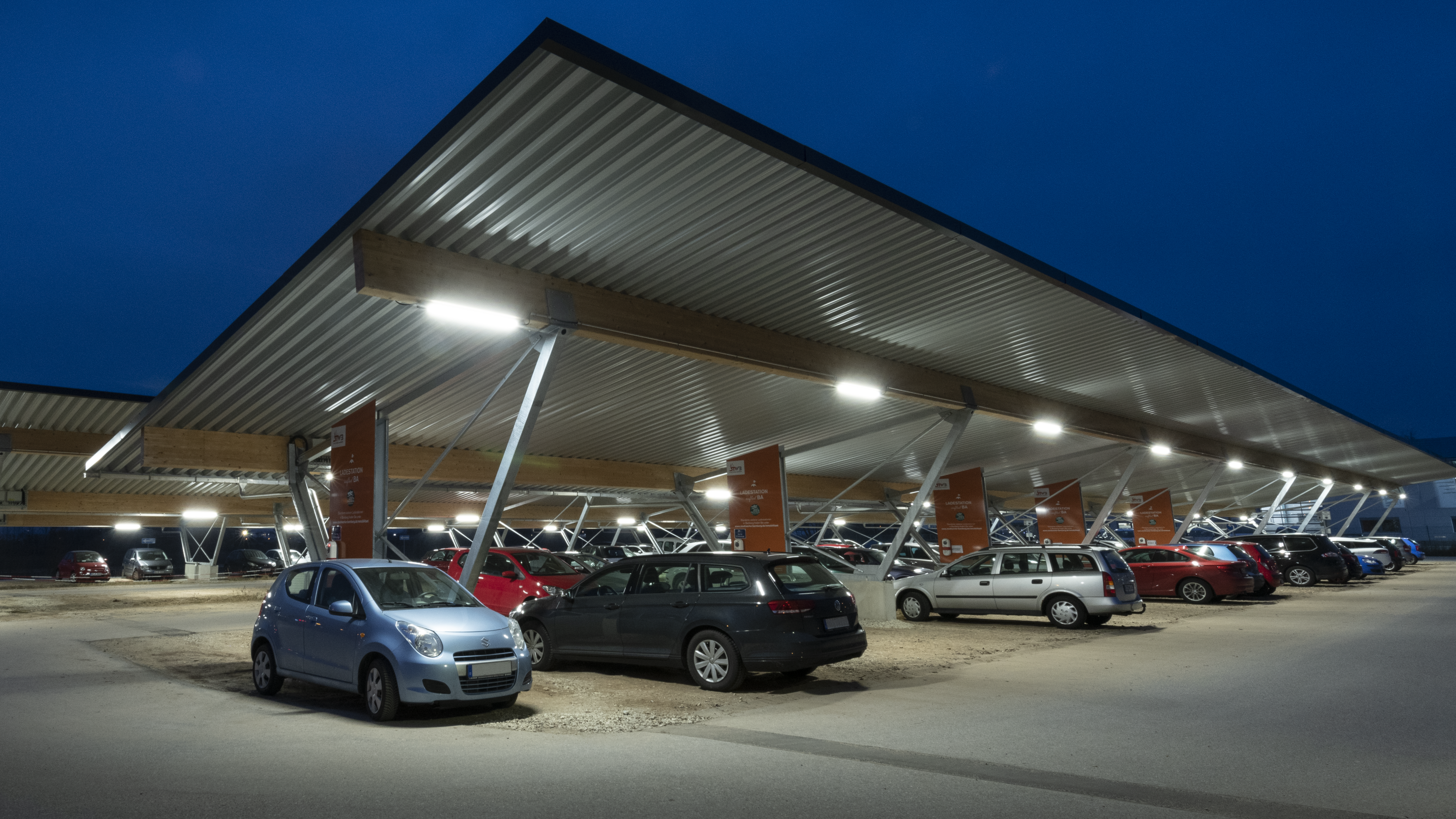

Sensor detection range
