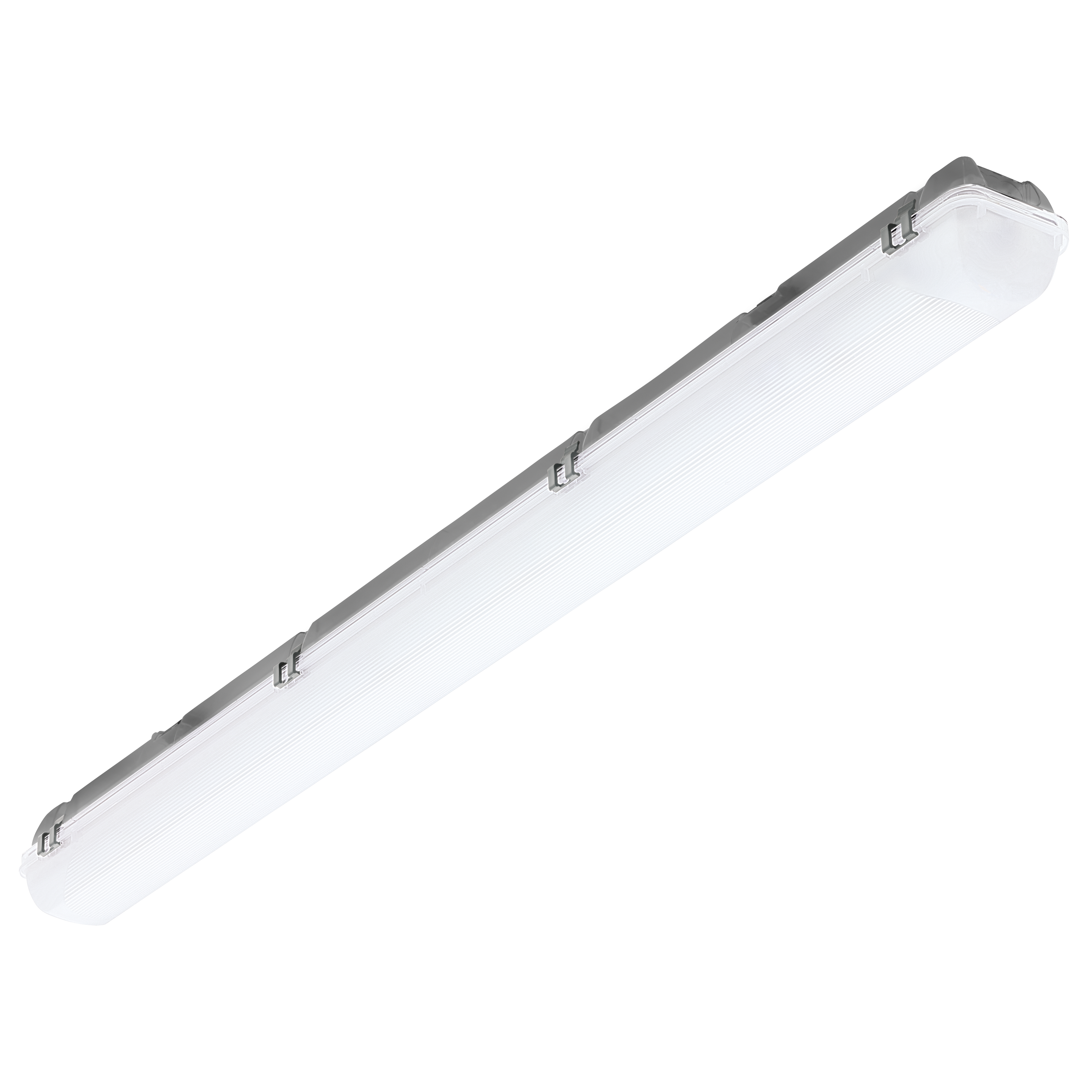

Nevalux RS PRO 5850 LED Slave
ELDAS® no. 941 333 979
EAN-No. 4007841 007683
This product is being replaced by a successor product.
Go to successor product · RS PRO Connect 5100 LED Sensor Verso (220482)Dynamic lighting intelligence. RS PRO 5850 LED Slave high-frequency SensorLight, ideal for corridors, thoroughfares and stairwells as well as WC facilities, washrooms and warehouses or multi-storey car parks and cold rooms. 45 W for 5570 lm of light, optional 10 – 50 % basic light level, without sensor.
- Including STEINEL LED system
- Optional remote control
- Interconnectable via DALI, max. 15 slaves?/master
- Impact-resistant material rated to IK07
- Intelligent swarm function
Identification
Variant
Slave
Variants
Luminous flux
5570 lm
Dimensions
Dimensions L × W × H
1,583 x 105 x 105 mm
Electrical
Mains connection
220 – 240 V , 50 / 60 Hz
Power
45 W
Sensor technology
Transmission power
< 1 mW
With motion detector
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Luminous flux
5570 lm
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
No
Twilight setting
2 – 2000 lx
Time setting
5 sec – 15 min
Functions
Group parameterisation, Neighbouring-light function, Presence function
Housing & material
Impact resistance
IK07
Protection class (IP)
IP66
Protection class
I
Ambient temperature
-20 – 30 °C
Housing material
Plastic
Cover material
Plastic, opal
Scope of delivery & warranty
Manufacturer warranty
5 years
