Nevalux RS PRO Connect 5100 LED Sensor

Nevalux RS PRO Connect 5100 LED Sensor

ELDAS® no. 941 000 059 · EAN-No. 4007841 052911

Technical data Illustrations Wiring diagrams Downloads Accessories
Nevalux

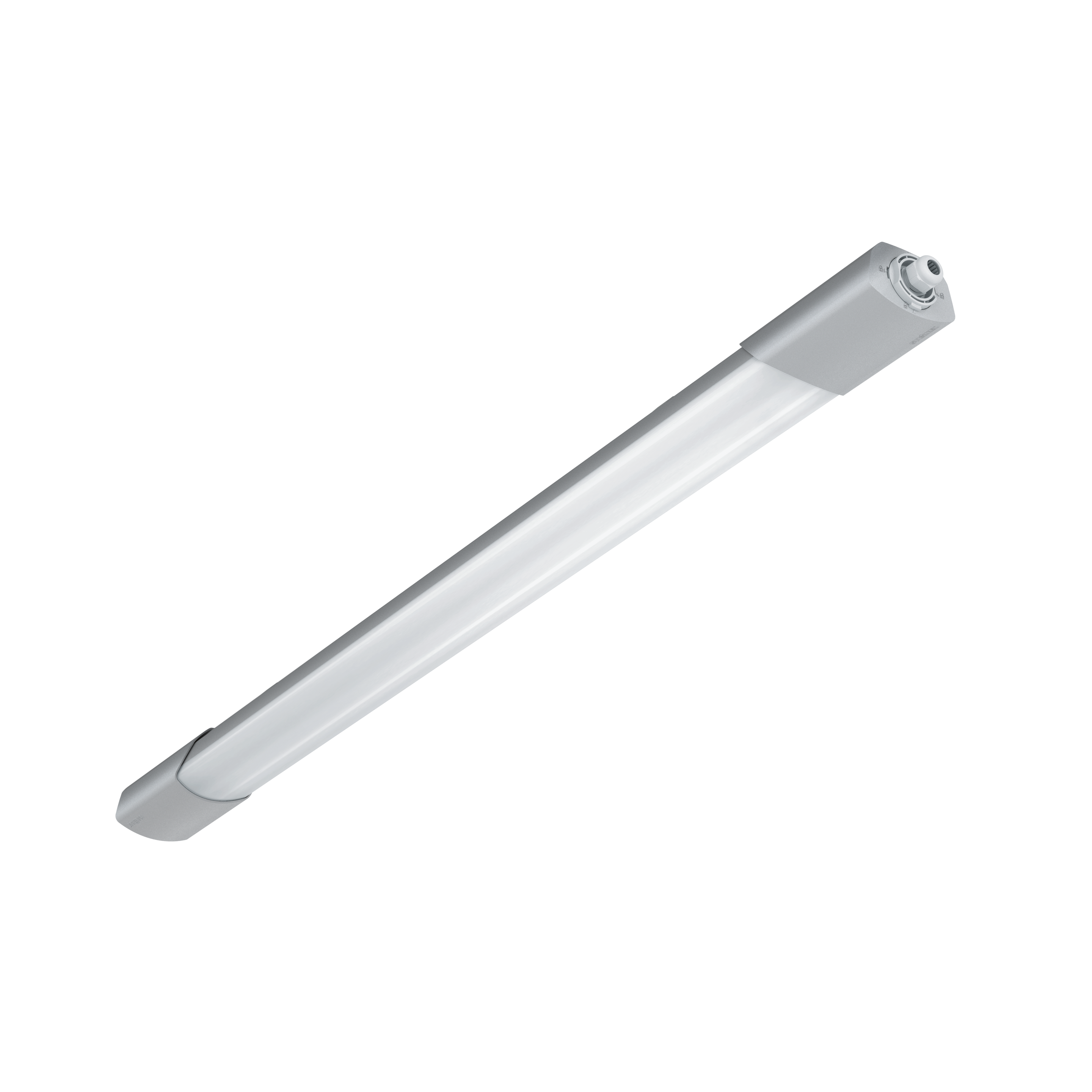

Nevalux RS PRO Connect 5100 LED Sensor

ELDAS® no. 941 000 059

EAN-No. 4007841 052911

This product is being replaced by a successor product.

Go to successor product · RS PRO 5100 SC with motion detector & Bluetooth (078881)

New diffuser luminaire. New options. The sensor-switched LED diffuser luminaire is sturdy, practical, easy to install, interconnectable via Bluetooth, conveniently set by smartphone, extremely energy-efficient and no problem whatsoever to service. Ideal for refurbishment in multi-storey car parks, basements, industrial and sports buildings, garages and corridors. 360° high-frequency sensor, 10 m reach. With 4206 lm from 30 W in a colour temperature of 4000 K (neutral white). Presence mode rules out any unintentional deactivation.

  • Including STEINEL LED system
  • Interconnectable and adjustable via Bluetooth
  • Impact-resistant material rated to IK07
  • Optional basic lighting level 10 - 50 %
  • Optional main light level 50 - 100%
  • Adjustable mounts for easy installation

Identification

Variant Sensor

Variants

Luminous flux 4206 lm

Dimensions

Dimensions L × W × H 58 x 1370 x 87 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 30 W
Own consumption 0,4 W

Sensor technology

Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 10 m (79 m²)

Connectivity

Networking Yes
Type of networking Master/master, Master/slave

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No
Continuous light selectable
Luminous flux 4206 lm

Lifetime

LED lifetime max. °C 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 60 min
Base light function Yes
Base light function time 10-30 min, all night
Functions Group parameterisation, Manual ON / ON-OFF, Master/slave override, Neighbouring-group function, Presence function
Settings via Bluetooth
With remote control No

Housing & material

Impact resistance IK07
Protection class (IP) IP66
Protection class II
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material Plastic, structured

Scope of delivery & warranty

Manufacturer warranty 5 years

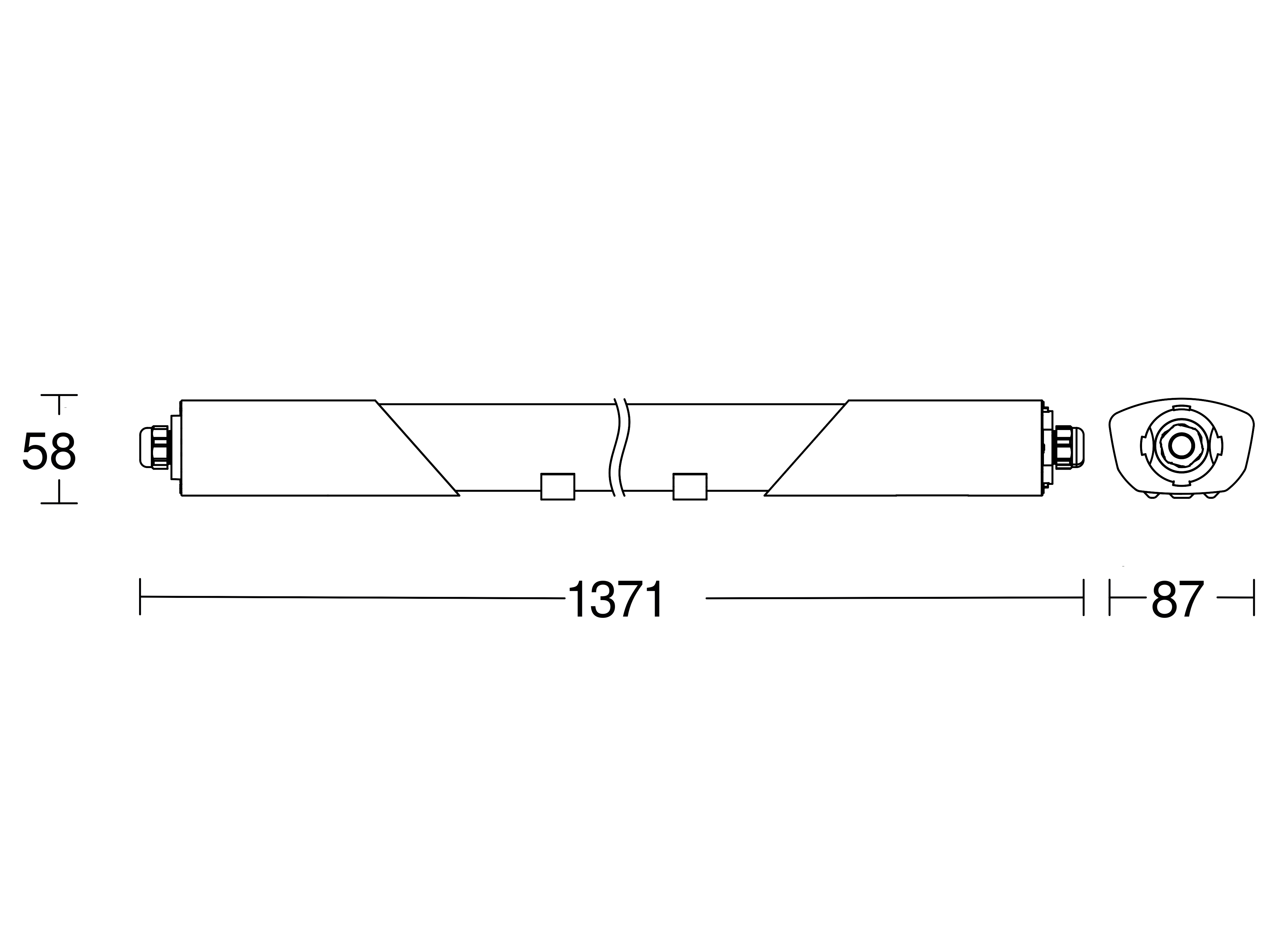

Technical drawing

Sensor detection range

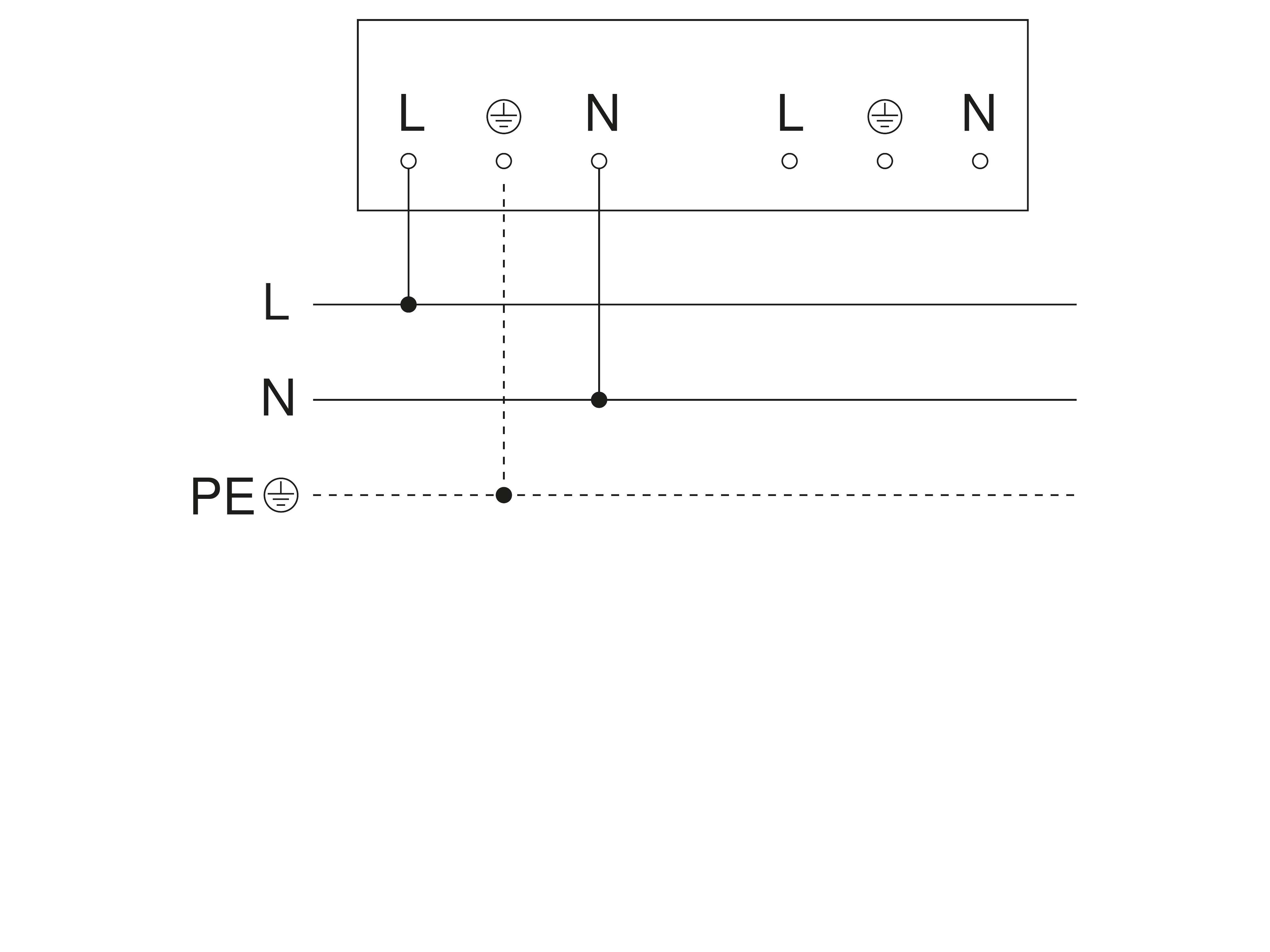

Wiring diagram 1

Master circuit diagram

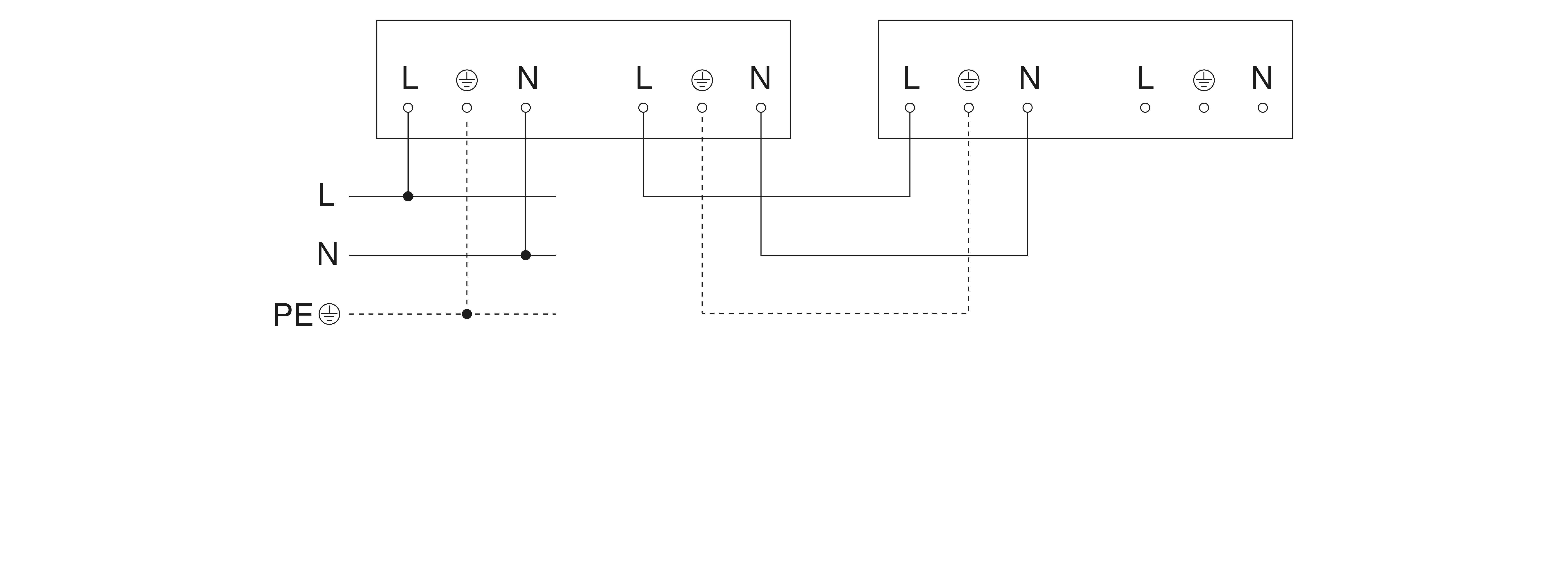

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram
