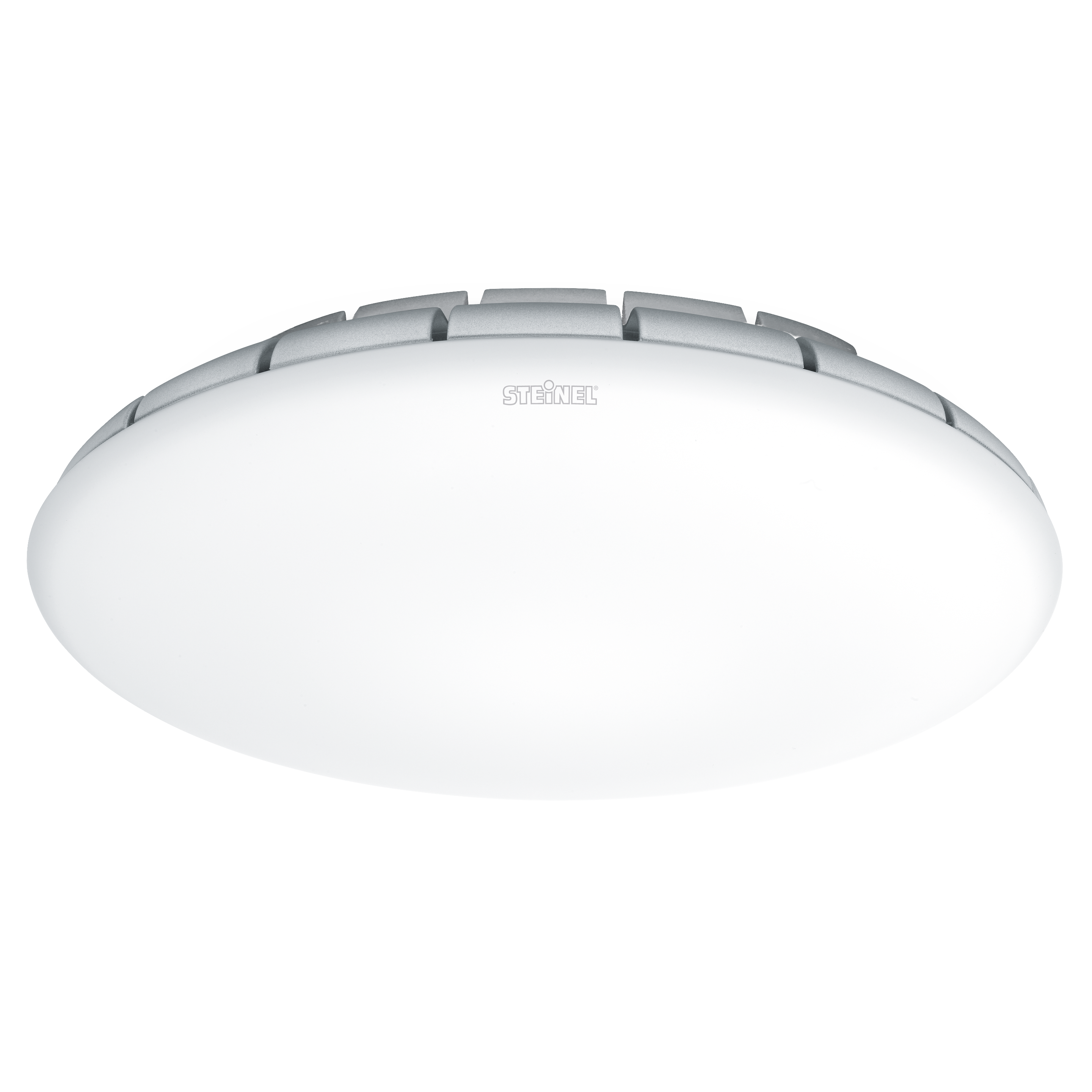

Nevalux RS PRO LED B1 emergency light Neutral white
ELDAS® no. 941 003 439
EAN-No. 4007841 065997
This product is being replaced by a successor product.
Go to successor product · RS PRO R10 basic SC Singlepack - neutral white (067809)Standard-compliant emergency light. High-frequency indoor SensorLight RS PRO LED B1, ideal when there's a need to meet requirements for decentralised emergency lighting in conformity with standards, 13,5 W /1166 lm, PMMA shade, 360° detection, reach from 1 – 8 m.
- Including STEINEL LED system
- Intelligent LED cooling system
- Emergency light module in compliance with EN 60598-2-22
- High-quality aluminium
- Interconnectable by cable
Dimensions
Dimensions Ø × H
300 x 67 mm
Electrical
Mains connection
230 – 240 V / 50 Hz
Power
13,5 W
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Segment-by-segment masking
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 8 m (50 m²)
Mounting height
2,00 – 4,00 m
Optimal mounting height
2,5 m
Connectivity
Networking
Yes
Type of networking
Master/master\nMaster/slave
Networking via
Cable
Lighting technology
Measured luminous flux 360°
1166 lm
Colour temperature
4000 K
LED colour deviation
SDCM3
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Active Thermo Control
Soft light start
No
Continuous light
selectable
Efficiency without cover
86 lm/W
Luminous flux emergency light
21 lm
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 s – 15 Min.
Base light function
No
Functions
Emergency light in compliance with EN 60598-2-22 for 3h
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Impact resistance
IK07
Protection class (IP)
IP20
Protection class
II
Ambient temperature
0 – 40 °C
Housing material
Aluminium
Cover material
PC, opal
Mounting location
ceiling
wall
Application location
Indoors
Mounting type
Surface wiring
Application room
Indoors
WC / washroom
changing room
corridor / aisle
function room / ancillary room
kitchenette
outdoors
stairwell
Colour
Silver
Scope of delivery & warranty
Manufacturer warranty
5 years
Technical drawing

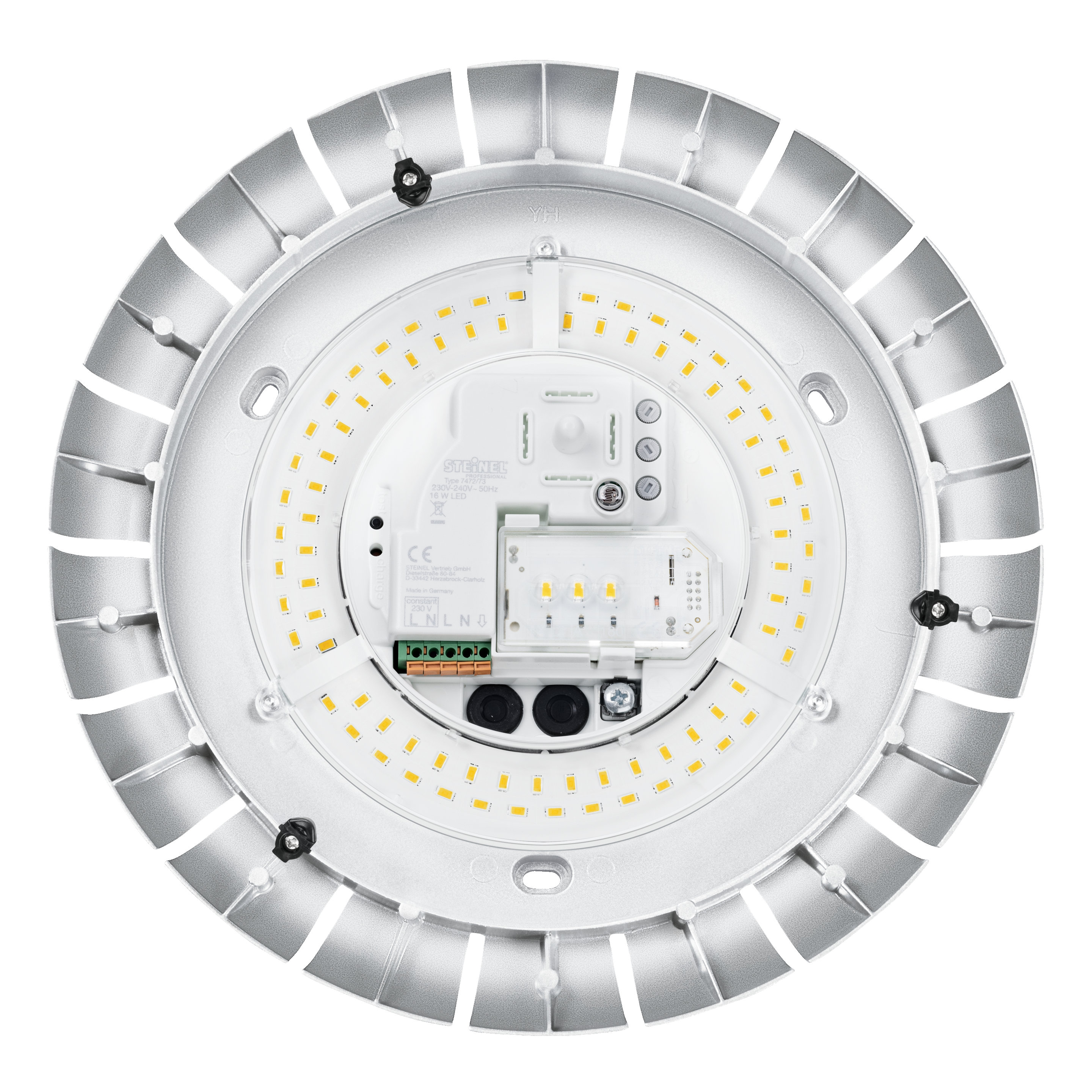

Sensor detection range

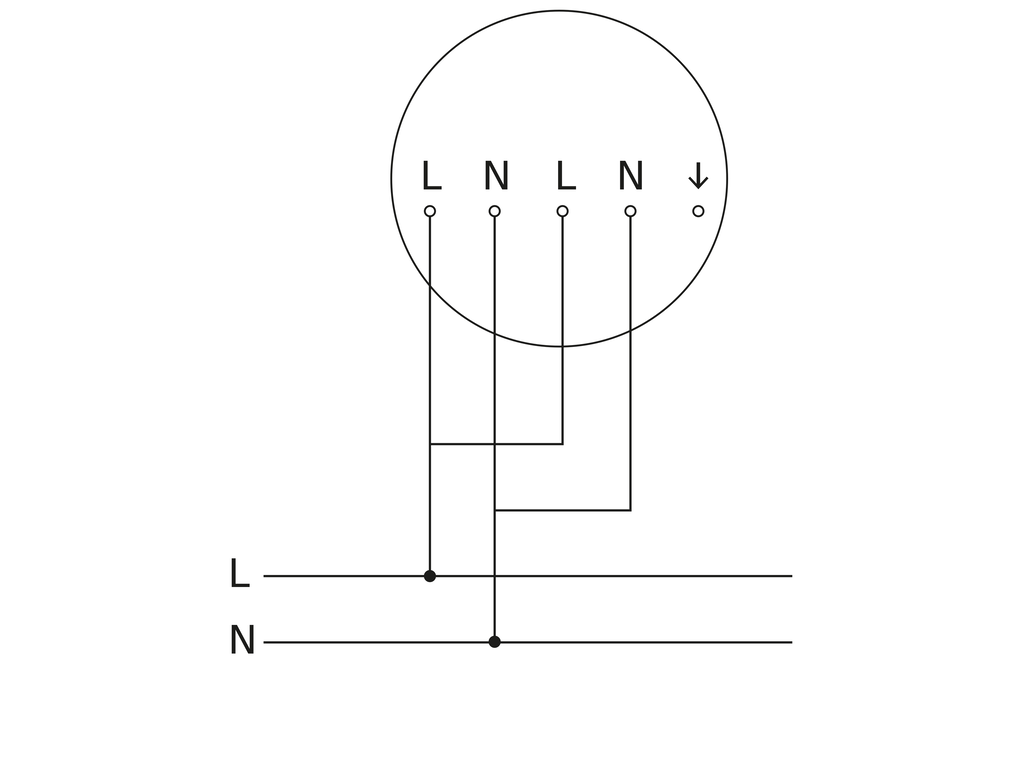

Wiring diagram 1
Master circuit diagram
Wiring diagram 2
Master/master interconnection circuit diagram
