Nevalux RS PRO LED S1 IP65 warm white

Nevalux RS PRO LED S1 IP65 warm white

ELDAS® no. 941 000 349 · EAN-No. 4007841 057824

Technical data Illustrations Downloads Accessories
Nevalux

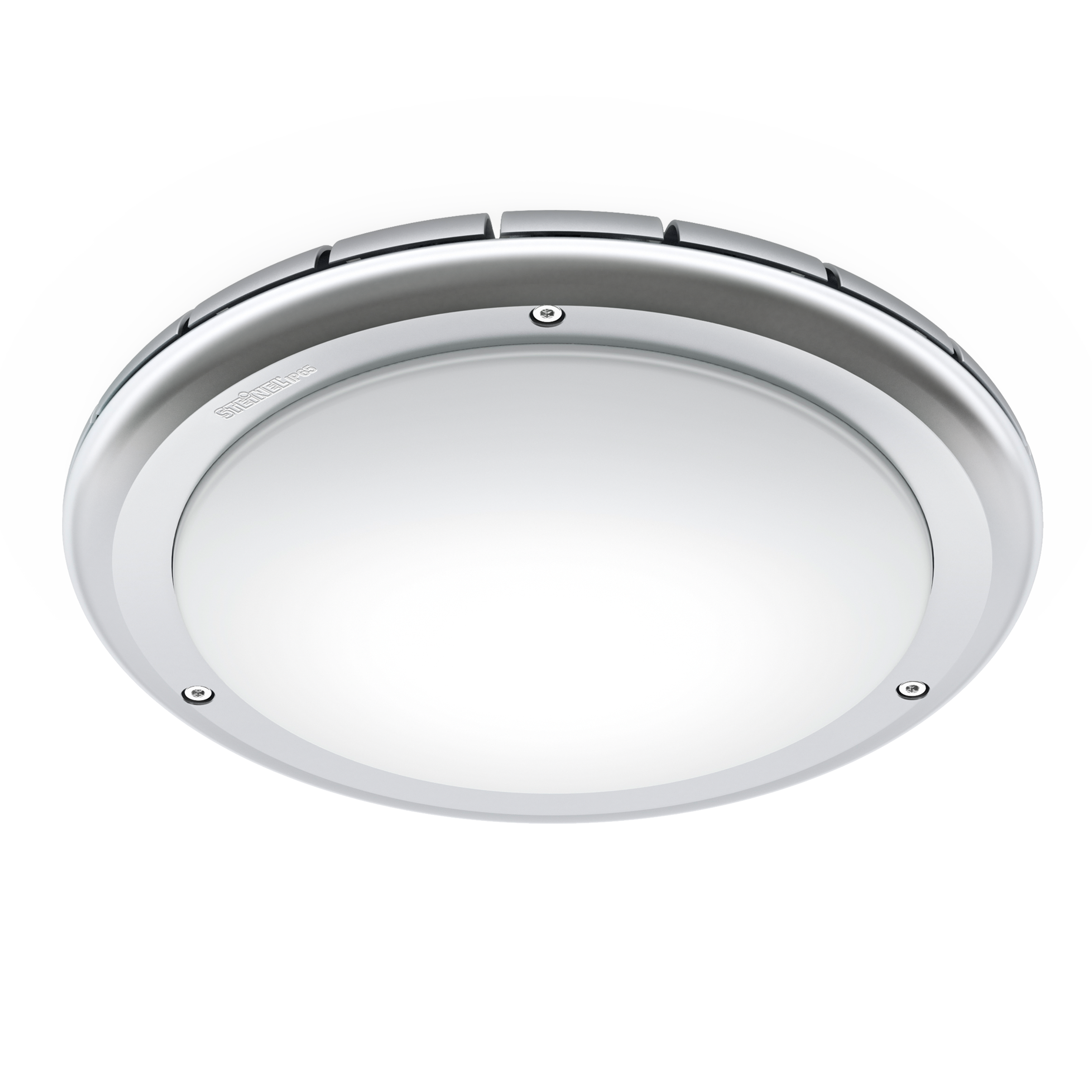

Nevalux RS PRO LED S1 IP65 warm white

ELDAS® no. 941 000 349

EAN-No. 4007841 057824

This product is being replaced by a successor product.

Go to successor product · RS PRO S20 SC IP65 PC warm white (079789)

Nice and compact. Nice and robust. High-frequency SensorLight RS PRO LED S1 IP65 Sensor PC, ideal for swimming pools, hotels, changing and shower areas, thoroughfares in industrial buildings and pedestrian subways, can be wirelessly interconnected with other RS PRO LED S1 IP65, 15 W LED/1092 lm, 3000 K, impact-resistant and opal polycarbonate shade, IK10, 360° detection, reach Ø 1 – 8 m, basic light-level function, presence mode and neighbouring light function, adjustable with Smart Remote.

  • Including STEINEL LED system
  • Intelligent LED cooling system
  • Optional basic lighting level 10 %
  • Wireless interconnection
  • High-quality aluminium
  • Impact-resistant material rated to IK10
  • Optional remote control

Identification

Variant warm white

Variants

Luminous flux 1092 lm

Dimensions

Dimensions Ø × H 300 x 71 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz
Power 15 W

Sensor technology

Sensor technology High frequency
Transmission power < 1 mW
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Mechanical scalability No

Connectivity

Slave mode adjustable Yes

Lighting technology

Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes
Illuminant LED cannot be replaced
Base without
LED cooling system Active and Passive Thermo Control
Soft light start Yes
Continuous light selectable
Luminous flux 1092 lm

Lifetime

LED lifetime max. °C 70000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 15 min
Base light function Yes
Base light function time 10/30 min, all night
Functions Manual ON / ON-OFF, Group parameterisation, Neighbouring-light function, Presence function
Settings via Potentiometers, DIP switches, Remote control
With remote control No

Housing & material

Impact resistance IK10
Protection class (IP) IP65
Protection class II
Ambient temperature -10 – 50 °C
Housing material Aluminium
Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 5 years

Sensor detection range

Remote control Smart Remote

Remote control Smart Remote

Item no. 009151
