Nevalux RS PRO LED S2 IP65 warm white

Nevalux RS PRO LED S2 IP65 warm white

ELDAS® no. 941 000 369 · EAN-No. 4007841 057688

Technical data Illustrations Downloads Accessories
Nevalux

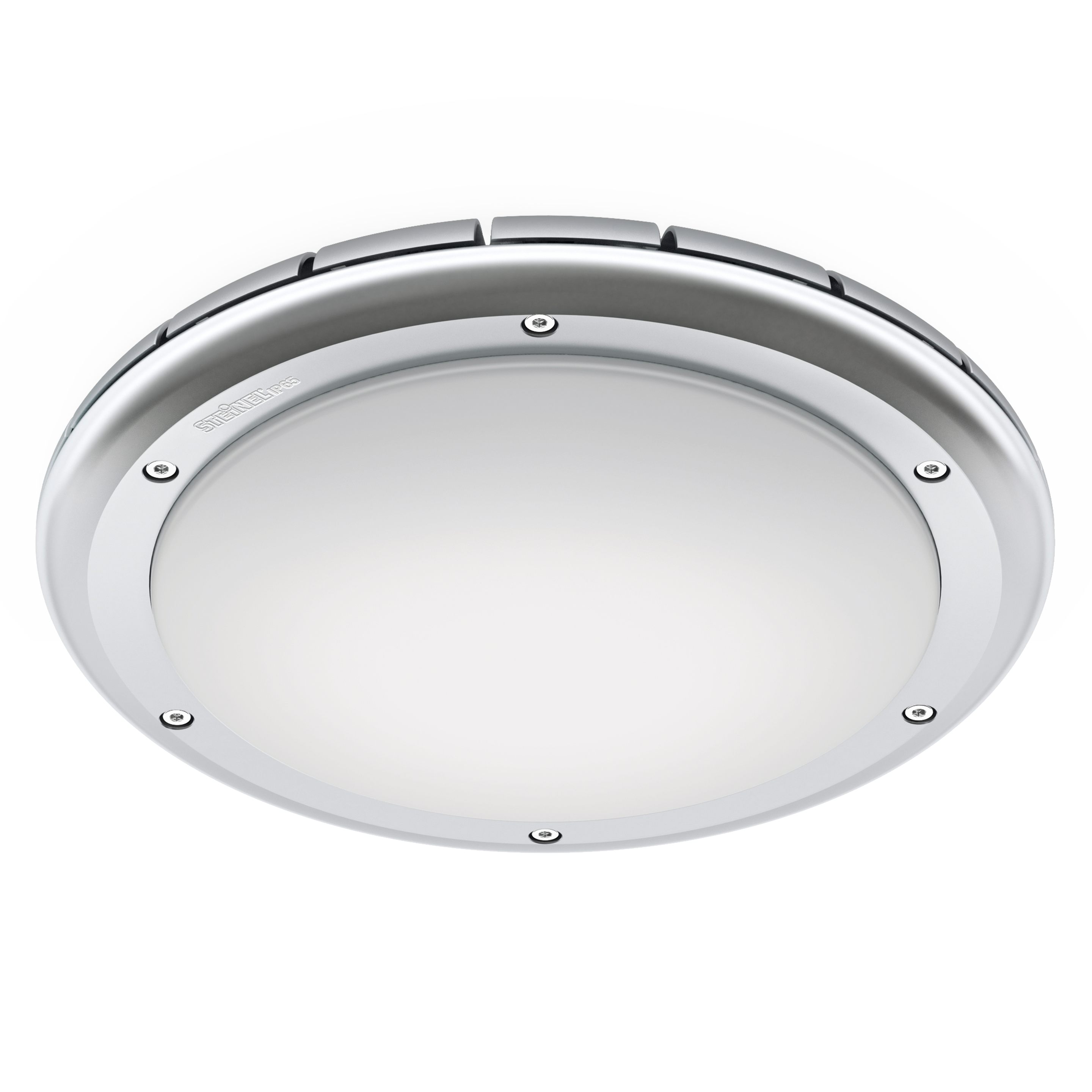

Nevalux RS PRO LED S2 IP65 warm white

ELDAS® no. 941 000 369

EAN-No. 4007841 057688

This product is being replaced by a successor product.

Go to successor product · RS PRO LED S1 IP65 warm white (4007841057824)

A shining light. In terms of strength and ease of installation. High-frequency SensorLight RS PRO LED S2 IP65, ideal for swimming pools, hotels, changing and shower areas, thoroughfares in industrial buildings and pedestrian subways, can be wirelessly interconnected with RS PRO LED S1, S2 IP65, 1903 lm, 3000 K, impact-resistant and opal polycarbonate shade, IK10, 360° detection, reach from 1 – 8 m, basic light-level function, presence mode and neighbouring light function.

  • Including STEINEL LED system
  • Intelligent LED cooling system
  • Smart Remote remote control optional
  • Optional basic lighting level 10 - 20%
  • Wireless interconnection
  • High-quality aluminium
  • Impact-resistant material rated to IK10

Identification

Variant warm white

Variants

Luminous flux 1903 lm

Dimensions

Dimensions Ø × H 362 x 82 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz
Power 26 W

Sensor technology

Sensor technology High frequency
Transmission power < 1 mW
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Mechanical scalability No

Connectivity

Networking Yes

Lighting technology

Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Active and Passive Thermo Control
Luminous flux 1903 lm

Lifetime

LED lifetime max. °C 70000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 15 min
Base light function Yes
Base light function time 10/30 min, all night
Functions Neighbouring-light function, Presence function

Housing & material

Impact resistance IK10
Protection class (IP) IP65
Protection class II
Ambient temperature -10 – 50 °C
Housing material Aluminium
Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 5 years

Sensor detection range

Remote control Smart Remote

Remote control Smart Remote

Item no. 009151
