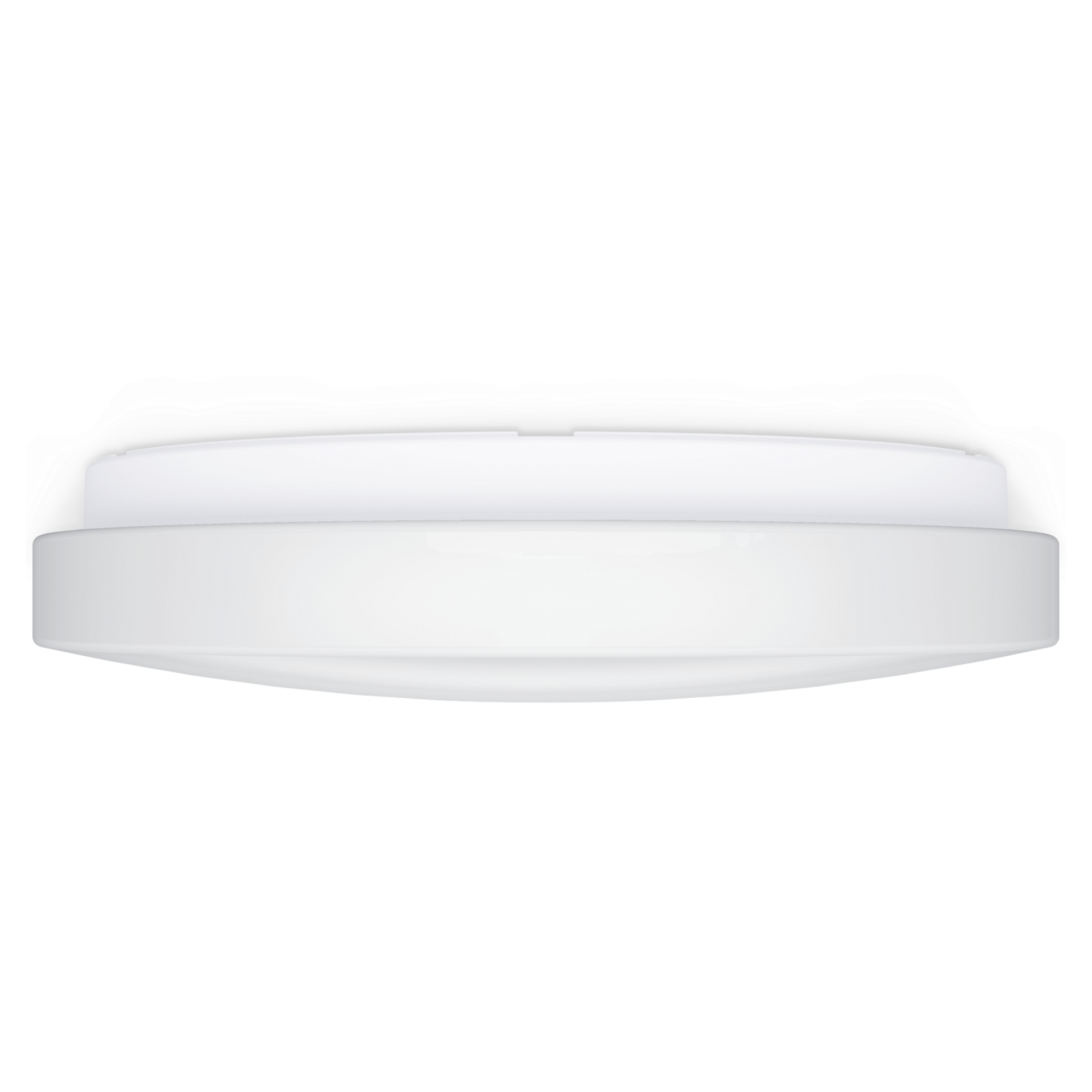

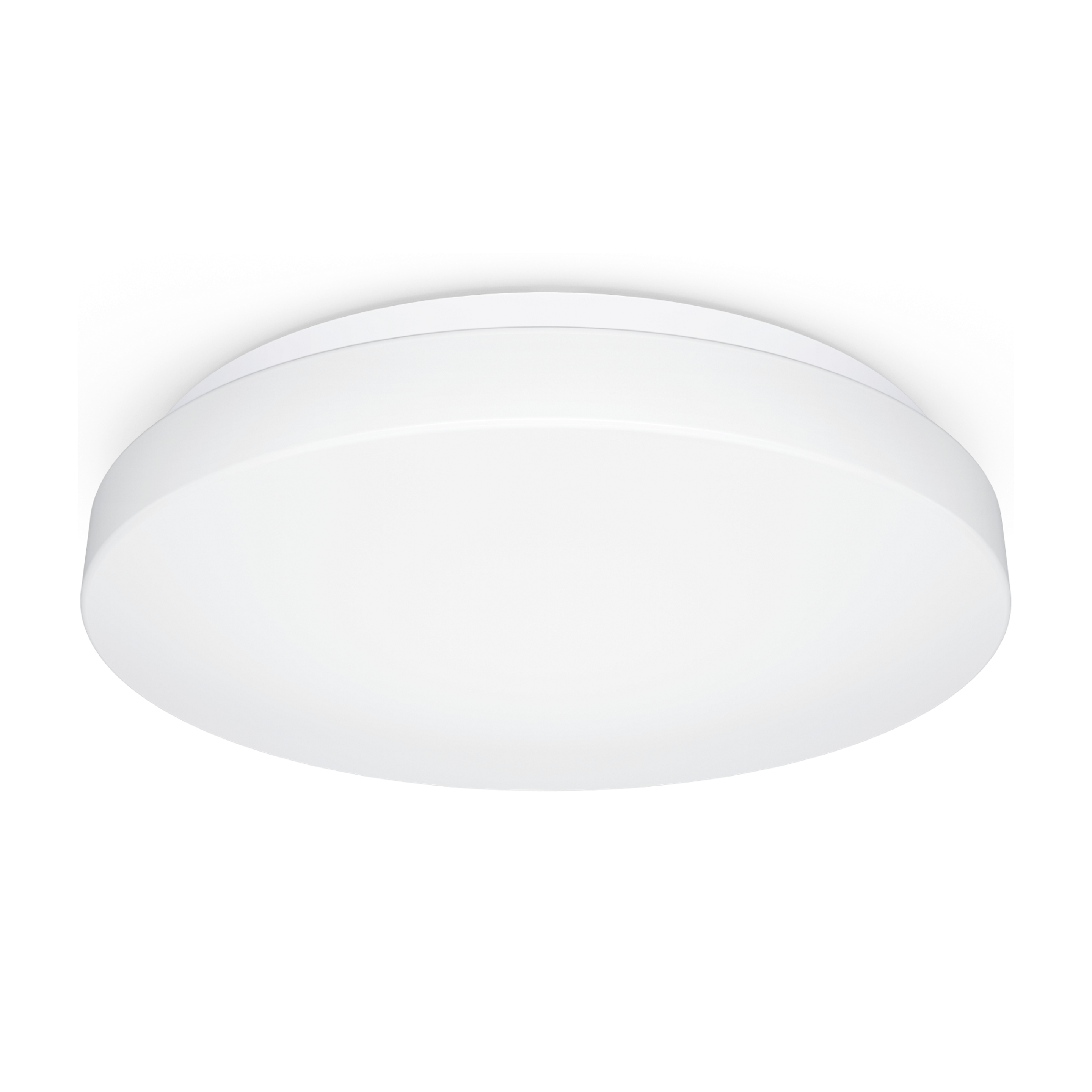

nevalux RS PRO P2 FLAT S SP neutral white

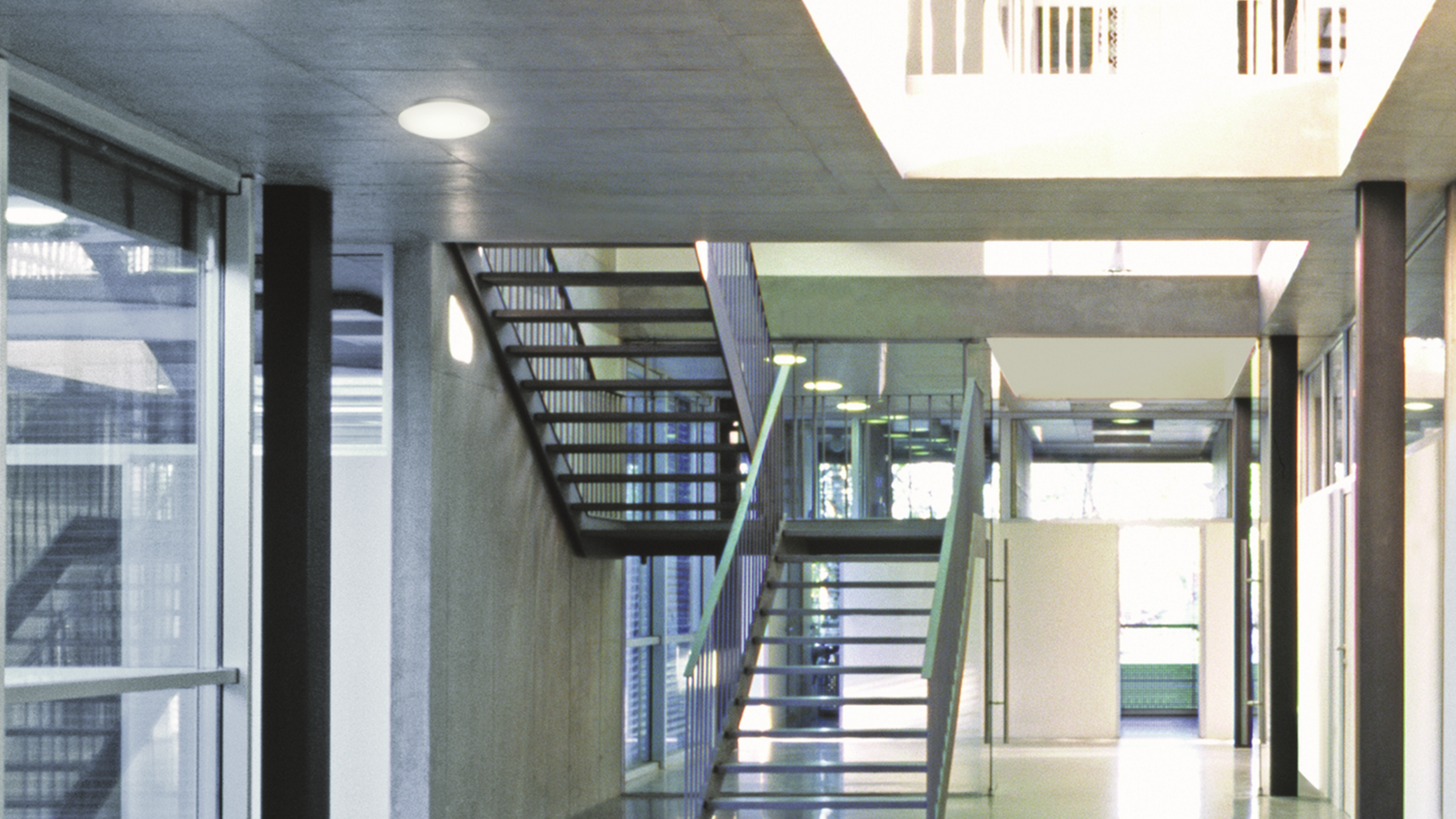

Round light for stairwells, cellars and storerooms. Optionally with sensor and integrated emergency light.

EAN-No. 221822

Price: Please log in to see prices

Variant

P1 convex P1 flat P2 convex P2 flat P3 convex

With motion detector

No Yes

Colour temperature

3000 K 4000 K

With emergency light

No Yes

Version

Shock-tested Standard

Circular classic. Perfect shape. Perfect efficiency. The perfect switched indoor light. The RS PRO P2 flat S integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and unbeatable efficiency. High-precision 360° HF sensor for reliable detection (8 m reach). In addition, two metal discs are always included to further limit the sensor in certain directions. As many as ten lights can be interconnected by cable. Output: 15,4 W with 1700 lm, 4000 K.

  • Including STEINEL LED system
  • Intelligent soft light start
  • Interconnectable by cable (maximum of 10 units)
  • Optional basic lighting level 10 %

Variants

Version With sensor

Dimensions

Dimensions Ø × H 322 x 68 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 15,4 W
Switching output 1 low-voltage halogen lamps 800 VA
Capacitive load in µF 88 µF
Switching output 1 number of LED/fluorescent lamps 50 pcs.

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2,0 – 4,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Cable

Lighting technology

Measured luminous flux 360° 1700 lm
Colour temperature 4000 K
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 15 min
Base light function Yes
Base light function time 10/30 Min., ganze Nacht
Main light adjustable No
Base light function in percent 10 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature -10...+40 °C
Housing material Plastic
Cover material Opal plastic
Mounting location ceiling, wall
Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

Technical drawing

Lichtverteilungskurve

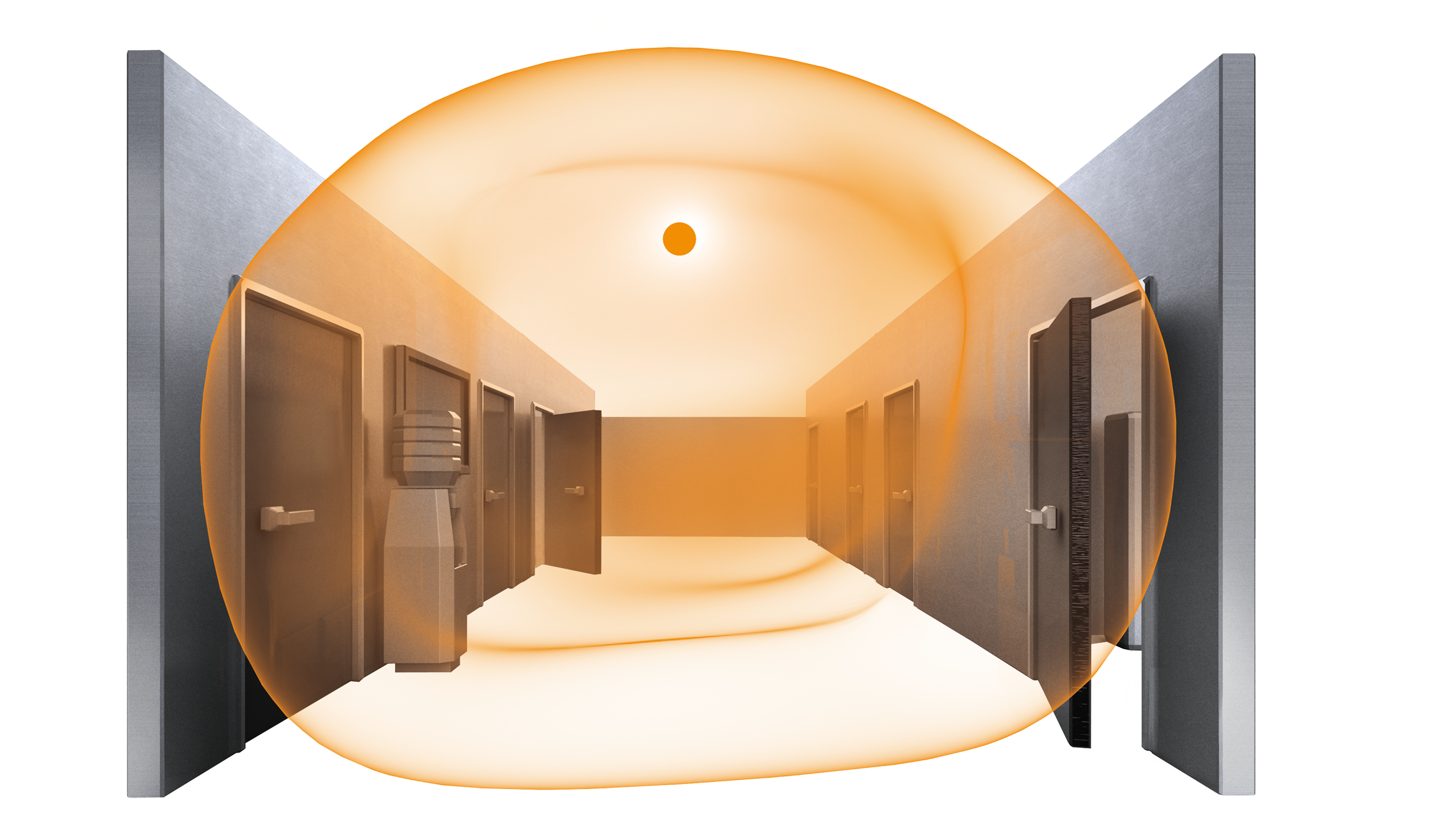

Sensor detection range

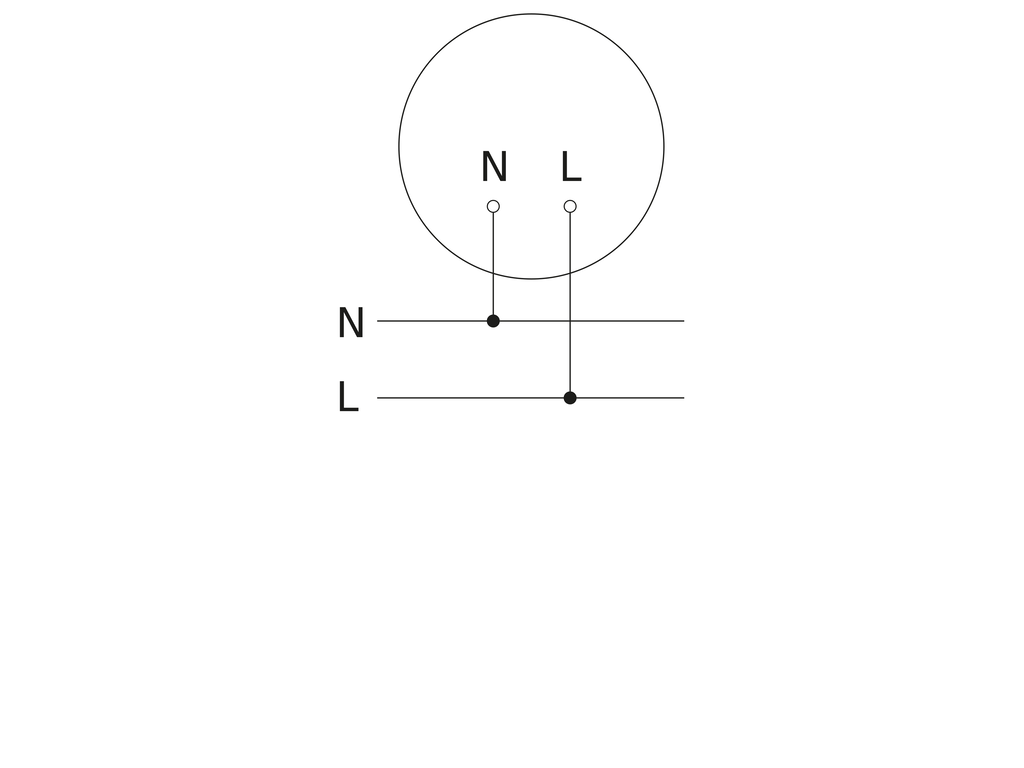

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
