Nevalux RS PRO P1 S SP neutral white

Nevalux RS PRO P1 S SP neutral white

EAN-No. 221801

Technical data Illustrations Wiring diagrams Downloads
Nevalux

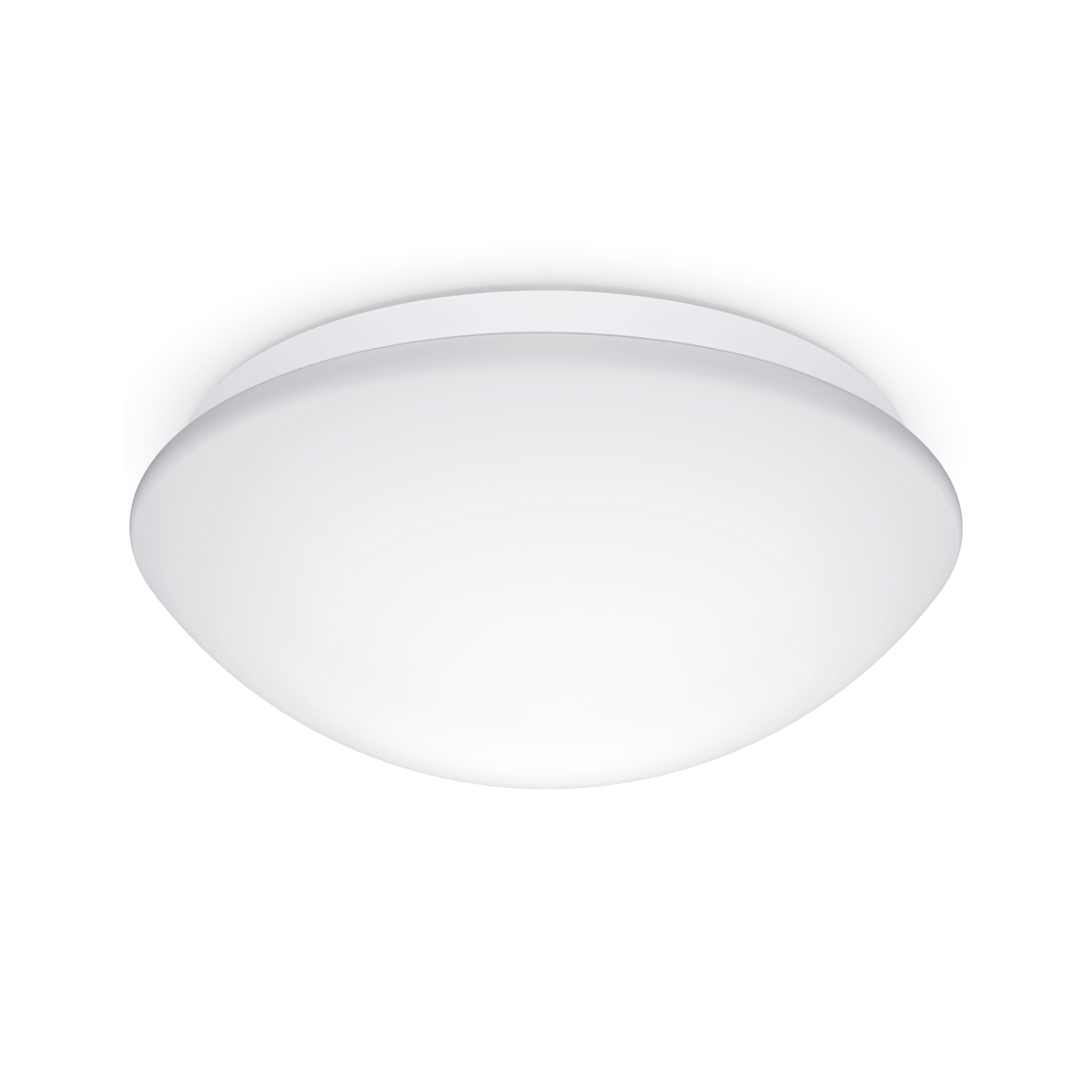

Nevalux RS PRO P1 S SP neutral white

EAN-No. 221801

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Light colour

3000K Warm white 4000K Neutral white

Diameter

Ø320mm Ø400mm Ø280mm

Colour

white Weiß

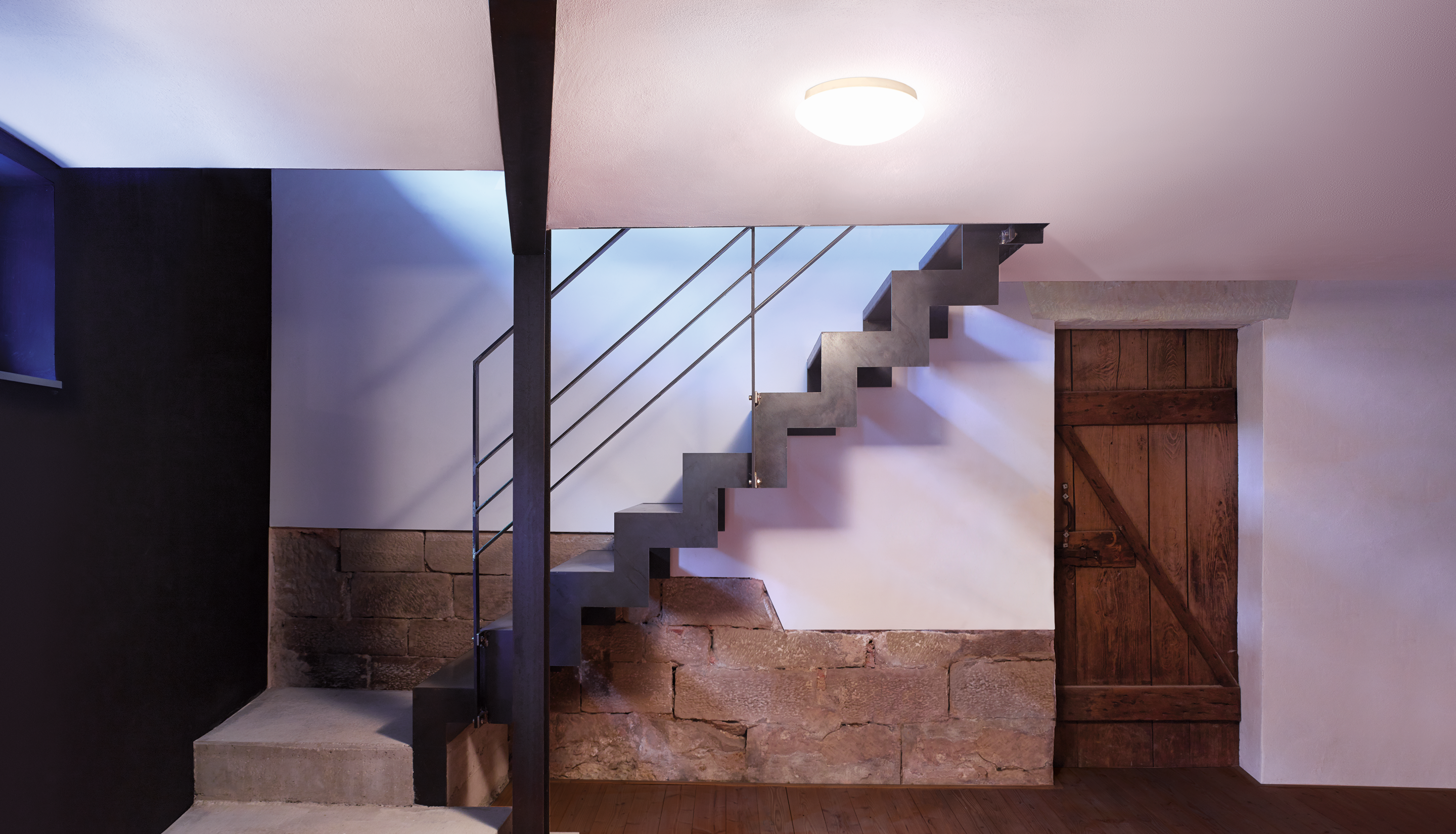

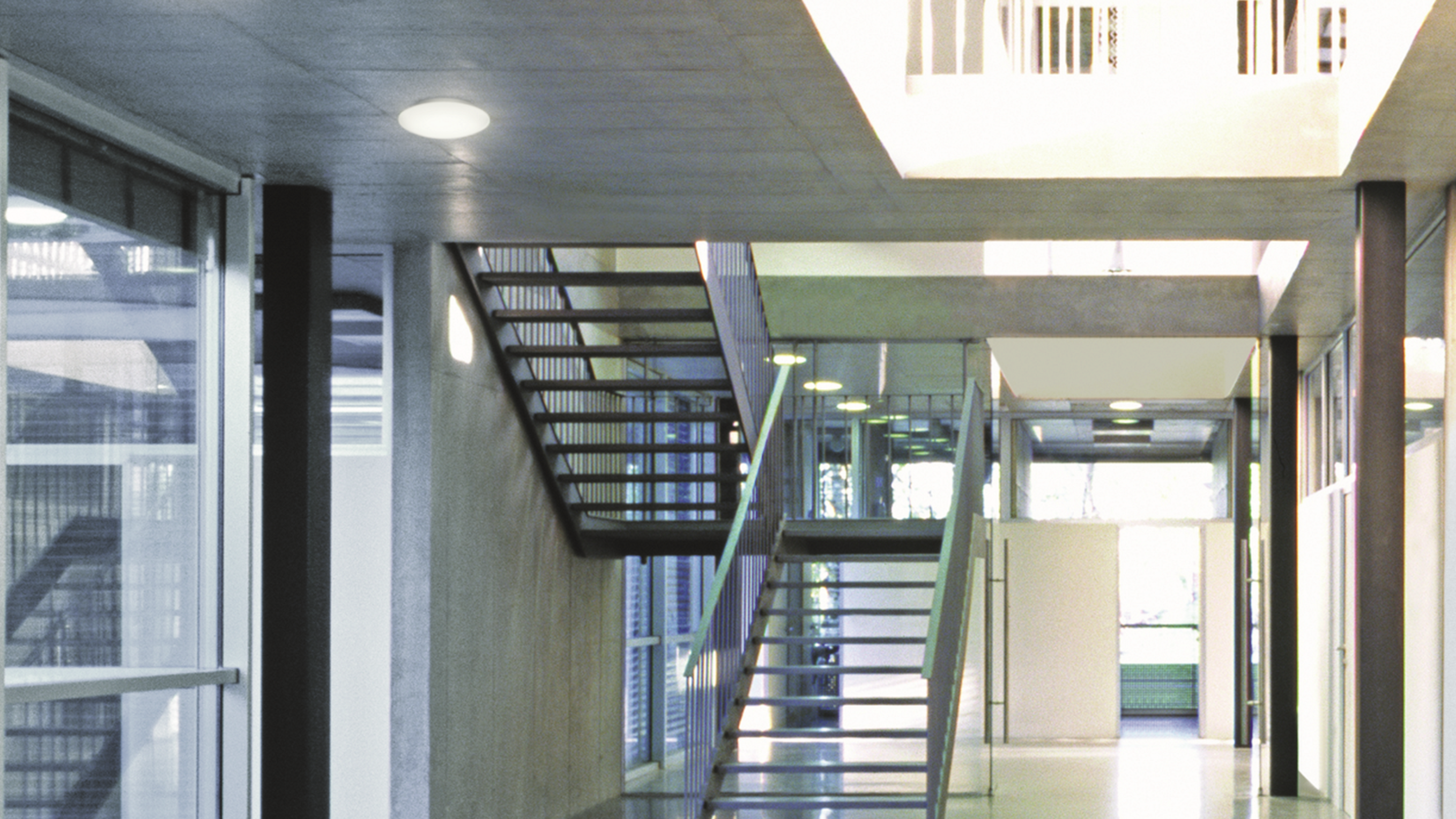

Circular classic. Perfect shape. Perfect efficiency. The perfect switched indoor light . The RS PRO P1 S integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and unbeatable efficiency. In addition, two metal plates are always included to further limit the sensor to certain directions. As many as ten lights can be interconnected by cable. Output: 9,4 W with 980 lm, 4000 K.

  • Including STEINEL LED system
  • Intelligent soft light start
  • Interconnectable by cable (maximum of 10 units)
  • Optional basic lighting level 10 %

Dimensions

Dimensions Ø × H 280 x 110 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,4 W
Switching output 1 low-voltage halogen lamps 800 VA

Sensor technology

Max. mounting height 4,00 m
Sensor technology Hochfrequenz
With motion detector Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2 – 4 m
Optimal mounting height 2,8 m

Connectivity

Networking Ja
Networking via Kabel

Lighting technology

Measured luminous flux 360° 980 lm
Colour temperature 4000 K
With illuminant Ja, STEINEL LED-System
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light schaltbar, 4 h

Lifetime

LED lifetime max. °C 50000 Std
LED lifetime L70B50 25°C > 60000 Std
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 15 Min.
Base light function Ja
Base light function time 10/30 Min., ganze Nacht
Base light function in percent 10 %
Base light function percent from 10

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature von -10 bis 40 °C
Housing material Kunststoff
Cover material Kunststoff opal
Mounting location Wand Decke
Colour Weiß

Scope of delivery & warranty

Manufacturer warranty 5 Jahre

Certificates & EPREL

Certificates DEKRA
EPREL category Umgebenes Produkt mit integrierter Lichtquelle

Technical drawing

Lichtverteilungskurve

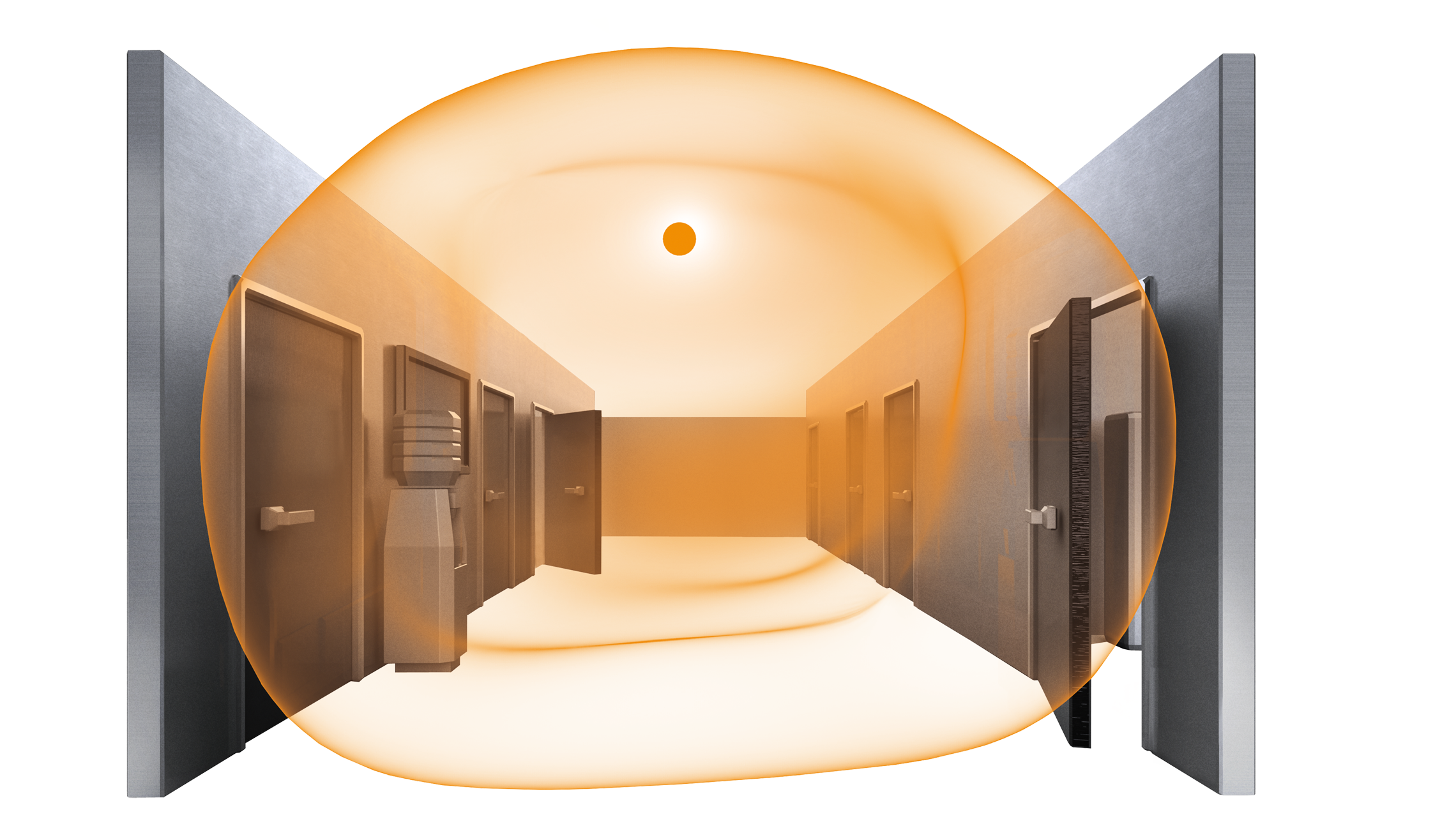

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
