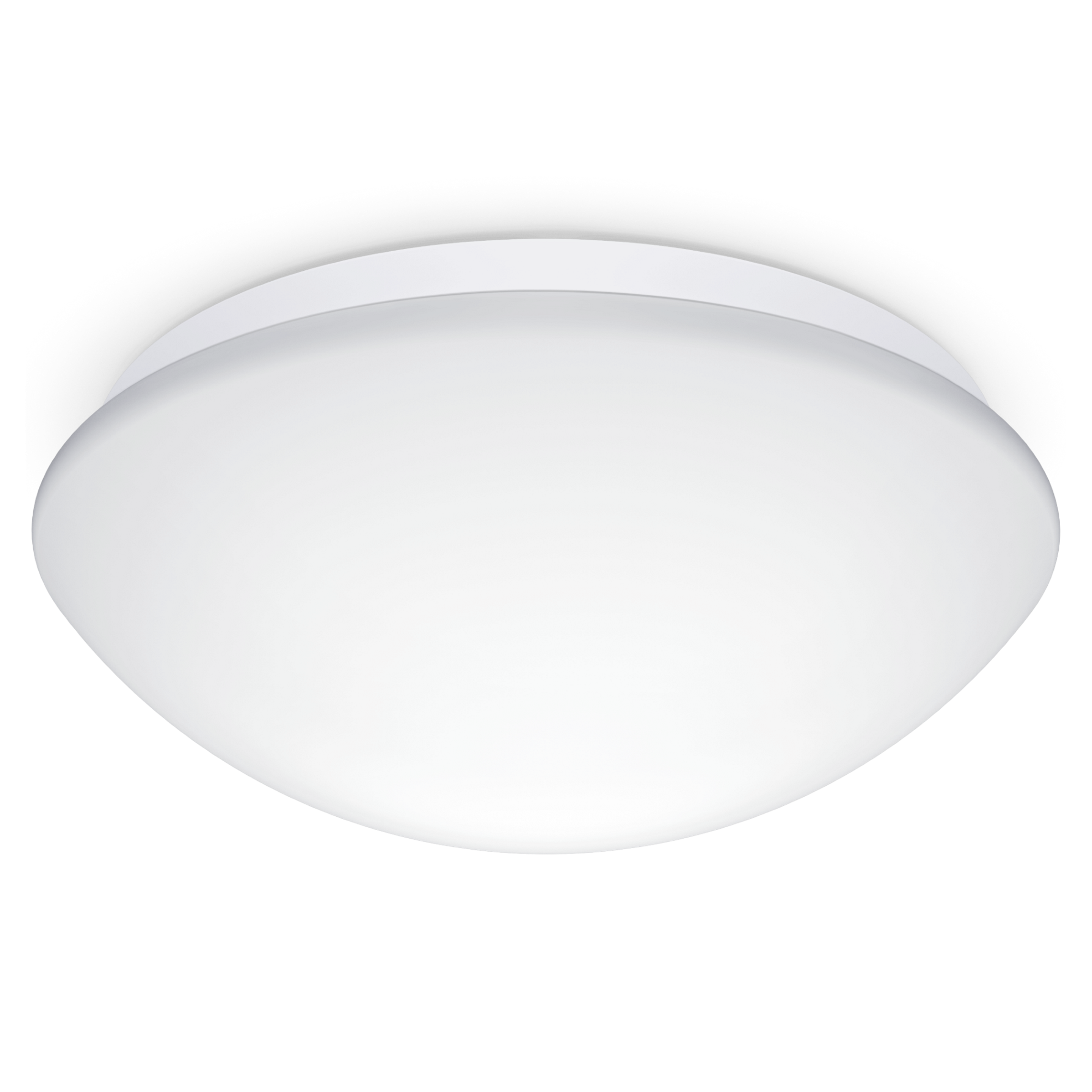

Nevalux RS PRO P3 SP neutral white

EAN-No. 221813

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Light colour

3000K Warm white 4000K Neutral white

Diameter

Ø320mm Ø400mm Ø280mm

Colour

white Weiß

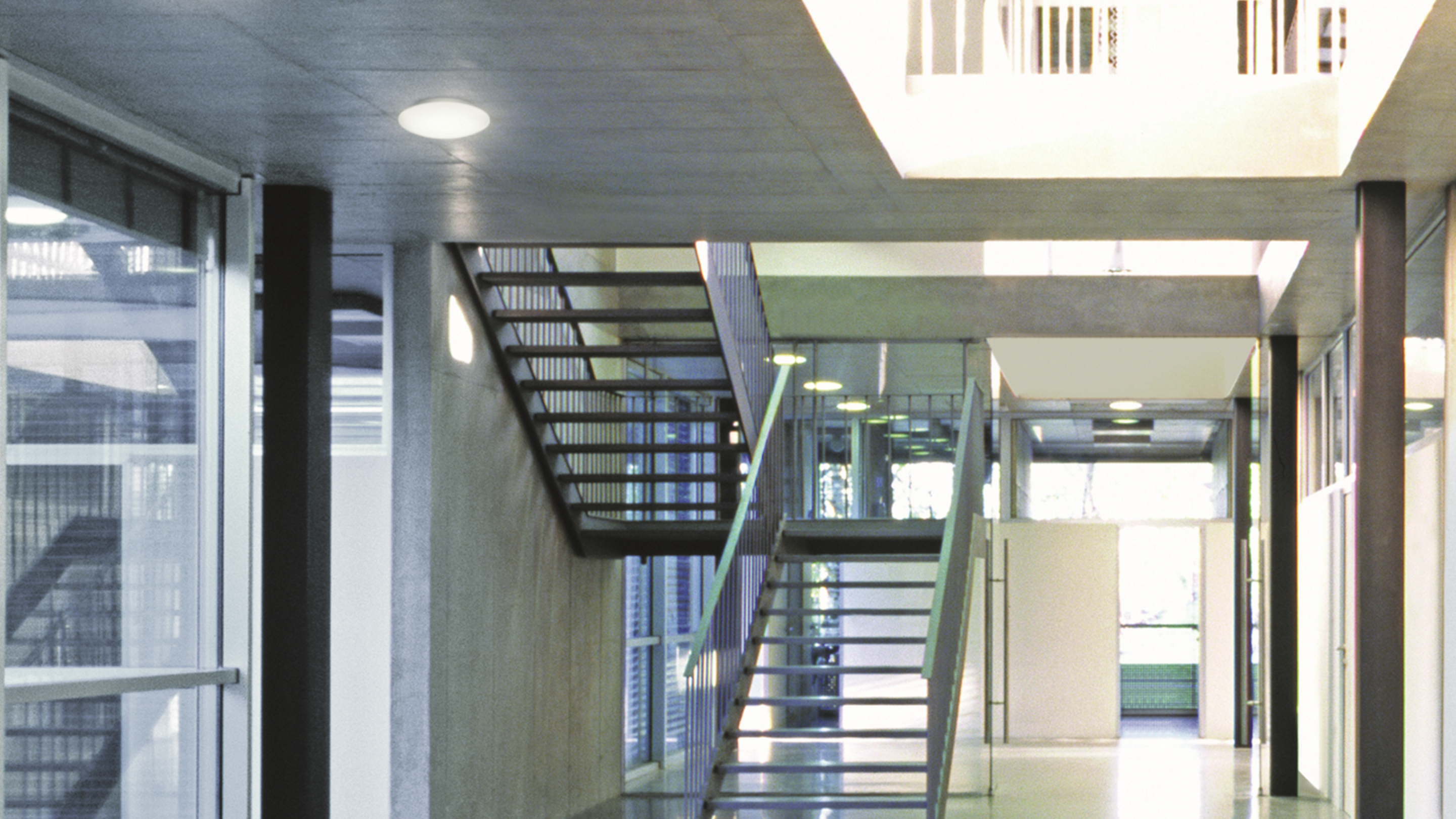

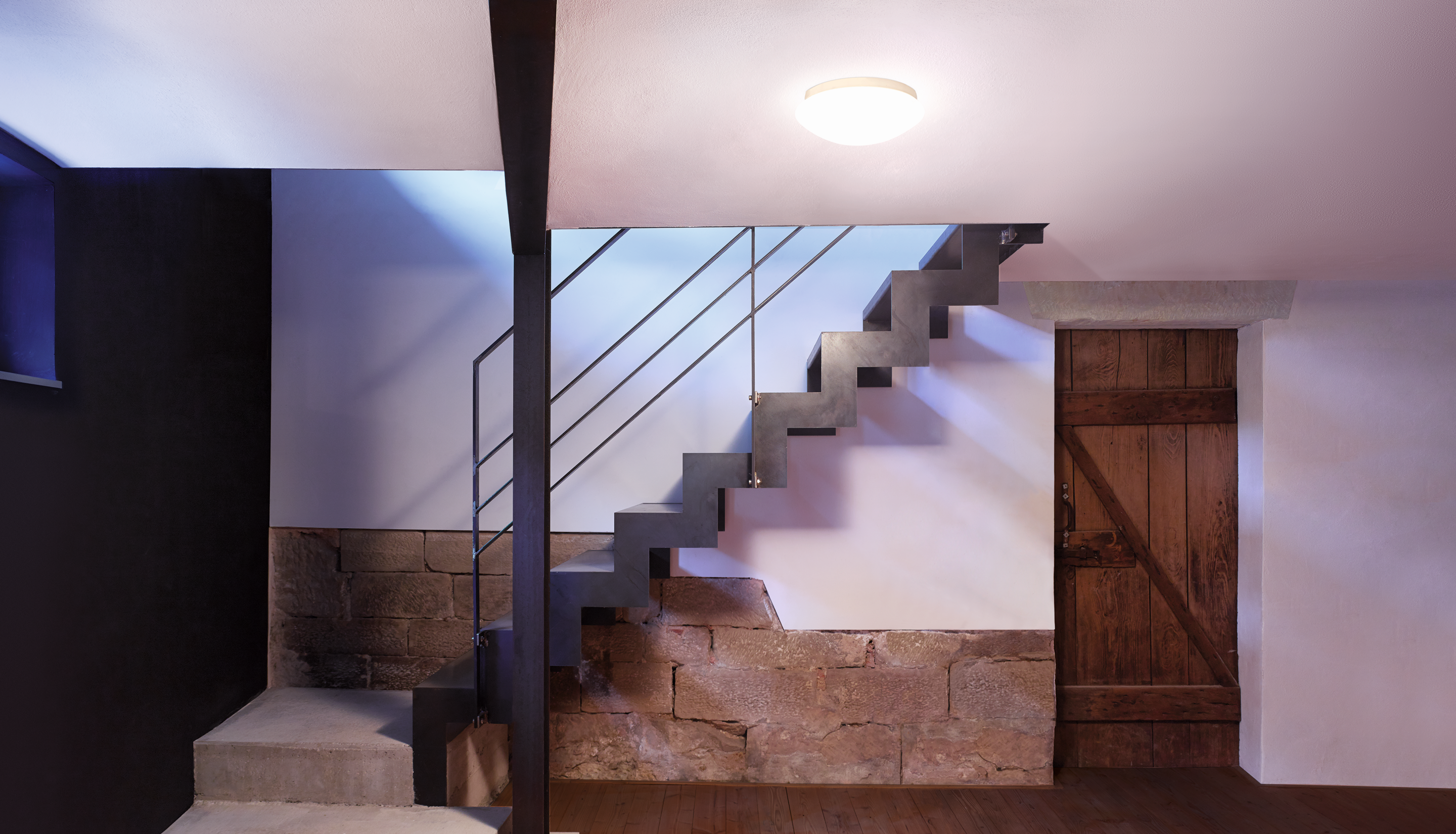

Circular classic. Perfect shape. Perfect efficiency. The perfect indoor light as version without sensor. The RS PRO P3 integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and can be interconnected with the version with sensor by cable. Output: 17,8 W with 2188 lm, 4000 K.

Including STEINEL LED system
Intelligent soft light start
Interconnectable by cable (maximum of 10 units)

Dimensions

Dimensions Ø × H 400 x 142 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 17,8 W

Sensor technology

With motion detector No

Connectivity

Networking via Cable

Lighting technology

Measured luminous flux 360° 2188 lm

Colour temperature 4000 K

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L80B10

Settings

Main light adjustable No

Housing & material

Impact resistance IK03

Protection class (IP) IP54

Protection class II

Ambient temperature from -10 up to 40 °C

Housing material Plastic

Cover material Plastic, opal

Mounting location ceiling wall

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA

EPREL category Surrounded product with integrated light source

Technical drawing

Sensor detection range

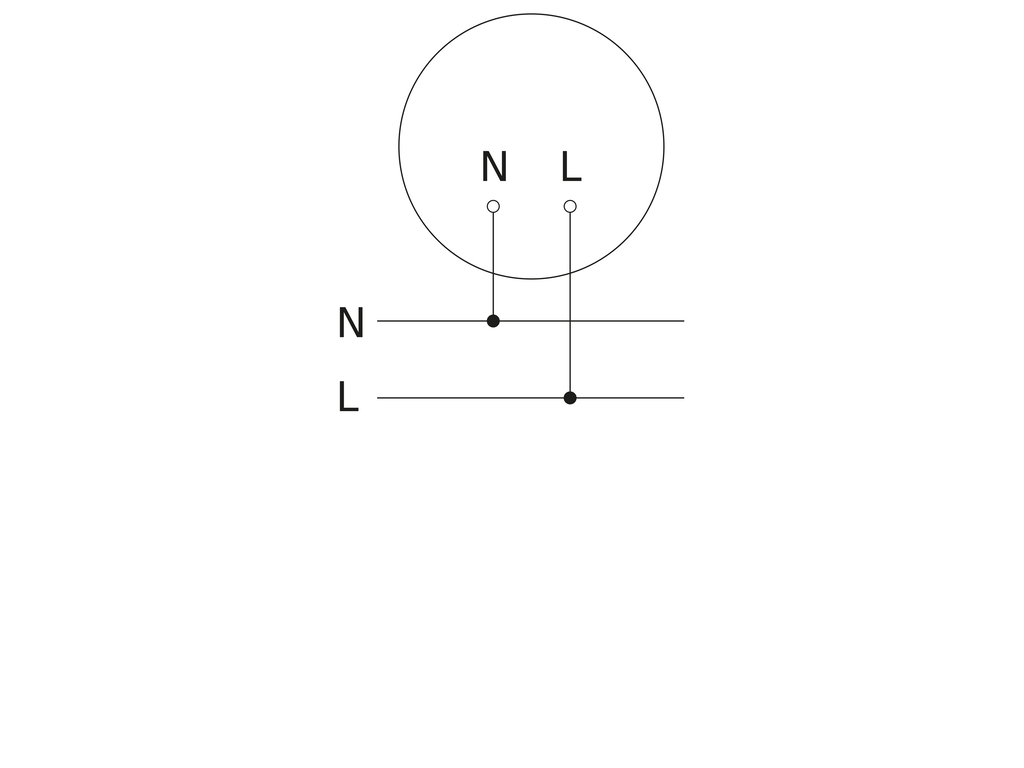

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity LDT file (light distribution)
