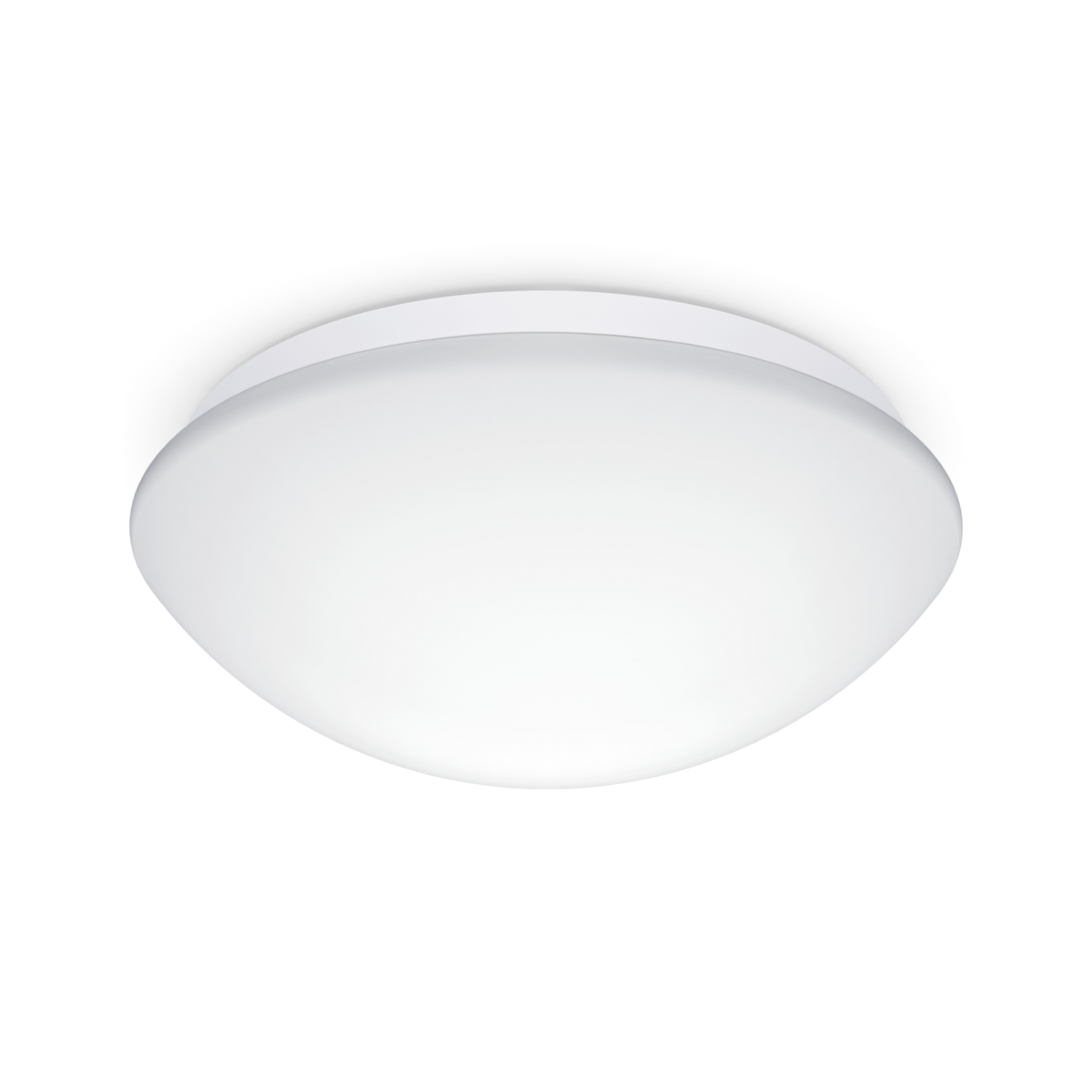

nevalux RS PRO P1 SP neutral white

Round light for stairwells, cellars and storerooms. Optionally with sensor and integrated emergency light.

EAN-No. 221802

Price: Please log in to see prices

Variant

P1 convex P1 flat P2 convex P2 flat P3 convex

With motion detector

No Yes

Colour temperature

3000 K 4000 K

With emergency light

Version

Shock-tested Standard

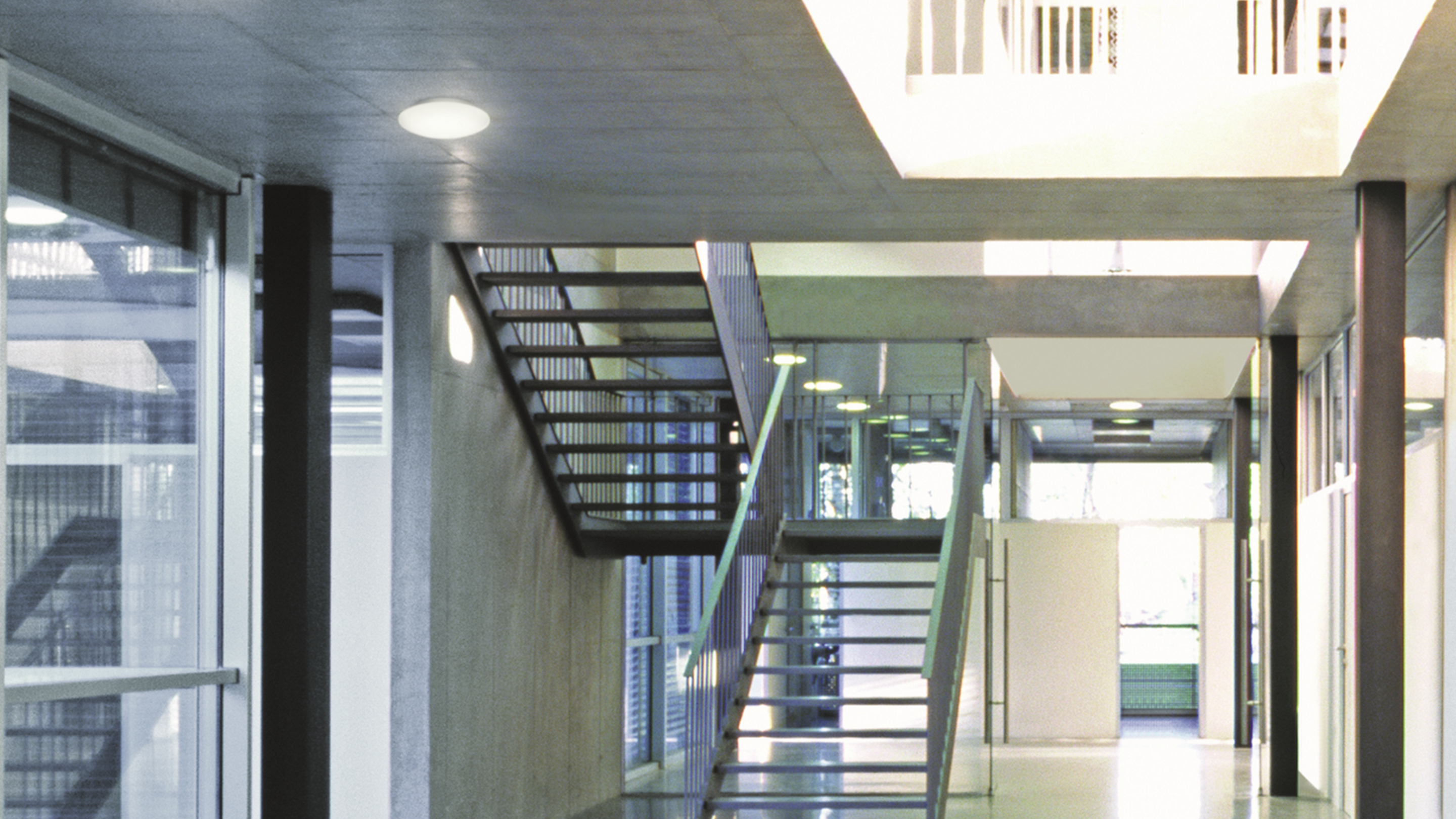

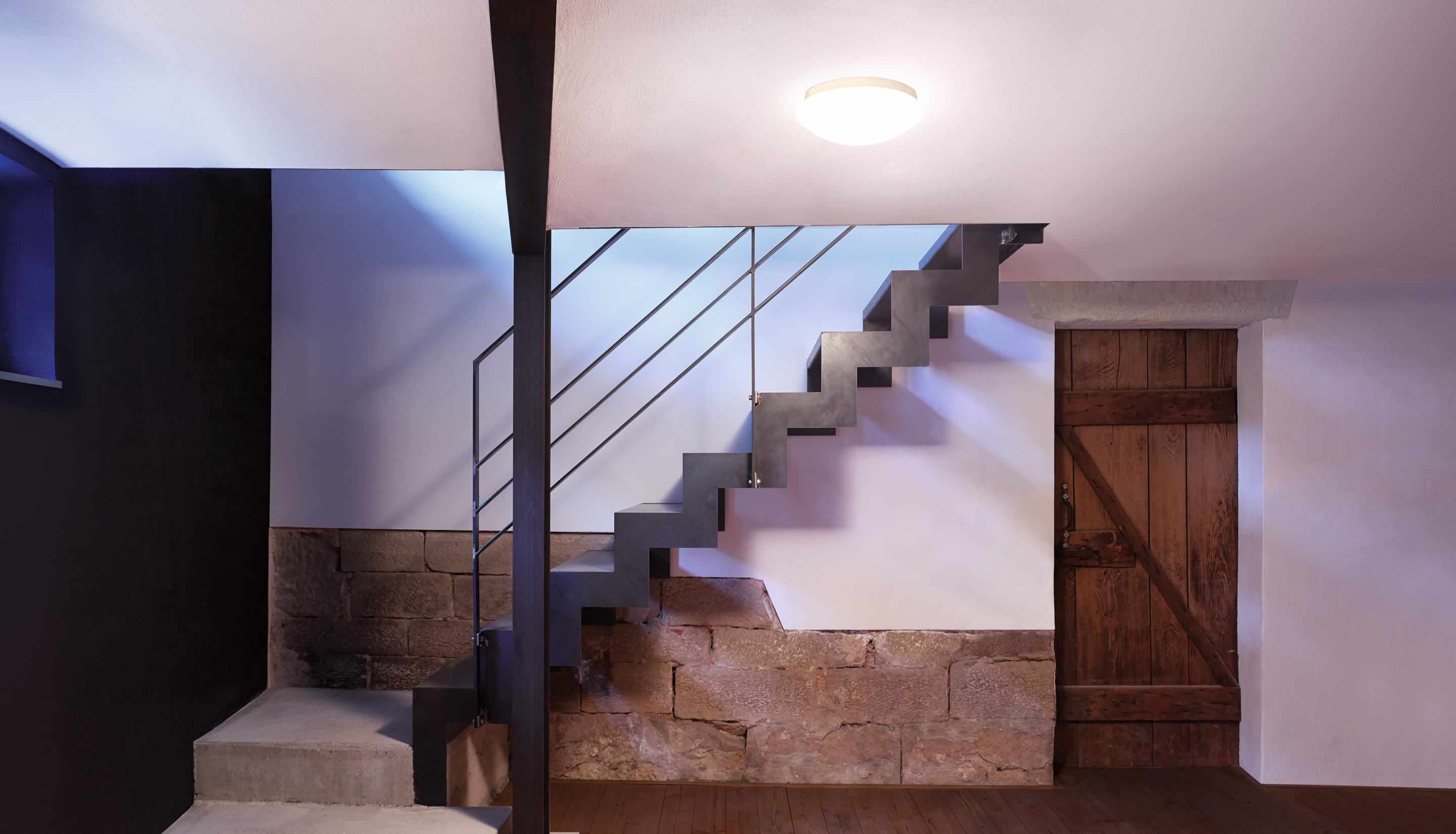

Circular classic. Perfect shape. Perfect efficiency. The perfect indoor light as version without sensor. The RS PRO P1 integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and can be interconnected with the sensor version by cable. Output: 8,2 W with 974 lm, 4000 K.

Including STEINEL LED system
Intelligent soft light start
Interconnectable by cable (maximum of 10 units)

Variants

Version Without sensor

Dimensions

Dimensions Ø × H 280 x 110 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 8,2 W

Connectivity

Networking via Cable

Lighting technology

Measured luminous flux 360° 974 lm

Colour temperature 4000 K

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L80B10

Settings

Main light adjustable No

Housing & material

Impact resistance IK03

Protection class (IP) IP54

Protection class II

Ambient temperature -10...+40 °C

Housing material Plastic

Cover material Opal plastic

Mounting location ceiling, wall

Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA

EPREL category Surrounded product with integrated light source

Technical drawing

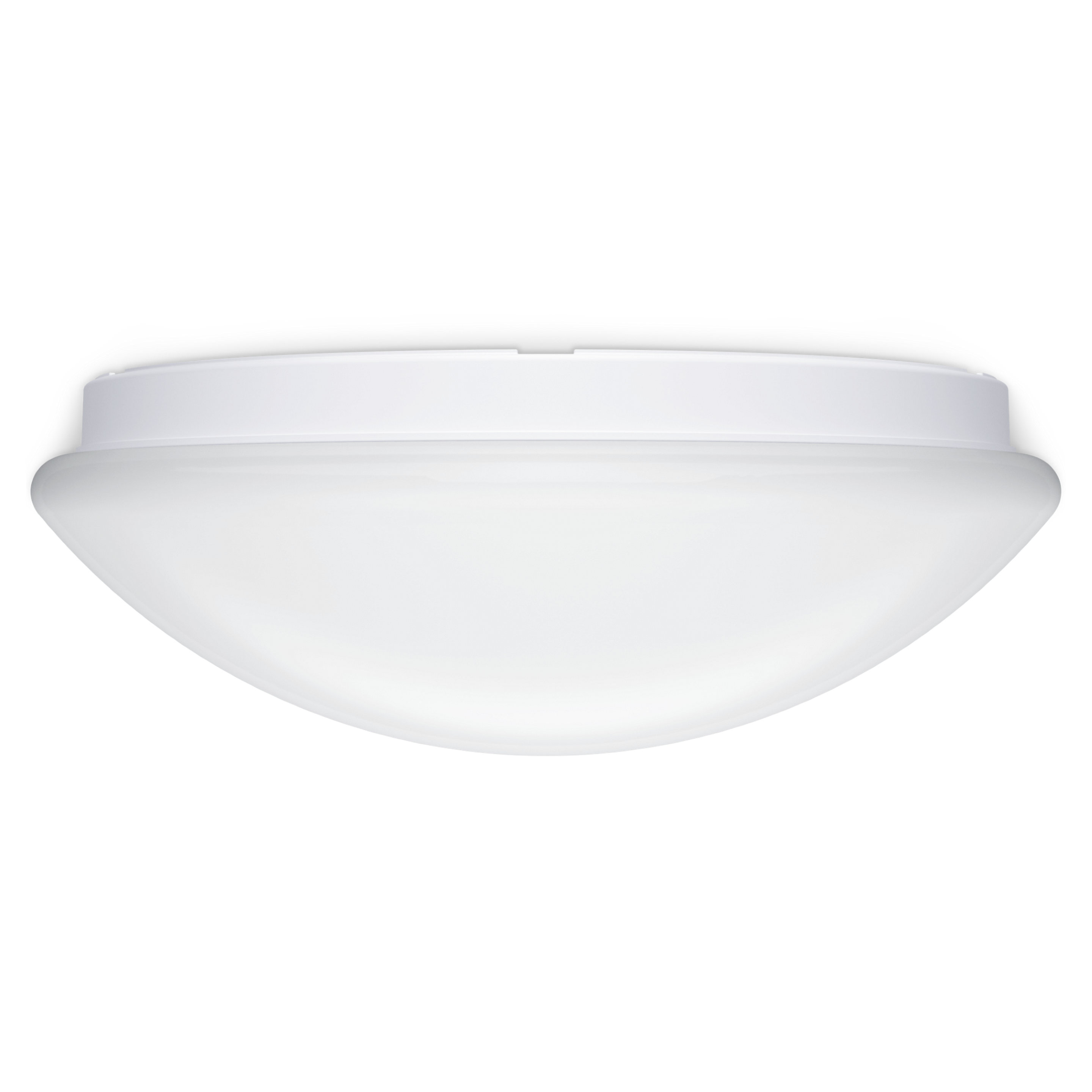

Sensor detection range

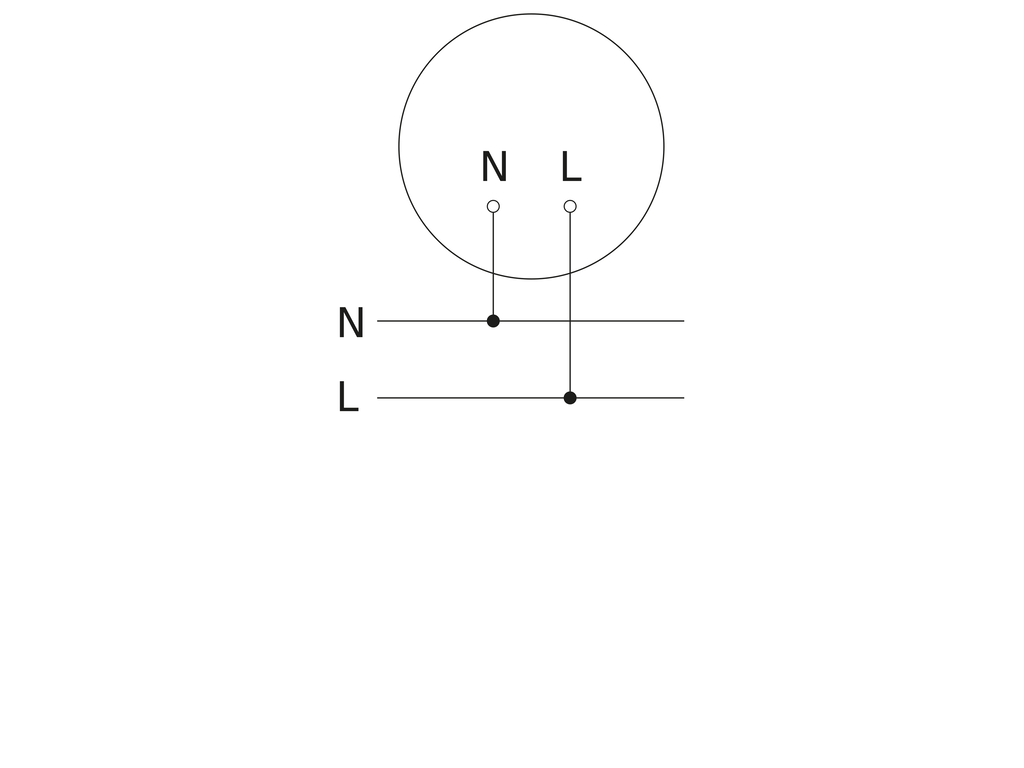

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity LDT file (light distribution)
