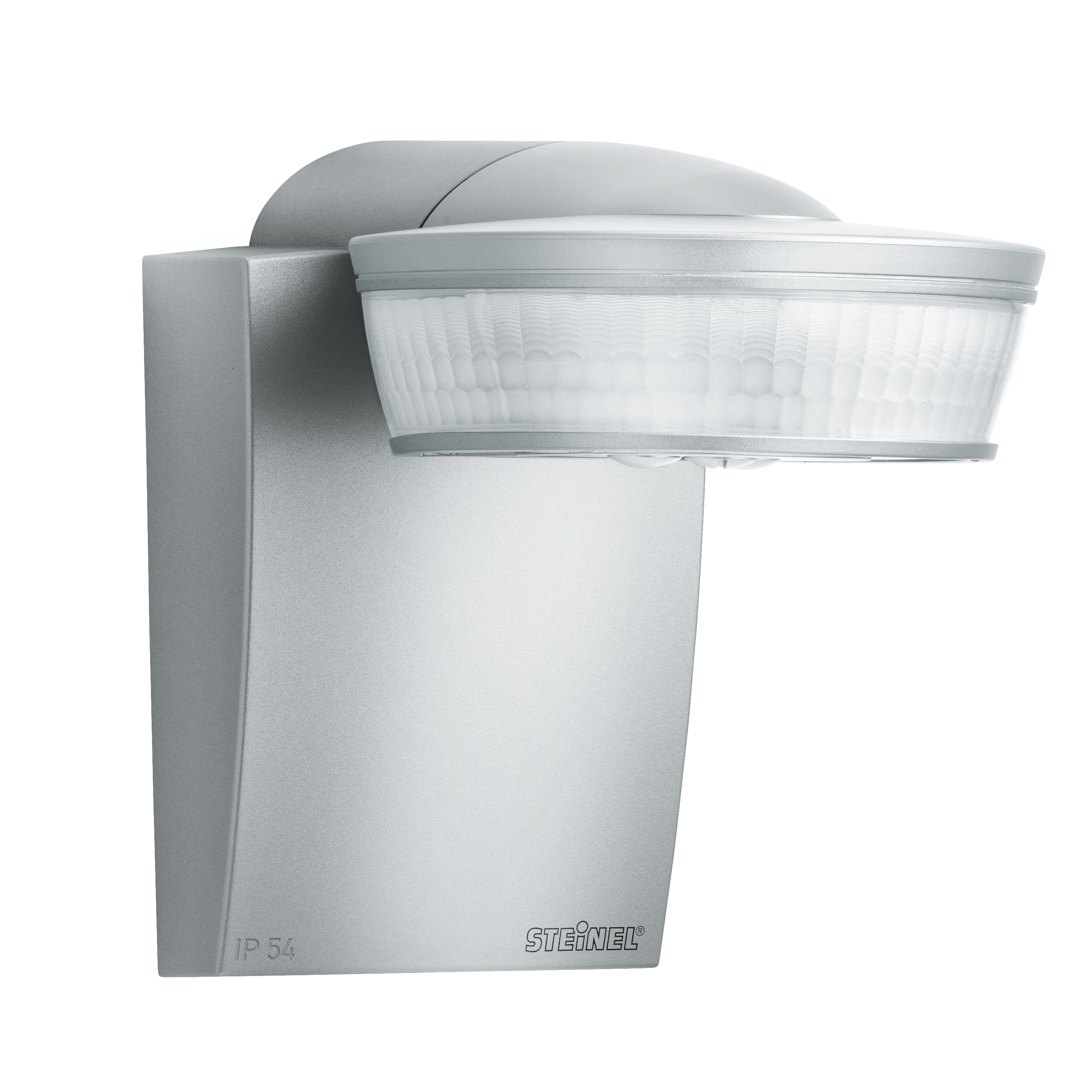

Nevalux sensIQ KNX inox
EAN-No. 4007841 029616
This product is being replaced by a successor product.
Go to successor product · sensIQ white (059576)King of the infrared motion detectors. The revolutionary sensIQ KNX for indoors and out, ideal for building entrances, loading bays, installation height up to 5 m, quadruple sensor system for optimum coverage over a 300° detection angle, 20 m range (tangential), metre-precision reach setting in 3 different directions. Remote control and corner wall mount bracket included.
- Remote control RC9 included
- 4x pyro system
- Suitable for mounting on ceilings
- UV-resistant plastic
- Including corner wall mount
Identification
Variant
inox
Version
Motion detectors
Type of accessory
Corner adapter
Model
KNX
Dimensions
Dimensions L × W × H
144 x 113 x 172 mm
Electrical
Supply voltage detail
KNX bus
Sensor technology
Sensor technology
passive infrared
Detection angle
300 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
Yes
Range detail
Reach adjustable from 2 - 20 m in 3 directions (100° in each)
Radial range
r = 20 m (1047 m²)
Tangential range
r = 20 m (1047 m²)
Switching zones
1360 switching zones
Mounting height
2,00 – 5,00 m
Optimal mounting height
2 m
Connectivity
Networking
Yes
KNX functions
Light output 2x, Presence output, Light level, Constant-lighting control, Basic light level function, Photo-cell controller, Close range, Individual pyro evaluation
With bus coupler
Yes
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
2 – 2000 lx
Time setting
60 sec – 255 min
Base light function
Yes
Base light function time
1-255 min
Settings via
ETS software, Remote control, Bus
With remote control
Yes
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Ambient temperature
-20 – 50 °C
Mounting location
ceiling
corner
wall
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Colour
Stainless steel
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
Certificates
VDE
