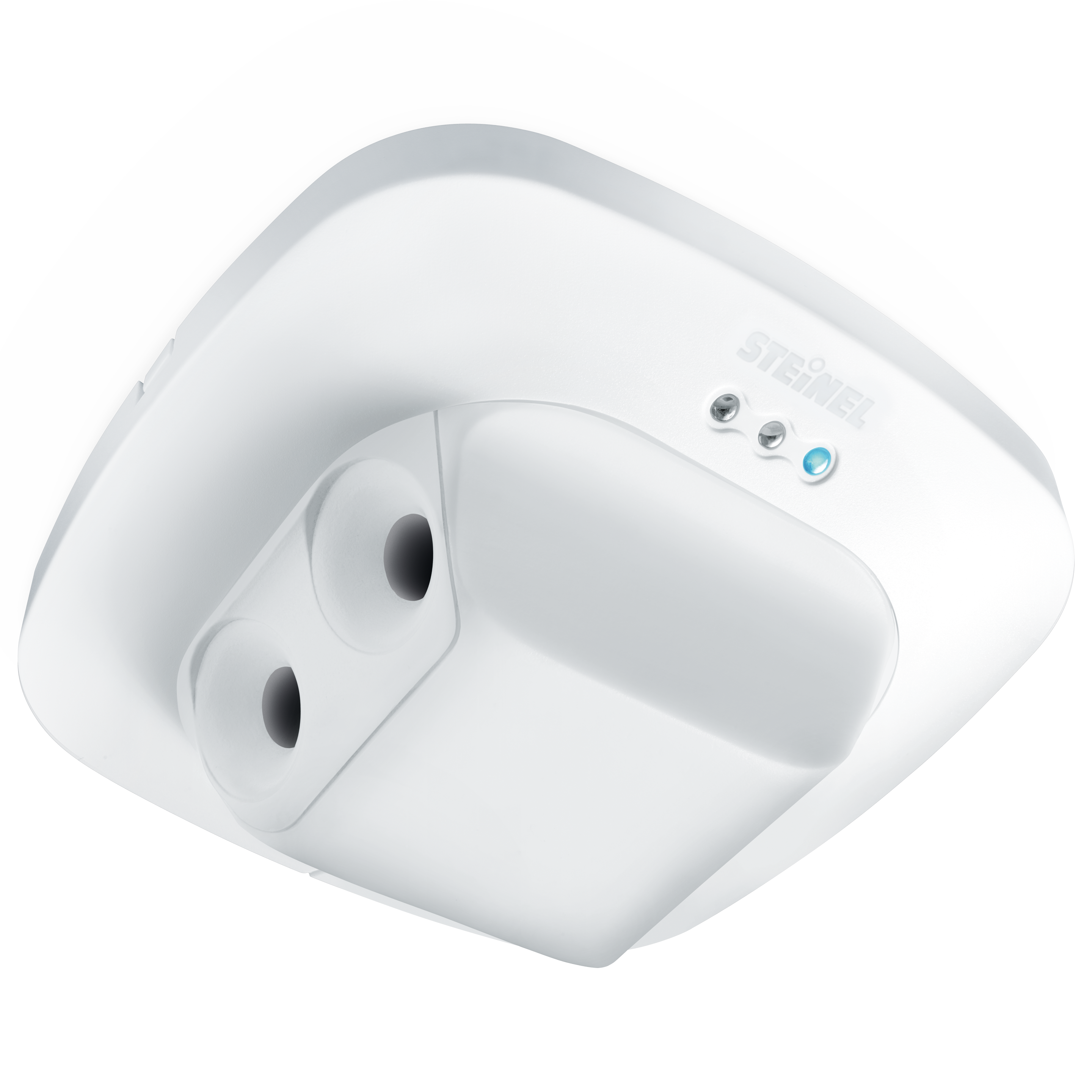

Nevalux Single US DALI-2 Input Device

ELDAS® no. 535 933 100

EAN-No. 4007841 057503

Price: Please log in to see prices

The ideal sensor for small corridors. Single US ultrasonic motion detector, ideal for corridors, thoroughfares and stairwells as well as WC facilities, washrooms and store rooms Detection within 10 m in one direction, both radially and tangentially, envelops objects as opposed to penetrating them. DALI-2 Input Device enables sensors to communicate collected sensor data to higher-level lighting management systems (e.g. LiveLink).

  • Optional surface-mounting adapter
  • Optional guard cage

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 71 x 120 x 120 mm

Electrical

Mains connection 16 V
Supply voltage detail DALI bus
Control output DALI Addressable/slave

Sensor technology

Max. mounting height 3,50 m
Sensor technology Ultrasonic
Detection angle 180 °
Opening angle 180 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range 10 x 3 m (30 m²)
Tangential range 10 x 3 m (30 m²)
Mounting height 2,50 – 3,50 m
US technology 40 kHz
Optimal mounting height 2,5 m

Connectivity

Networking Yes
Type of networking Master/slave
Networking via DALI bus
Number of DALI participants 10

Lighting technology

Soft light start No
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 10 – 1000 lx
Base light function No
Main light adjustable No
Settings via Bus
With remote control No
Twilight setting teach No

Housing & material

Ambient temperature -25 – +55 °C
Mounting location ceiling
Application location Indoors
Mounting type Concealed wiring
Material Plastic
Application room Indoors corridor / aisle stairwell
Colour white
RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Technical drawing

Sensor detection range

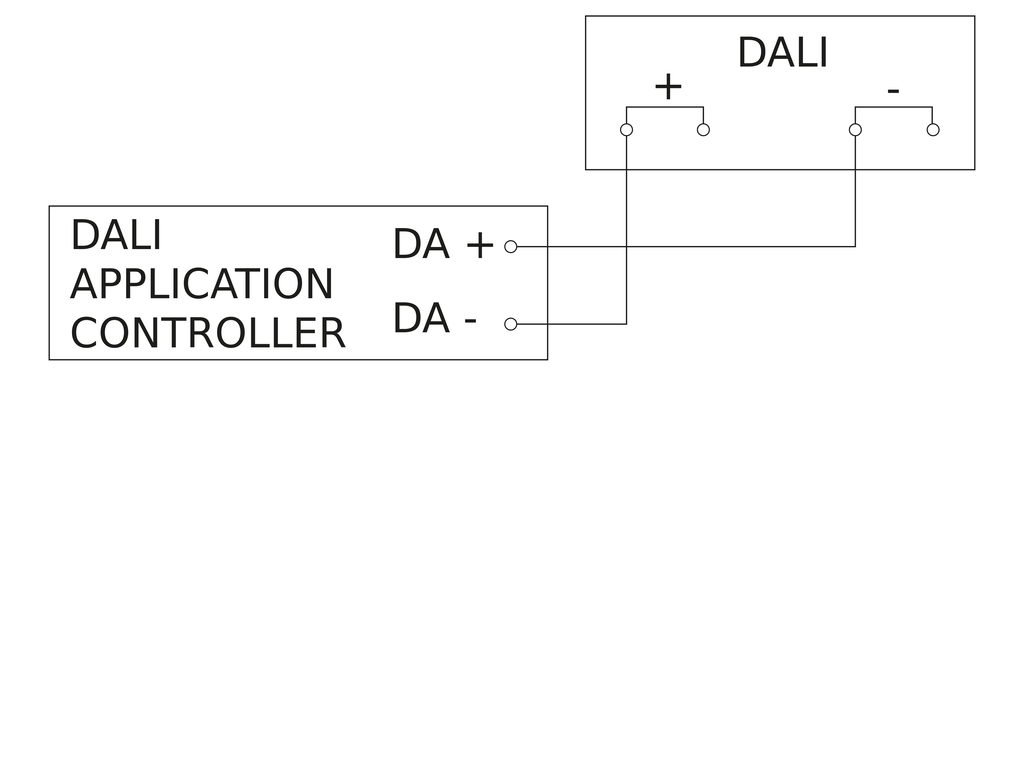

Wiring diagram 1

Circuit diagram
