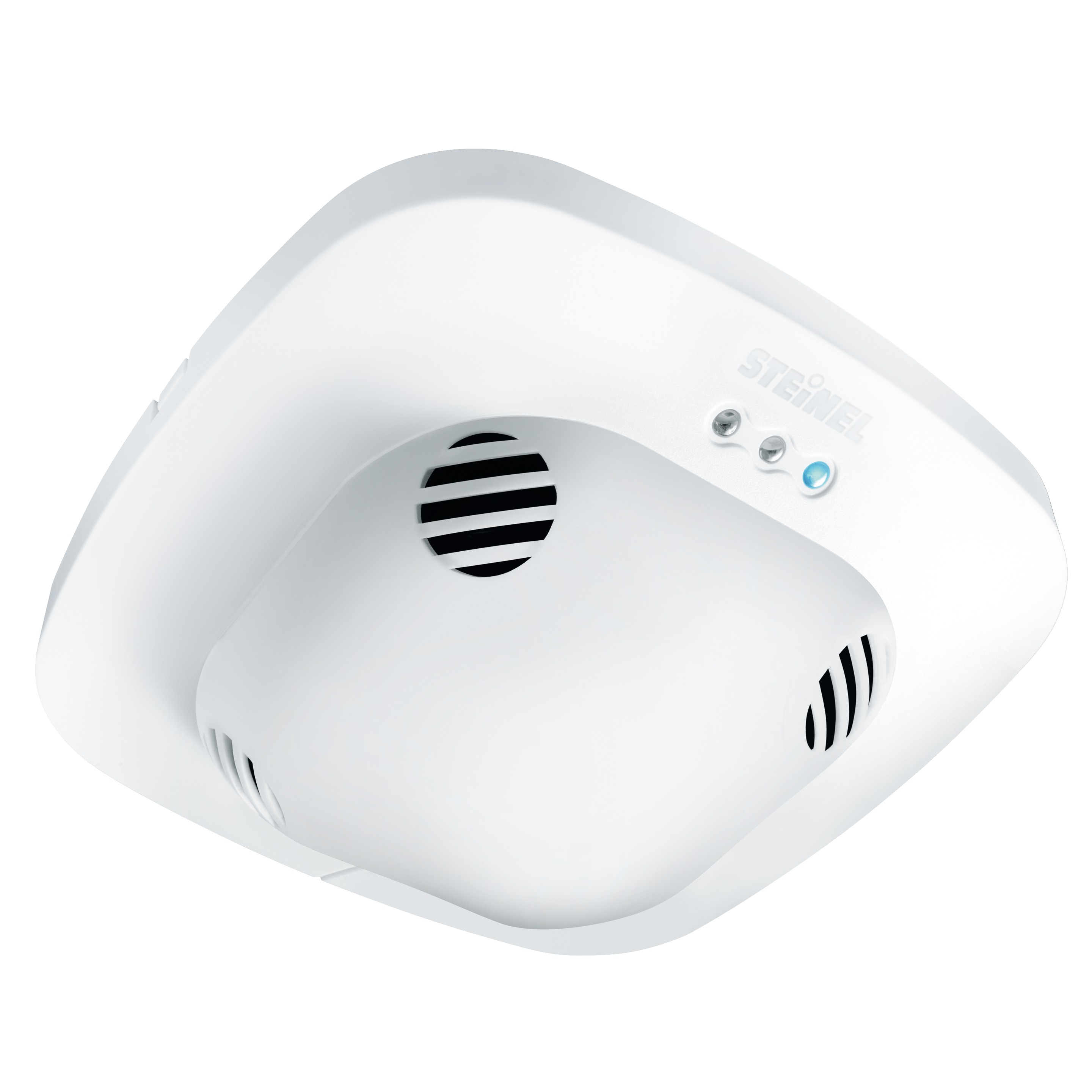

Nevalux US 360 DALI-2 Input Device

ELDAS® no. 535 933 300

EAN-No. 4007841 057534

Detects without obstructions. 360° ultrasonic presence detector US 360, ideal for offices, conference rooms, store rooms and class rooms. 36 sq.m. presence detection zone, immune to obstacles, envelops objects as opposed to penetrating them. DALI-2 Input Device enables sensors to communicate collected sensor data to higher-level lighting management systems (e.g. LiveLink).

Optional surface-mounting adapter
Optional guard cage

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 67 x 120 x 120 mm

Electrical

Mains connection 16 V

Supply voltage detail DALI bus

Control output DALI Addressable/slave

Sensor technology

Max. mounting height 3,50 m

Sensor technology Ultrasonic

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 10 m (79 m²)

Tangential range Ø 6 m (28 m²)

Mounting height 2,50 – 3,5 m

Presence range Ø 6 m (28 m²)

US technology 40 kHz

Optimal mounting height 2,5 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Number of DALI participants 12

With bus coupler Yes

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors WC / washroom classroom conference room / meeting room duty room function room / ancillary room one-person office open-plan office recreation room stairwell

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Technical drawing

Sensor detection range

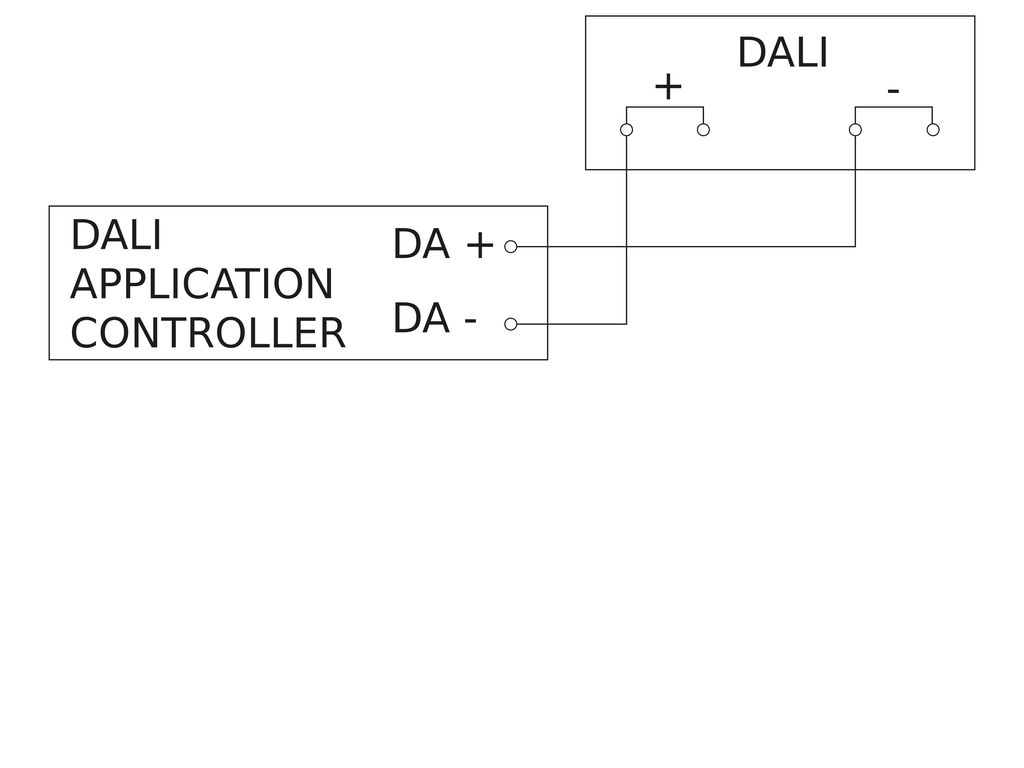

Wiring diagram 1

Circuit diagram

Data sheet User manual

Control PRO guard cage

Item no. 003036

Remote control Smart Remote

Item no. 009151

Surface-mounted adapter Control Pro IP54 white

Item no. 000363
