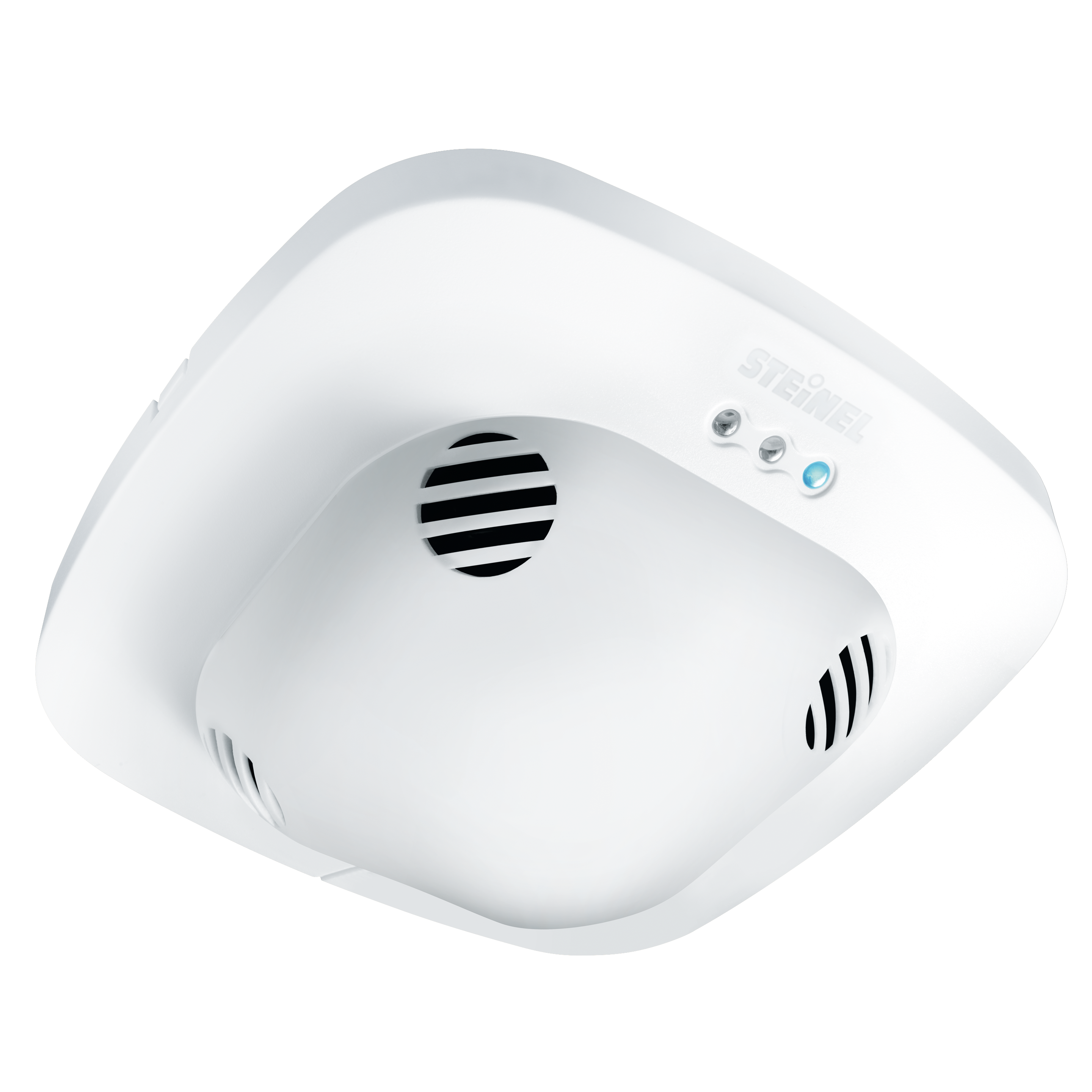

Nevalux US 360 LiveLink
EAN-No. 4007841 008444
This product is being replaced by a successor product.
Go to successor product · US 360 DALI-2 Input Device (4007841057534)Detects without obstructions. 360° ultrasonic presence detector US 360, ideal for offices, conference rooms, store rooms and class rooms. 36 sq.m. presence detection zone, immune to obstacles, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, with digital DALI interface for integration into the LiveLink system.
- Optional surface-mounting adapter
- Optional guard cage
Identification
Variant
LiveLink
Version
Presence detector
Model
LiveLink
Dimensions
Dimensions L × W × H
120 x 120 x 68 mm
Electrical
Supply voltage detail
DALI bus
Livelink values
Light level, Motion detection
Sensor technology
Sensor technology
Ultrasonic
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ø 10 m (79 m²)
Tangential range
Ø 10 m (79 m²)
Mounting height
2,50 – 3,50 m
Presence range
Ø 6 m (28 m²)
US technology
40 kHz
Optimal mounting height
2,8 m
Connectivity
With bus coupler
Yes
Settings
Twilight setting
10 – 1000 lx
Time setting
60 sec – 60 min
Settings via
LiveLink app
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
classroom, One-person office, Open-plan office, conference room, side room, stairwell, washroom, wc, equipment room
