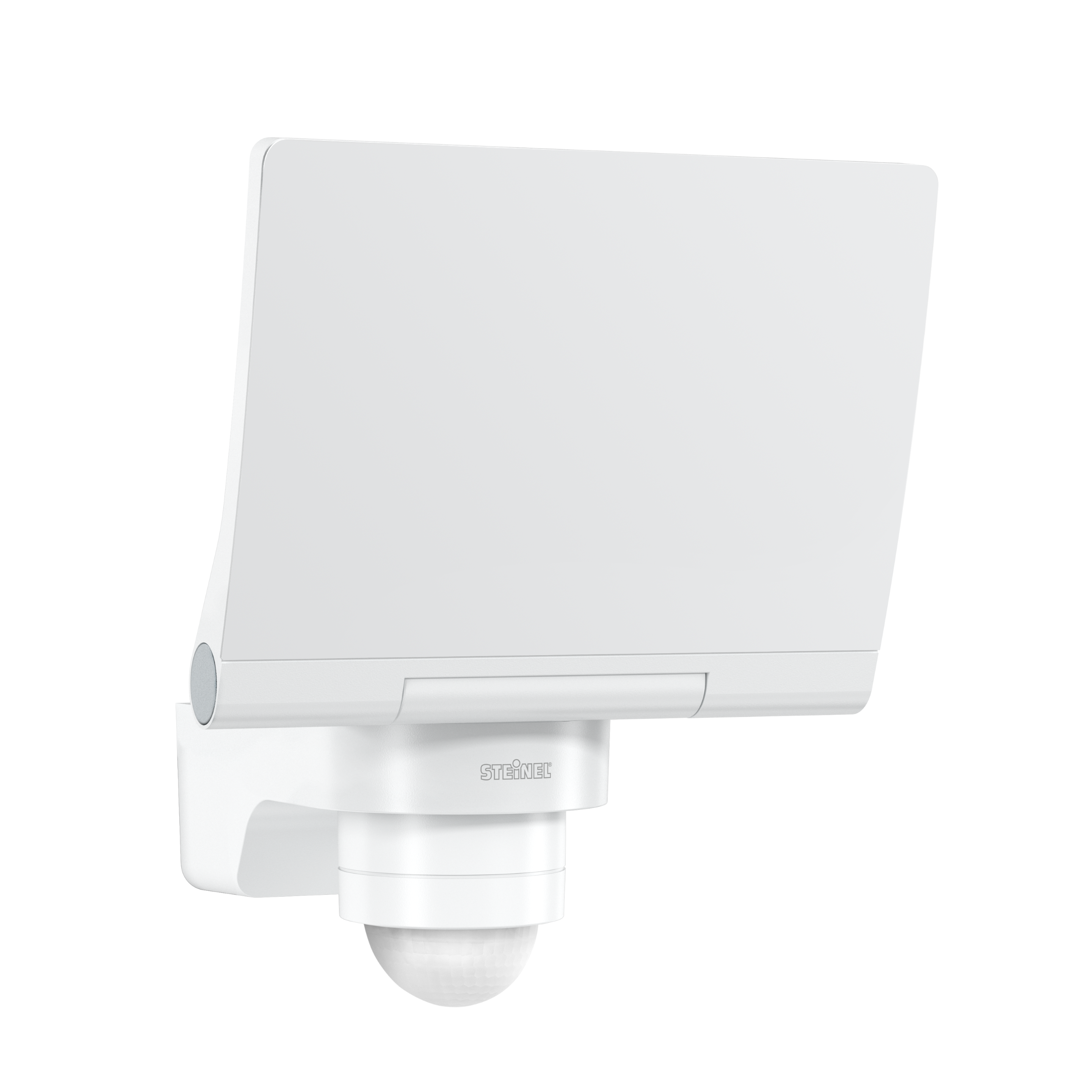

Nevalux XLED PRO 240 S Neutral white white
ELDAS® no. 941 502 199
EAN-No. 4007841 068370
This product is being replaced by a successor product.
Go to successor product · XLED PRO 240 S warm white white (068073)Day-bright illumination throughout: the XLED PRO 240 S sensor-switched outdoor floodlight. With fully swivelling LED flat panel and opal diffuser. 2124 lm, 4000 K, 19,3 W. With a 240° infrared sensor for reliable motion detection over a reach of up to 12 m.
- Including STEINEL LED system
- HCMC cooling system
- UV-resistant plastic
- Colour rendering index Ra ≥80
- Optional corner wall mount bracket
- Interconnectable by cable (maximum of 10 units)
Dimensions
Dimensions L × W × H
161 x 180 x 223 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
19,3 W
Sensor technology
Max. mounting height
6,00 m
Sensor technology
Passiv Infrarot
With motion detector
Yes
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (19 m²)
Tangential range
r = 12 m (302 m²)
Mounting height
1,80 – 6 m
Optimal mounting height
2 m
Connectivity
Networking
Ja
Networking via
Kabel
Networking quantity
max. 10 Strahler
Lighting technology
Measured luminous flux 360°
2124 lm
Colour temperature
4000 K
LED colour deviation
SDCM3
With illuminant
Ja, STEINEL LED-System
Illuminant
LED nicht austauschbar
Base
Ohne
LED cooling system
HCMC (High Conductive Magnesium Composite)
Soft light start
No
Continuous light
schaltbar
Lifetime
LED lifetime L70B50 25°C
> 60000 Std
Settings
Twilight switch
Ja
Twilight setting
2 – 2000 lx
Time setting
10 s – 15 Min.
Base light function
Nein
Main light adjustable
No
Settings via
Potis
Twilight setting teach
No
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-20 – 40 °C
Housing material
HCMC
Cover material
Kunststoff opal
Cover material (scope of delivery)
Abdeckschalen
Mounting location
Wand
Ecke
Application location
Außenbereich
Mounting type
Aufputz
Application room
Außenbereich
Rund ums Haus
Terrasse / Balkon
Hof & Einfahrt
Colour
Weiß
Scope of delivery & warranty
Manufacturer warranty
5 Jahre
Corner wall bracket included
No
Certificates & EPREL
EPREL category
Lichtquelle
Technical drawing
Lichtverteilungskurve
Wiring diagram 1
Master circuit diagram
Wiring diagram 2
Master/master interconnection circuit diagram
