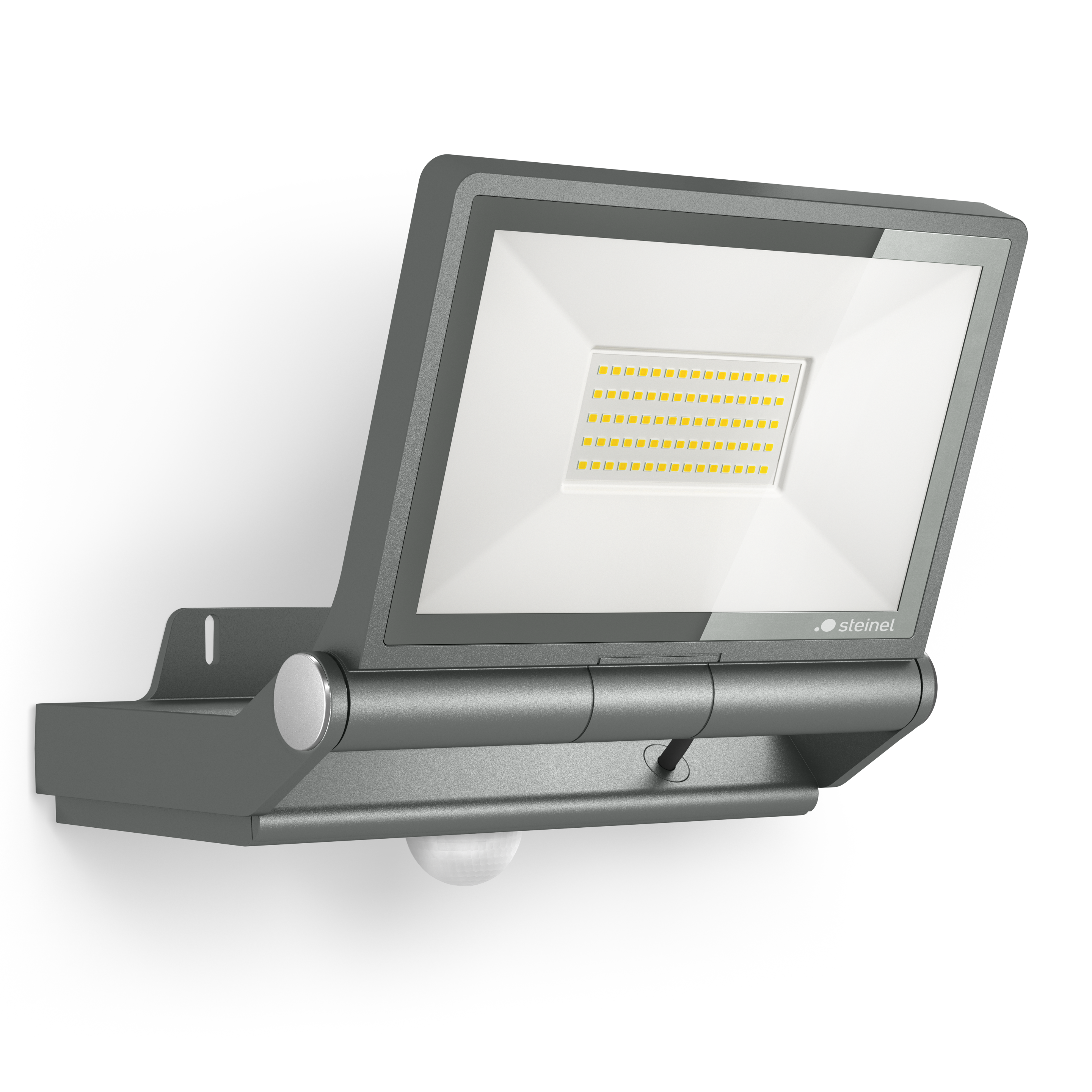

Nevalux XLED PRO ONE Plus S with motion detector - anthracite

ELDAS® no. 941 502 159

EAN-No. 4007841 069551

This product is being replaced by a successor product.

Go to successor product · XLED PRO ONE S with motion detector - anthracite (4007841069568)

Floodlights redefined. Housed in a sophisticated aluminium enclosure, the 180° vertically swivelling floodlight XLED PRO ONE Plus S guarantees daylight-bright illumination across large areas with warm white 3000 K and 4370 lm at 33,8 W. Features include a 240° infrared sensor (10 m range), plug-in cover caps to limit the detection zone, a basic light function (10%), and an optional surface-mounting adapter. Connected by cable. Adjusted by potentiometer and remote control. Remote control RC 12 included in scope of delivery for sensor version. Maximum mounting height: 6 m. 5-year guarantee.

UV resistant material
Panel can be moved to the top or bottom
Interconnectable by cable
Optional basic lighting level 10 %
High-quality aluminium
Remote control RC12 included
Smart Remote remote control optional
Optional surface-mounting adapter

Variants

Luminous flux 4600 lm

Dimensions

Dimensions L × W × H 202 x 259 x 250 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 33,8 W

Sensor technology

Max. mounting height 6,00 m

Sensor technology Passiv Infrarot

With motion detector Yes

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (19 m²)

Tangential range r = 10 m (209 m²)

Mounting height 1,80 – 6,00 m

Optimal mounting height 2 m

Connectivity

Networking Ja

Networking via Kabel

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 4370 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Ja, STEINEL LED-System

Illuminant LED nicht austauschbar

Base Ohne

LED cooling system Passive Thermo Control

Soft light start Yes

Lifetime

LED lifetime L70B50 25°C > 36000 Std

Settings

Twilight switch Ja

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function Ja

Base light function time 10/30 Min., ganze Nacht

Main light adjustable No

Functions DIM-Funktion Lichtsensor Bewegungssensor Orientierungslicht

Settings via Fernbedienung Potis Smart Remote

Twilight setting teach Yes

Base light function in percent 10 %

Base light function percent from 10

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature -20 – 40 °C

Housing material Aluminium

Cover material Glas transparent

Cover material (scope of delivery) Abdeckschalen

Mounting location Decke Wand

Application location Außenbereich

Mounting type Aufputz

Application room Außenbereich Garten Hauseingang Hof & Einfahrt Rund ums Haus

Colour Anthrazit

Scope of delivery & warranty

Manufacturer warranty 5 Jahre

Corner wall bracket included No

Certificates & EPREL

EPREL category Lichtquelle

Technical drawing

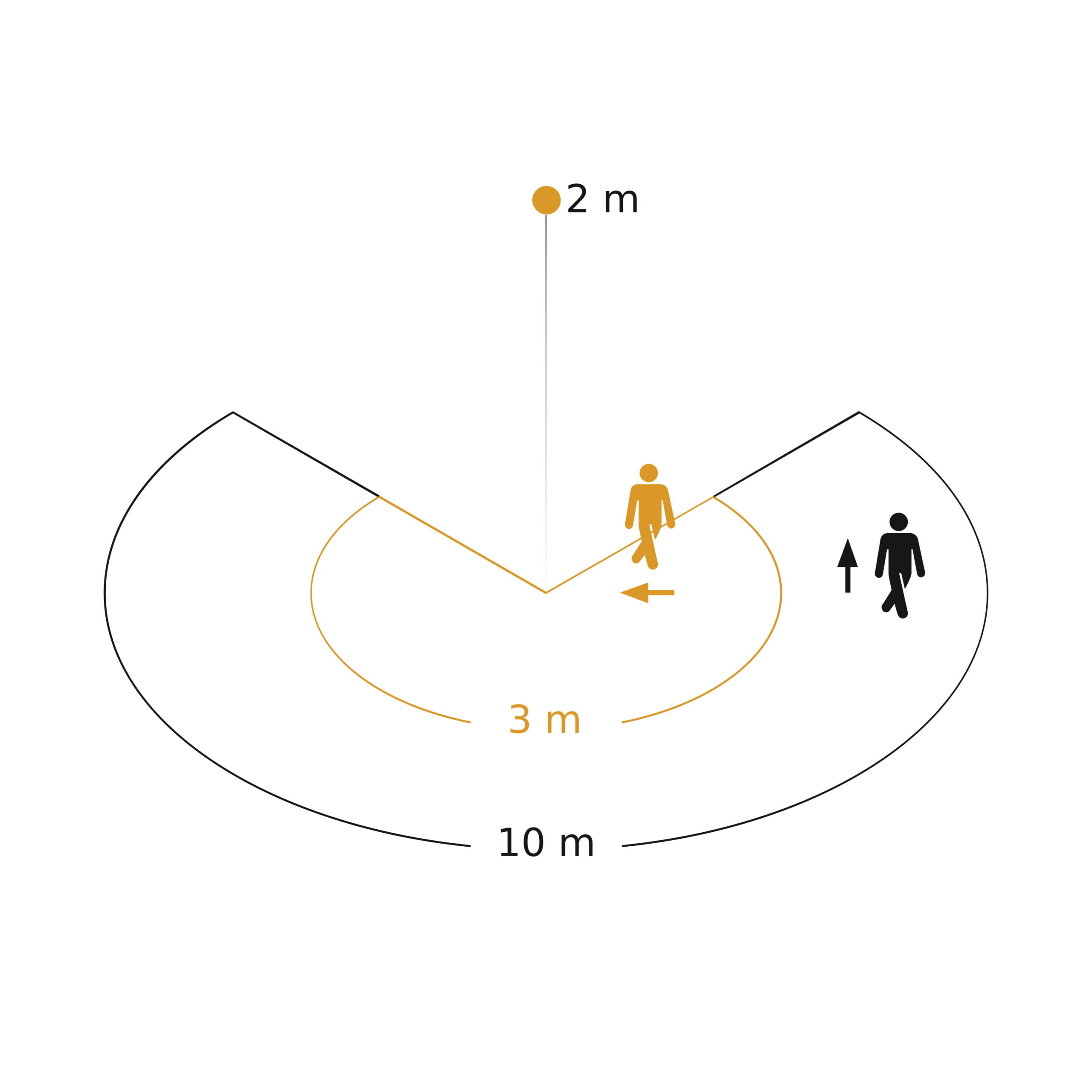

Sensor detection range

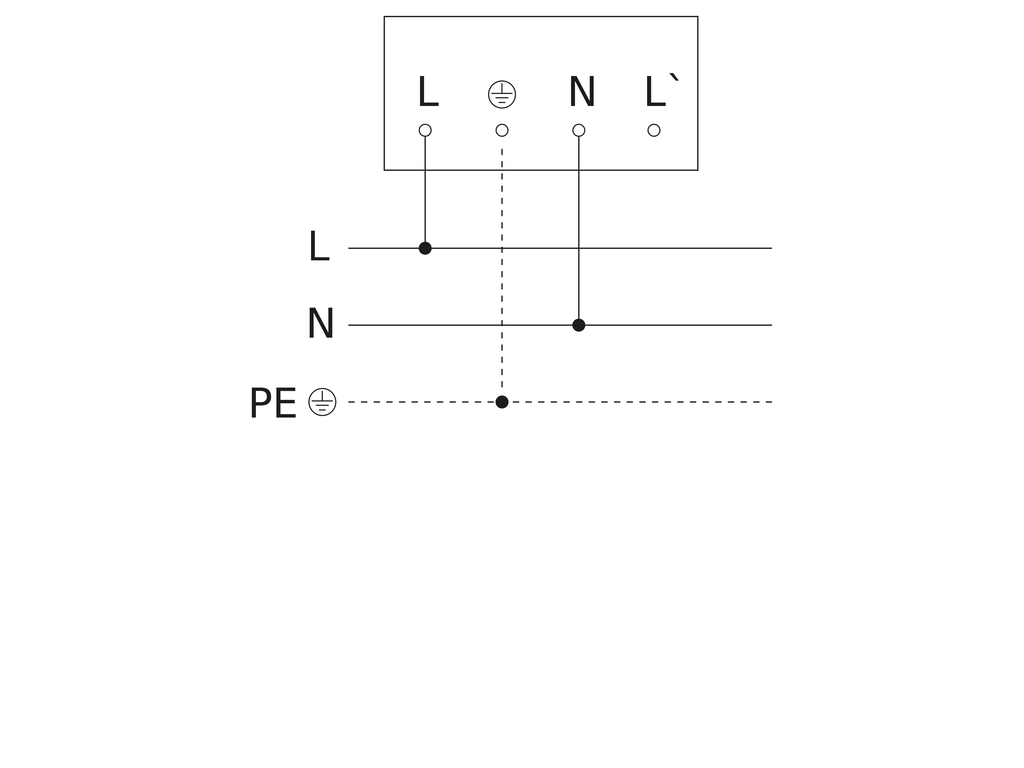

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity LDT file (light distribution)

Surface mount adapter XLED PRO ONE Plus + Max Anthracite

Item no. 4007841080983

RC 12

Item no. 4007841079000
