Nevalux XLED PRO Wide XL S white

Nevalux XLED PRO Wide XL S white

ELDAS® no. 924 700 280 · EAN-No. 4007841 010041

Technical data Illustrations Wiring diagrams Downloads
Nevalux

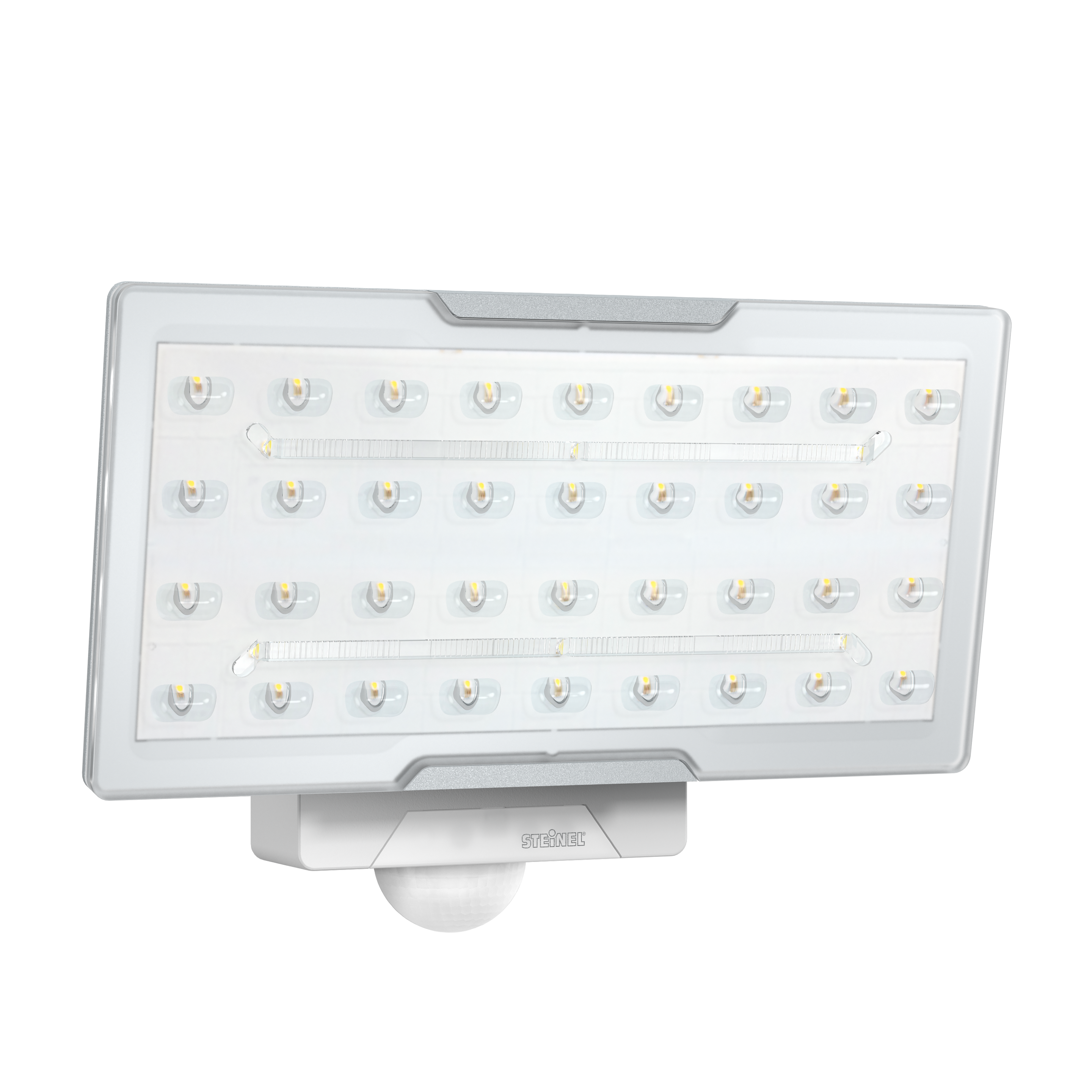

Nevalux XLED PRO Wide XL S white

ELDAS® no. 924 700 280

EAN-No. 4007841 010041

This product is being replaced by a successor product.

Go to successor product · XLED PRO ONE Plus S with motion detector - anthracite (4007841069551)

Full light power. Extra wide. Giving 4189 lm of light, the XLED PRO Wide XL S floodlight with 12 m sensor reach, 240° coverage and a mounting height of up to 6 m turns night into day. The STEINEL lens matrix and the fully tilting and turning flat-design light head evenly illuminate rectangular areas. Linear basic light LEDs for more safety and security. Low energy consumption (45 W). With high-quality aluminium heat sink.

  • Including STEINEL LED system
  • Intelligent LED cooling system
  • Optional basic lighting level
  • UV resistant material
  • Interconnectable by cable
  • RC9 remote control optional
  • Smart Remote remote control optional

Dimensions

Dimensions L × W × H 126 x 265 x 188 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 45 W

Sensor technology

Max. mounting height 6,00 m
Sensor technology Passiv Infrarot
With motion detector Yes
Opening angle 180 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range r = 5 m (52 m²)
Tangential range r = 12 m (302 m²)
Mounting height 1,80 – 6 m
Optimal mounting height 2 m

Connectivity

Networking Ja
Type of networking Sensor/Slave
Networking via Kabel
Networking quantity max. 10 Strahler

Lighting technology

Measured luminous flux 360° 4189 lm
Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Ja, STEINEL LED-System
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Passive Thermo Control
Soft light start No
Continuous light schaltbar, 4 h

Lifetime

LED lifetime max. °C 50000 Std
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Ja
Twilight setting 2 – 1000 lx
Time setting 5 s – 15 Min.
Base light function Ja
Base light function time 10 Min. 30 Min. Ganze Nacht
Main light adjustable No
Settings via Fernbedienung Potis Smart Remote
Twilight setting teach Yes
Base light function in percent 3 %
Base light function percent from 3

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class I
Ambient temperature -20 – 40 °C
Housing material Aluminium
Cover material Kunststoff transparent
Cover material (scope of delivery) Aufkleber
Mounting location Wand
Application location Außenbereich
Mounting type Aufputz
Application room Außenbereich Hof & Einfahrt
Colour Weiß

Scope of delivery & warranty

Manufacturer warranty 5 Jahre
Corner wall bracket included No

Certificates & EPREL

Certificates VDE
EPREL category Lichtquelle

Technical drawing

Lichtverteilungskurve

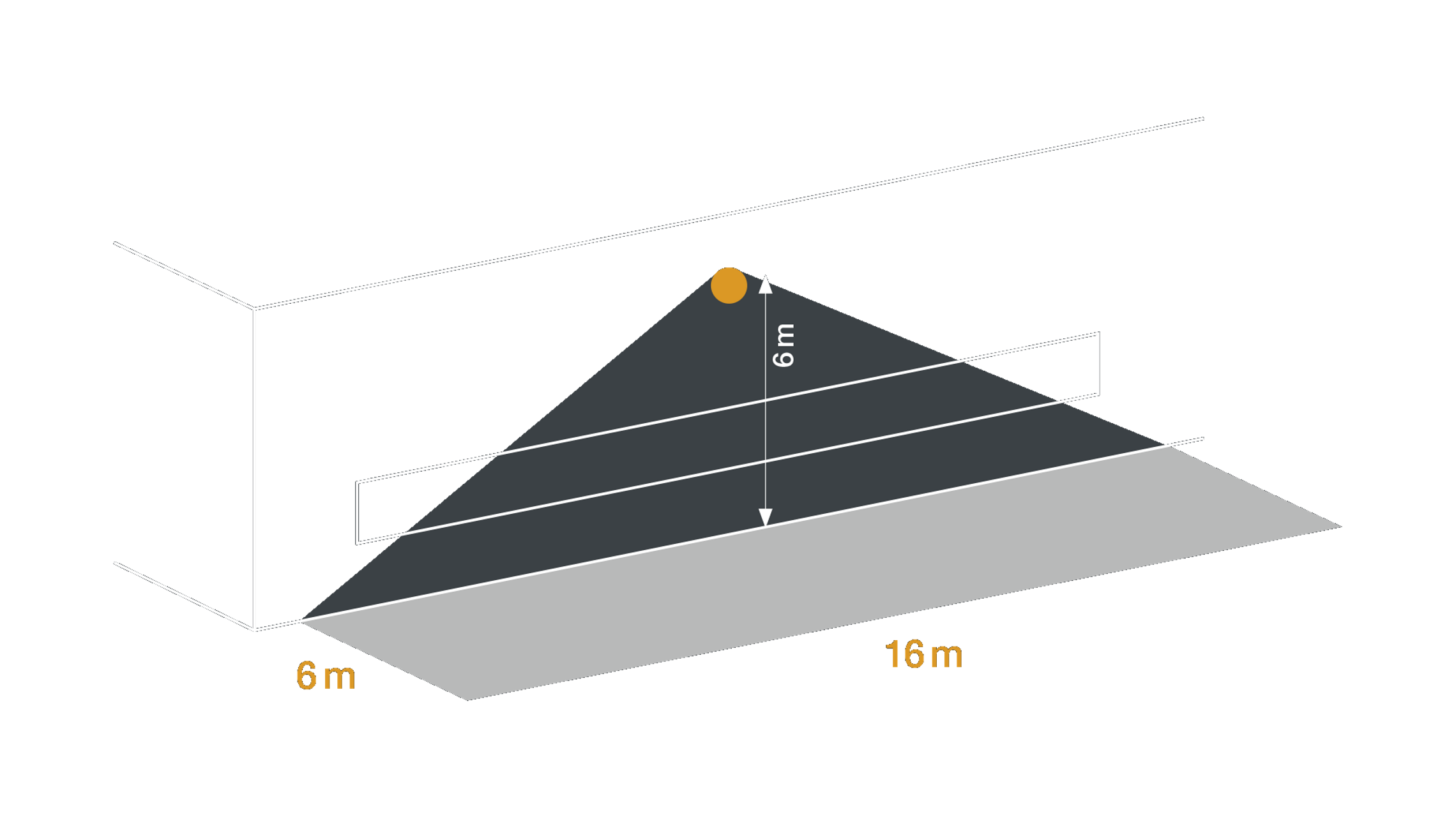

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram
