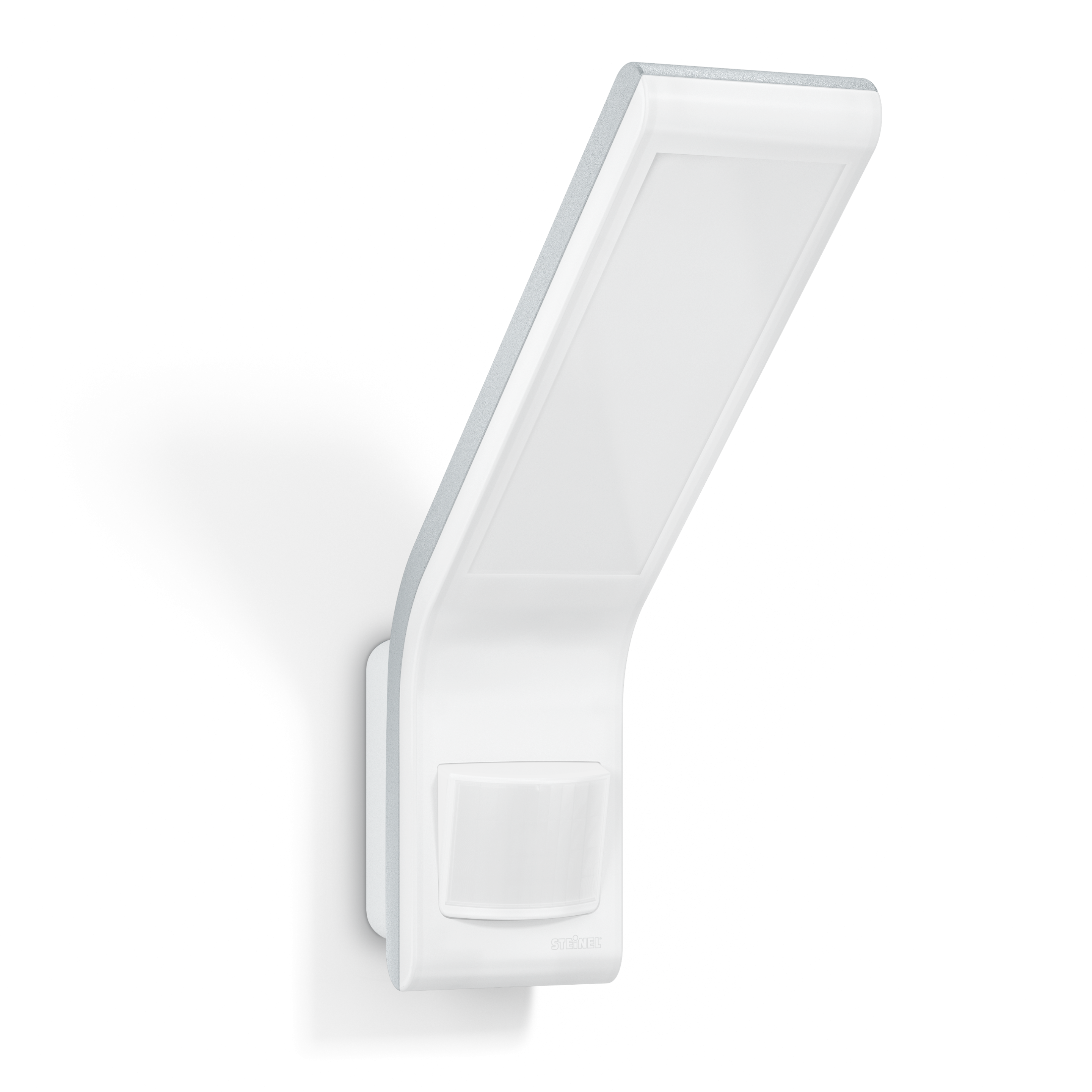

Nevalux XLED slim S white
EAN-No. 4007841 012069
This product is being replaced by a successor product.
Go to successor product · XLED slim S Anthracite (012052)Light meets elegance. Elegantly designed sensor LED floodlight XLED slim S with 7,2 W, ideal for building entrances and pathways, pleasant and effective light (720 lm) requiring very little energy, sensor reach of up to 8 m.
- Including STEINEL LED system
- Intelligent LED cooling system
- UV-resistant plastic
- Colour rendering index Ra ≥ 80
Dimensions
Dimensions L × W × H
201 x 66 x 241 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
7,2 W
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
160 °
Sneak-under protection
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 4 m (22 m²)
Tangential range
r = 8 m (89 m²)
Mounting height
1,80 – 4,00 m
Optimal mounting height
2,2 m
Connectivity
Networking
No
Lighting technology
Measured luminous flux 360°
720 lm
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Active and Passive Thermo Control
Soft light start
No
Lifetime
LED lifetime max. °C
50000 h
LED lifetime L70B50 25°C
> 60000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Time setting
2 s – 70 Min.
Main light adjustable
No
Settings via
Potentiometers
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
I
Ambient temperature
-20 – 40 °C
Housing material
Aluminium
Cover material
Plastic, transparent
Cover material (scope of delivery)
sticker
Mounting location
wall
Application location
Outdoors
Mounting type
Surface wiring
Application room
all round the building
outdoors
terrace / balcony
Colour
white
Scope of delivery & warranty
Manufacturer warranty
3 years
Corner wall bracket included
No
Certificates & EPREL
EPREL category
Light source

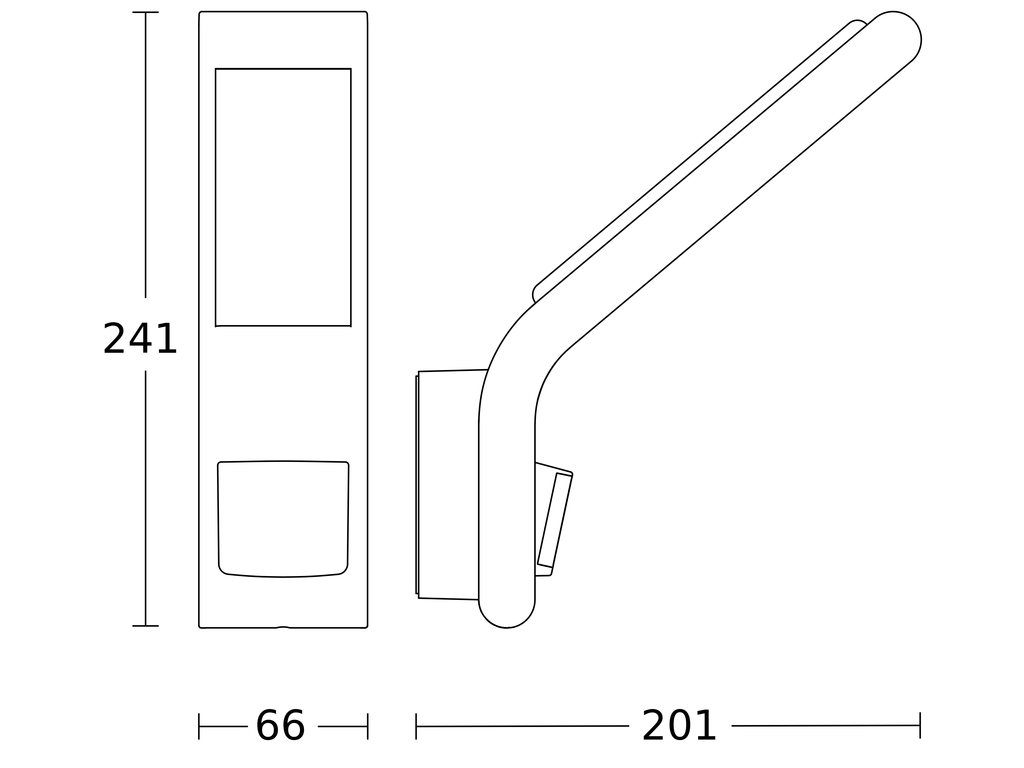

Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
