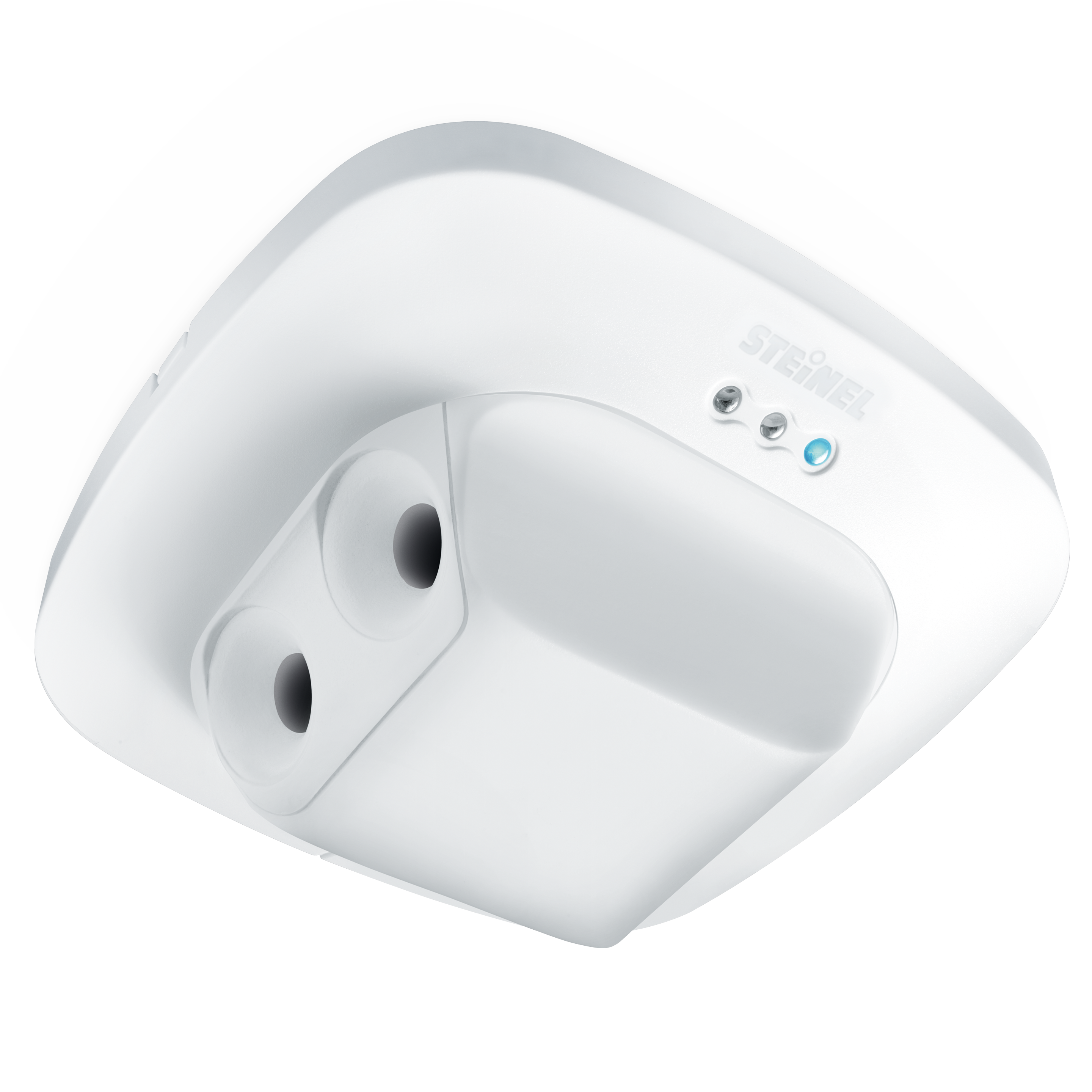

Steinel Dual US COM1 - Concealed wiring

ELDAS® no. 535 932 210

EAN-No. 4007841 007843

Switching light on and off with maximum precision in long passageways and corridors. Because all objects can be clearly detected. Thanks to ultrasonic technology, that's not a problem for the Dual US. Installed at a height of 2.5 – 3.5 metres, the presence detector identifies even the smallest of movements – no matter which walking direction they come from - in a detection zone of 3 x 18 m. But only there: the sensor reliably masks out persons in adjacent rooms. That makes it the perfect corridor sensor for office and admin buildings.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 71 x 120 x 120 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 1000 VA

Fluorescent lamps parallel-compensated 1000 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Sensor technology

Max. mounting height 3,50 m

Sensor technology Ultrasonic

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 20 x 3 m (60 m²)

Tangential range 20 x 3 m (60 m²)

Mounting height 2,50 – 3,50 m

US technology 40 kHz

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Cable

Networking quantity max. 10 sensors

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Semi-/fully automatic Pushbutton / switch mode Manual ON / ON-OFF

Settings via Remote control DIP switches Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors corridor / aisle

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Optional remote controls

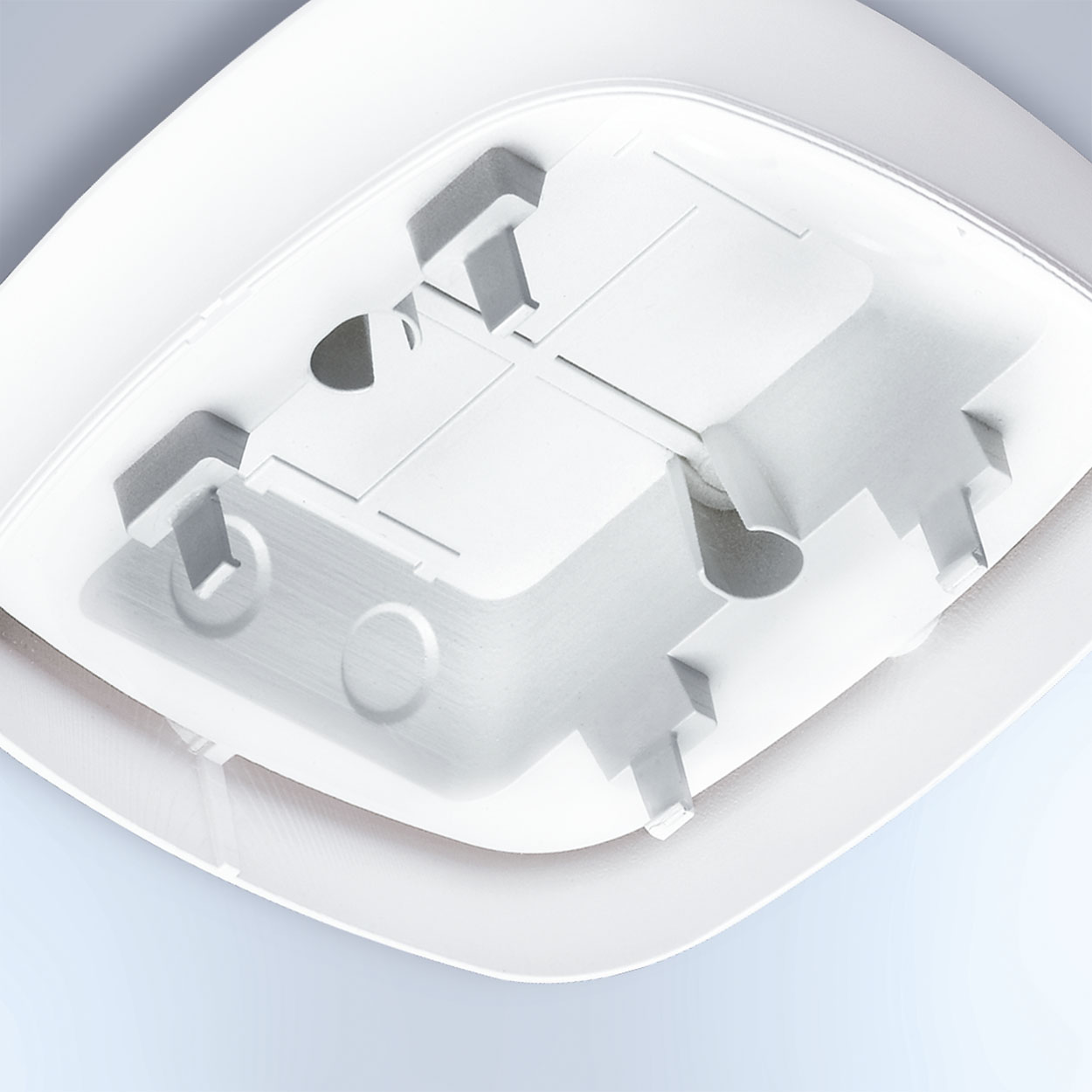

Optional surface-mounting adapter

Optional guard cage
