Identification
Version

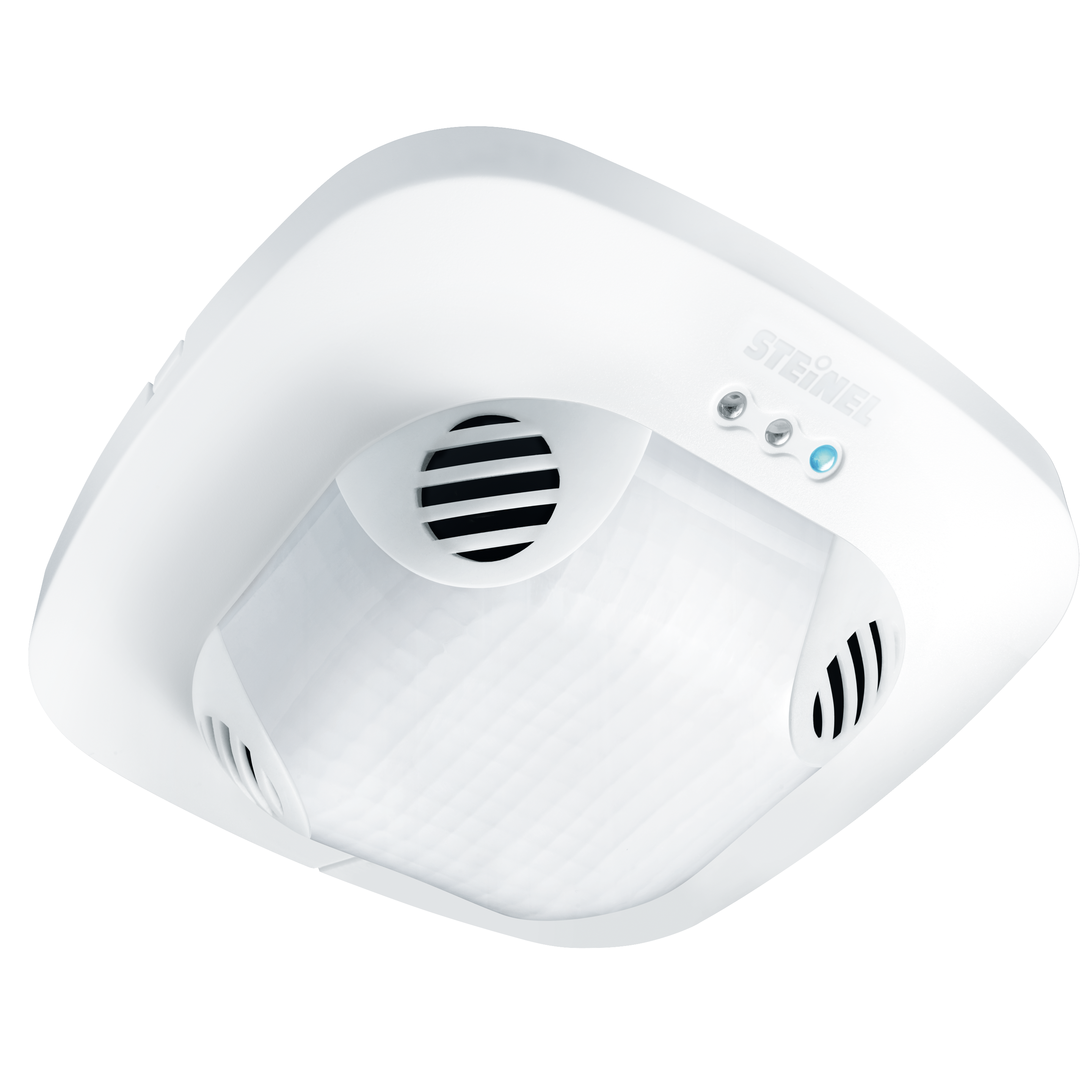

Presence detector
Dimensions
Dimensions L × W × H
66 x 120 x 120 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
2000 W
Fluorescent lamps ECG
1500 W
Fluorescent lamps uncompensated
1000 VA
Fluorescent lamps series-compensated
1000 VA
Fluorescent lamps parallel-compensated
1000 VA
Switching output 1 low-voltage halogen lamps
2000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
300 W
LED lamps > 8 W
600 W
Capacitive load in µF
176 µF
Sensor technology
Max. mounting height
3,50 m
Sensor technology
Ultrasonic
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ultrasonic: Ultraschall: Ø 10 m (Ultraschall: 79 m²)
Tangential range
Ultrasonic: Ø 10 m (79 m²)
Switching zones
520 switching zones
Mounting height
2,5 – 3,5 m
Presence range
Ultrasonic: Ø 6 m (28 m²)
Sensor technology 2
passive infrared
Radial range 2
passive infrared: Ø 4 m (13 m²)
Tangential range 2
passive infrared: Ø 8 m (50 m²)
Presence range 2
passive infrared: Ø 4 m (13 m²)
US technology
40 kHz
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/Slave, Master/Master
Networking quantity
max. 10 sensors
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
10 – 1000 lx
Time setting
30 s – 30 min
Base light function
No
Main light adjustable
No
Functions
Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Settings via
Remote control, DIP switches, Potentiometers, Smart Remote
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25...+55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed mounting
Material
Plastic
Application room
Indoors, classroom, conference room / meeting room, duty room, one-person office, open-plan office, recreation room
Colour
White
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
