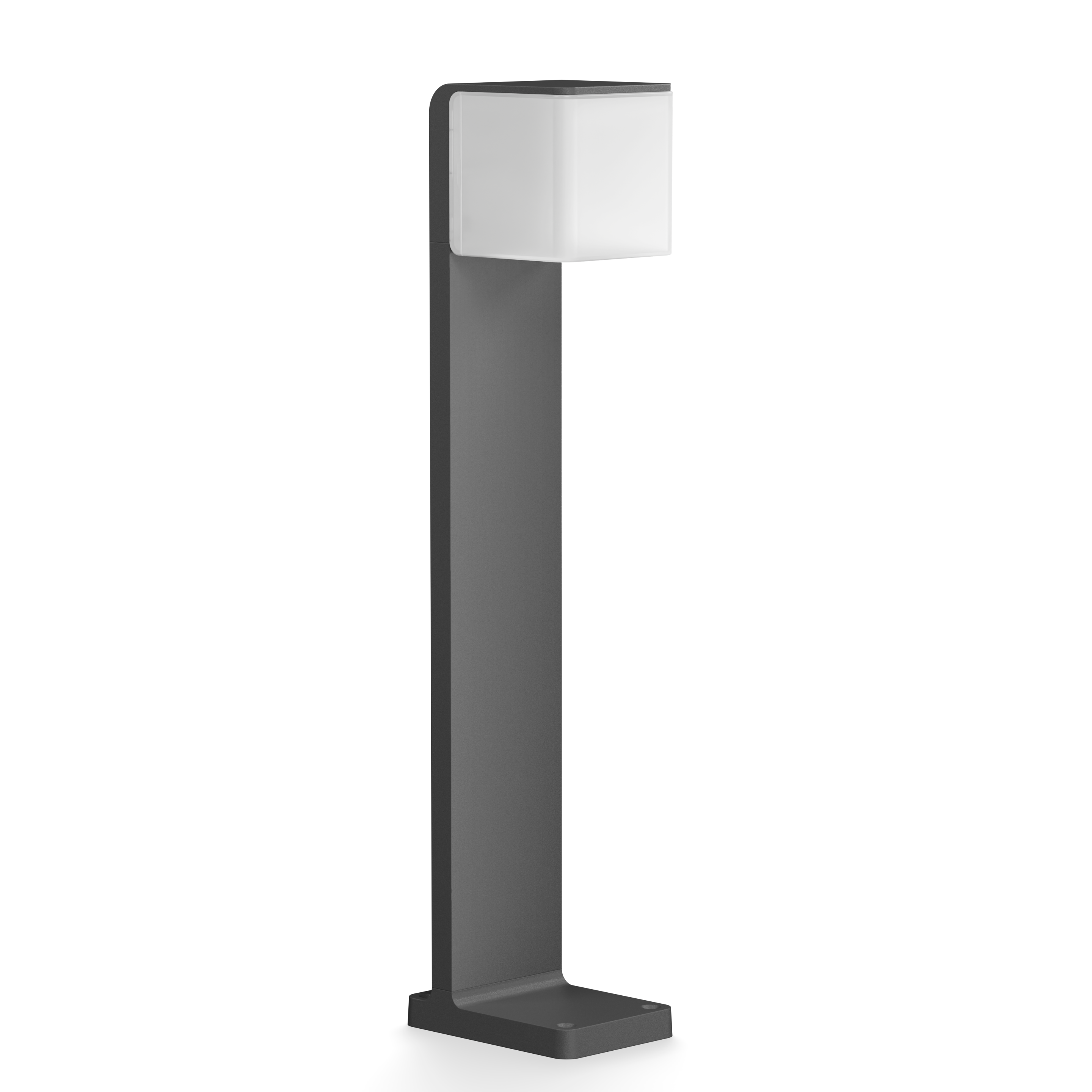

Steinel GL 80 SC Anthracite

Steinel GL 80 SC Anthracite

ELDAS® no. 941 200 009 · EAN-No. 4007841 055479

Technical data Highlights Illustrations Wiring diagrams Downloads Videos Accessories
Steinel Bluetooth Mesh

Steinel GL 80 SC Anthracite

ELDAS® no. 941 200 009

EAN-No. 4007841 055479

Price: Please log in to see prices

Version

Without sensor Sensor

Colour

Anthracite Silver

Whether as a lofty "lighthouse" in the garden or as an interconnected function group along the driveway - the elegant design is also an irresistible eye-catcher as a path light. The concealed STEINEL iHF sensor makes a decisive contribution to ensuring that nothing disturbs the clean design lines. And nevertheless features all of the benefits of a sensor-switched light of the high-quality STEINEL brand. Intelligent functions such as dimmable main light, dimmable night light (when combined with an SC version), a pleasant soft light start, and a practical scheduling function ensure the right lighting scenario in every situation. Available in the colours silver and anthracite.

  • Floor and path luminaire with motion detector, perfect for illuminating paths and driveways
  • Elegant and modern design in cube format made of UV-resistant material

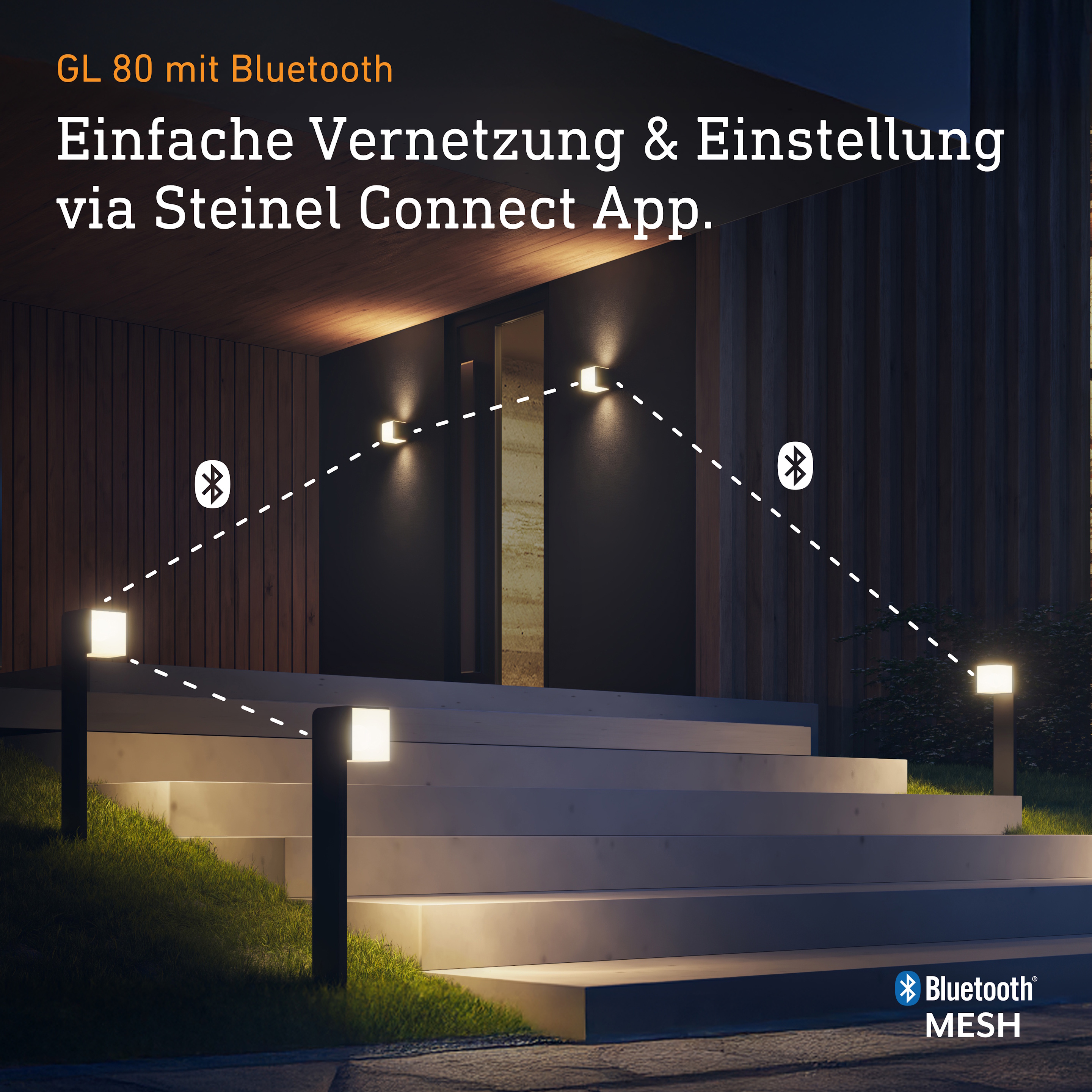

  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

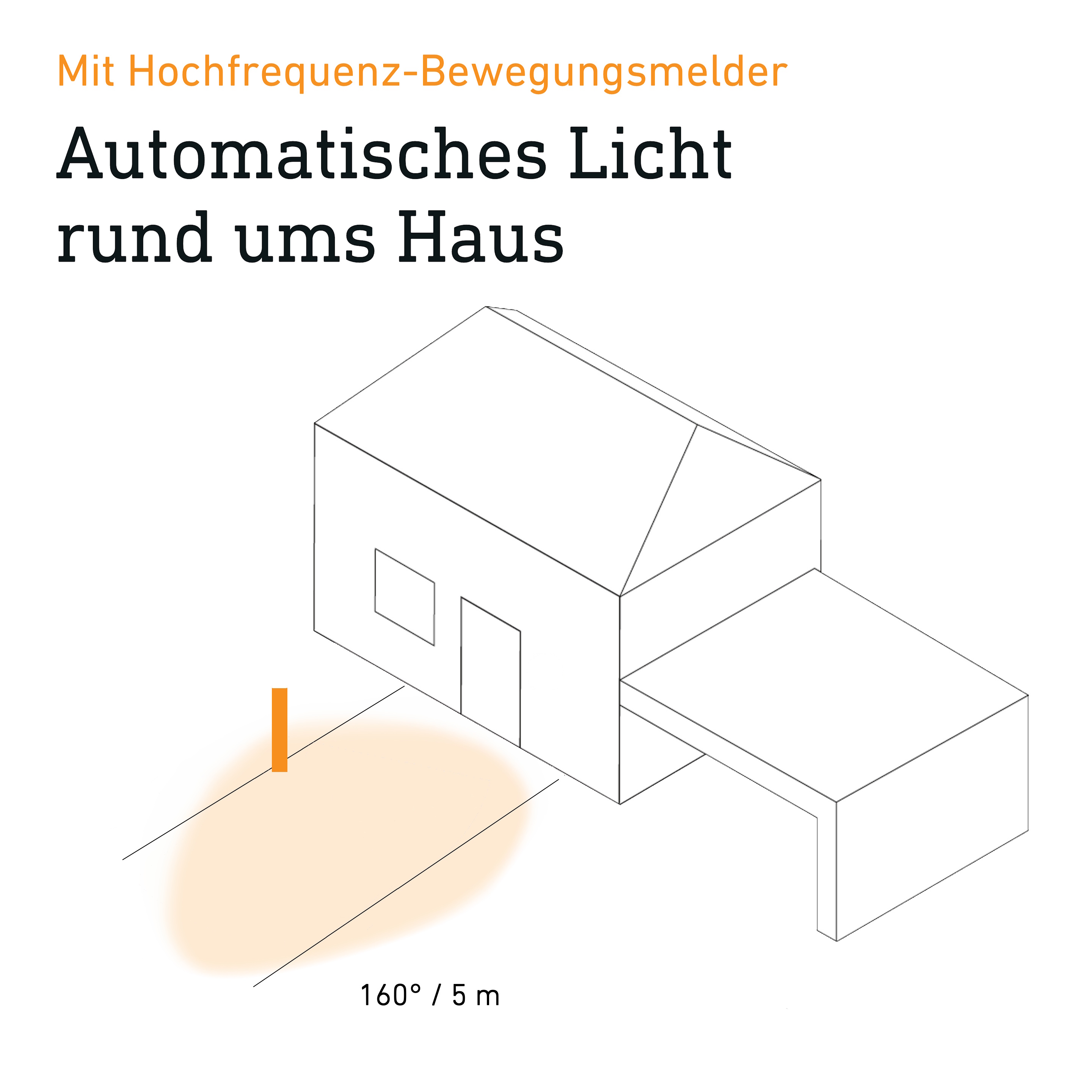

  • Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
  • Functions: adjustable basic and main light, pleasant soft light start, continuous light, scheduling function
  • Warm white light (3000 K) and long-life 9,1 W LEDs with 650 lm

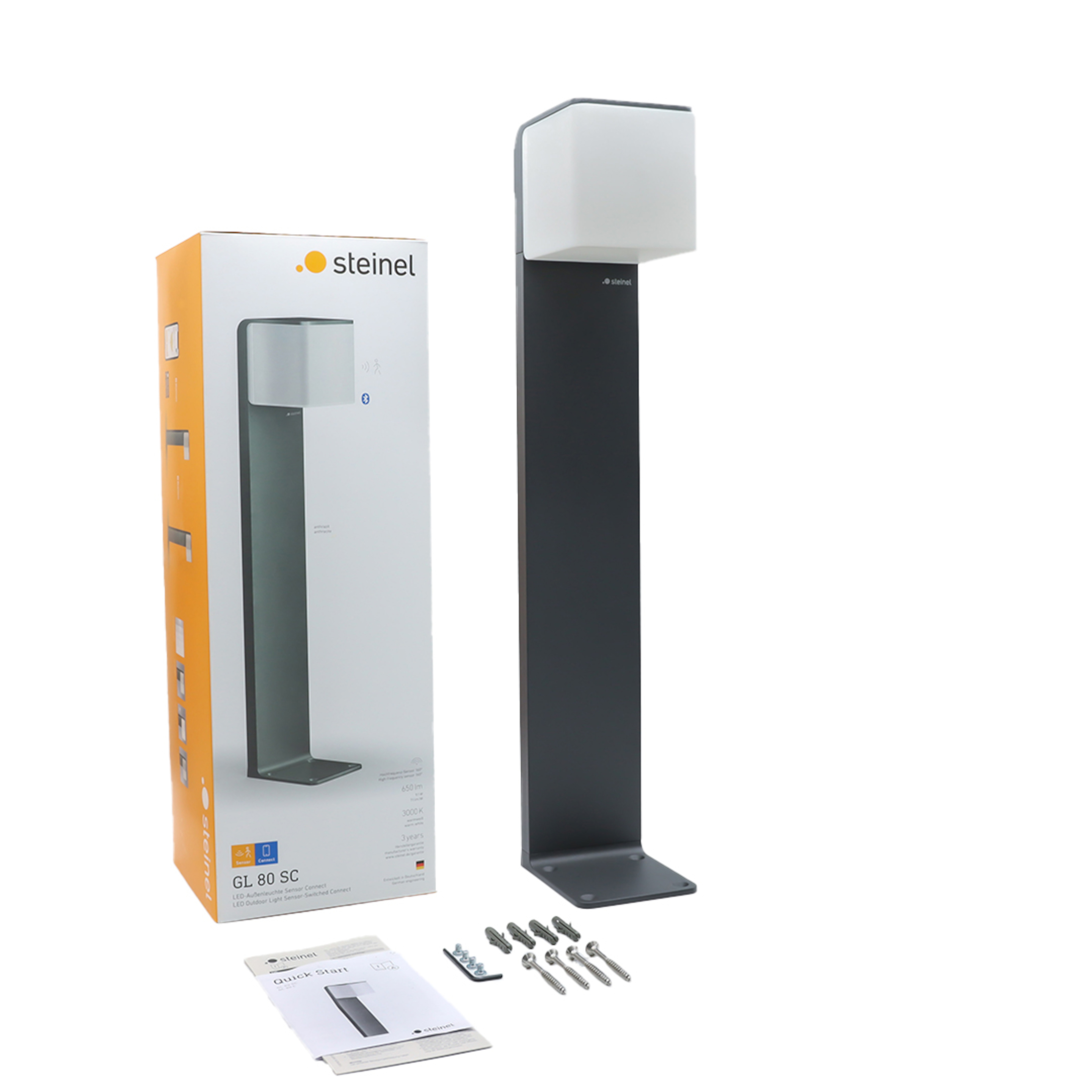

  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 161 x 110 x 633 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,1 W
Own consumption 1 W

Sensor technology

Sensor technology iHF (intelligent high-frequency technology)
With motion detector Yes
Detection angle 160 °
Electronic scalability Yes
Mechanical scalability Yes
Radial range r = 5 m (35 m²)
Tangential range r = 5 m (35 m²)

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 650 lm
Colour temperature 3000 K
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 10-30 min, all night
With remote control No
Twilight setting teach Yes
Base light function in percent 10 – 50 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location Stand mounted
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room all round the building courtyard & driveway front door garden terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

Certificates GS TÜV
EPREL category Surrounded product with integrated light source

Intelligent soft light start

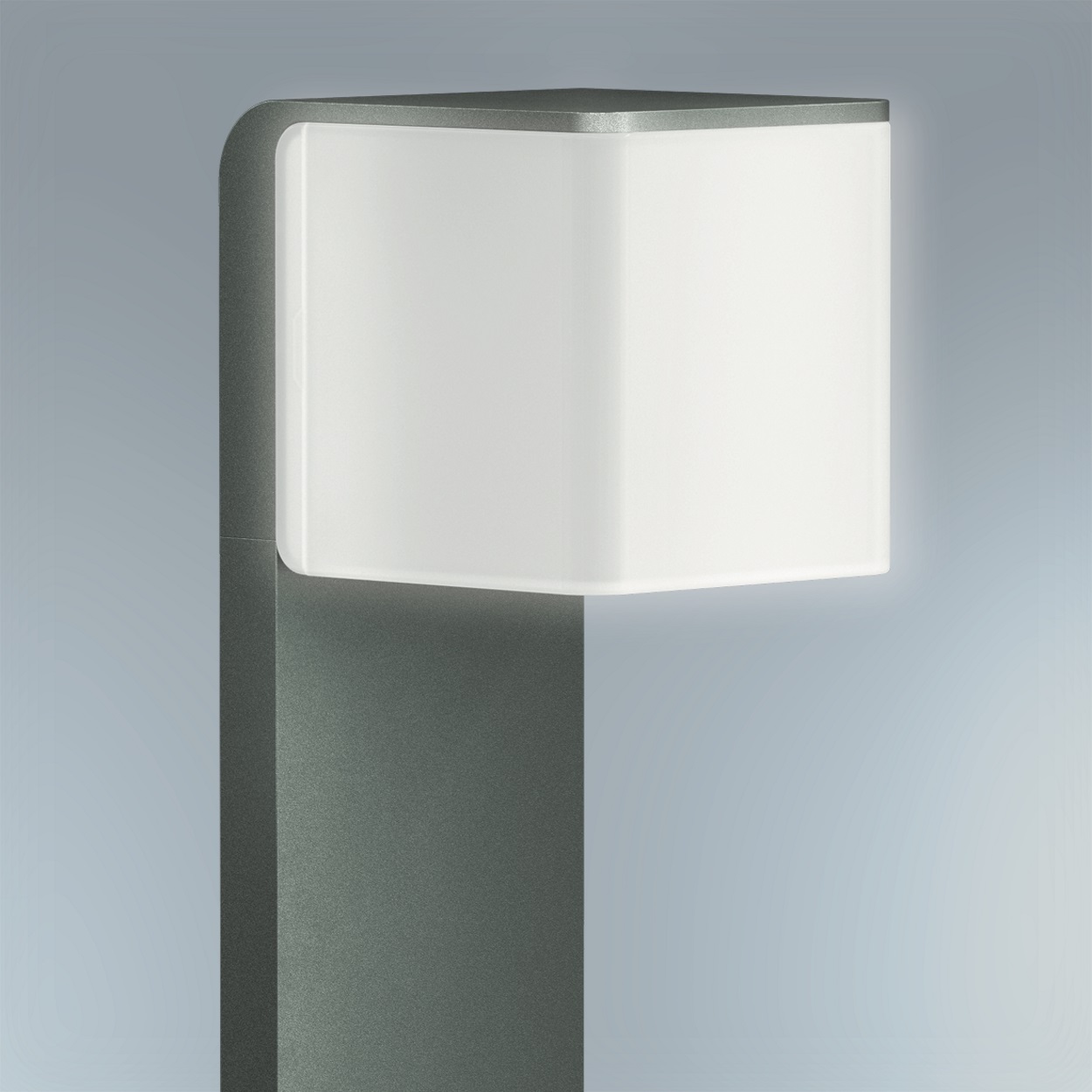

Adjustable main and basic light brighness (10 - 100%)

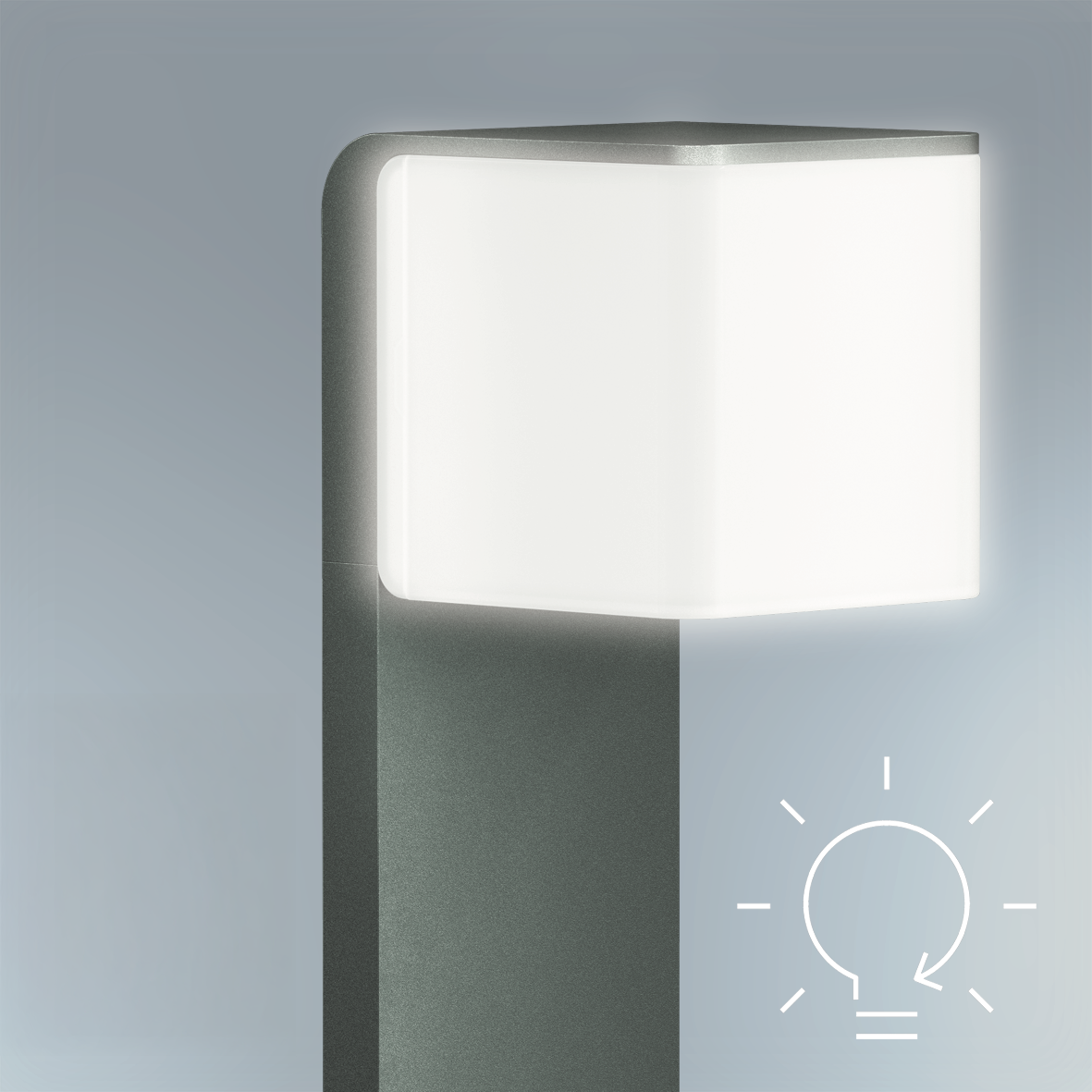

Continuous light individually switchable (optional)

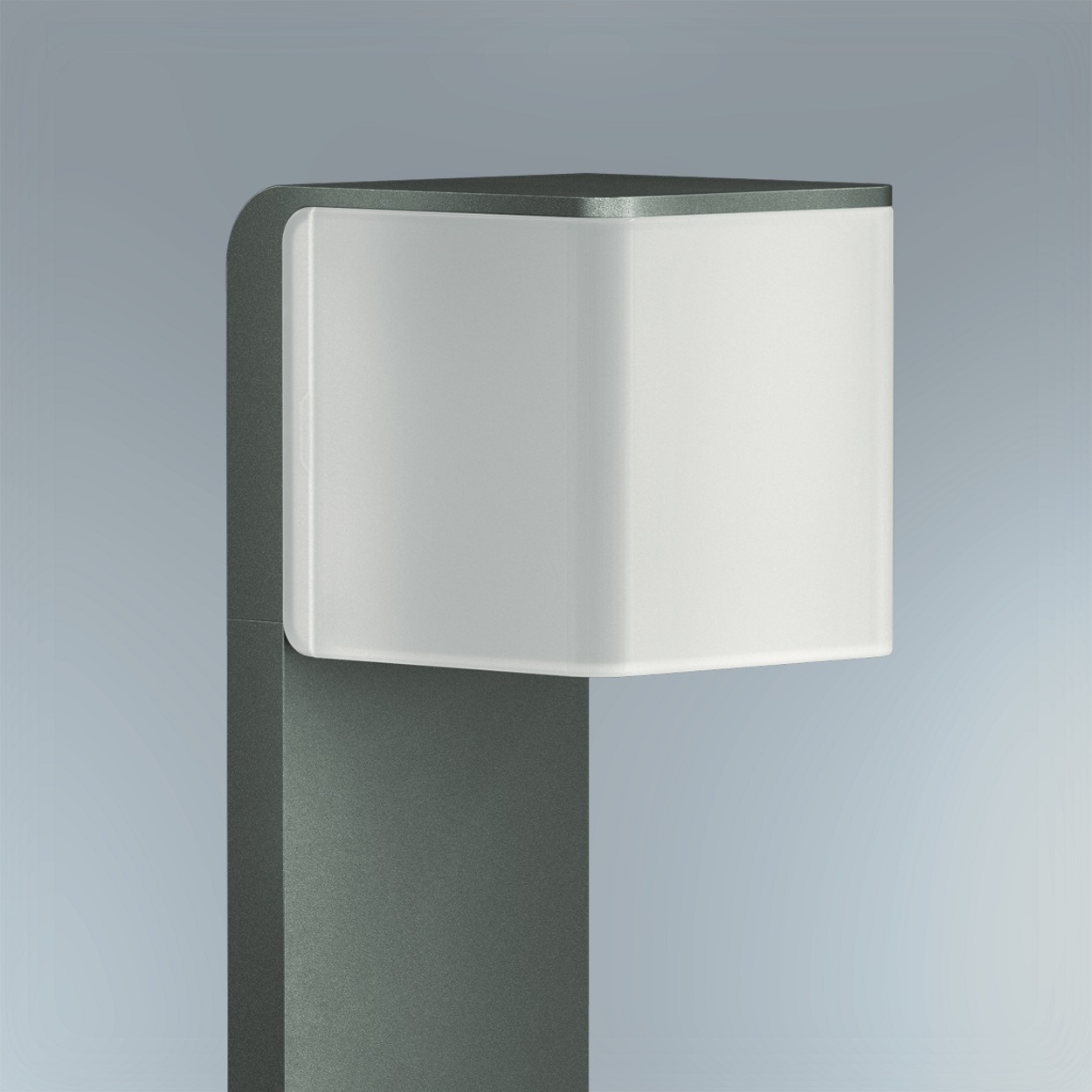

UV resistant material

Technical drawing

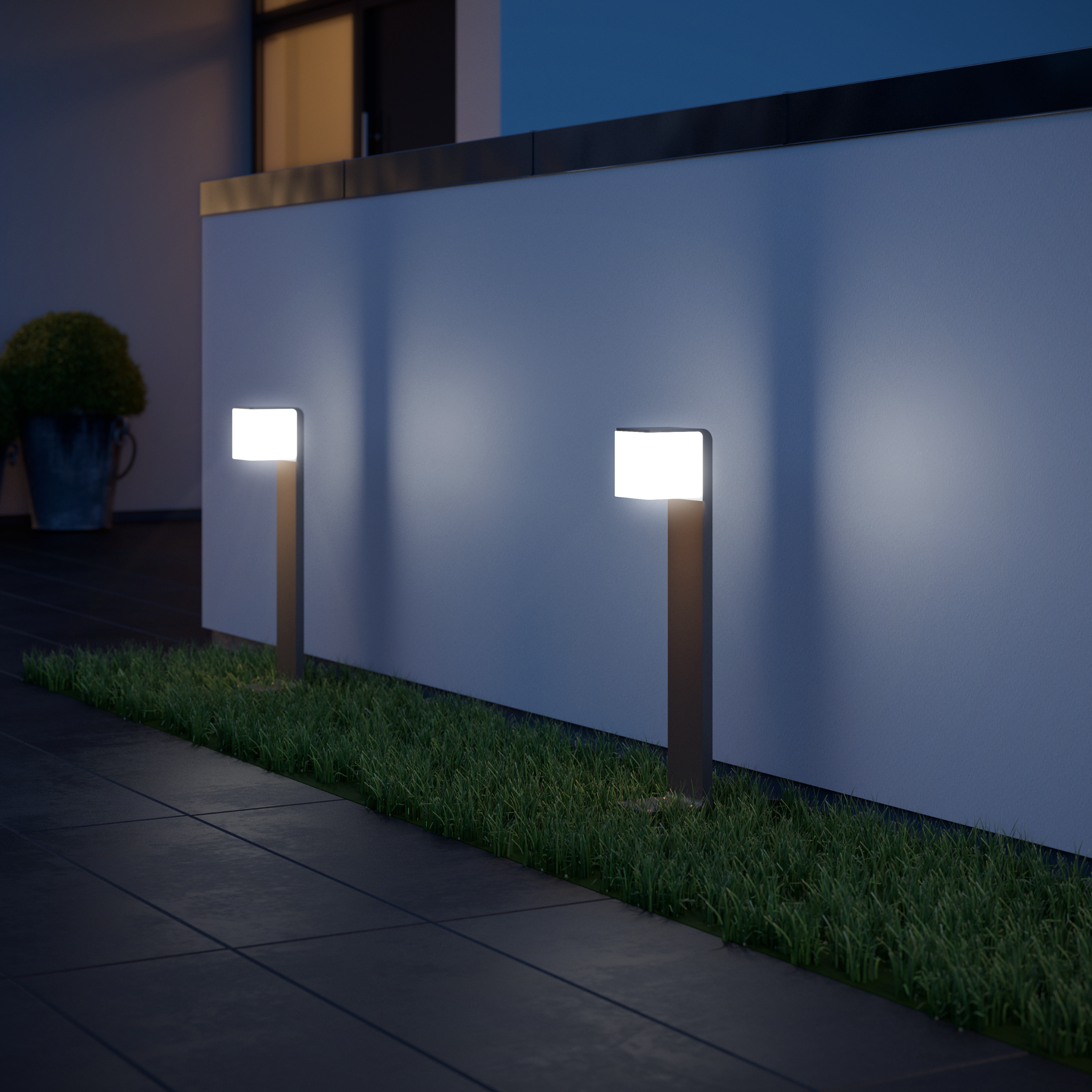

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth

Replacement profile GL 80 Anthracite

Replacement profile GL 80 Anthracite

Item no. 078751

Replacement foot GL 80 Anthracite

Replacement foot GL 80 Anthracite

Item no. 4007841078737

Wireless pushbutton TapDuo C

Wireless pushbutton TapDuo C

Item no. 088620

Replacement foot GL 80 Anthracite

Replacement foot GL 80 Anthracite

Item no. 089870
