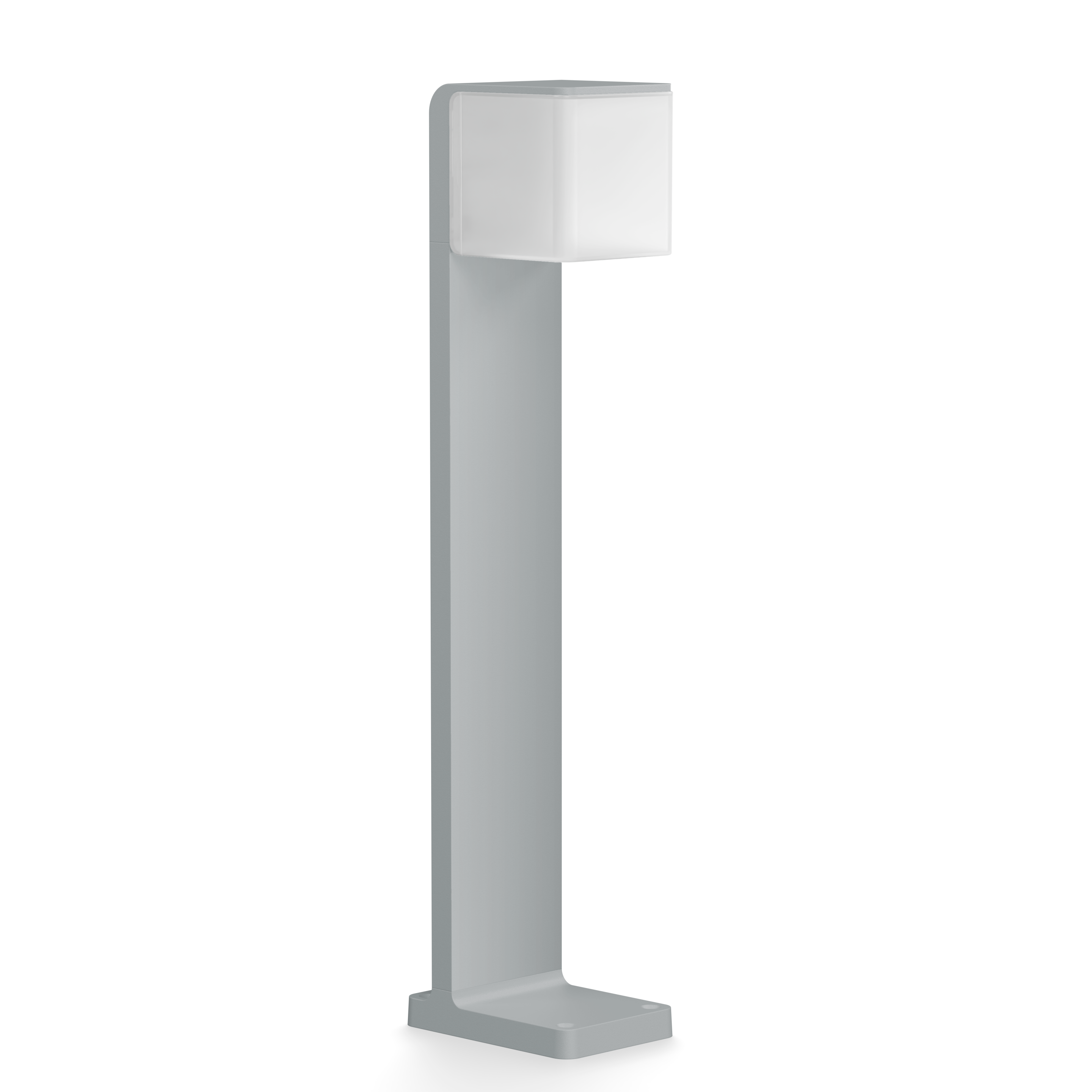

Steinel GL 80 SC Silver

Cube-shaped path light for gardens and driveways. Invisible sensor, Bluetooth Mesh.

ELDAS® no. 941 200 019

EAN-No. 4007841 055486

Price: Please log in to see prices

Colour

Anthracite Silver

With motion detector

Yes

Whether as a lofty "lighthouse" in the garden or as an interconnected function group along the driveway - the elegant design is also an irresistible eye-catcher as a path light. The concealed STEINEL iHF sensor makes a decisive contribution to ensuring that nothing disturbs the clean design lines. And nevertheless features all of the benefits of a sensor-switched light of the high-quality STEINEL brand. Intelligent functions such as dimmable main light, dimmable night light (when combined with an SC version), a pleasant soft light start, and a practical scheduling function ensure the right lighting scenario in every situation. Available in the colours silver and anthracite.

  • Floor and path luminaire with motion detector, perfect for illuminating paths and driveways
  • Elegant and modern design in cube format made of UV-resistant material

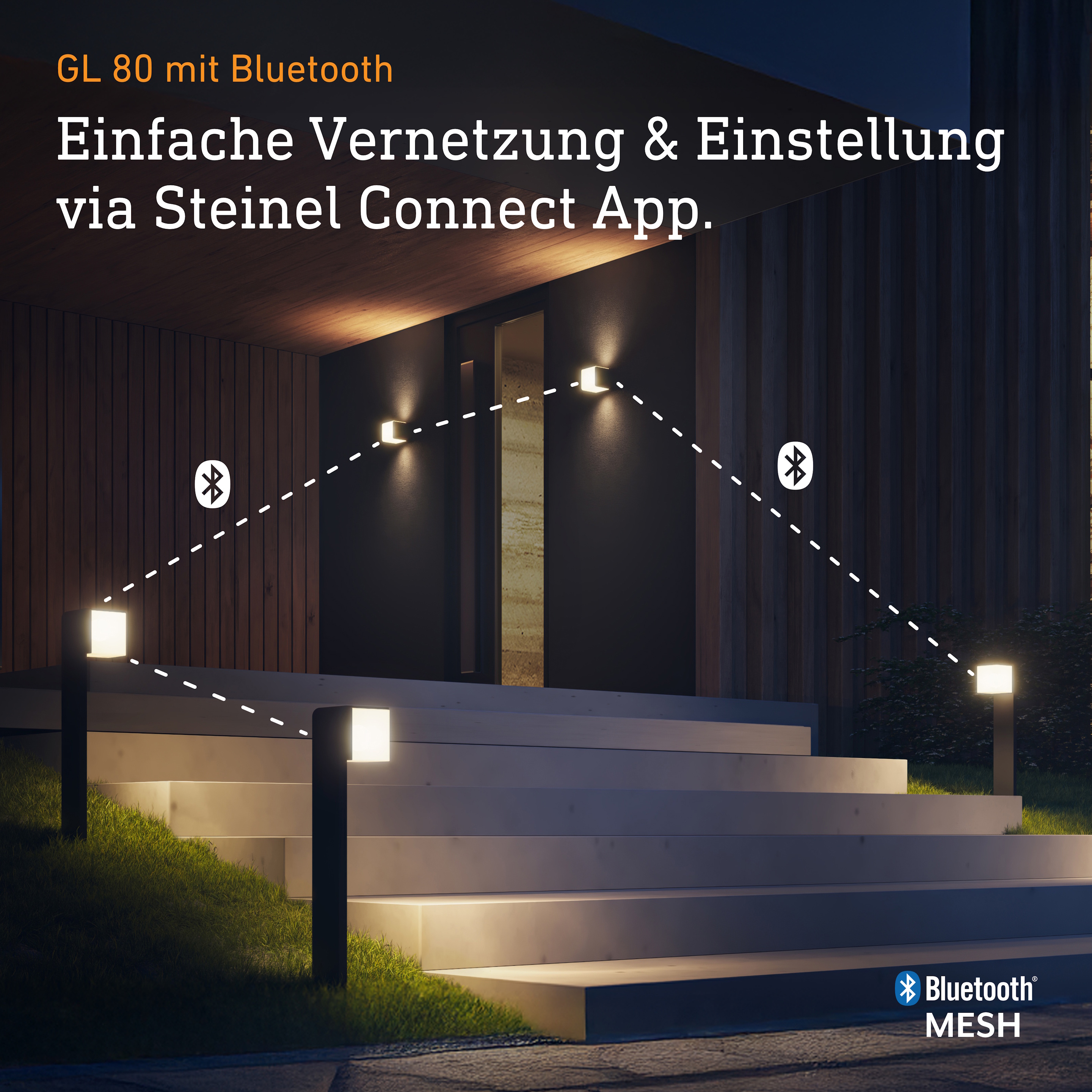

  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

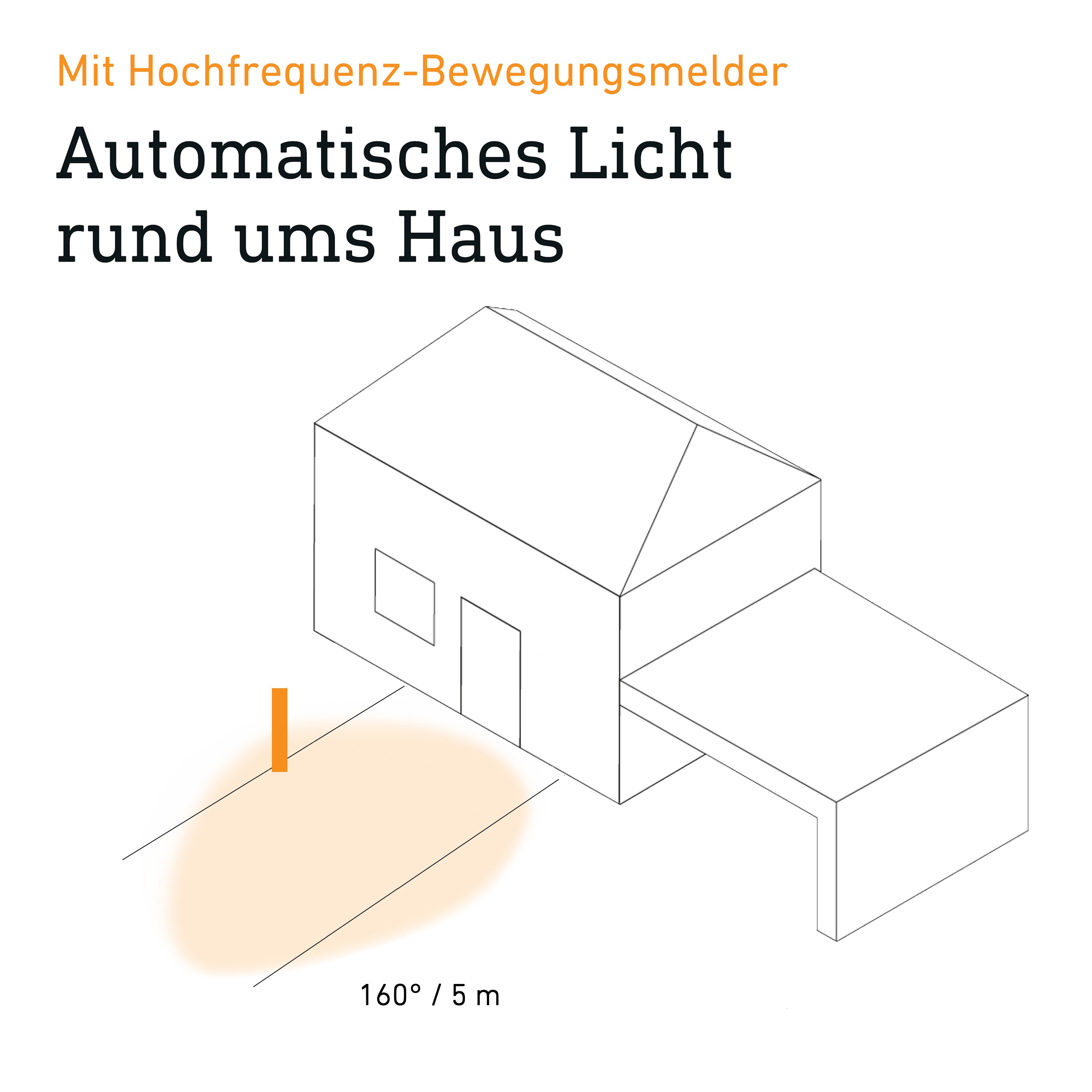

  • Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
  • Functions: adjustable basic and main light, pleasant soft light start, continuous light, scheduling function
  • Warm white light (3000 K) and long-life 9,1 W LEDs with 650 lm

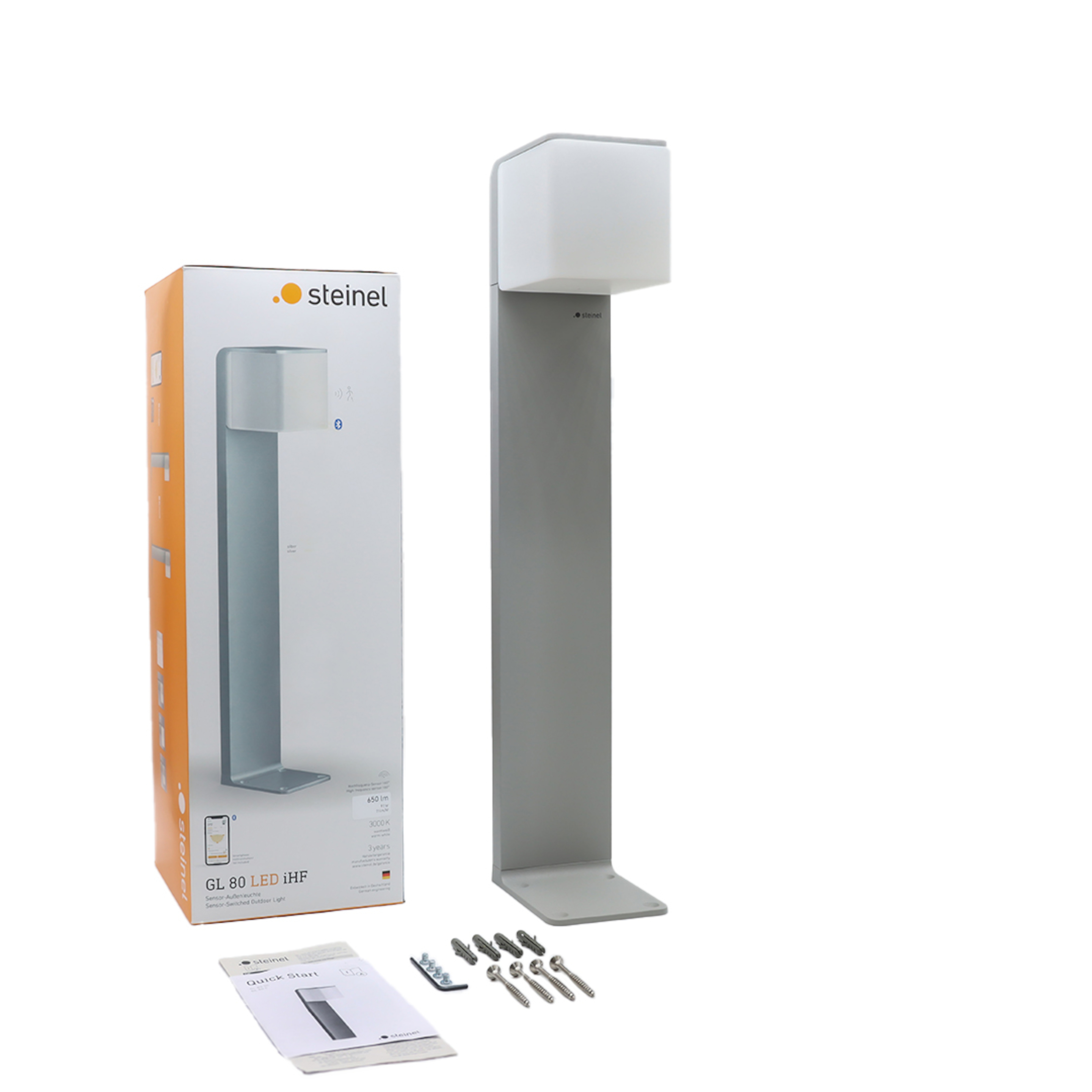

  • Incl. mounting accessories - plastic-free packaging

Variants

Version Sensor
Colour Silver

Dimensions

Dimensions L × W × H 161 x 110 x 633 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 9,1 W
Own consumption 1 W

Sensor technology

Sensor technology iHF (intelligent high-frequency technology)
Detection angle 160 °
Electronic scalability Yes
Mechanical scalability Yes
Radial range r = 5 m (35 m²)
Tangential range r = 5 m (35 m²)

Connectivity

Networking Yes
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 650 lm
Colour temperature 3000 K
Colour rendering index 80 - 89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 min
Base light function Yes
Base light function time 10-30 min, all night
With remote control No
Twilight setting teach Yes
Base light function in percent 10 – 50 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature -20...+40 °C
Housing material Aluminium
Cover material Opal plastic
Mounting location Stand
Application location Outdoors
Mounting type Surface mounting
Material Plastic
Application room all round the building, courtyard & driveway, front door, garden, terrace / balcony
Colour Silver

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

Certificates GS TÜV
EPREL category Surrounded product with integrated light source

Intelligent soft light start

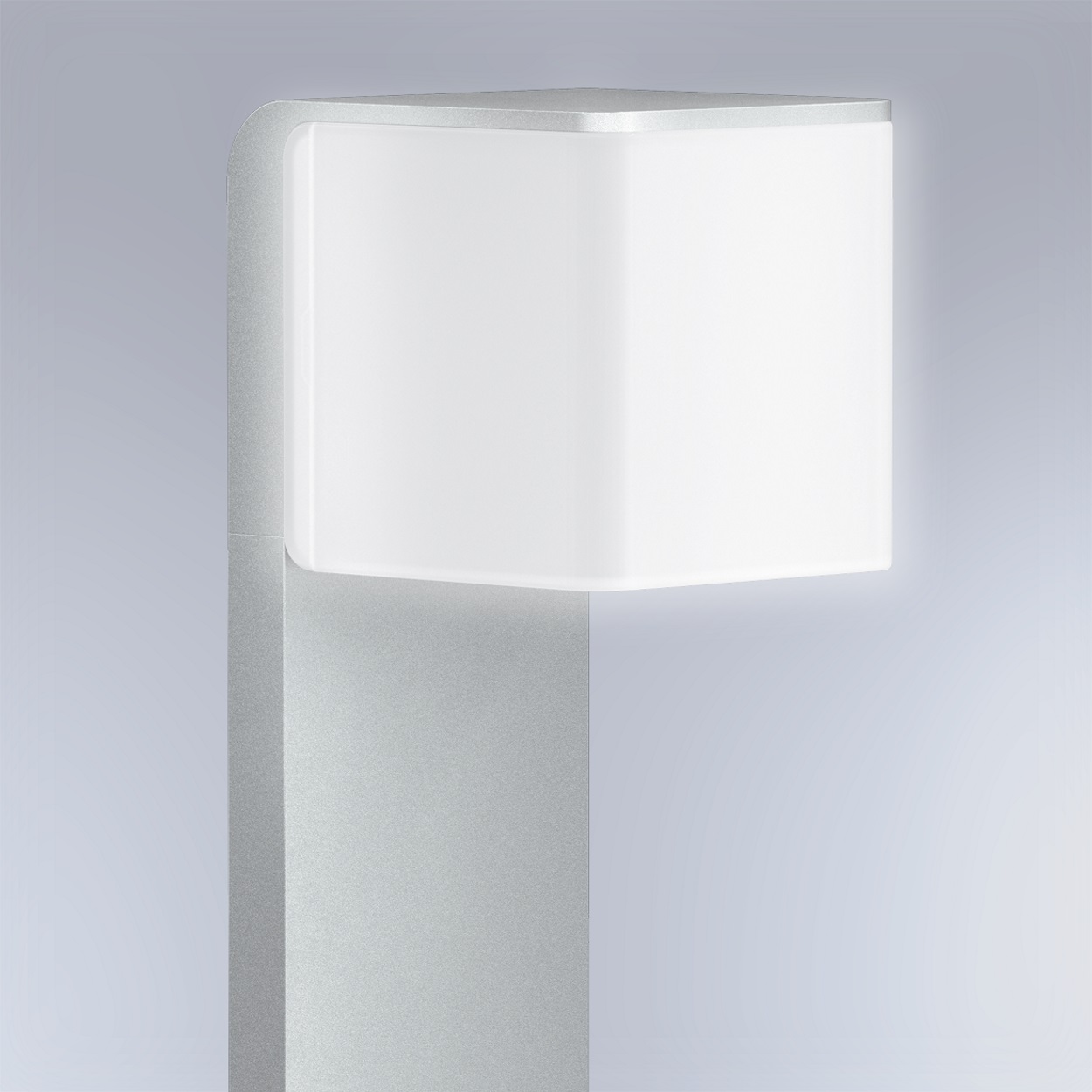

Adjustable main and basic light brighness (10 - 100%)

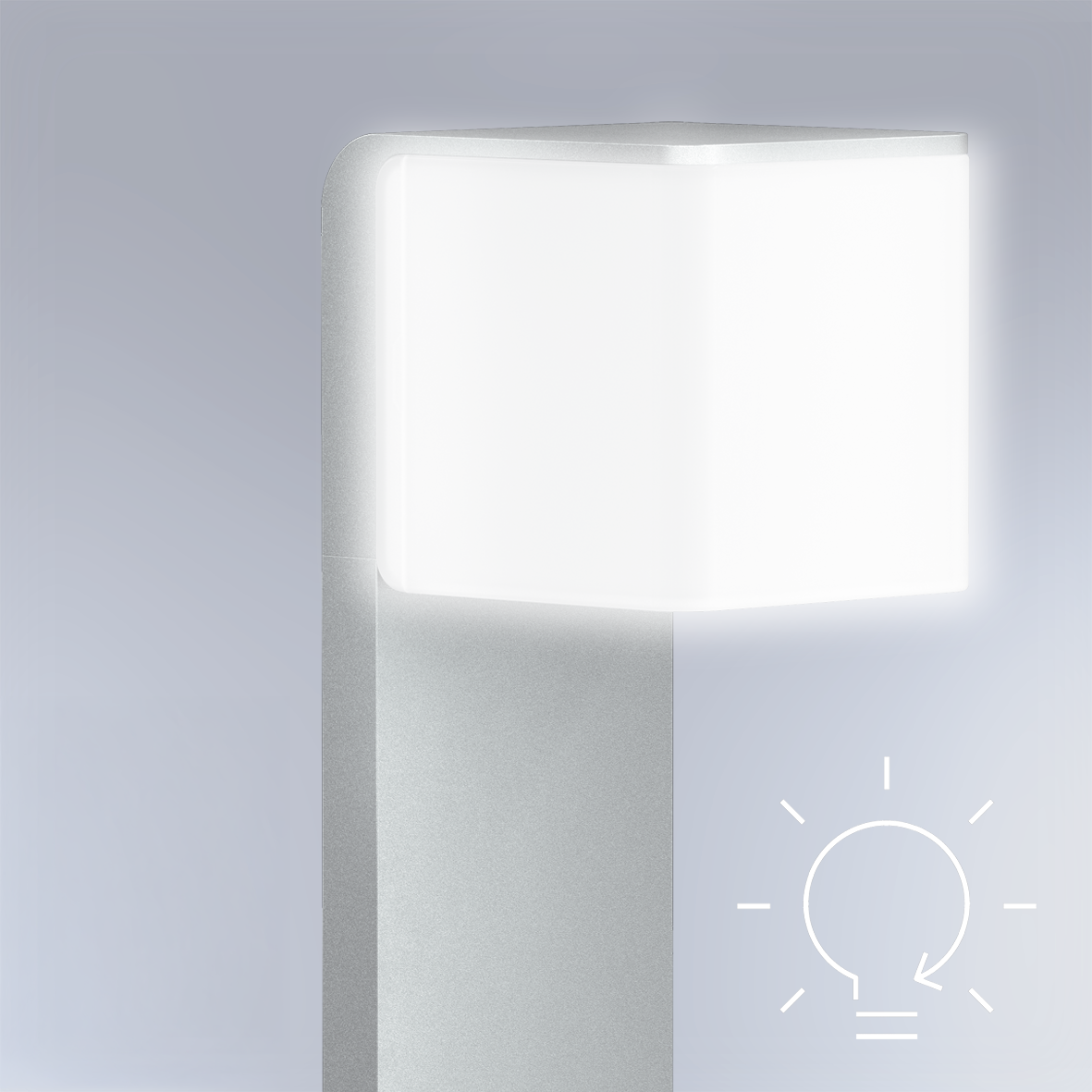

Continuous light individually switchable (optional)

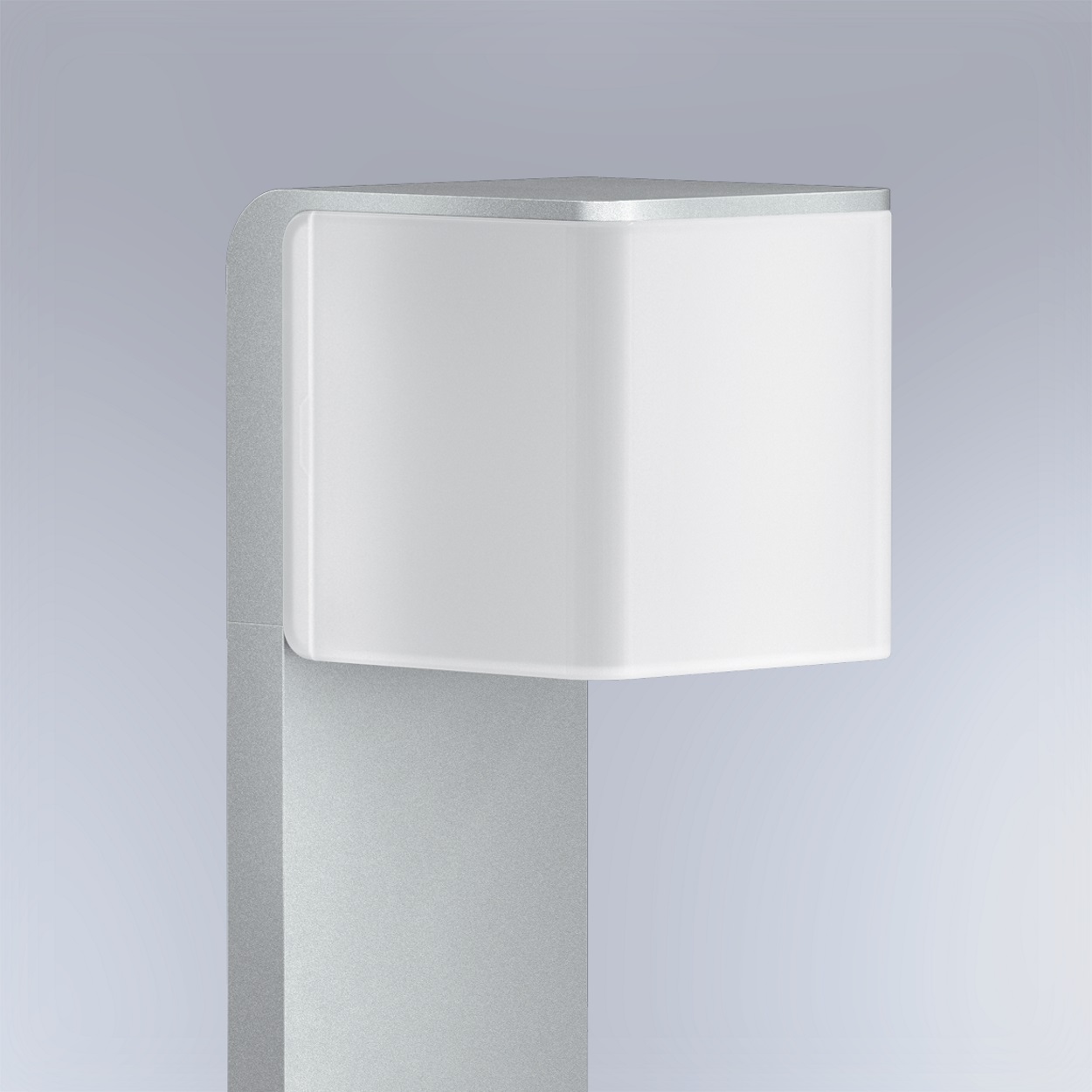

UV resistant material

Technical drawing

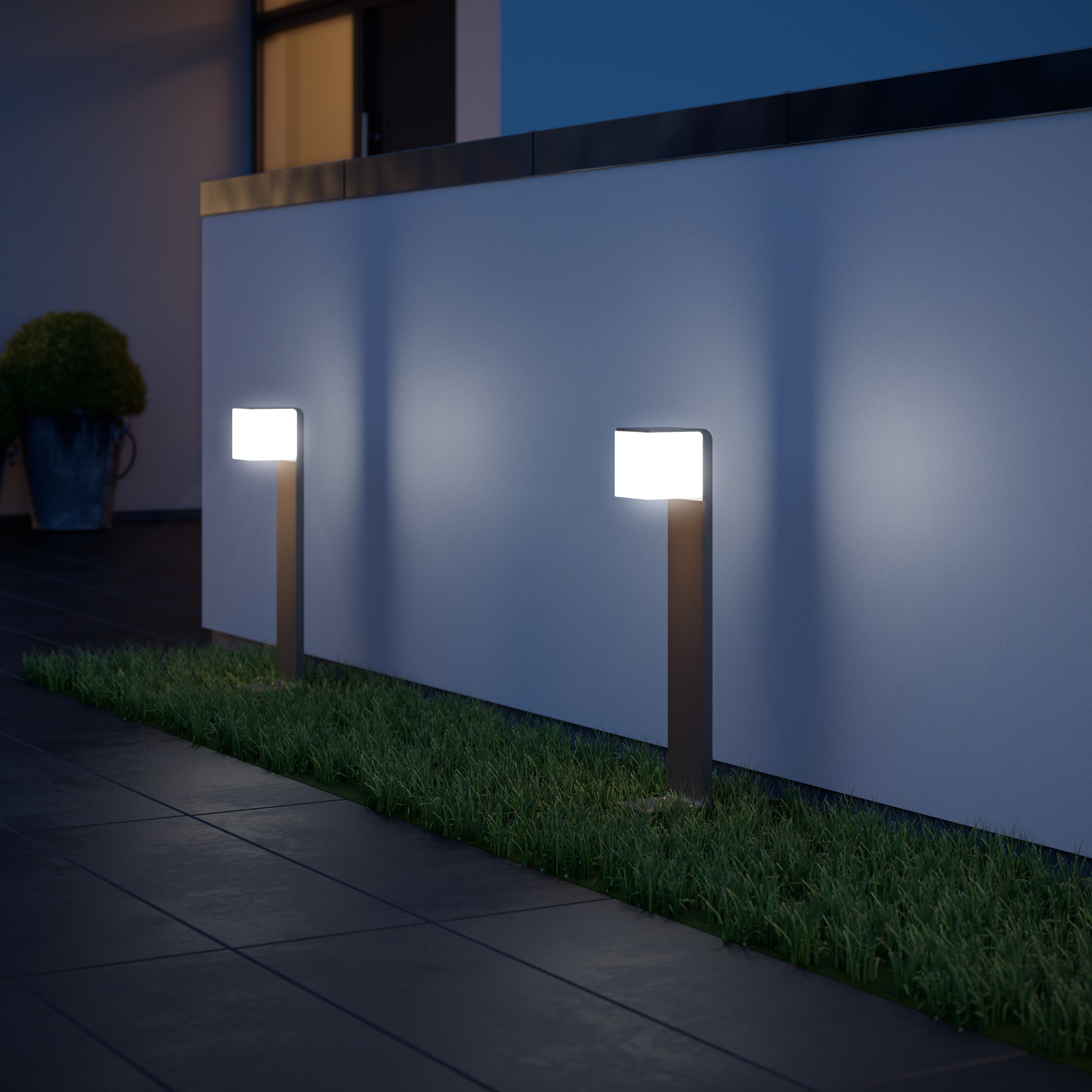

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth
