Identification
Version

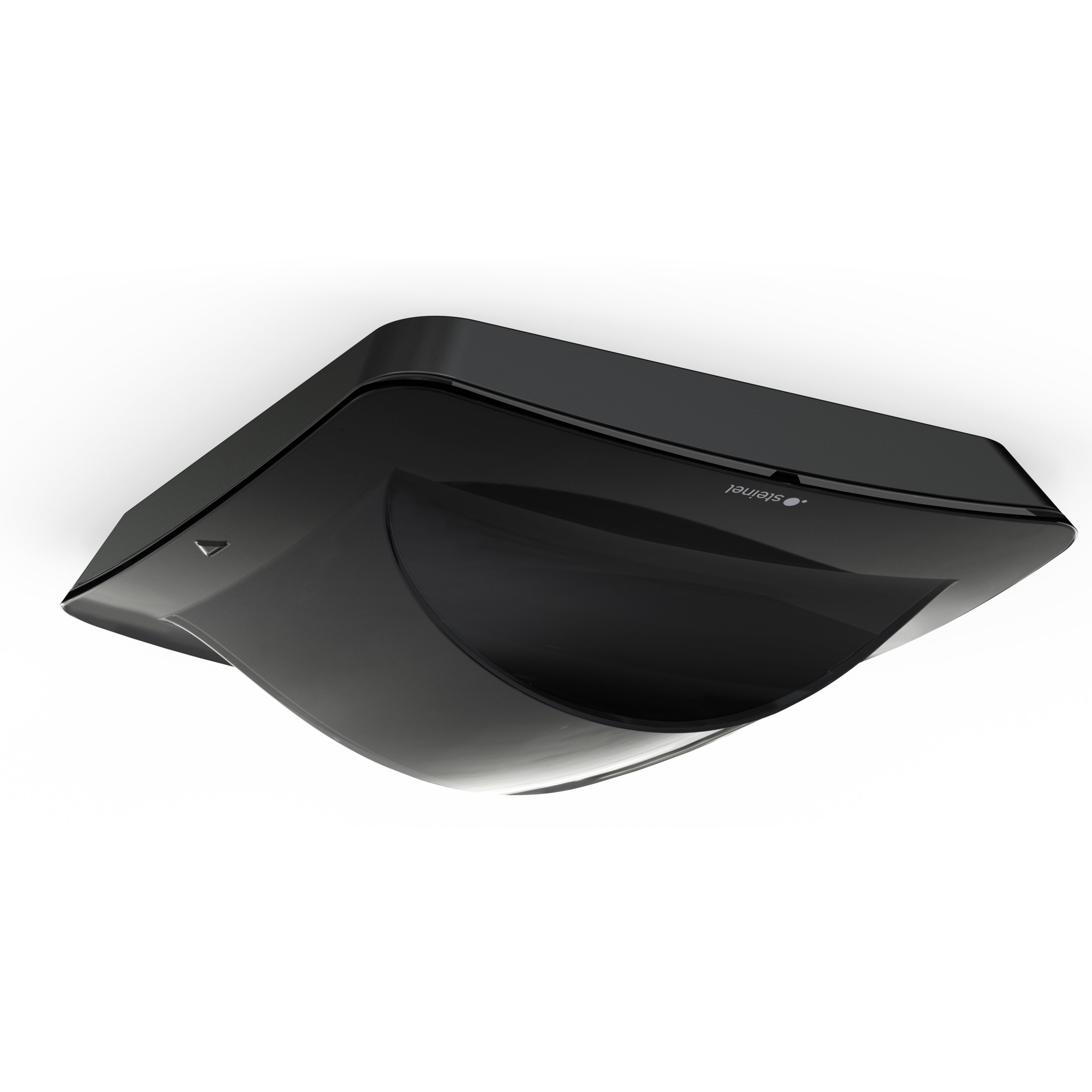

Presence detector
Dimensions
Dimensions L × W × H
67 x 103 x 103 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
2000 W
Switching output 1 resistive
2000 W
Fluorescent lamps ECG
1500 W
Fluorescent lamps uncompensated
1000 VA
Fluorescent lamps series-compensated
400 VA
Fluorescent lamps parallel-compensated
1000 VA
Switching output 1 low-voltage halogen lamps
2000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
300 W
LED lamps > 8 W
600 W
Capacitive load in µF
176 µF
Own consumption
1 W
Switching output 1 number of LED/fluorescent lamps
8 pcs.
Switching output 1 potential-free
No
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No

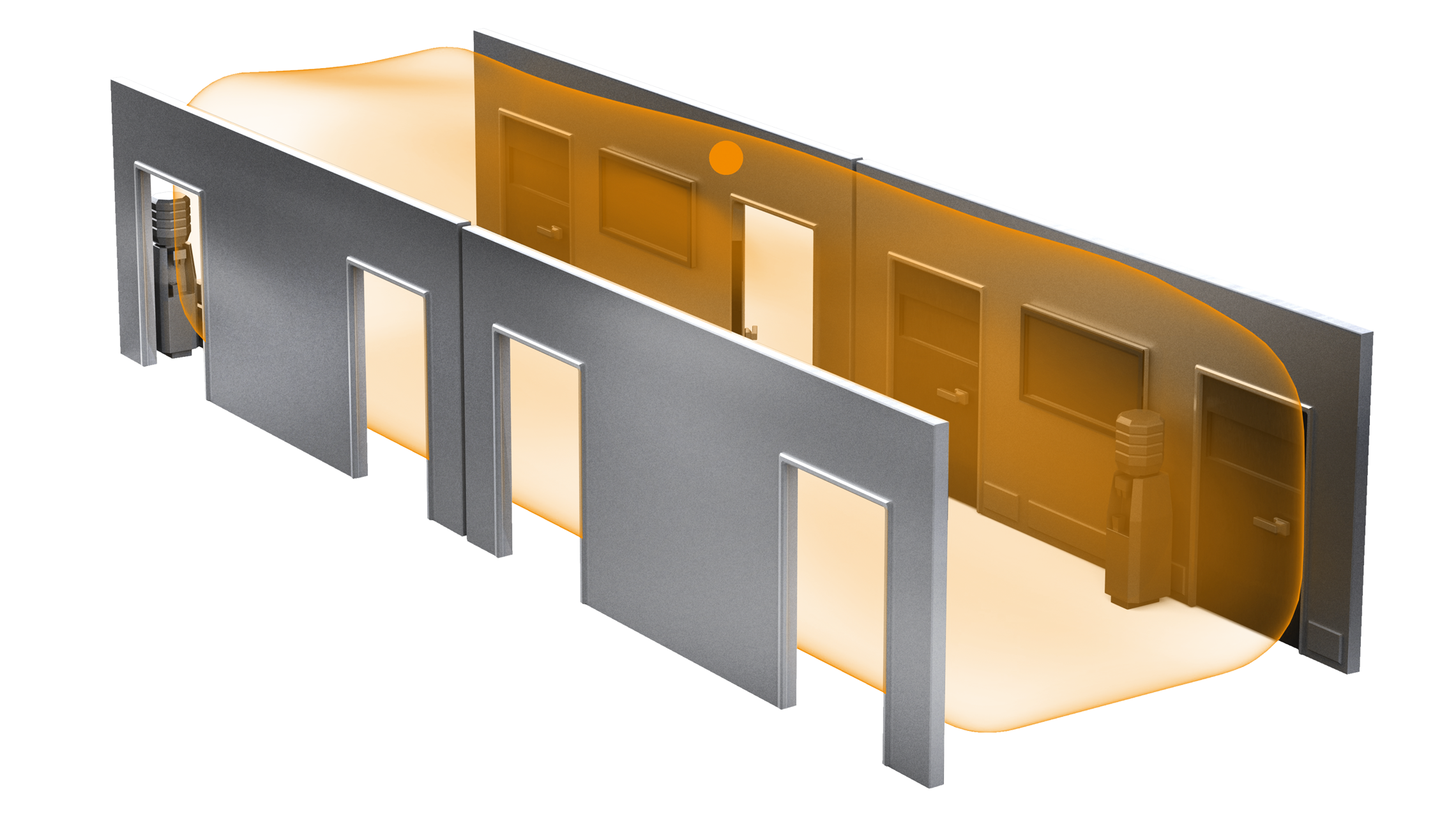

Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2,00 – 4,00 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/master
Master/slave

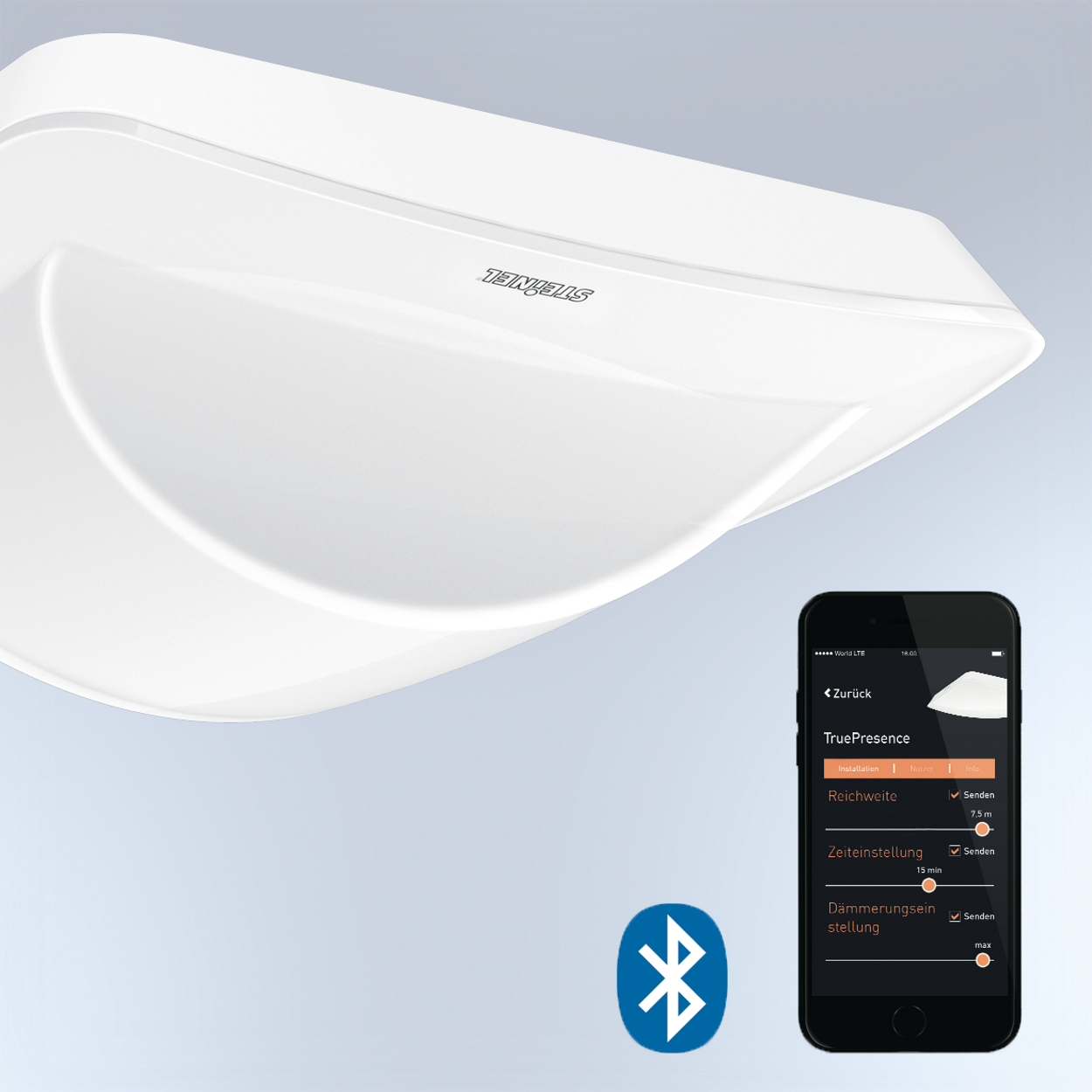

Networking via
Bluetooth
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
No
Twilight setting
2 – 2000 lx
Time setting
10 s – 60 Min.
Base light function
No
Main light adjustable
No
Functions
Group parameterisation
Semi-/fully automatic
Lighting scenario
Manual ON / ON-OFF
Neighbouring group function
Normal / test mode
Settings via
Bluetooth
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring

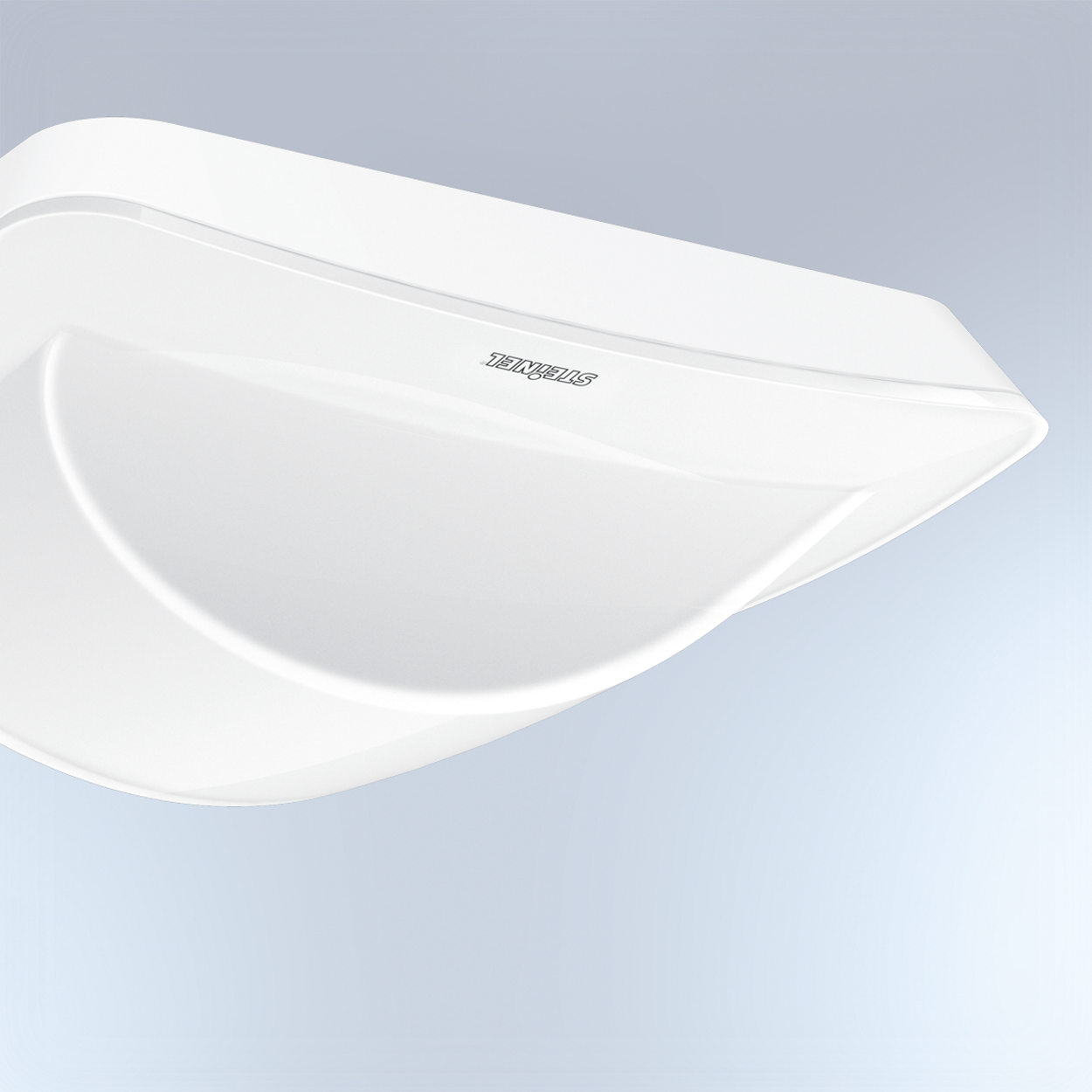

Material
Plastic
Application room
Indoors
corridor / aisle
Colour
black
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
