Identification
Version
Presence detector
Dimensions
Dimensions L × W × H
67 x 103 x 103 mm
Electrical
Mains connection
30 V
Own consumption
0,7 W
Supply voltage detail
KNX bus
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No

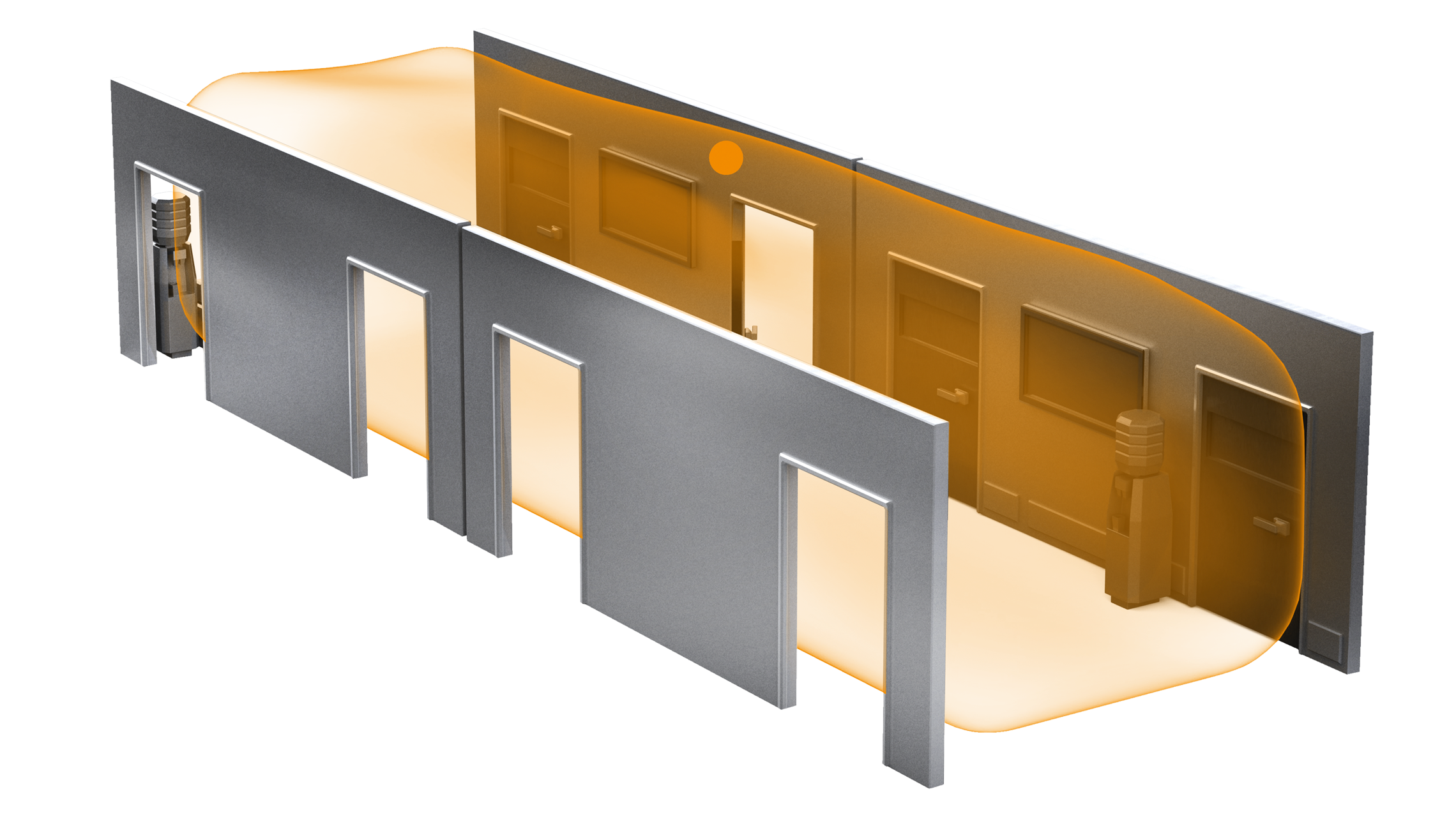

Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2 – 4 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/master
Master/slave
Networking via
KNX bus
KNX functions
Comfort
Individual pyro evaluation
Basic light level function
HVAC output
Light output 4x
Presence output
Day / night function
Dewpoint
Logic gate
Humidity output
Temperature output
With bus coupler
Yes
Lighting technology
Soft light start
Yes
Continuous light
selectable
Settings
Twilight switch
Yes
Time setting
10 s – 1092 Min.
Base light function
Yes
Main light adjustable
0 - 100 %
Settings via
Bluetooth
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -25 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
Indoors
corridor / aisle
Colour
black
RAL colour
9005
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
