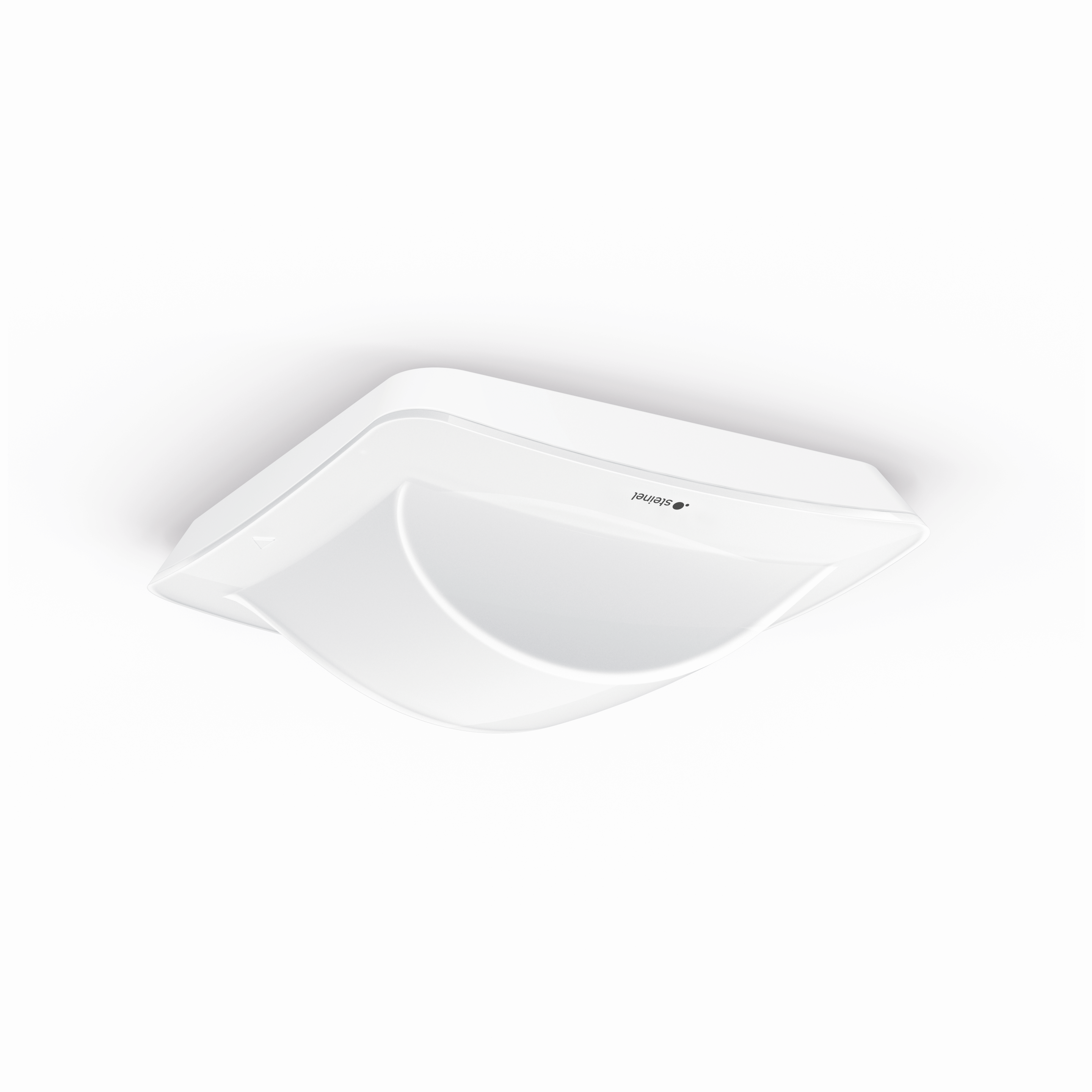

Steinel Hallway COM1 - in-ceiling installation

Presence detector for long corridors. Covers up to 25 m, set up and networked via Bluetooth.

ELDAS® no. 535 918 104

EAN-No. 4007841 079468

Price: Please log in to see prices

Colour

White

Mounting type

Concealed mounting Recessed ceiling Surface mounting

Variant

230V, 1 channel KNX

Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.

Identification

Version Presence detector

Variants

Version 230V COM1
Colour White
Mounting type Recessed ceiling

Dimensions

Dimensions L × W × H 105 x 103 x 103 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 2000 W
Switching output 1 resistive 2000 W
Switching output 1 low-voltage halogen lamps 2000 VA
Own consumption 1 W
Switching output 1 number of LED/fluorescent lamps 8 pcs.
Switching output 1 potential-free No

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °, Corridor
Opening angle 140 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range 25 x 3 m (75 m²)
Tangential range 25 x 3 m (75 m²)
Mounting height 2,0 – 4,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/Slave, Master/Master
Control technology Steinel Connect
Wireless networking via BT Open Mesh
Networking via Bluetooth

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 10 s – 60 min
Base light function No
Main light adjustable No
Functions Group parameterisation, Semi-/fully automatic, Lighting scenario, Manual ON / ON-OFF, Neighbouring group function, Normal / test mode
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature -20...+50 °C
Mounting location ceiling
Application location Indoors
Material Plastic
Application room Indoors, corridor / aisle
Colour White
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

UV-resistant plastic

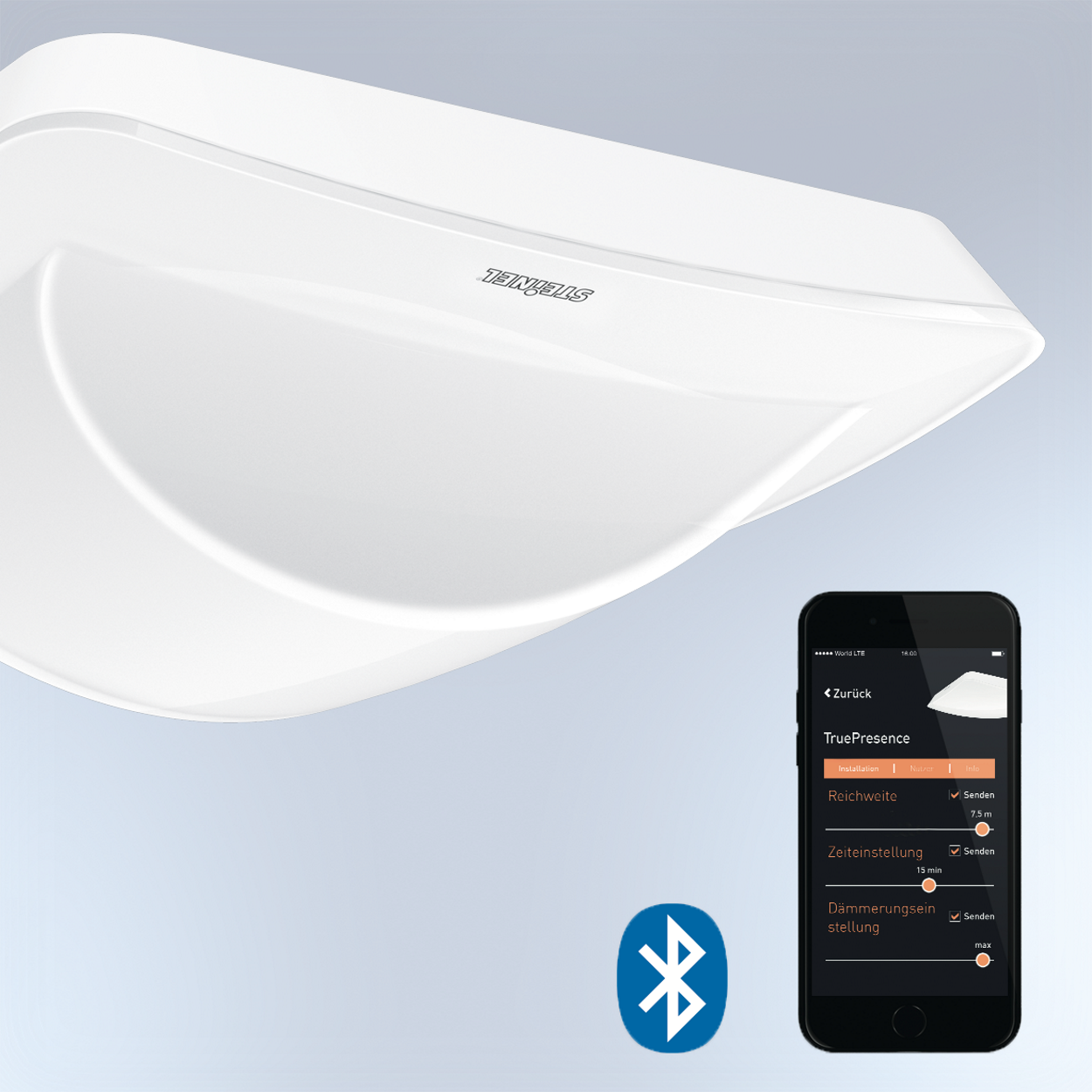

Interconnectable and adjustable via Bluetooth

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram
