Identification
Version

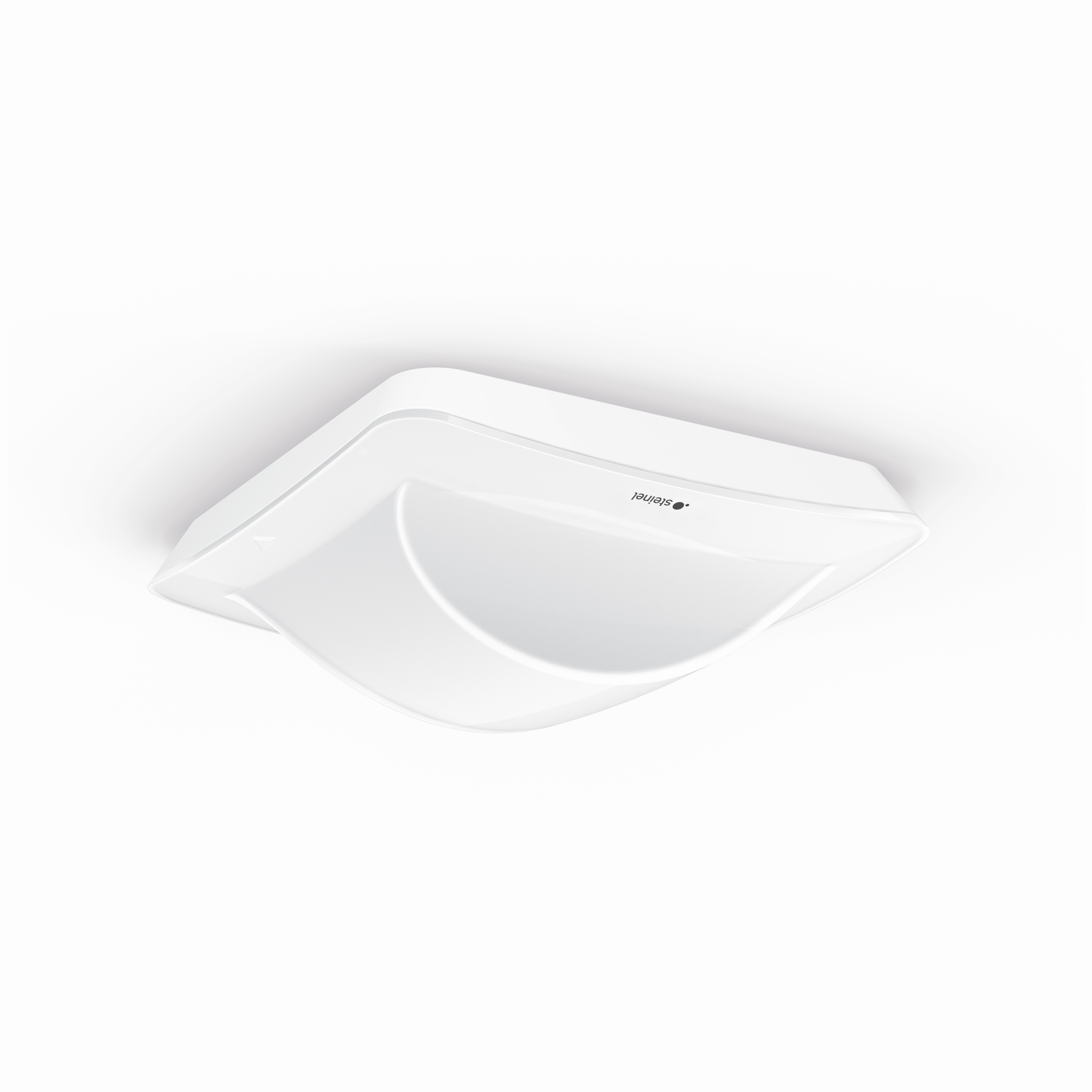

Presence detector
Variants
Version
KNX
Colour
White
Mounting type
Recessed ceiling
Dimensions
Dimensions L × W × H
105 x 103 x 103 mm
Electrical
Mains connection
21 – 30 V
Own consumption
0,7 W
Supply voltage detail
KNX bus
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °, Corridor
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2,0 – 4,0 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/Slave, Master/Master
KNX functions
Comfort
Photo-cell controller
Individual pyro evaluation
Basic light level function
Light level
HVAC output
Constant-lighting control
Light output 4x
Presence output
Day / night function
Dewpoint
Logic gate
Humidity output
Temperature output
With bus coupler
Yes
Control technology
Steinel Connect
Wireless networking via
BT Open Mesh
Networking via
KNX
Lighting technology
Soft light start
Yes
Continuous light
selectable
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
10 – 1000 lx
Time setting
10 s – 1092 min
Base light function
Yes
Main light adjustable
0 - 100 %
Settings via
ETS software, App, Bluetooth
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25...+50 °C
Mounting location
ceiling
Application location
Indoors
Material

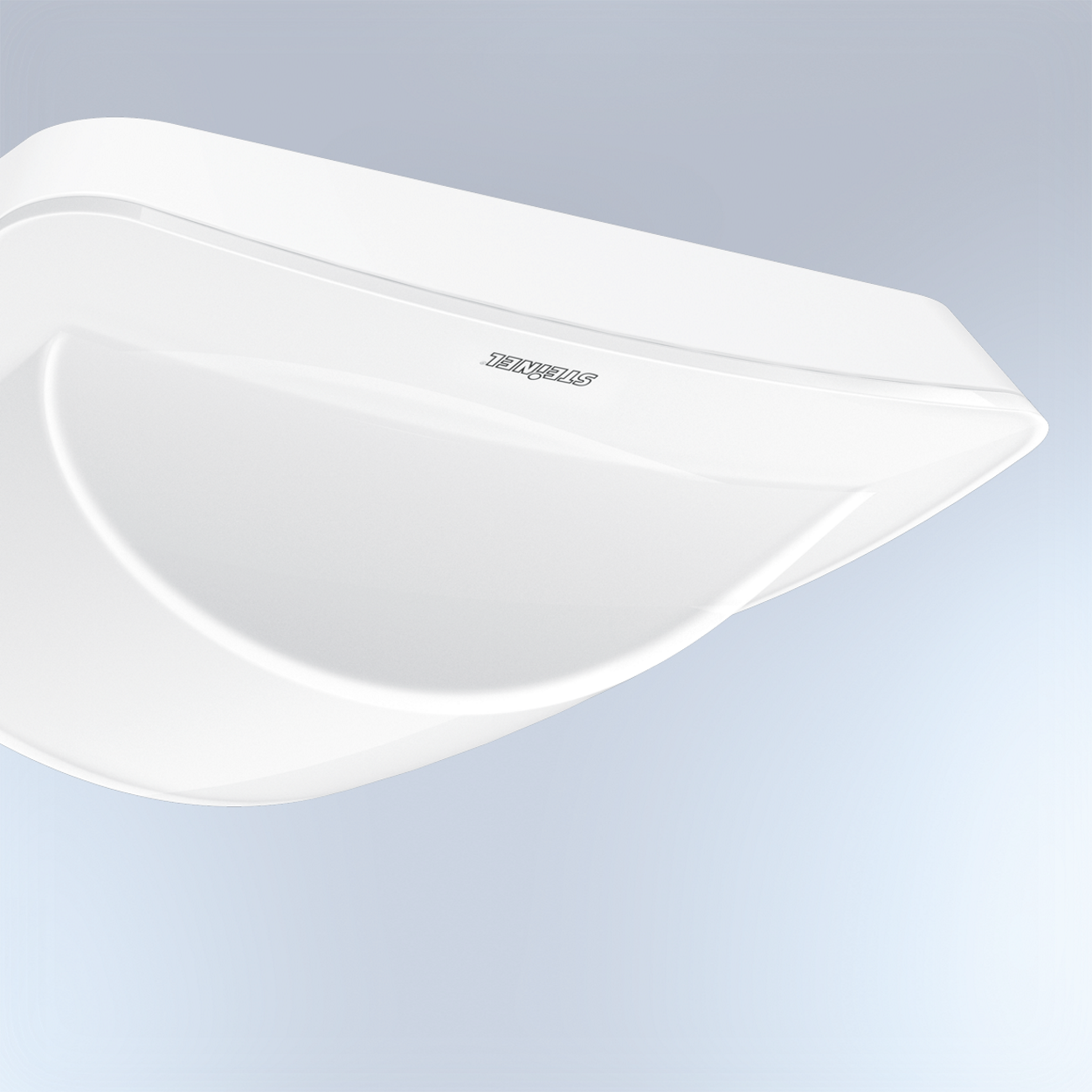

Plastic
Application room
Indoors, corridor / aisle
Colour
White
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
