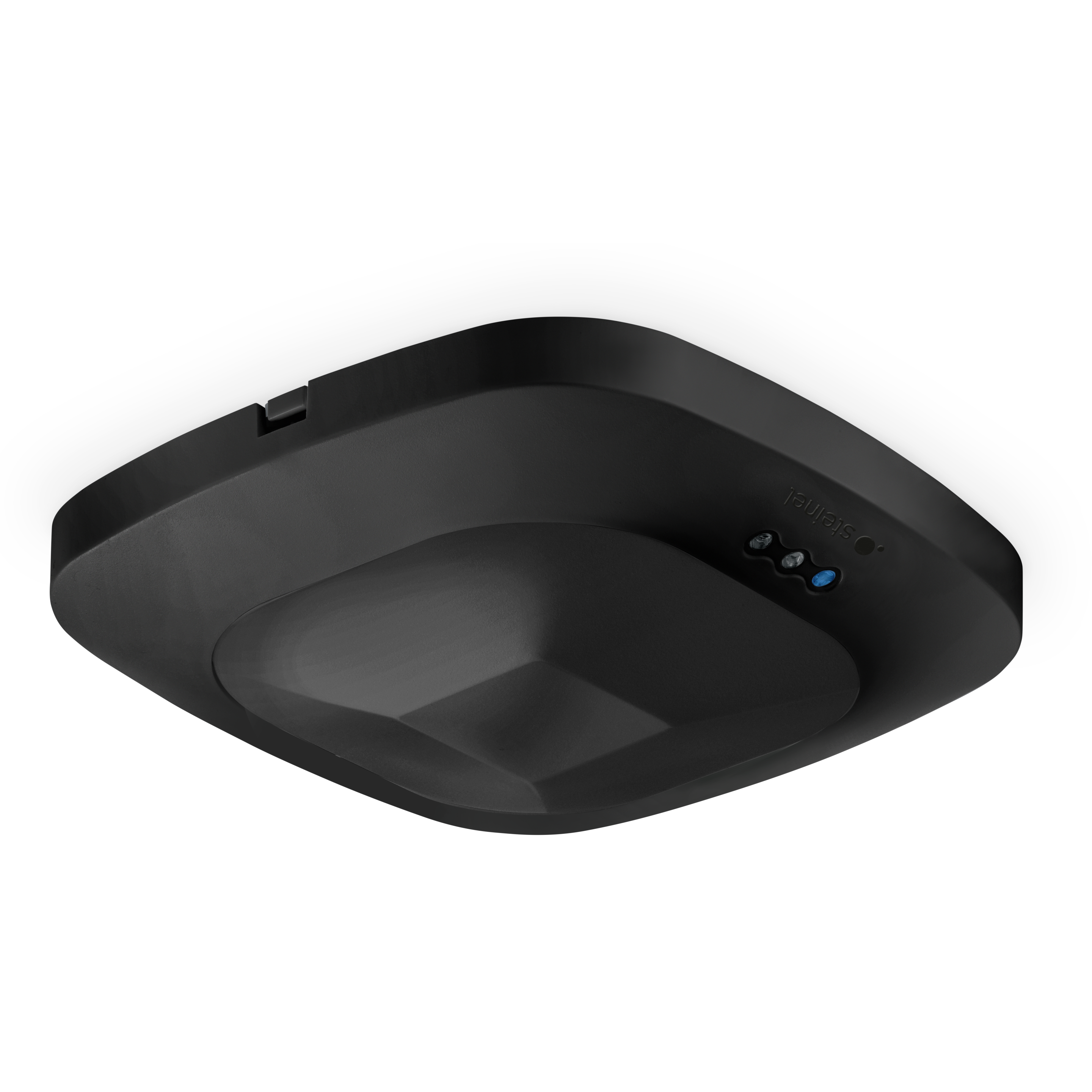

Steinel HF 360 KNX - concealed black

Slim HF presence detector for WCs, kitchenettes and stairwells. Barely visible on the ceiling.

ELDAS® no. 535 918 135

EAN-No. 4007841 082277

Price: Please log in to see prices

Mounting type

Concealed mounting

Variant

KNX

Colour

Black White

High-frequency sensor technology shows its advantages particularly in public areas of modern buildings. As a pioneer of this technology, STEINEL has succeeded in perfecting it as a networked solution in the HF 360 KNX presence detector. The flat design not only meets architects' and builders' specifications from an aesthetic point of view. It also has an effect on the service life. Because: If you don't attract attention, you are less likely to fall victim to vandalism.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 55 x 120 x 120 mm

Electrical

Mains connection 21 – 30 V
Own consumption 0,7 W
Supply voltage detail KNX bus

Sensor technology

Max. mounting height 3,50 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 140 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.
Radial range Ø 12 m (113 m²)
Tangential range Ø 12 m (113 m²)
Mounting height 2,5 – 3,5 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/Slave, Master/Master
KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate
With bus coupler Yes
Networking via KNX bus

Lighting technology

Soft light start Yes
Continuous light selectable
Constant light regulation Yes

Settings

Twilight switch Yes
Twilight setting 10 – 1000 lx
Time setting 10 s – 1092 min
Base light function Yes
Base light function time 1-255 min
Main light adjustable 0 - 100 %
Settings via ETS software, Remote control, Smart Remote
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature -25...+55 °C
Cover material (scope of delivery) Sticker
Mounting location ceiling
Application location Indoors
Material Plastic
Application room Indoors, WC / washroom, function room / ancillary room, kitchenette, stairwell
Colour Black
RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates VDE

Optional remote controls

Smart Remote remote control optional

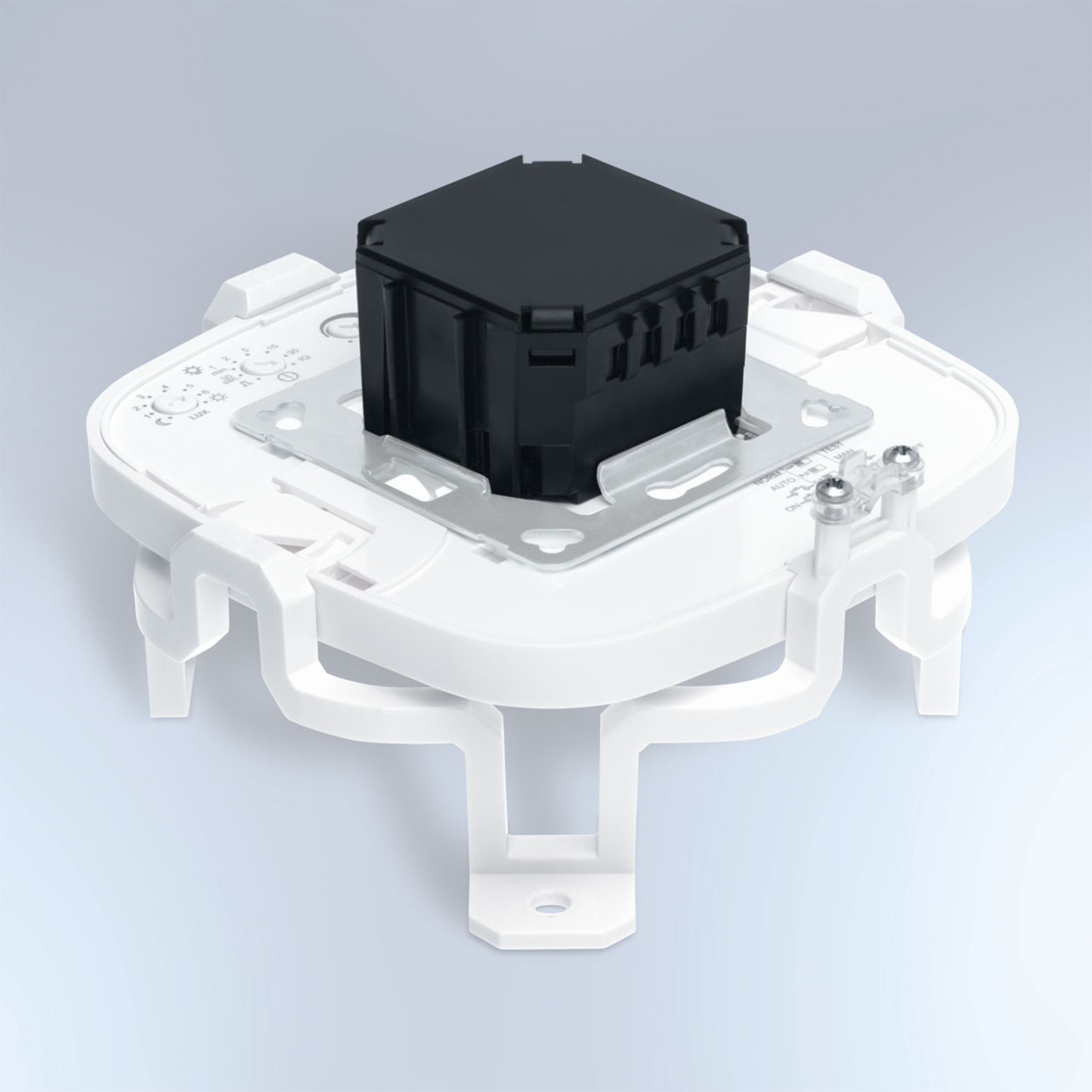

HF ceiling adapter for installation in suspended ceilings

Optional guard cage

Technical drawing

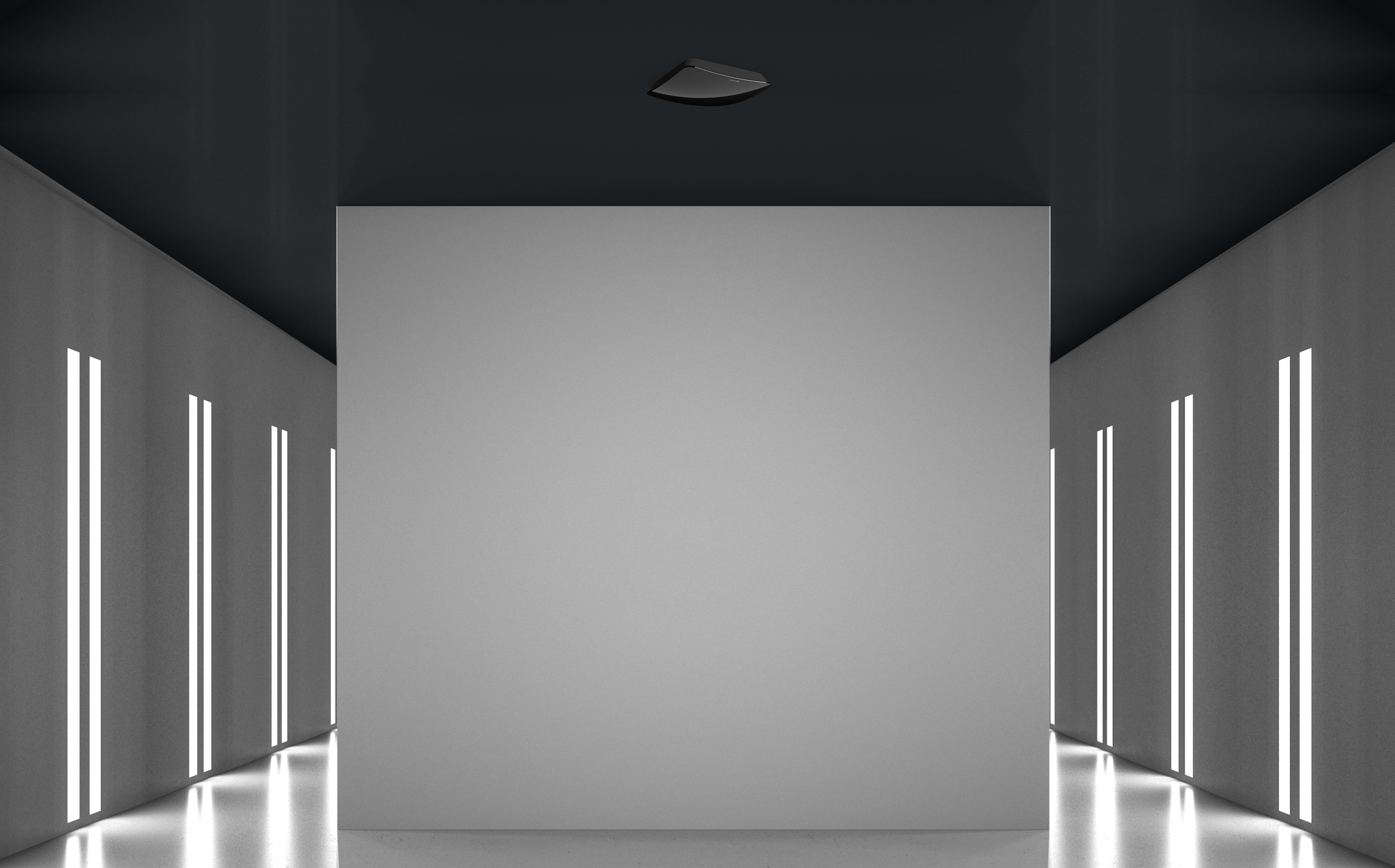

Sensor detection range
