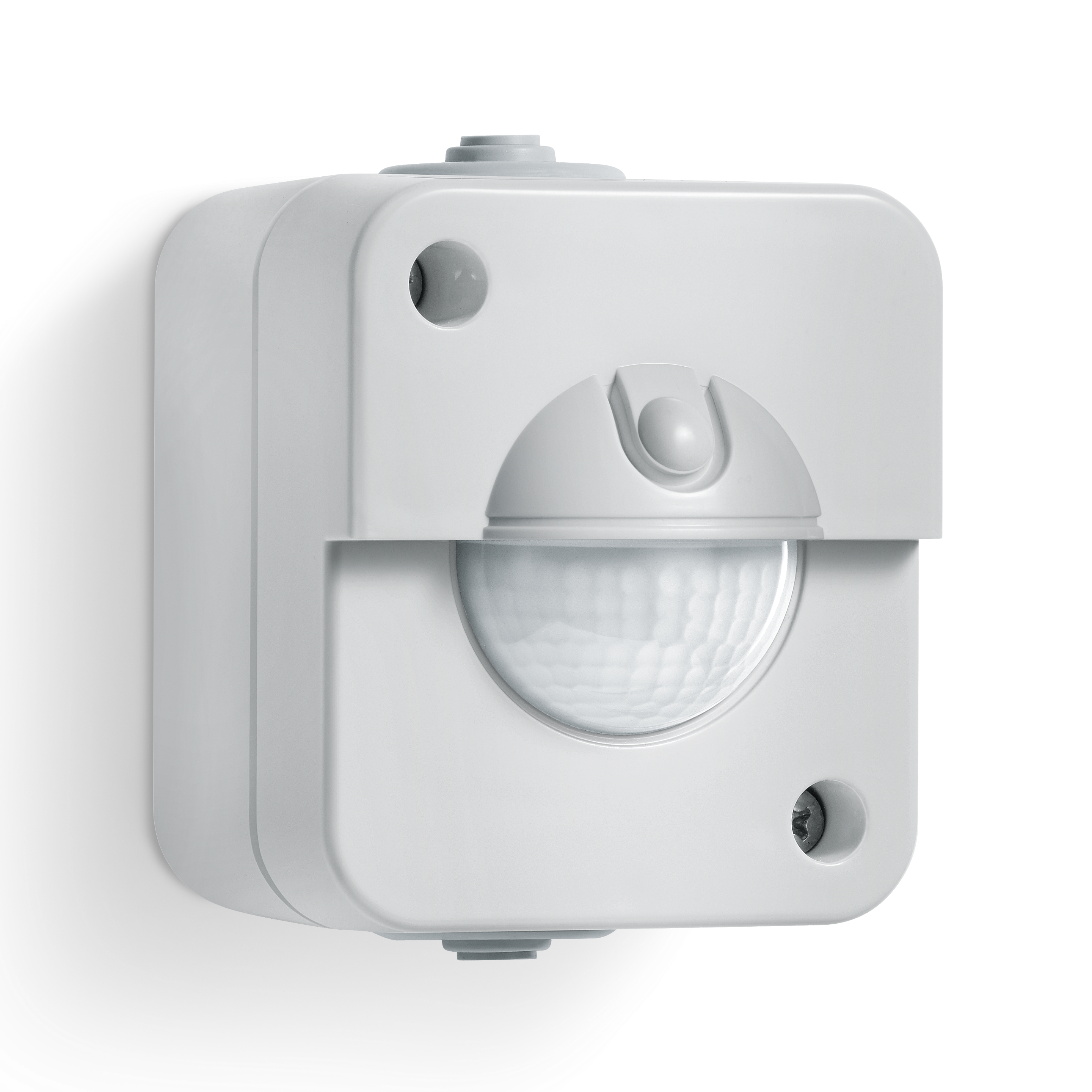

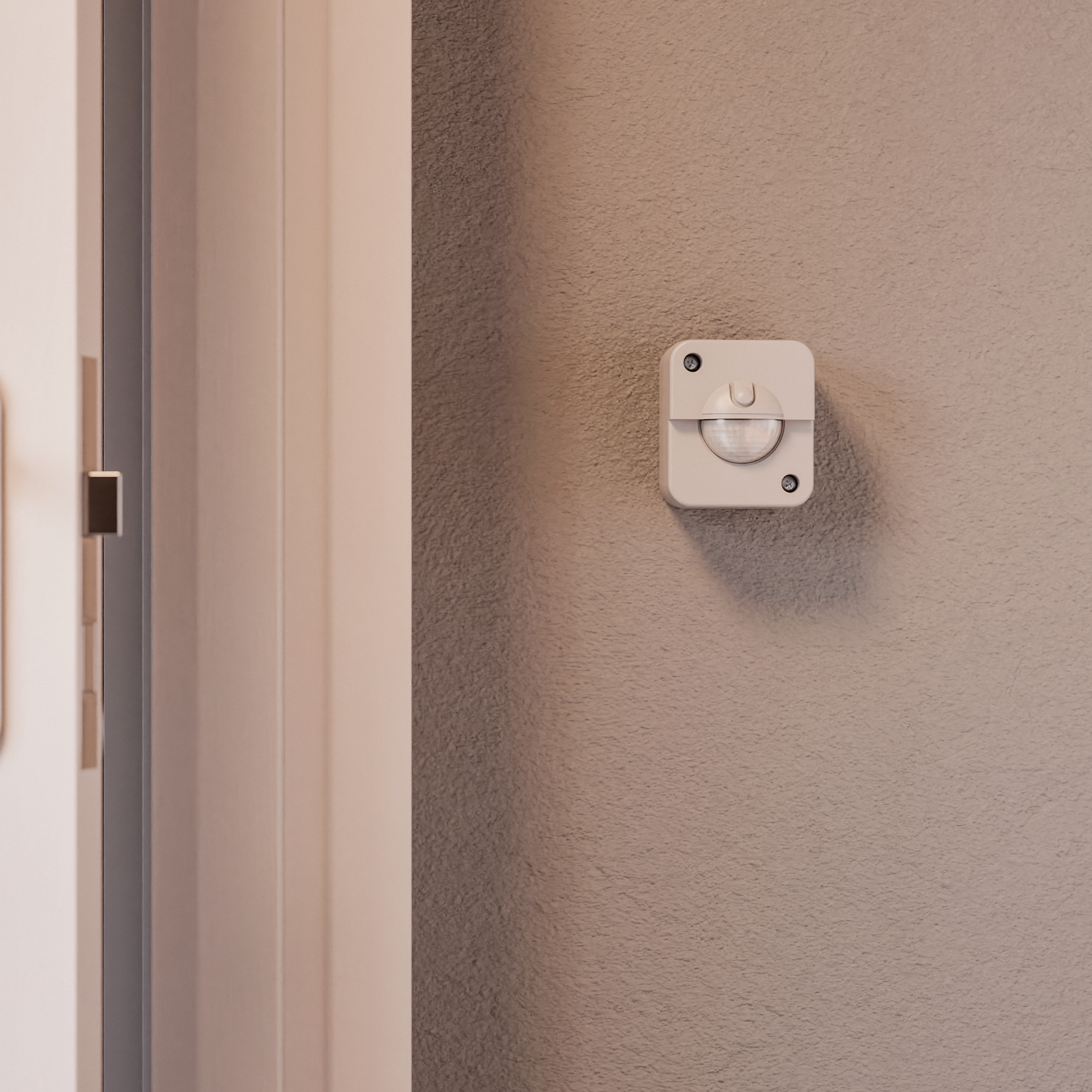

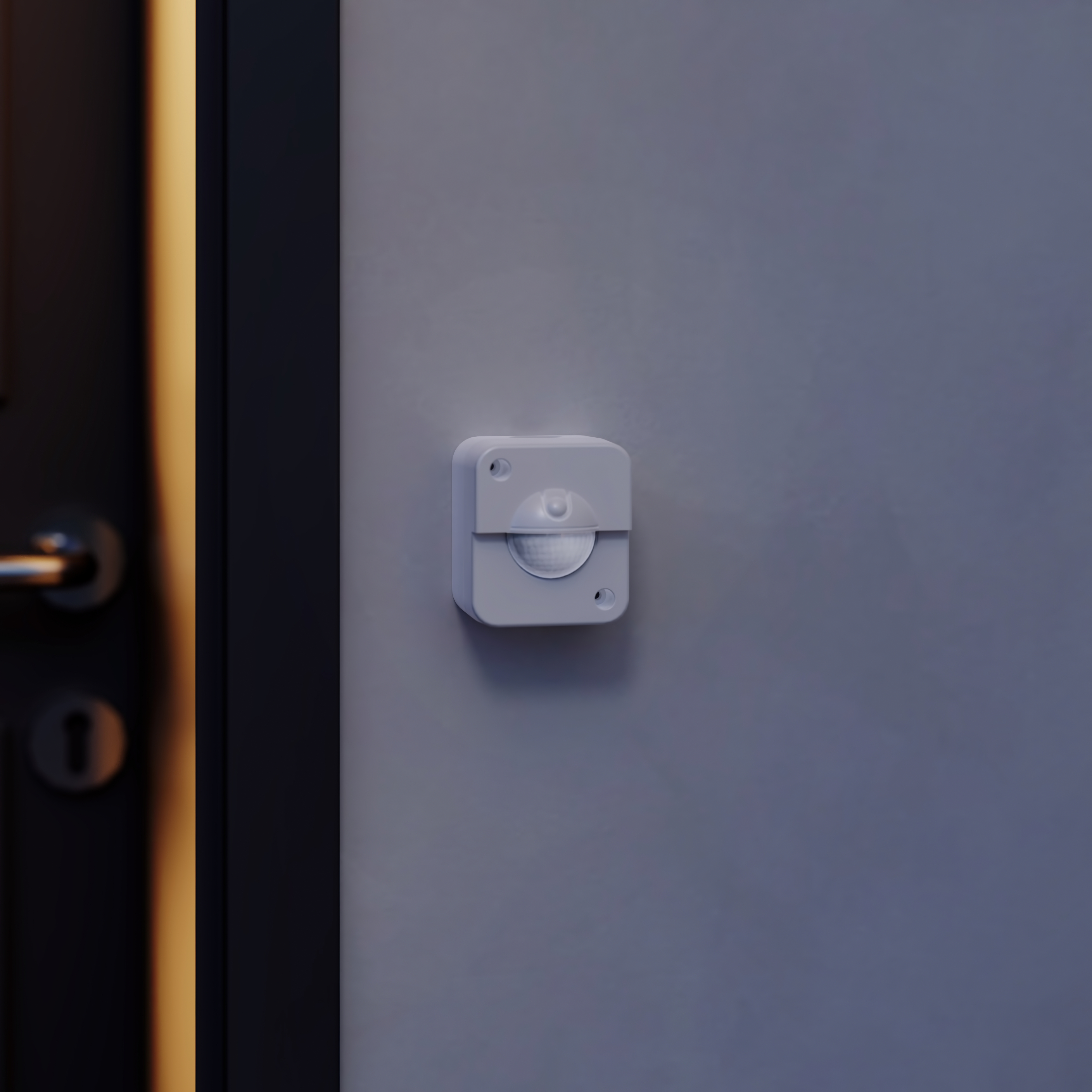

Steinel IR 180 AP easy Surface wiring

ELDAS® no. 535 942 210

EAN-No. 4007841 066048

You come home from the supermarket and are get the shopping out of the car. Arms full, you take it into the pantry. Reliably, conveniently and without the need to touch it, the IR 180 AP easy automatically switches the light 'ON' and 'OFF' again as soon as you leave the room. The intelligent switch is particularly good for corridors, kitchens, guest WCs and other service rooms. Incidentally, installation couldn't be easier. Using it to replace your conventional switches is as easy as putting icing to a cake, whether as a 2-wire or 3-wire installation. Switches all lamp types.

Infrared motion detector with 180° detection angle and up to 8 m detection range
For surface wall mounting indoors and outdoors (IP 54), for easy retrofitting to automatic light in new and existing buildings (For 2- and 3-wire installation)
Made of UV-resistant plastic for a long service life
Stepless adjustment of time (5 sec. - 30 min.) and switch-on brightness (2-1000 lux), teach function, push-button for use as conventional light switch
Reliably switches any light source with a total of max. 200 W switching load (LED light sources max. 160 W/50 pcs.)
Incl. mounting accessories - plastic-free packaging

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 82 x 72 x 67 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 200 W

Switching output 1 resistive 200 W

Fluorescent lamps ECG 150 W

Fluorescent lamps uncompensated 150 VA

Fluorescent lamps series-compensated 150 VA

Fluorescent lamps parallel-compensated 150 VA

Switching output 1 low-voltage halogen lamps 200 VA

LED lamps < 2 W 40 W

LED lamps > 2 W < 8 W 100 W

LED lamps > 8 W 160 W

Capacitive load in µF 132 µF

Switching output 1 number of LED/fluorescent lamps 4 pcs.

Sensor technology

Max. mounting height 2,20 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²)

Tangential range r = 8 m (101 m²)

Switching zones 96 switching zones

Mounting height 0,90 – 2,20 m

Optimal mounting height 1,1 m

Connectivity

Networking Yes

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 30 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Protection class II

Ambient temperature from 0 up to 40 °C

Mounting location wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room Indoors WC / washroom corridor / aisle function room / ancillary room outdoors

Colour grey

RAL colour 7035

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

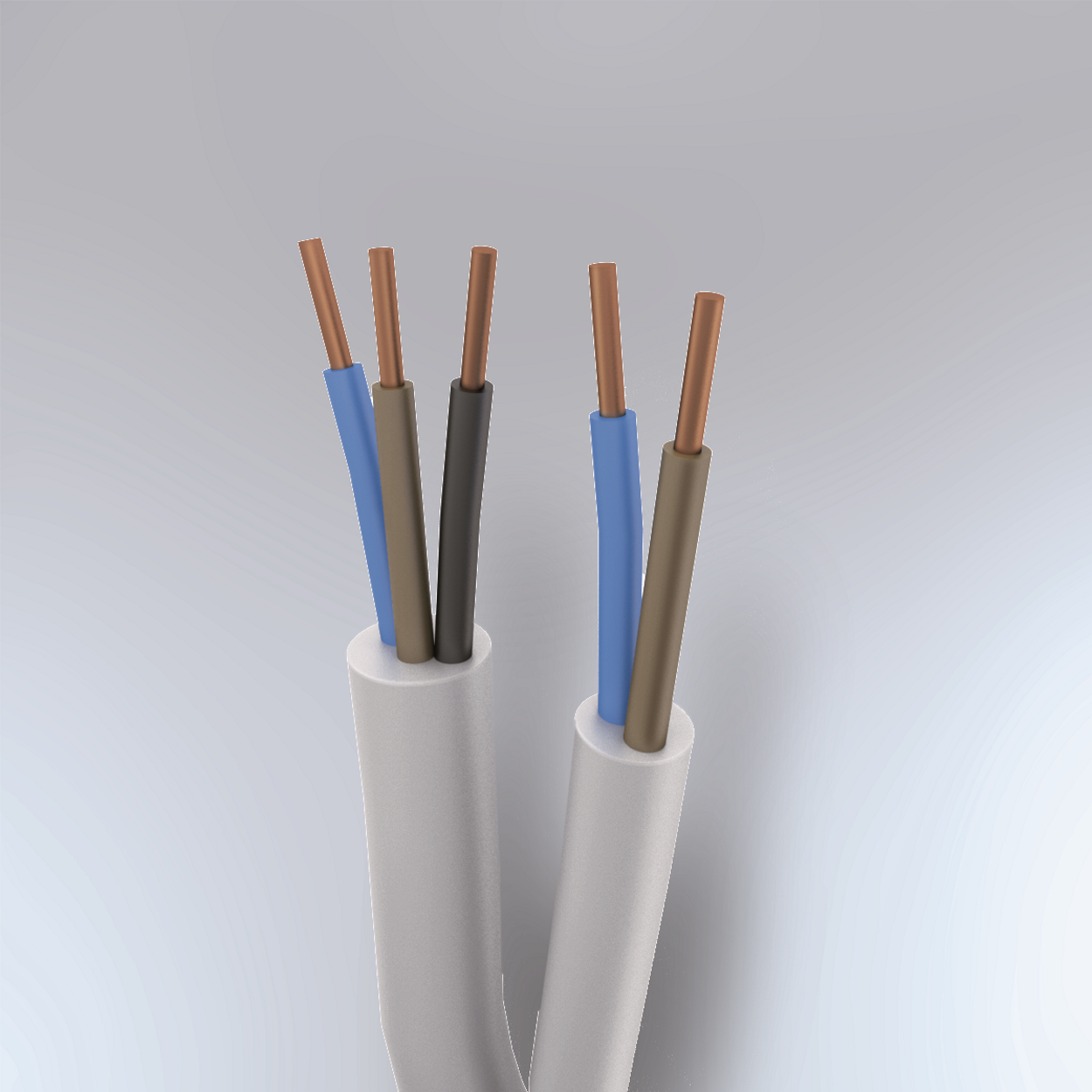

2 or 3-wire installation

Technical drawing

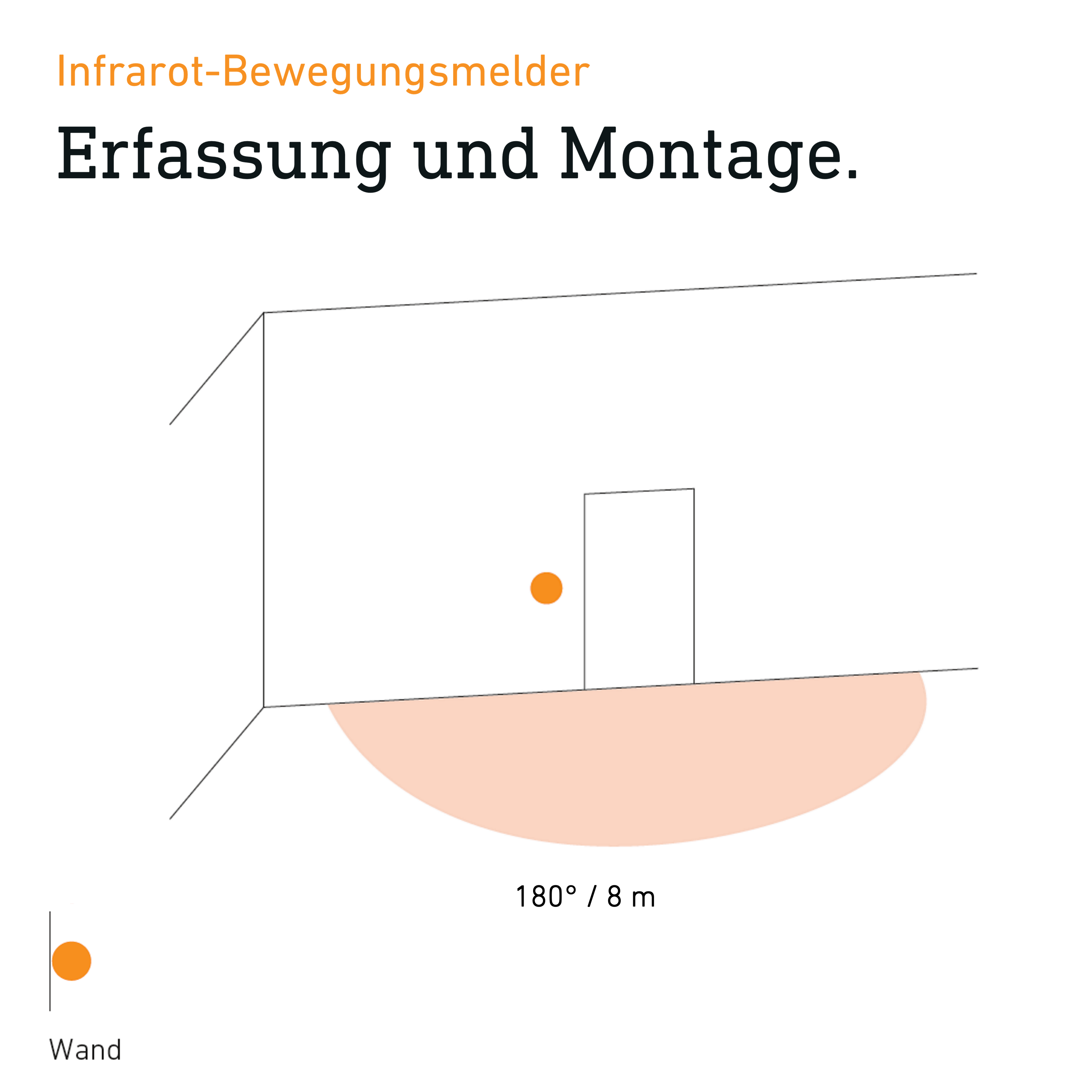

Sensor detection range

Wiring diagram 1

2-wire circuit diagram

Wiring diagram 2

3-wire circuit diagram
