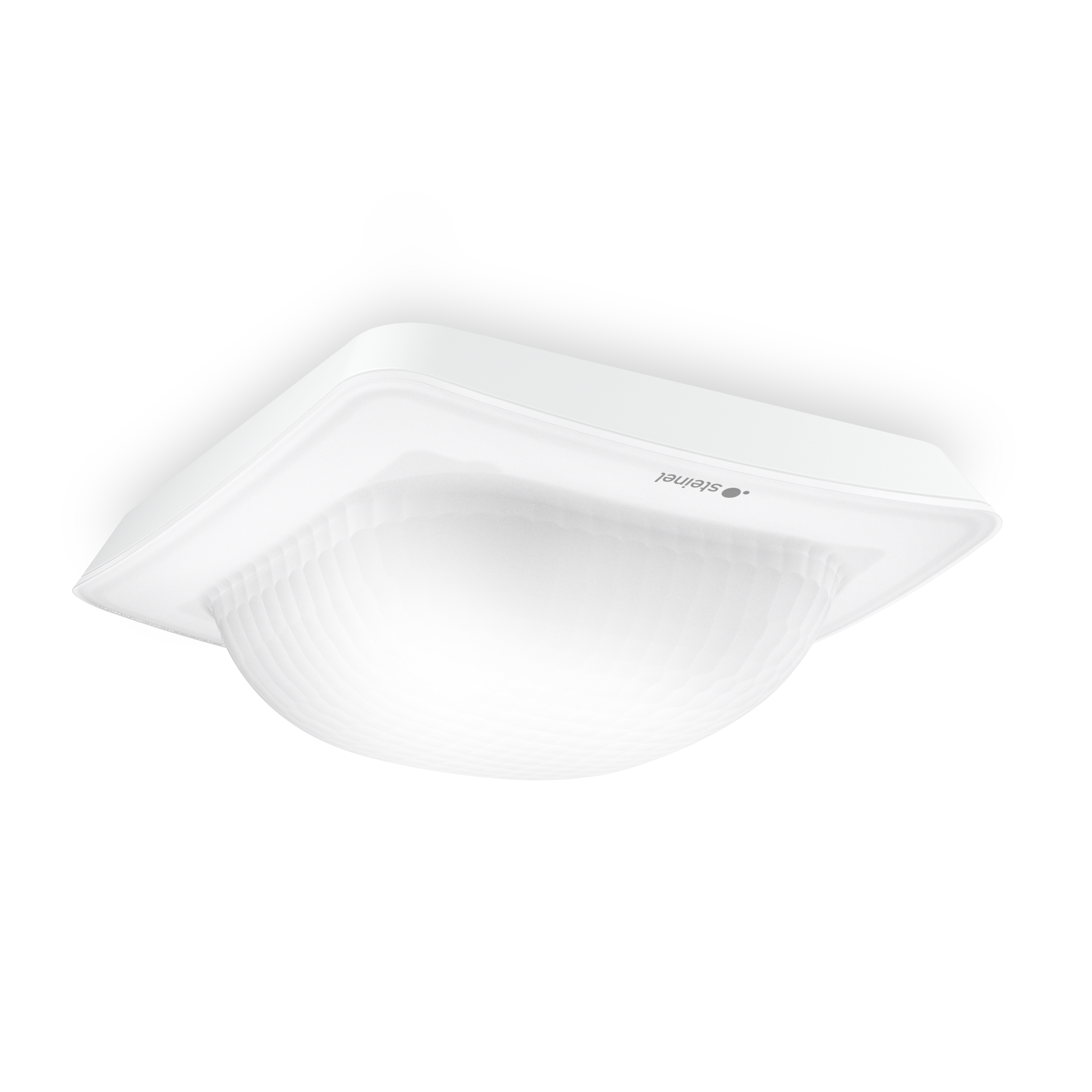

Steinel IR Quattro HD-2 24m DALI-2 Input Device - concealed

ELDAS® no. 535 900 070

EAN-No. 4007841 064372

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

The IR Quattro HD-2 infrared presence detector provides 360° detection and can be digitally set, adjusted and interconnected via Bluetooth without the need for cables. The four built-in pyro sensors can be selected and deselected individually. Not only available in a concealed and surface-mounted version for COM1, COM2, DALI-2 IPD, KNX V3.5, IP and BT IPD interfaces, the latest-generation presence detector also comes in a ceiling-mounted version for COM1 and KNX V3.5 interfaces. Besides presence function and light level, this presence detector can also measure temperature and humidity on the basis of IP, KNX and DALI-2 IPD. It is suitable for mounting at heights of 2.50 m to 10 m and provides 5,200 switching zones. Maximum radial reach is 81 m2 (9 x 9 m), maximum tangential reach 576 m2 (24 x 24 m).

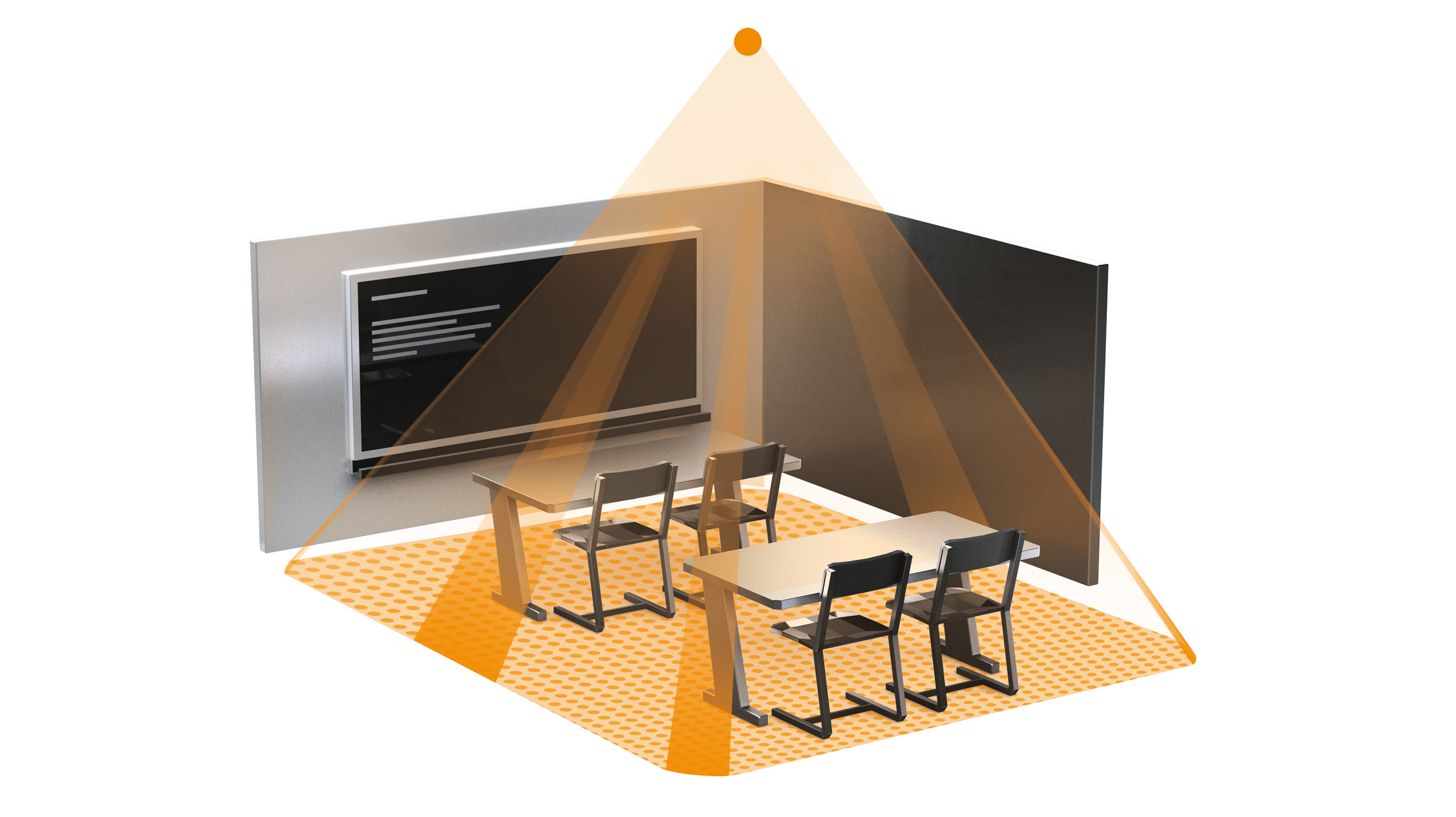

Passive infrared presence detector with square 360° detection

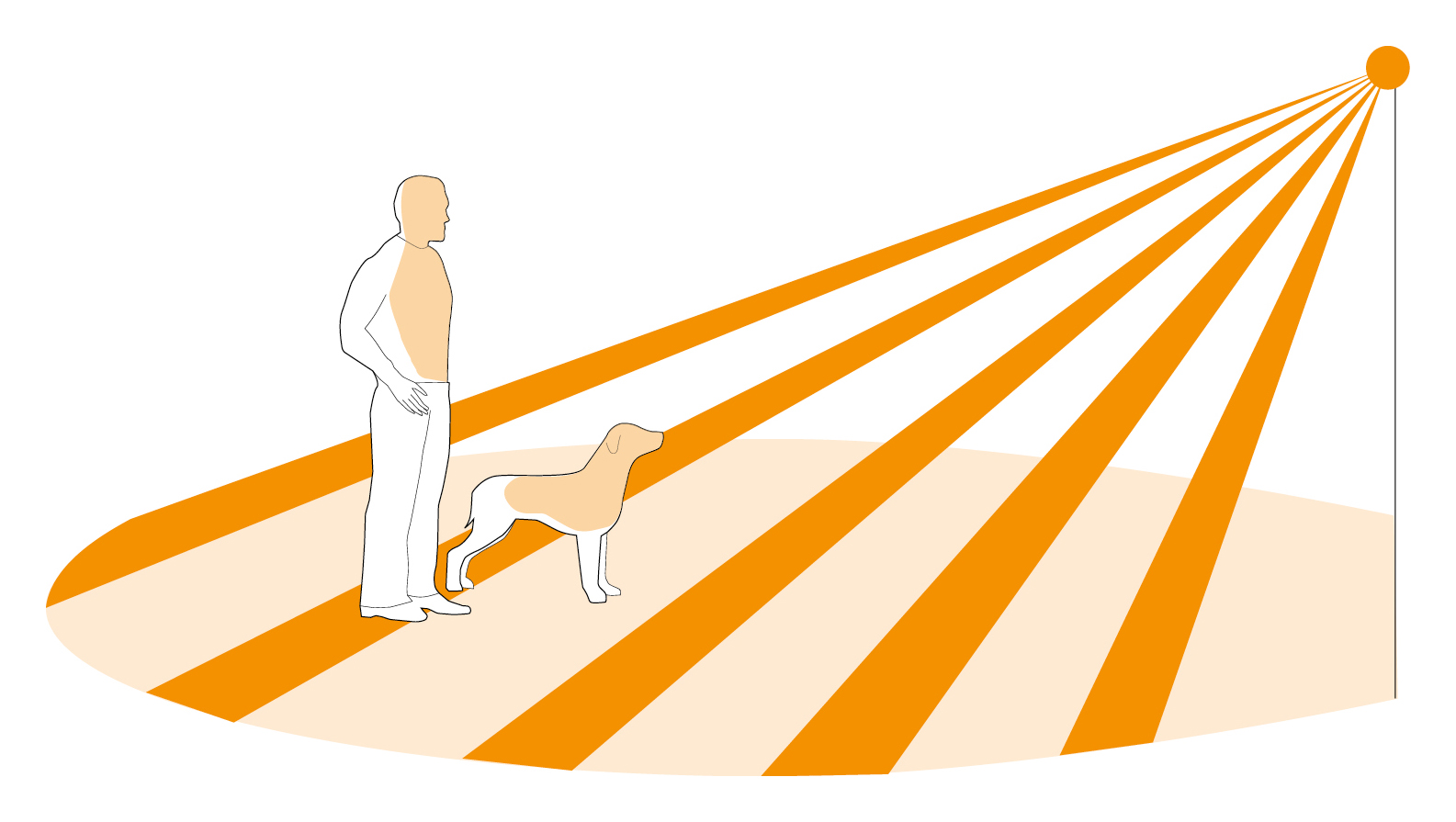

5.200 switching zones for the finest detection
Offers the largest detection range in our IR range
4 pyro sensors individually de-/activatable
Sensitivity digitally adjustable
Measures presence and brightness
Temperature and humidity measurement with IP, KNX and DALI-2 IPD
Setting and networking via Bluetooth

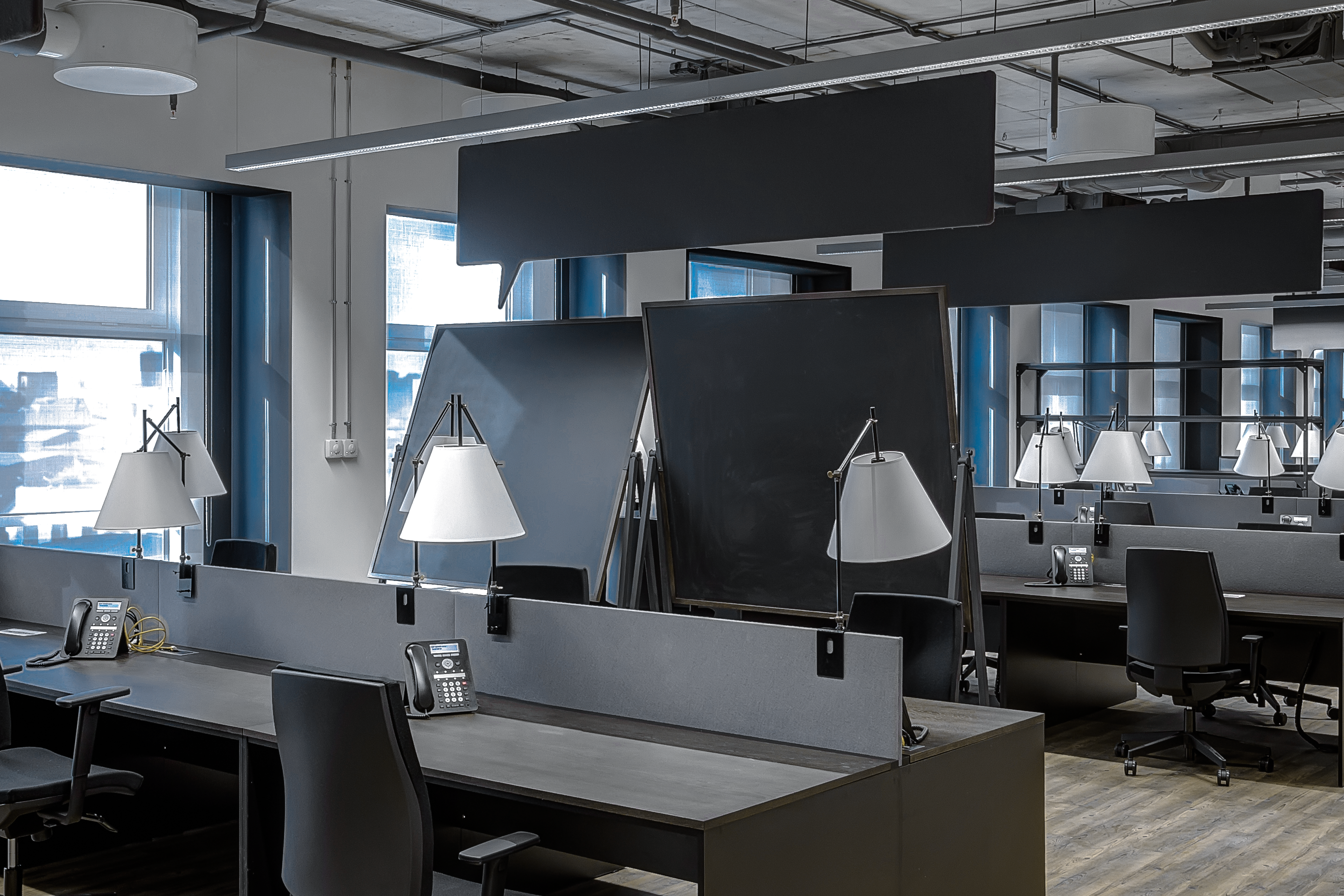

Ideal for open-plan offices and classrooms

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 69 x 103 x 103 mm

Electrical

Mains connection 12.5 – 22 V

Own consumption 0,3 W

Supply voltage detail DALI bus

Control output DALI Addressable/slave

Livelink values Motion detection Light level Presence detection

Sensor technology

Max. mounting height 10,00 m

Sensor technology passive infrared

Detection angle 360 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability Yes

Radial range 9 x 9 m (81 m²)

Tangential range 24 x 24 m (576 m²)

Mounting height 2,50 – 10,00 m

Presence range 9 x 9 m (81 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Networking via DALI bus

With bus coupler Yes

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Base light function No

Main light adjustable No

Functions Motions sensor Presence function Presence detector logic

Settings via Bus Bluetooth Mesh App

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors changing room classroom conference room / meeting room dining hall / staff restaurant duty room high-bay warehouse lecture hall multi-storey / underground car park open-plan office production facilities reception / lobby recreation room sports hall

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

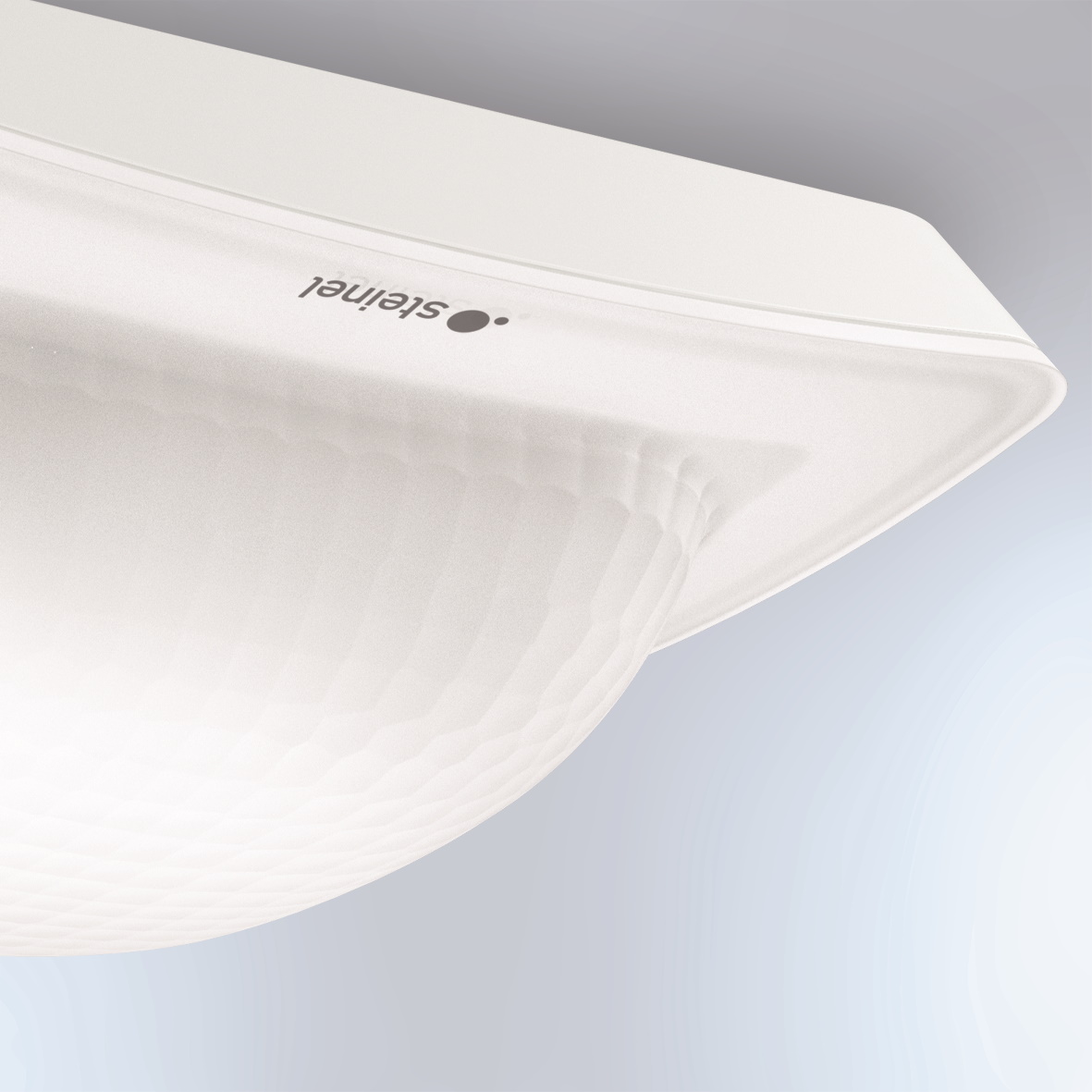

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram for interconnecting DALI-2 APC with DALI-2 IPD

Data sheet User manual Declaration of conformity Product brochure
