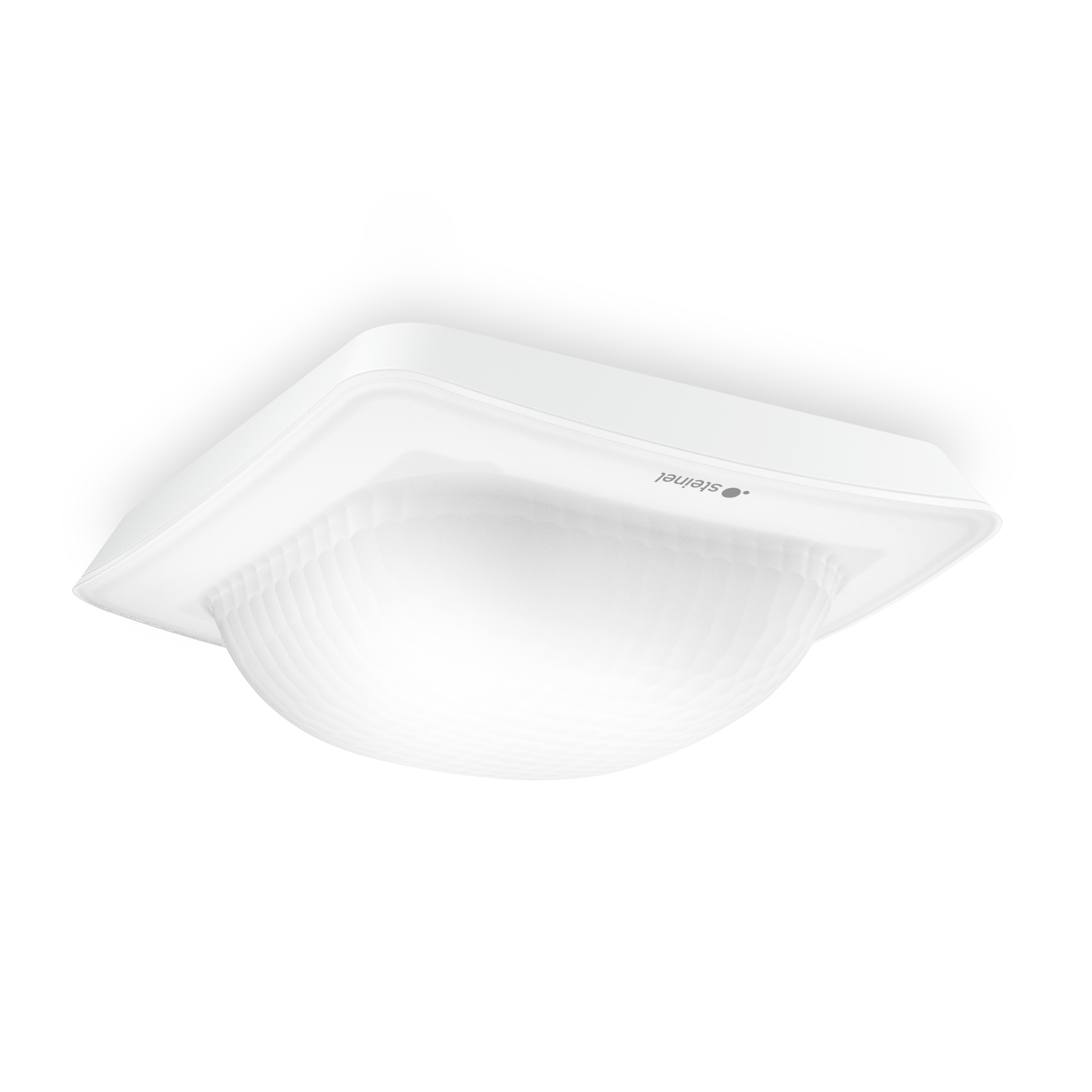

Steinel LuxMaster IR Quattro HD-2 24m DALI-2 APC - concealed

Presence detector for open-plan offices, lecture halls and stores. Very large, precise coverage.

ELDAS® no. 535 903 071

EAN-No. 4007841 064358

Price: Please log in to see prices

Mounting type

Concealed mounting Surface mounting

Variant

230V, 1 channel 230V, 2 channels Bluetooth Input-Device DALI-2 Application Controller DALI-2 Input Device IP (REST API, MQTT, BacNet) KNX

Colour

White

Packaging unit

1 piece

Designed for the most sensitive detection in the largest detection area among our infrared presence detectors. Ideal for open-plan offices or classrooms. The LuxMaster IR Quattro HD-2 with 360° detection and 5,200 switching zones. Wireless adjustment and networking via Bluetooth. Pyro sensors individually controllable. Maximum installation height 10 m. Range: 81 m² (radial), 576 m² (tangential). The LuxMaster can control up to 64 participants in a maximum of 4 groups. Selectable operating modes: broadcast, fully and semi-automatic, light sensor mode or night-time economy mode. Time-based control with time- and day-dependent light profiles is also possible. Plug & play factory settings, scenes in Bluetooth with selection of operating mode, temporary scenes via DALI button, constant light control, basic and main light as well as range limitation adjustable. An additional button interface and DALI-2 IPD or BT IPD sensors for range extension are available.

Passive infrared presence detector with square 360° detection
5.200 switching zones for the finest detection
Ideal for open-plan offices and classrooms
4 pyrosensors can be individually activated/deactivated, sensitivity digitally adjustable
Setting and networking via Bluetooth
Measurement of presence and brightness
DALI addressing of up to 64 participants in max. 4 groups
Operating modes: fully and semi-automatic, light sensor operation, night-time economy mode
Time-based control with time and day-dependent light profiles
Flexible system expansion possible with system components

Identification

Version Presence detector

Variants

Version DALI-2 Application Controller

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 69 x 103 x 103 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Own consumption 0,3 W

Supply voltage detail max. 64 users

Control output DALI Addressable / broadcast 64 electronic ballasts

Sensor technology

Max. mounting height 10,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 360 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability Yes

Radial range 9 x 9 m (81 m²)

Tangential range 24 x 24 m (576 m²)

Switching zones 5200 switching zones

Mounting height 2,5 – 10,0 m

Presence range 9 x 9 m (81 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Number of DALI participants 64

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via DALI 2

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 30 min

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 10 - 100 %

Functions Selecting programmed lighting scenarios, Semi-/fully automatic, Constant-lighting control ON-OFF, Lighting scenario, Manual ON / ON-OFF, Neighbouring group function, Normal / test mode, TouchDIM function

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach Yes

Base light function in percent 3 – 90 %

Base light function percent from 3 %

Housing & material

Protection class (IP) IP20

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, changing room, classroom, conference room / meeting room, dining hall / staff restaurant, duty room, high-bay warehouse, lecture hall, multi-storey / underground car park, open-plan office, production facilities, reception / lobby, recreation room, sports hall

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

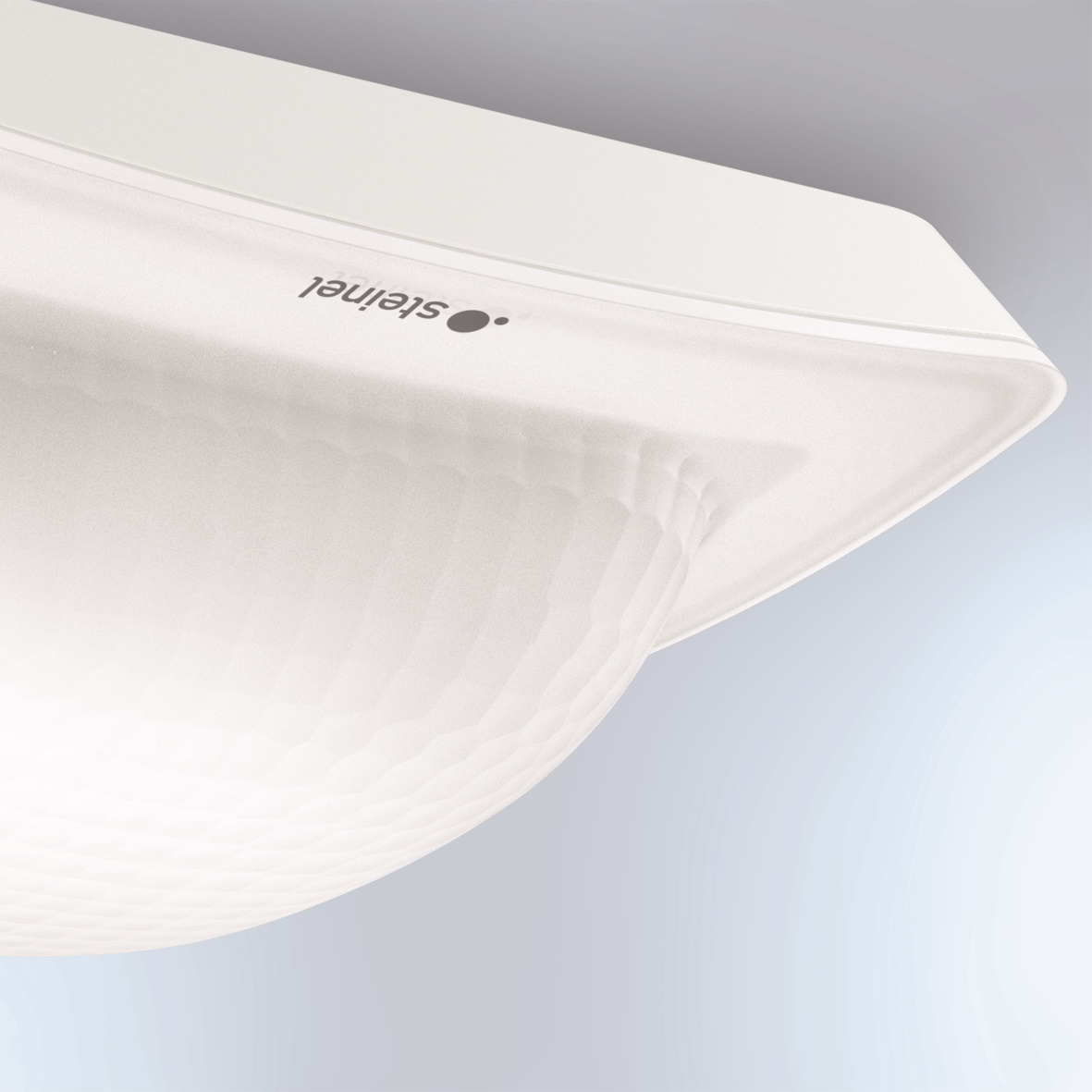

UV-resistant plastic

Technical drawing

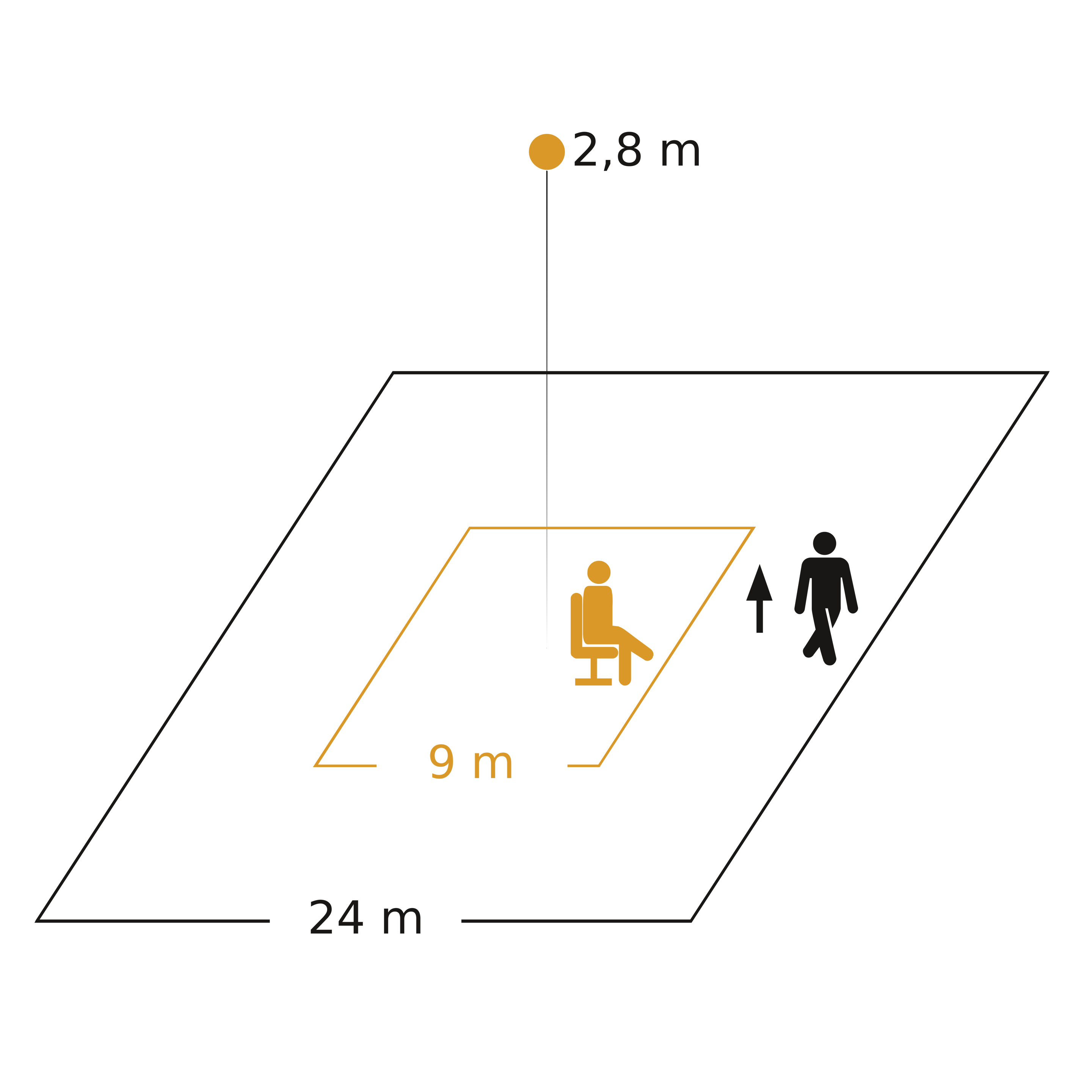

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
