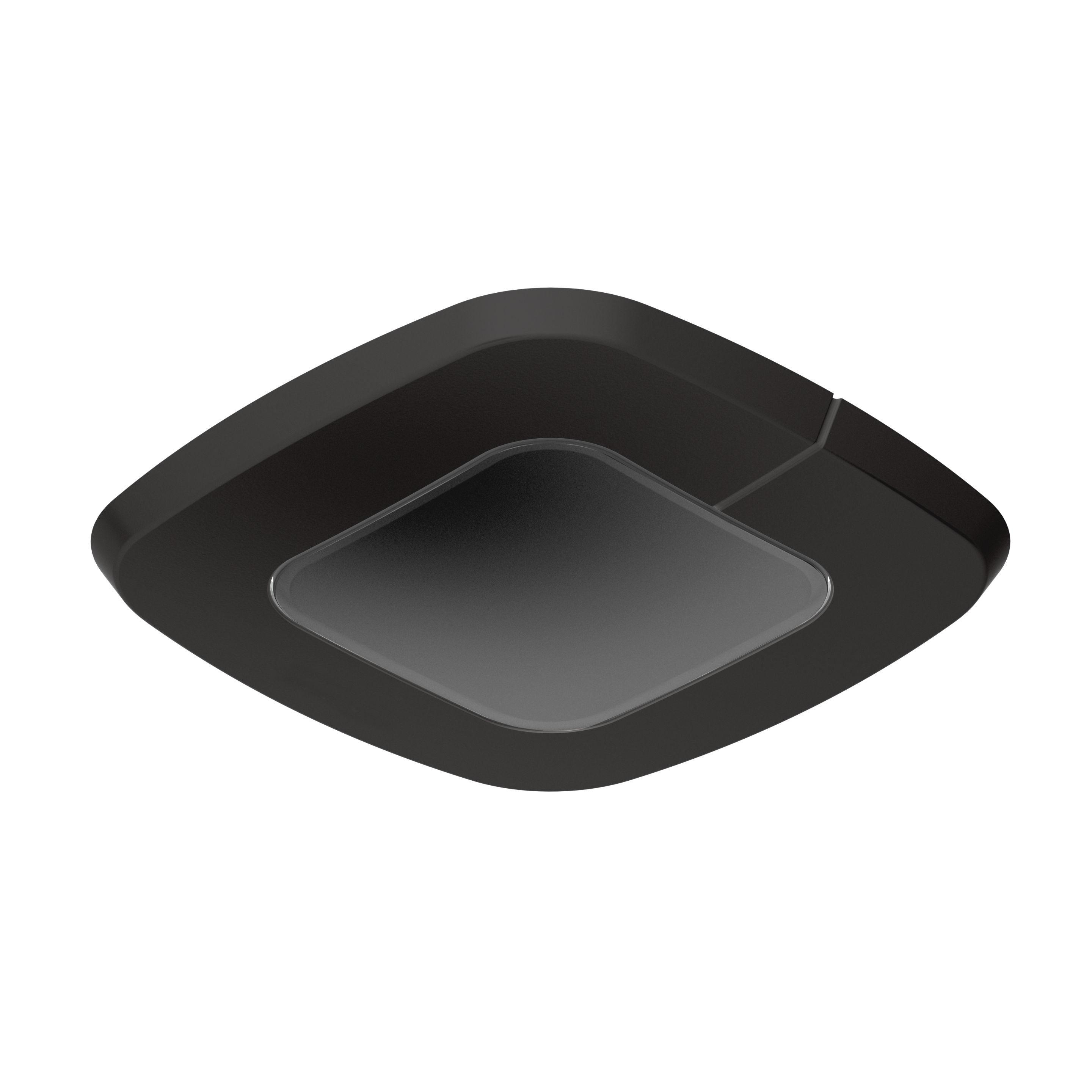

Steinel IR Quattro SLIM XS 4m KNX - square black

Slim presence detector for hotel rooms, care rooms and WCs. Fits a flush-mounted box.

ELDAS® no. 535 918 137

EAN-No. 4007841 082260

Price: Please log in to see prices

Colour

Black White

Variant

KNX

By popular demand. The extra-flat IR Quattro SLIM XS presence detector virtually disappears into the wall or ceiling. Thanks to the new and practical flush-mounted box format, it forms a strikingly unobtrusive symbiosis with the office environment and can now be installed in any commercially available flush-mounted box. In short: our flattest presence detector just pretends not to be there at all - and yet is absolutely present when it matters. Adjustment via remote control or Smart Remote. Round aperture is additionally enclosed.

Identification

Version Presence detector

Variants

Version KNX
Colour Black

Dimensions

Dimensions L × W × H 49 x 80 x 80 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 4,00 m
Sensor technology passive infrared
Detection angle 360 °
Opening angle 71 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability No
Range detail Retina lens and hexagonal Fresnel structure
Radial range 4 x 4 m (16 m²)
Tangential range 4 x 4 m (16 m²)
Switching zones 408 switching zones
Mounting height 2,5 – 4,0 m
Presence range 4 x 4 m (16 m²)
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/Slave, Master/Master
KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate
With bus coupler Yes
Networking via KNX

Lighting technology

Soft light start Yes
Continuous light selectable
Constant light regulation Yes

Settings

Twilight switch Yes
Twilight setting 10 – 1000 lx
Time setting 60 s – 255 min
Base light function Yes
Base light function time Permanently ON, 1-255 min, all night
Main light adjustable 0 - 100 %
Settings via ETS software, Remote control, Smart Remote
With remote control No
Twilight setting teach Yes
Base light function in percent 10 – 50 %
Base light function percent from 10 %

Housing & material

Protection class (IP) IP20
Ambient temperature 0...+40 °C
Mounting location ceiling
Application location Indoors
Mounting type Concealed mounting
Material Plastic
Application room Indoors, WC / washroom, care room, function room / ancillary room, hotel room, one-person office
Colour Black
RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

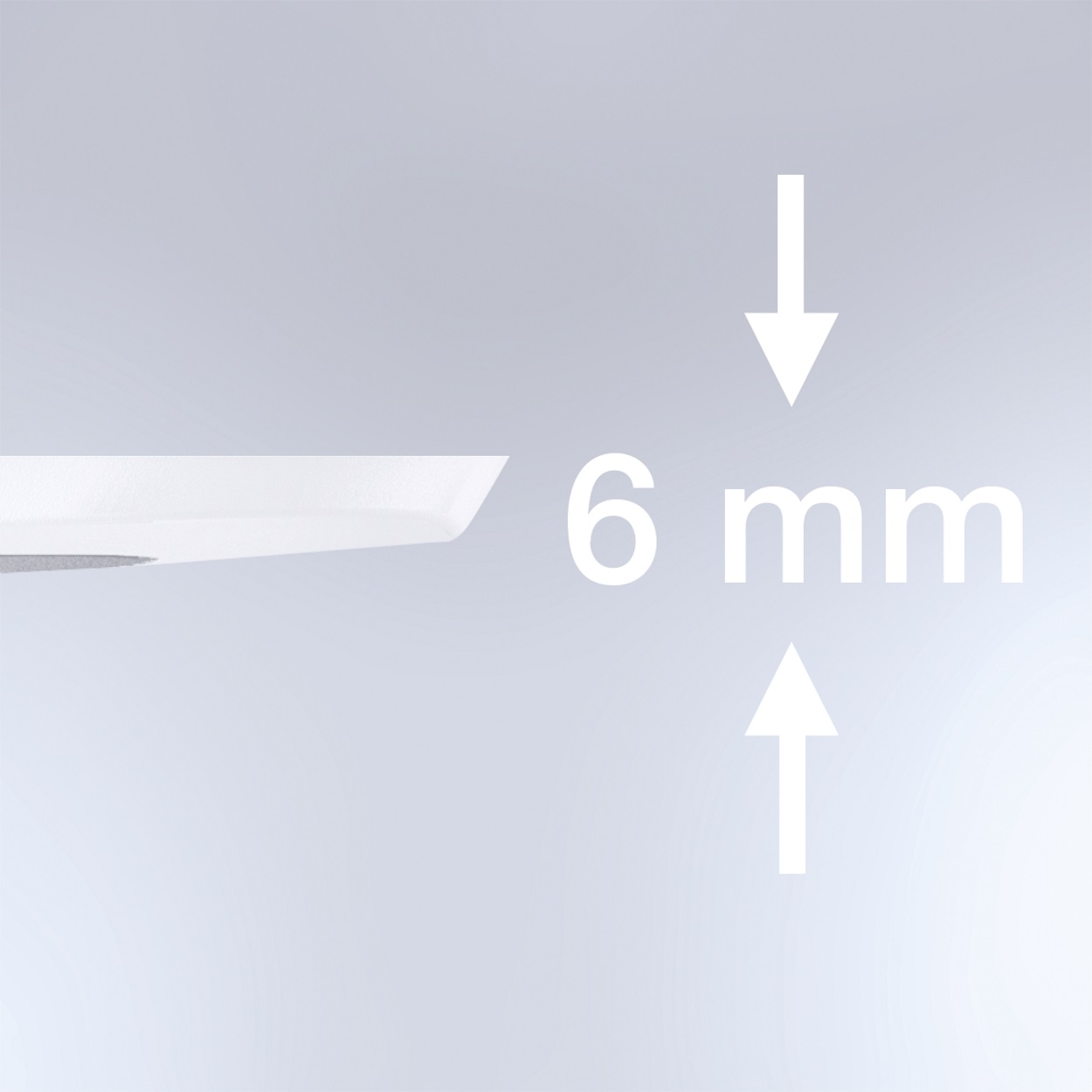

Extremely slim overall height

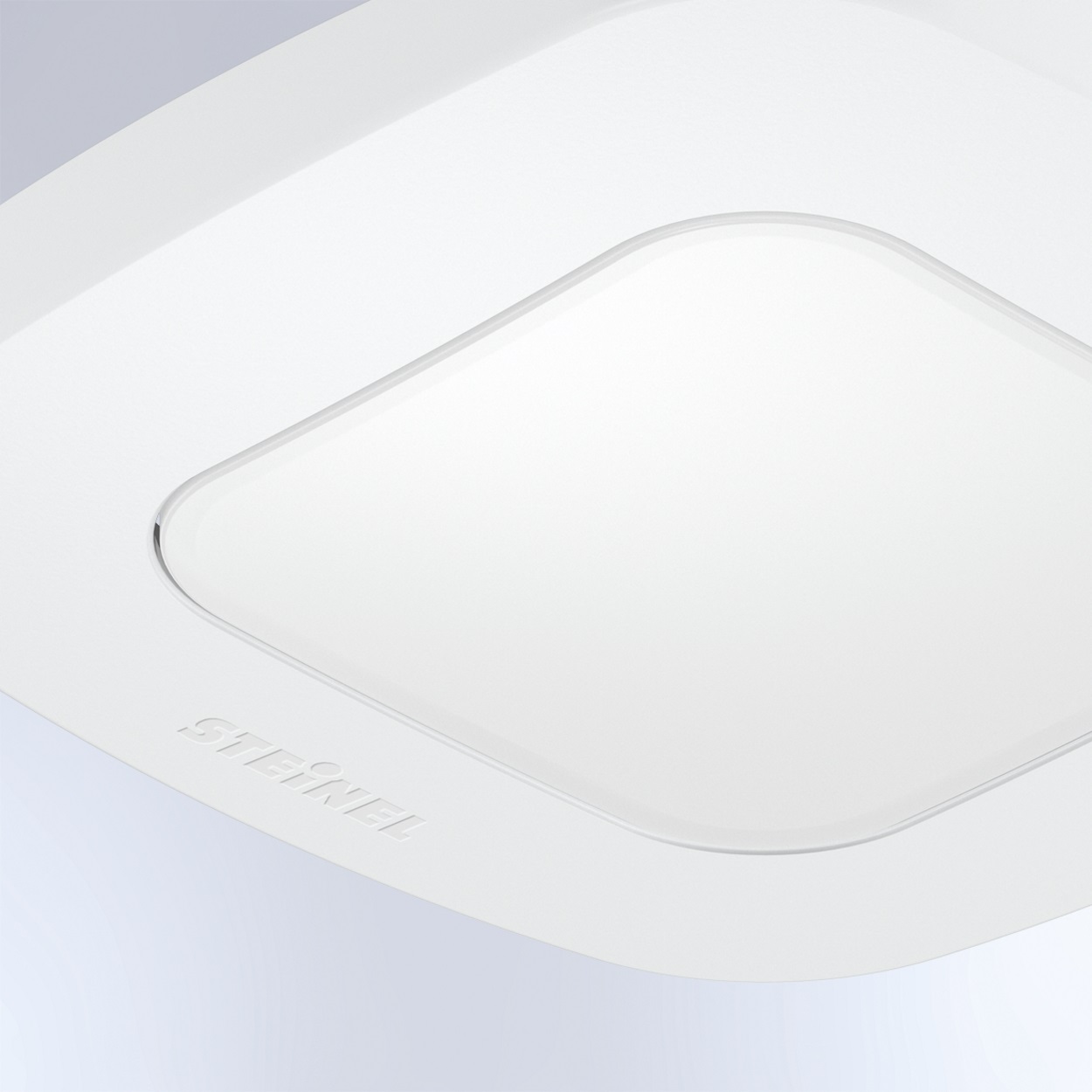

High-quality retina lens

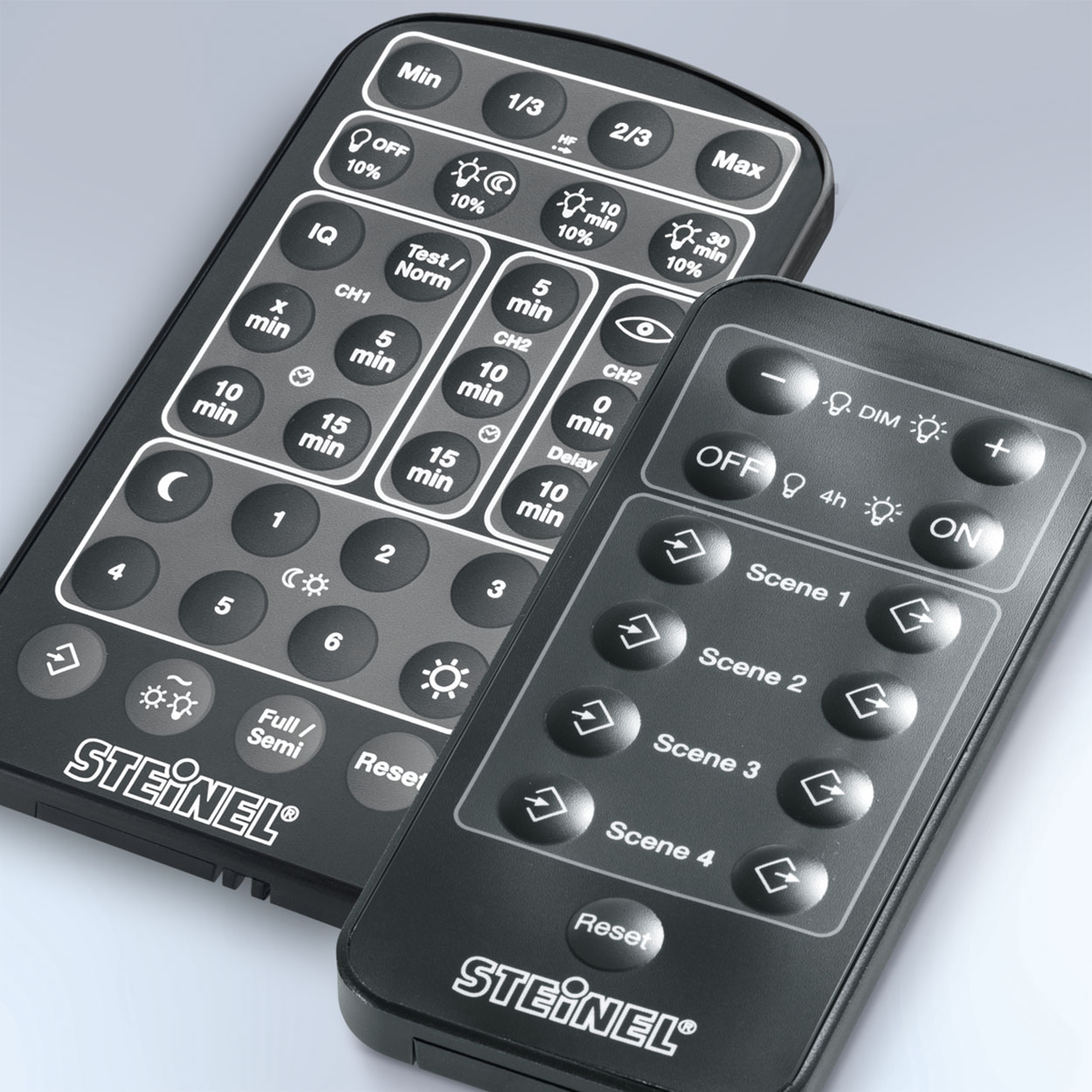

Can only be set using optional remote controls

Technical drawing

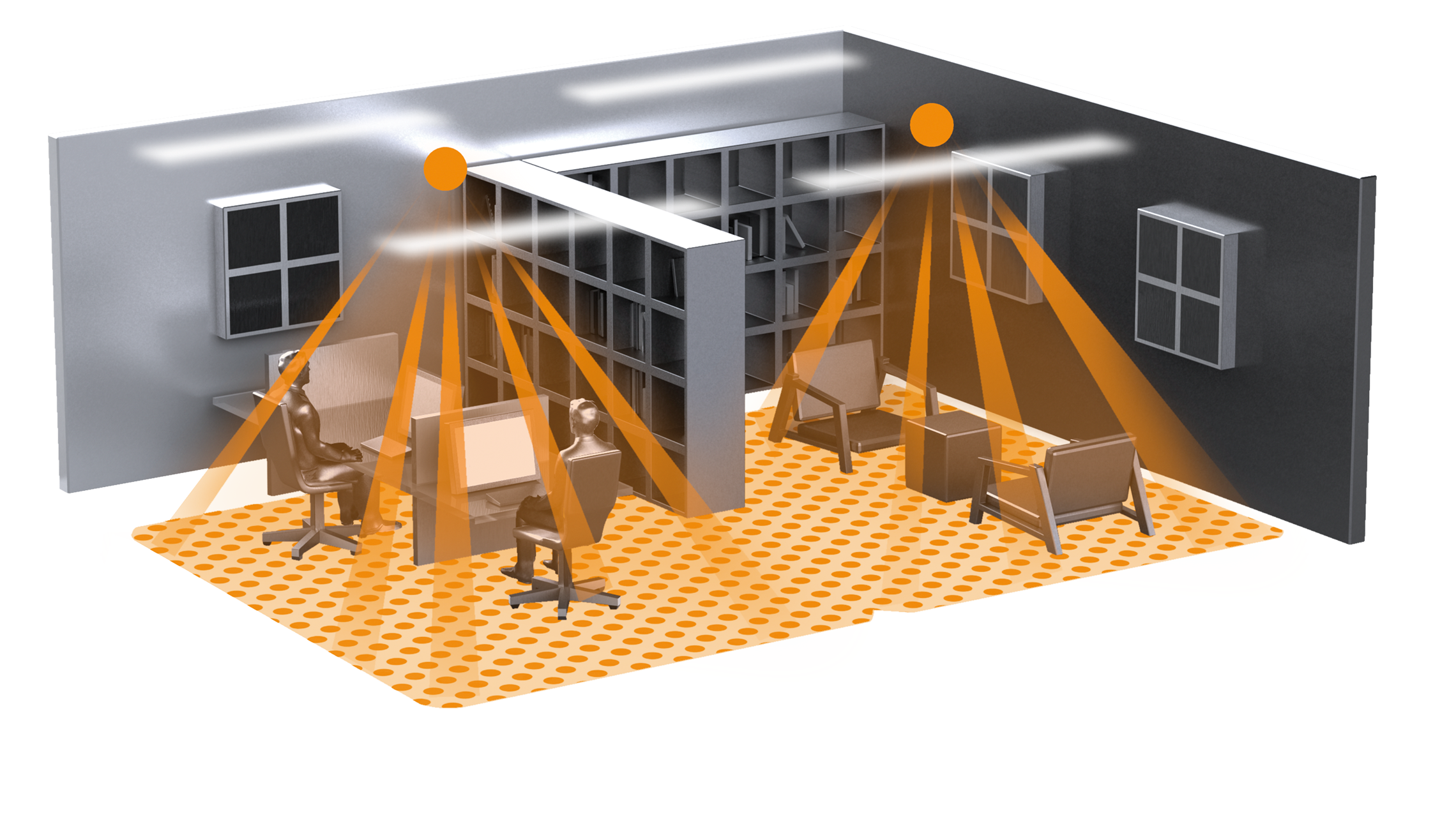

Sensor detection range
