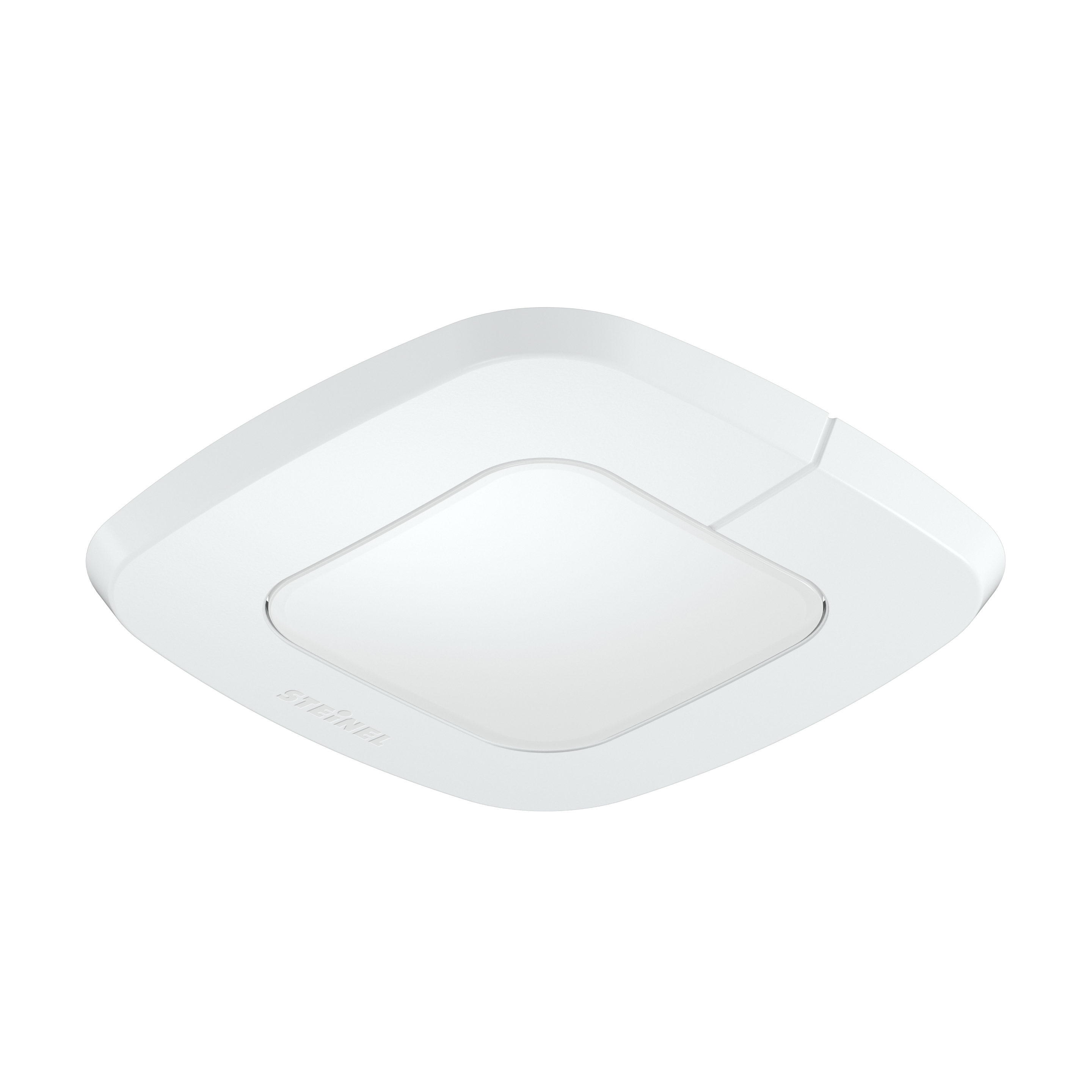

Steinel IR Quattro SLIM XS 4m KNX - square white

Slim presence detector for hotel rooms, care rooms and WCs. Fits a flush-mounted box.

ELDAS® no. 535 935 808

EAN-No. 4007841 058500

Price: Please log in to see prices

Colour

Black White

Variant

230V, 1 channel DALI-2 Input Device KNX

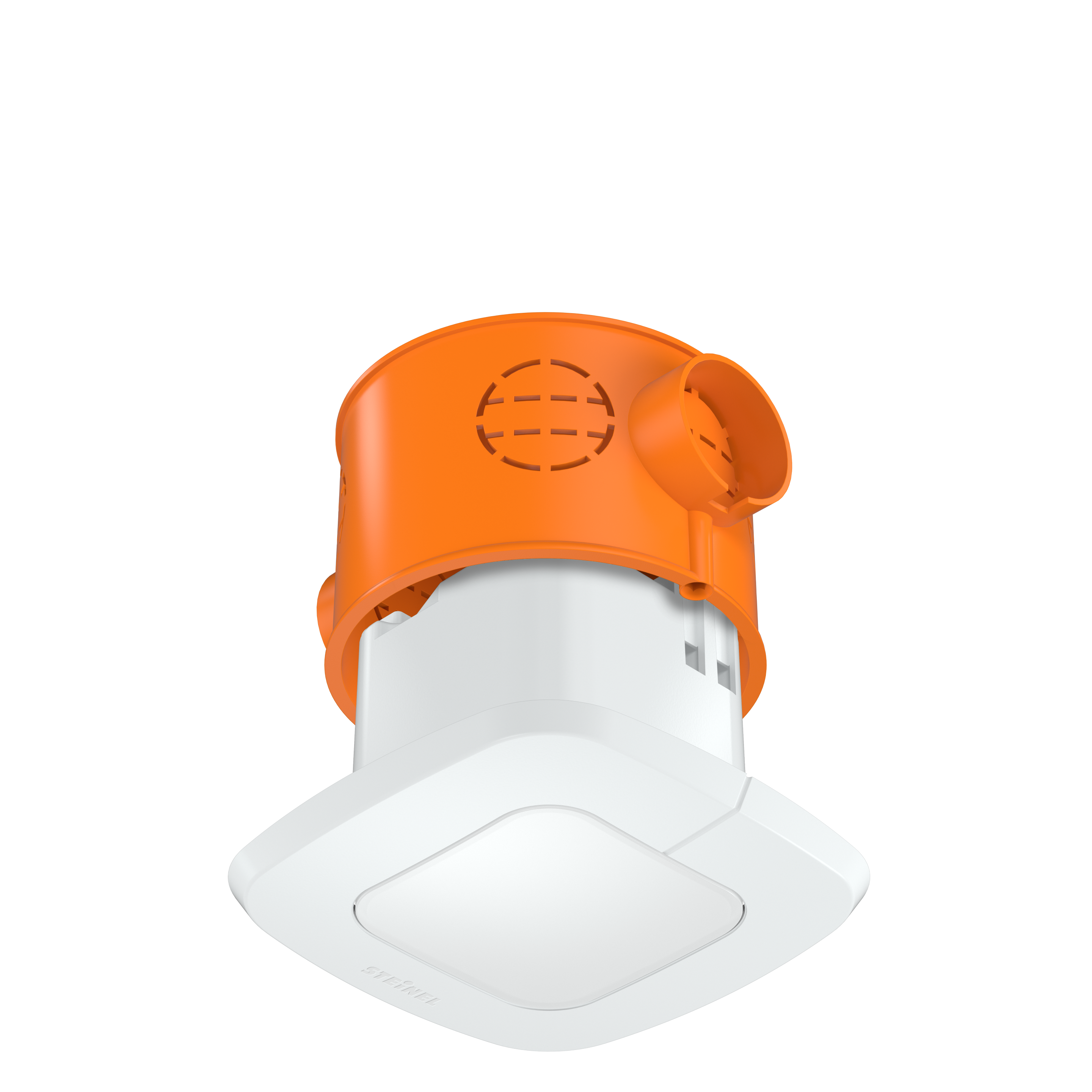

Due to popular demand. The extra slim IR Quattro SLIM XS presence detector virtually disappears in the wall or ceiling. Thanks to the new and practical concealed box format it forms a remarkably unobtrusive symbiosis with the office environment and can now be installed in any standard concealed box. In short: our slimmest presence detector would seem to be pretending it wasn't even there - and yet is absolutely present when it matters.

Identification

Version Presence detector

Variants

Version KNX

Colour White

Dimensions

Dimensions L × W × H 49 x 80 x 80 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 71 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Range detail Retina lens and hexagonal Fresnel structure

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Switching zones 408 switching zones

Mounting height 2,5 – 4,0 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Networking via KNX

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 60 s – 255 min

Base light function Yes

Base light function time Permanently ON, 1-255 min, all night

Main light adjustable 0 - 100 %

Settings via ETS software, Remote control, Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed mounting

Material Plastic

Application room Indoors, WC / washroom, care room, function room / ancillary room, hotel room, one-person office

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

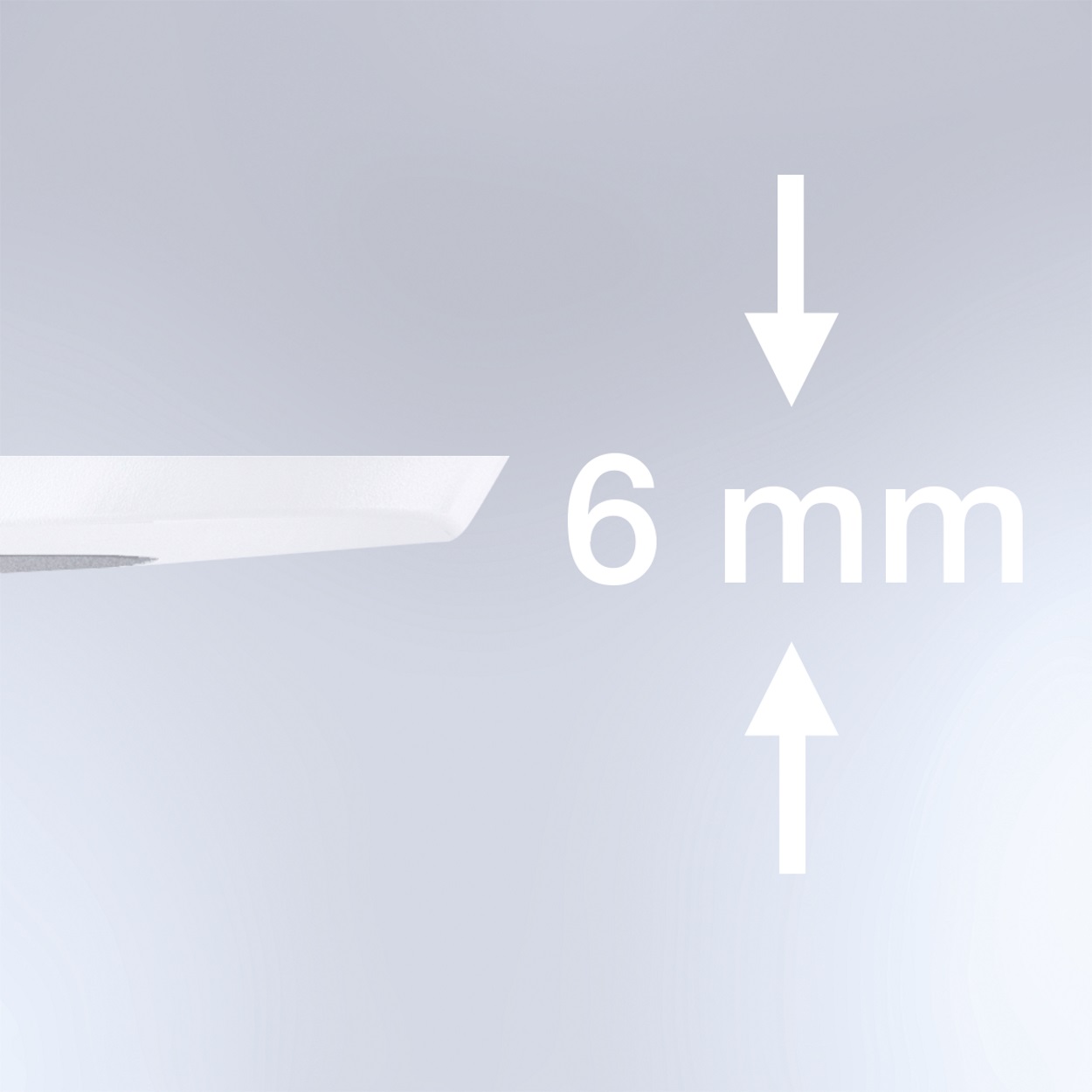

Extremely slim overall height

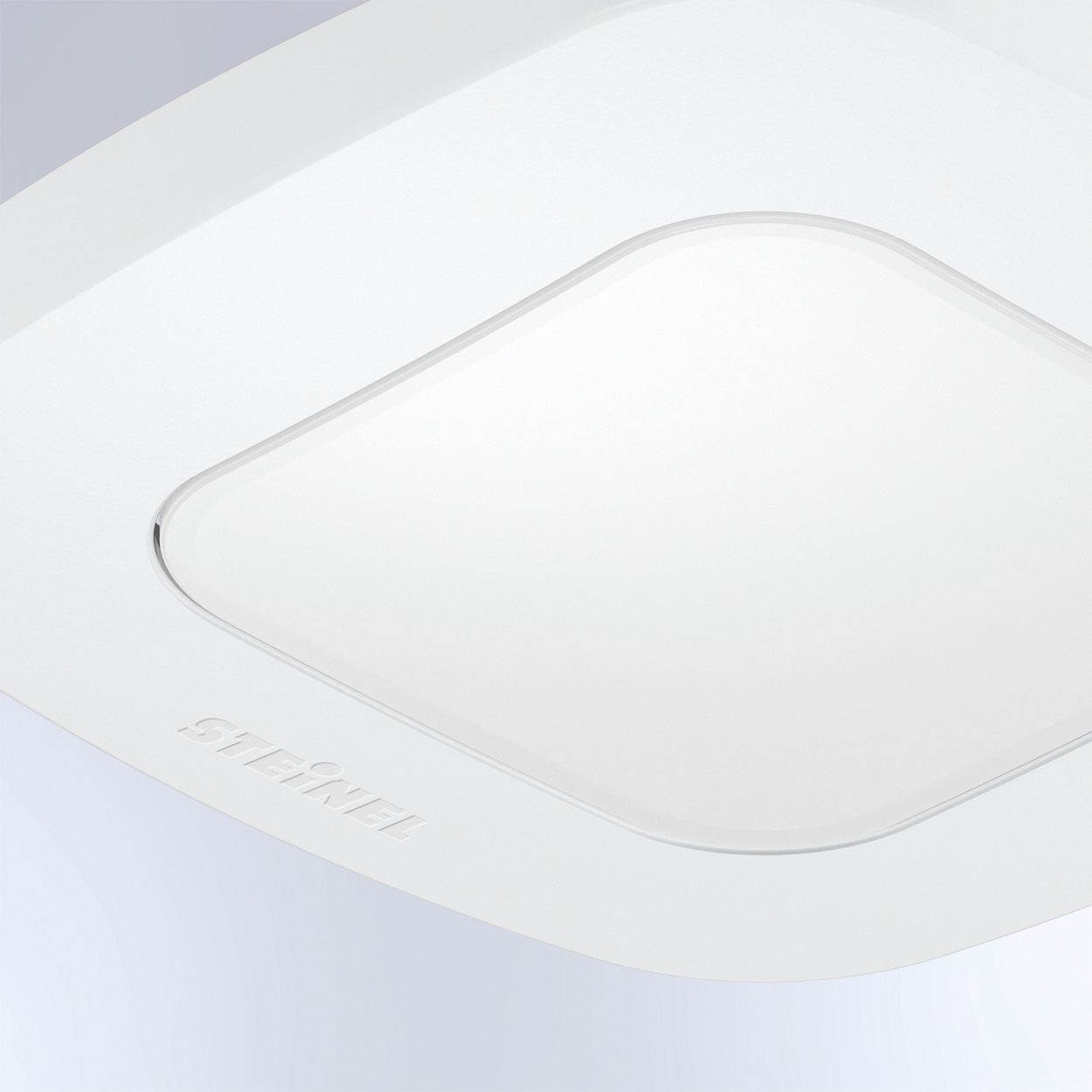

High-quality retina lens

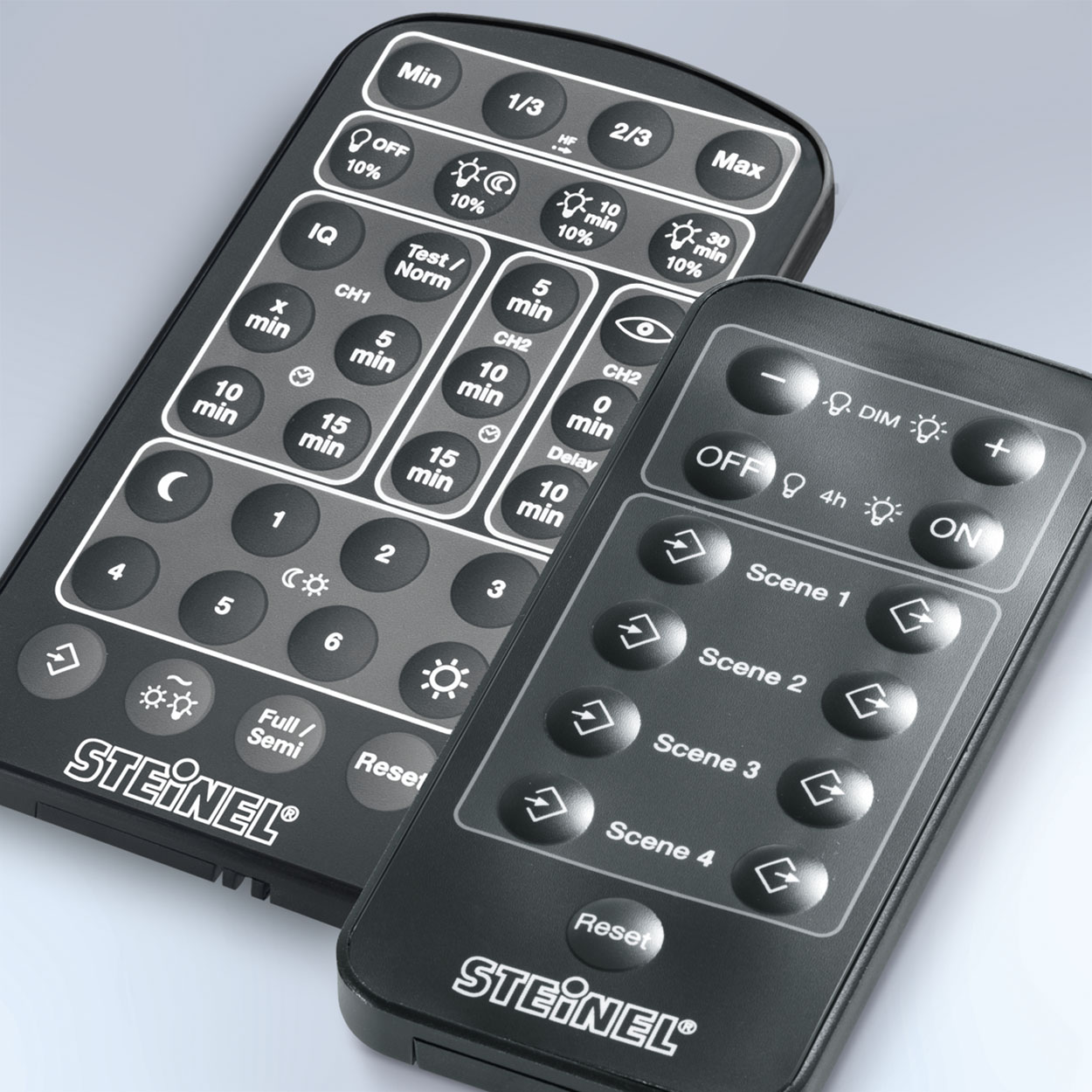

Can only be set using optional remote controls

Smart Remote remote control optional

Technical drawing

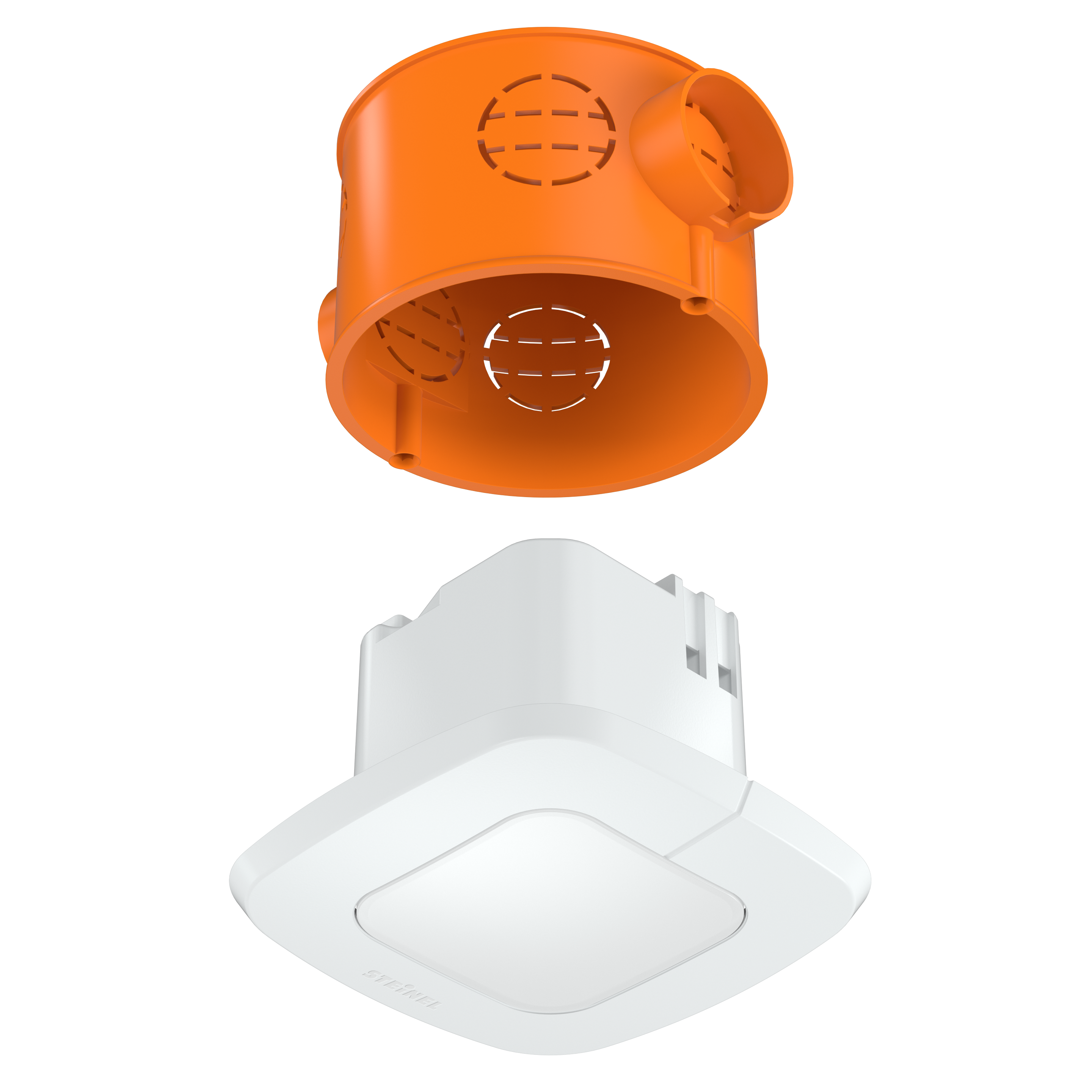

Sensor detection range

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151

Service remote control RC6 KNX

Item no. 4007841593018

User remote control RC7 KNX

Item no. 592912
