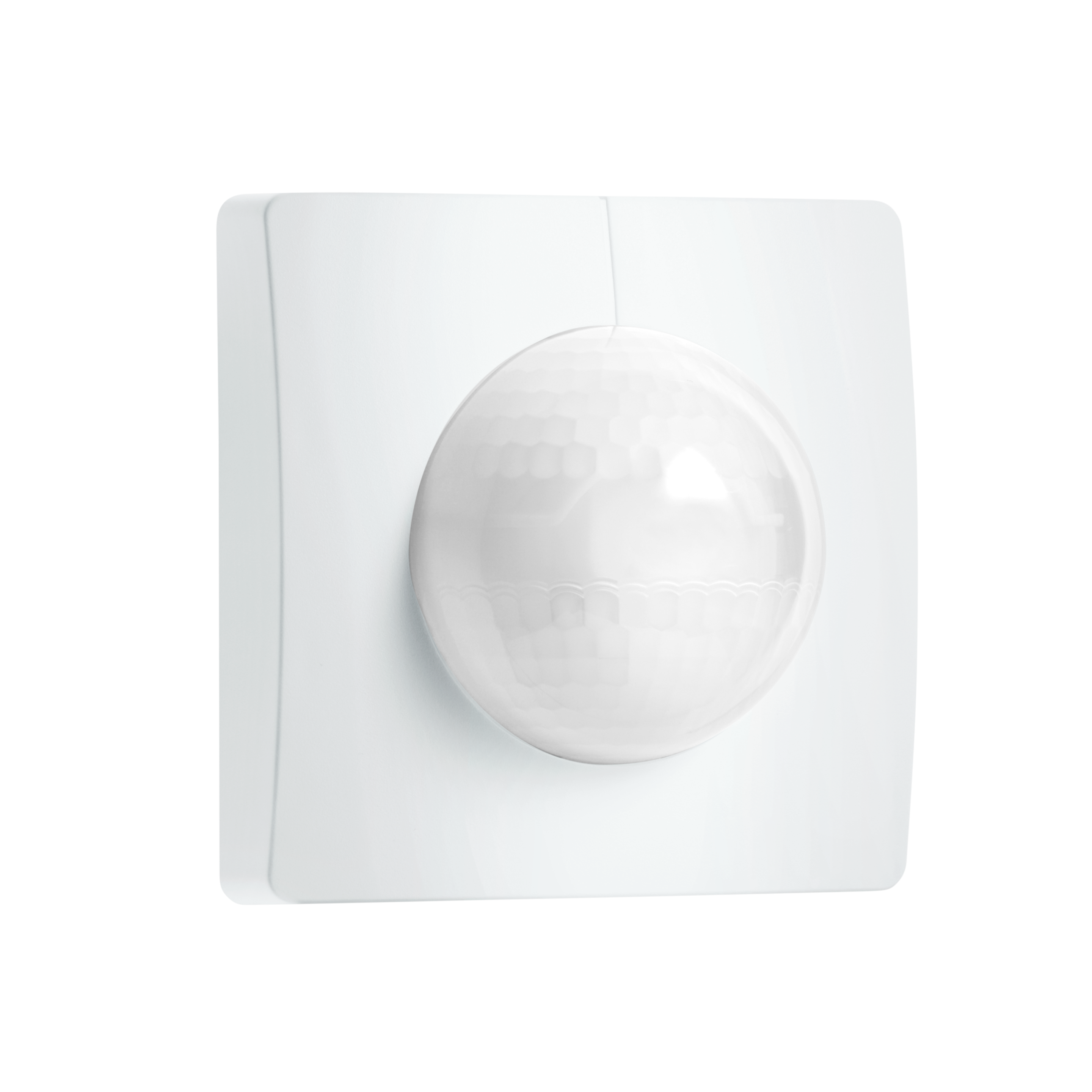

Steinel IS 3180 PF - concealed, sq.

EAN-No. 4007841 055769

This product is being replaced by a successor product.

Go to successor product · IS 3180 PF - surface, sq. (010508)

These sensors are the perfect choice when it comes to protecting industrial and business premises and making them secure. It is important to have far-sighted guards that instantly respond to any movement. The IS 3180 is made for the job. Featuring top-calibre components, such as two precision modular pyro sensors and a multi-lens, it watches over almost every last inch of areas measuring a good 500 m². The sensor that combines everything that's important to electrical fitters and security personnel. (IP20)

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 78 x 94 x 94 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Own consumption 0,3 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²) / r = 4 m (25 m²)

Tangential range r = 6 m (57 m²) / r = 20 m (628 m²)

Switching zones 448 switching zones

Mounting height 1,8 – 2,5 m

Optimal mounting height 2,0 m

Connectivity

Networking Yes

Type of networking Master/Master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Manual ON / ON-OFF

Settings via Remote control, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -20...+50 °C

Cover material (scope of delivery) Cover clips

Mounting location corner, wall

Application location Indoors, Outdoors

Mounting type Concealed mounting

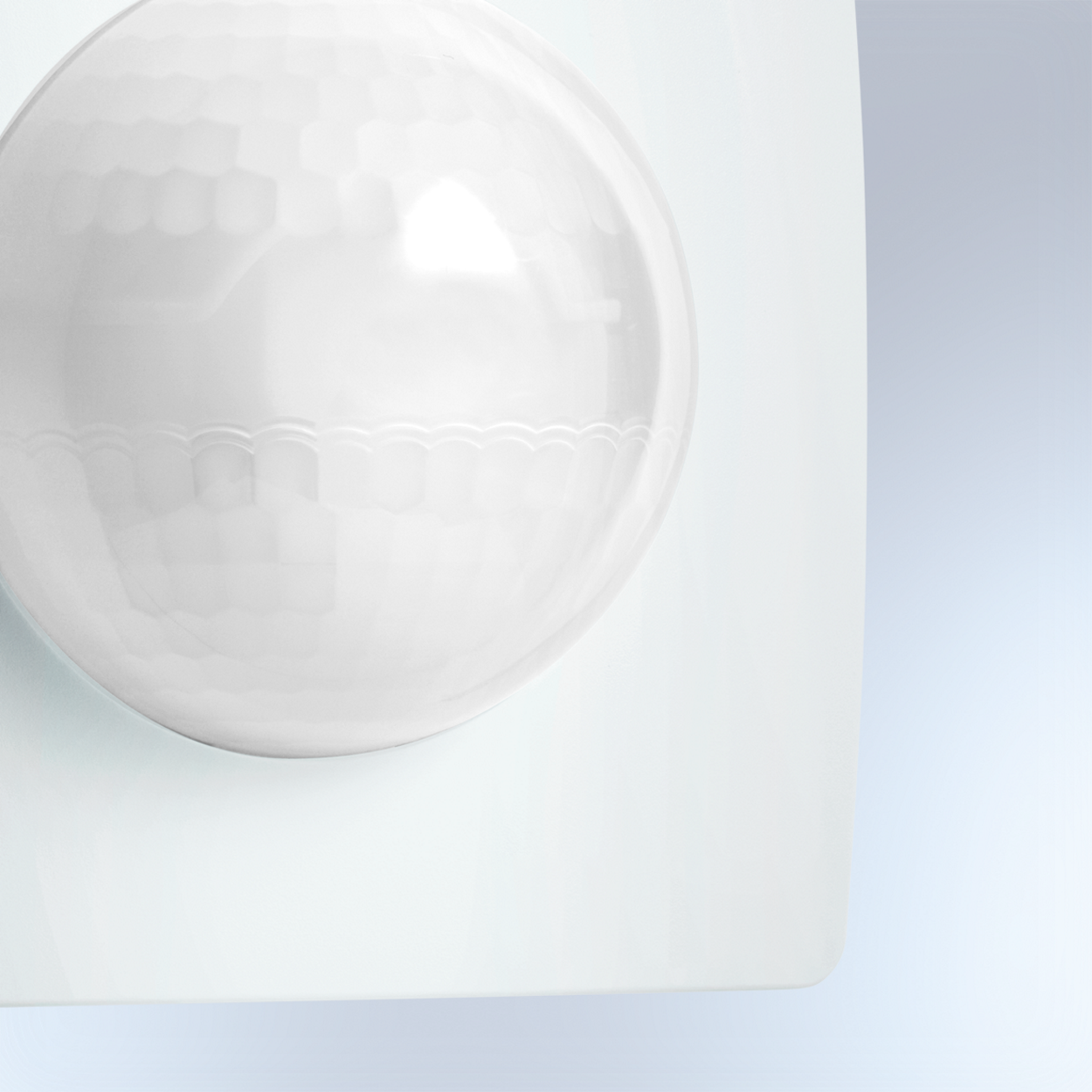

Material Plastic

Application room Indoors, all round the building, corridor / aisle, courtyard & driveway, function room / ancillary room, multi-storey / underground car park, outdoors, stairwell

Colour White

RAL colour 9003
