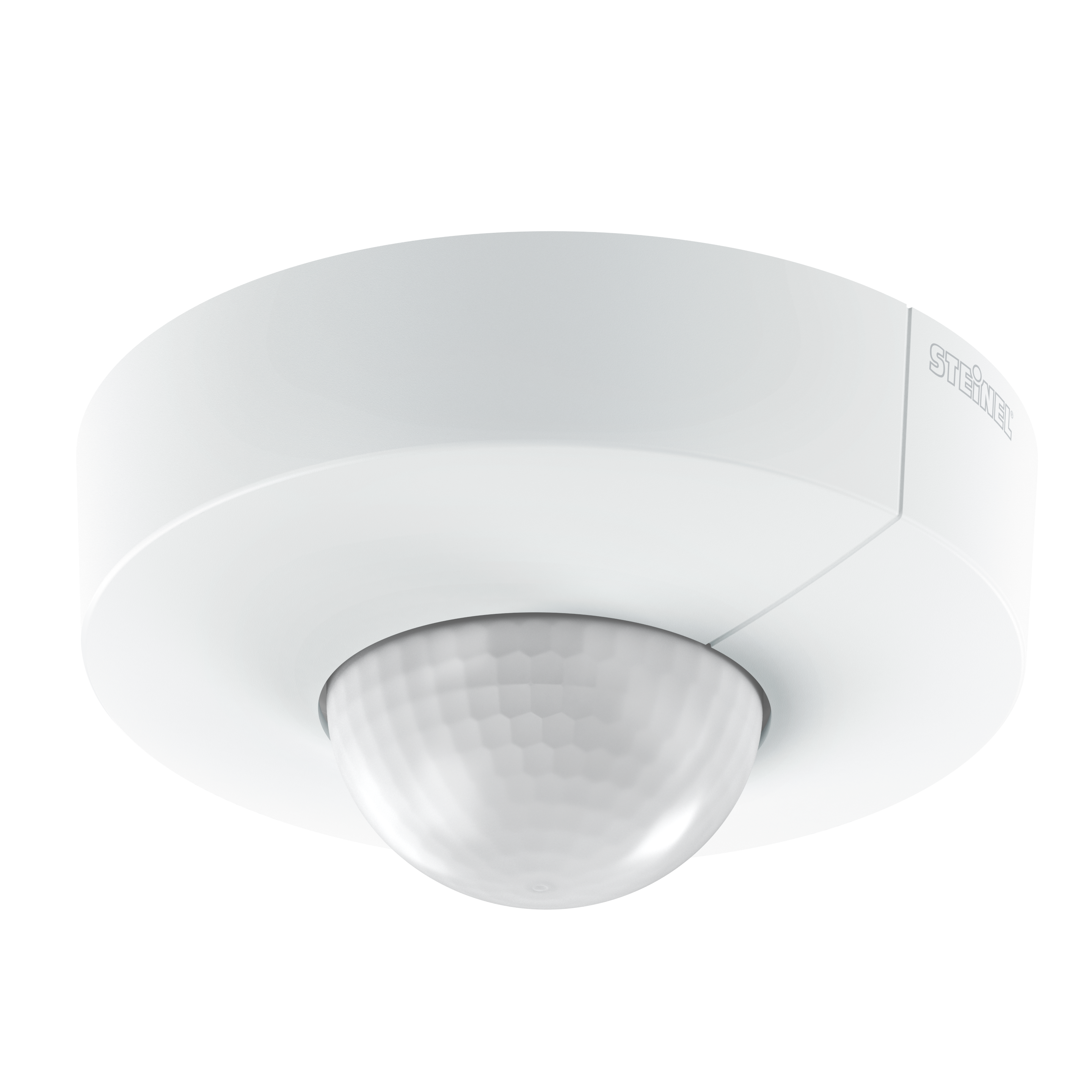

Steinel IS 3360 KNX - surface, rd. white

Presence detector for warehouses, car parks and production. All-round, also for high ceilings.

ELDAS® no. 535 944 008

EAN-No. 4007841 058180

Price: Please log in to see prices

Mounting type

Concealed mounting Recessed ceiling Surface mounting

Colour

Black White

Variant

230V, 1 channel DALI-2 Application Controller DALI-2 Input Device KNX PF (Potential Free)

Max. mounting height

4,00 m

Version

Motion and Presence Detector

Large spaces, multi-storey car parks and production buildings with ceiling heights of up to 4 m rarely provide installation surfaces every metre. These environments call for motion detectors with a long reach. Like the IS 3360. It detects any tangential movement within an all-round radius of 20 metres. Even installed at heights of up to 4 metres. In short: one IS 3360 covers an area of more than 1000 m²! STEINEL Infrared technology that keeps its promises.

Variants

Version KNX

Colour White

Mounting type Surface mounted

Mounting height Mounting height 2.5 to 4 metres

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

Dimensions Ø × H 126 x 65 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 40 m (1257 m²)

Switching zones 1416 switching zones

Mounting height 2,5 – 4,0 m

Presence range Ø 3 m (7 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 2x Presence output Day / night function Logic gate

With bus coupler Yes

Networking via KNX

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 min

Base light function Yes

Main light adjustable 0 - 100 %

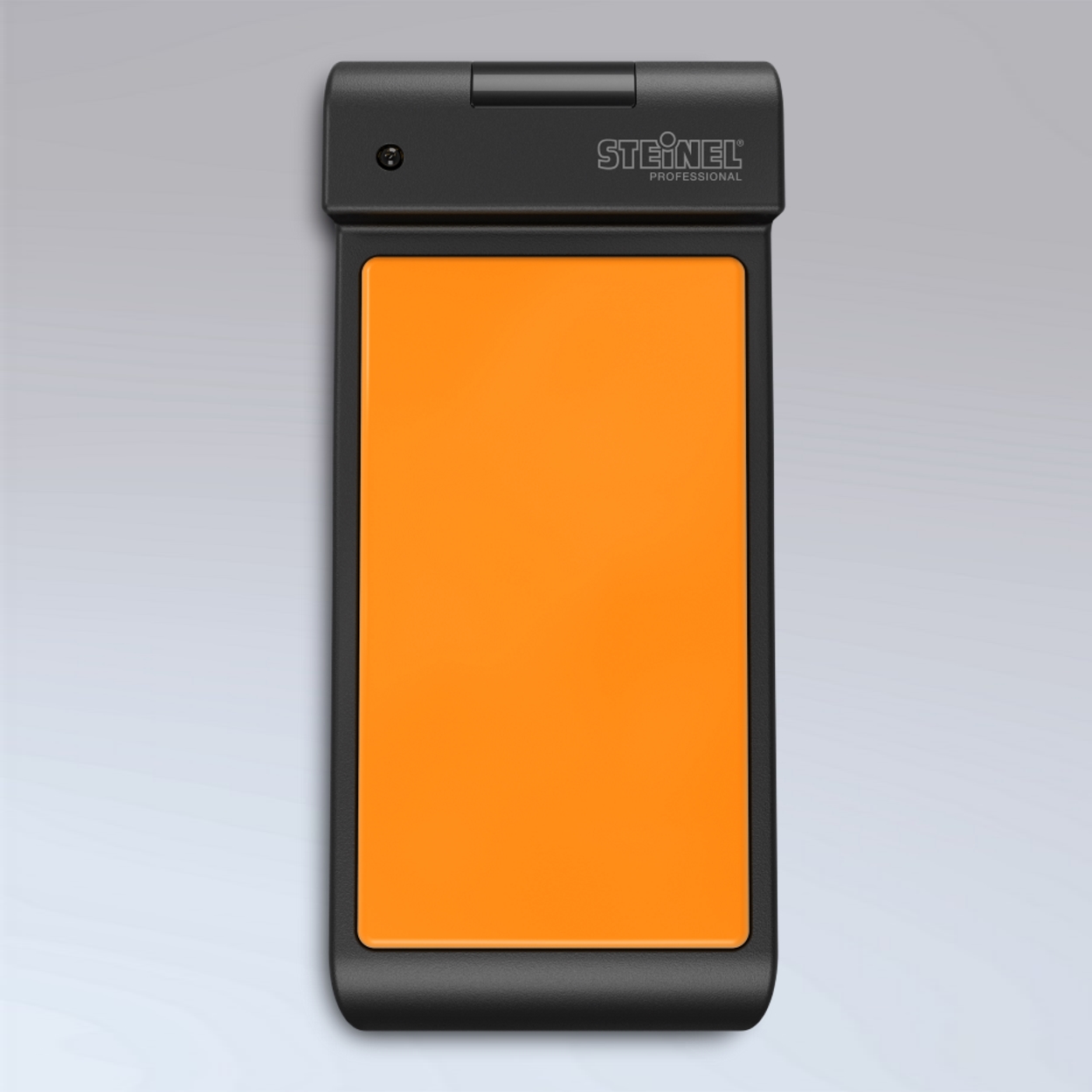

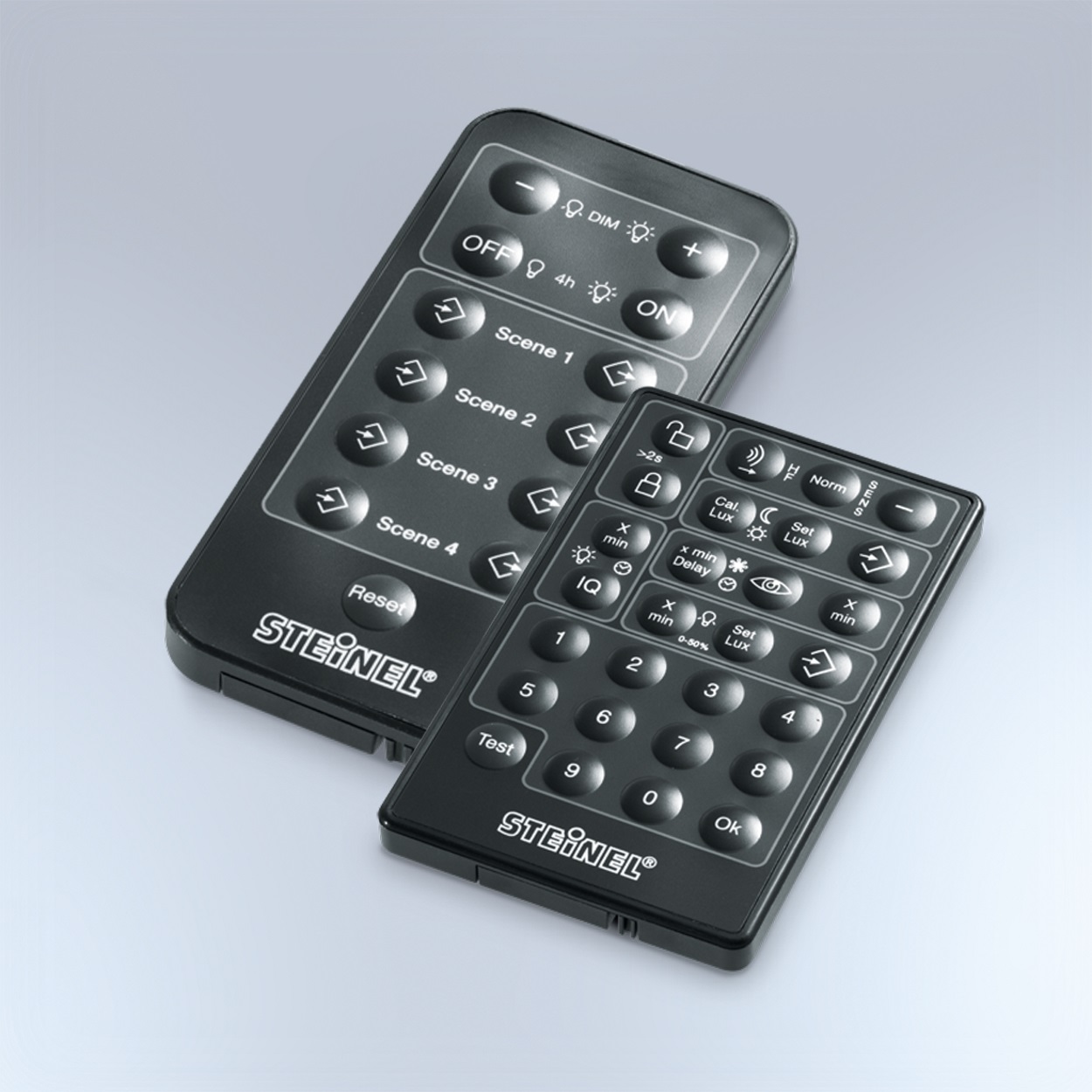

Settings via ETS software, Remote control, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors, Outdoors

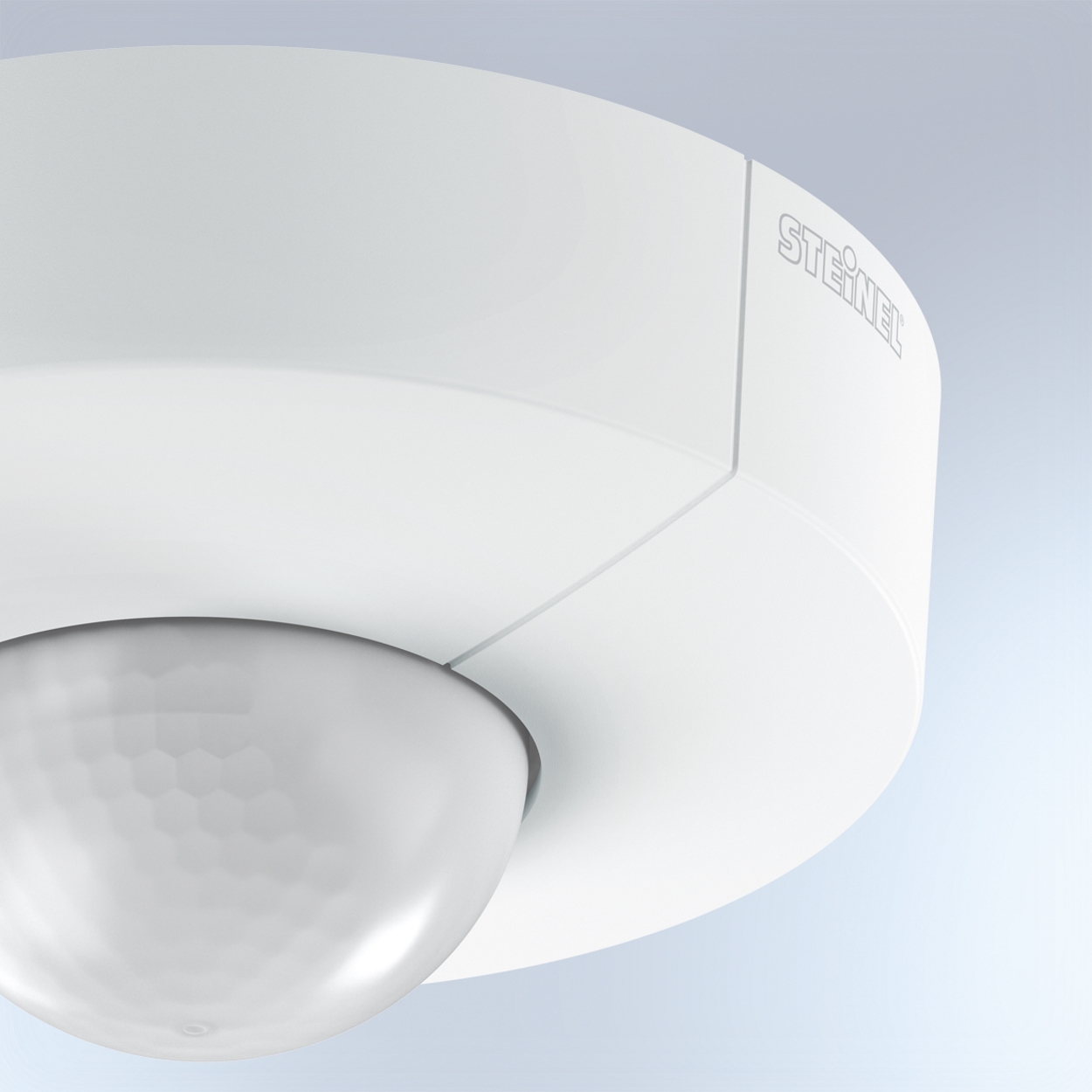

Material Plastic

Application room Indoors, WC / washroom, changing room, function room / ancillary room, multi-storey / underground car park, outdoors, production facilities, reception / lobby, recreation room, sports hall, stairwell, warehouse

Colour White

RAL colour 9003
