Identification
Version

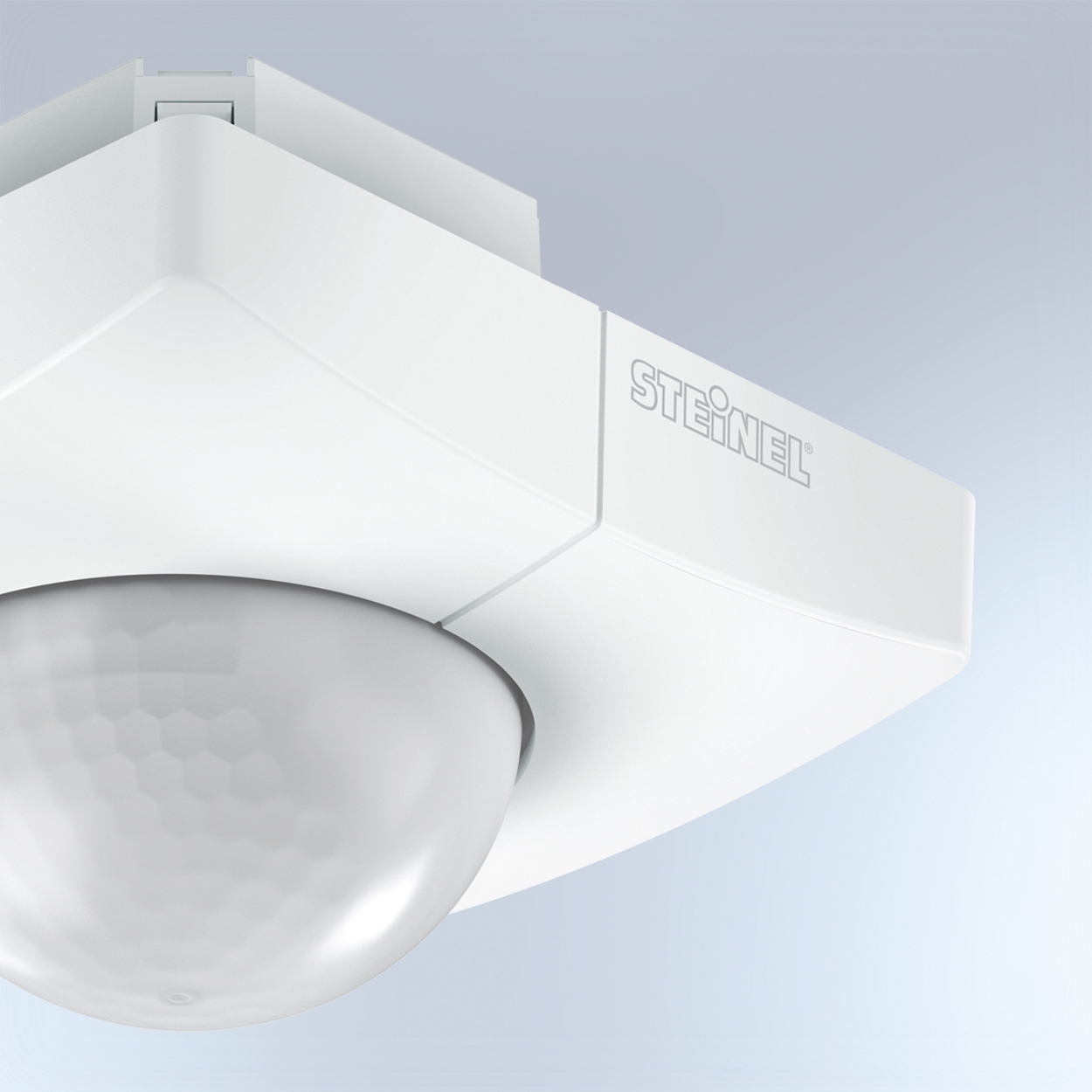

Motion and Presence Detector
Dimensions
Dimensions L × W × H
78 x 94 x 94 mm
Electrical
Supply voltage detail
KNX bus
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 40 m (1257 m²)
Switching zones
1416 switching zones
Mounting height
2,50 – 4,00 m
Presence range
Ø 3 m (7 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
KNX bus
KNX functions
Photo-cell controller
Basic light level function
Light level
HVAC output
Constant-lighting control
Light output 2x
Presence output
Day / night function
Logic gate
With bus coupler
Yes
Lighting technology
Soft light start
Yes
Continuous light
selectable
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
5 s – 15 Min.
Base light function
Yes
Main light adjustable
0 - 100 %
Settings via
ETS software
Remote control
Bus
Smart Remote
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
Indoors
WC / washroom
changing room
function room / ancillary room
multi-storey / underground car park
production facilities
reception / lobby
recreation room
sports hall
stairwell
warehouse
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
