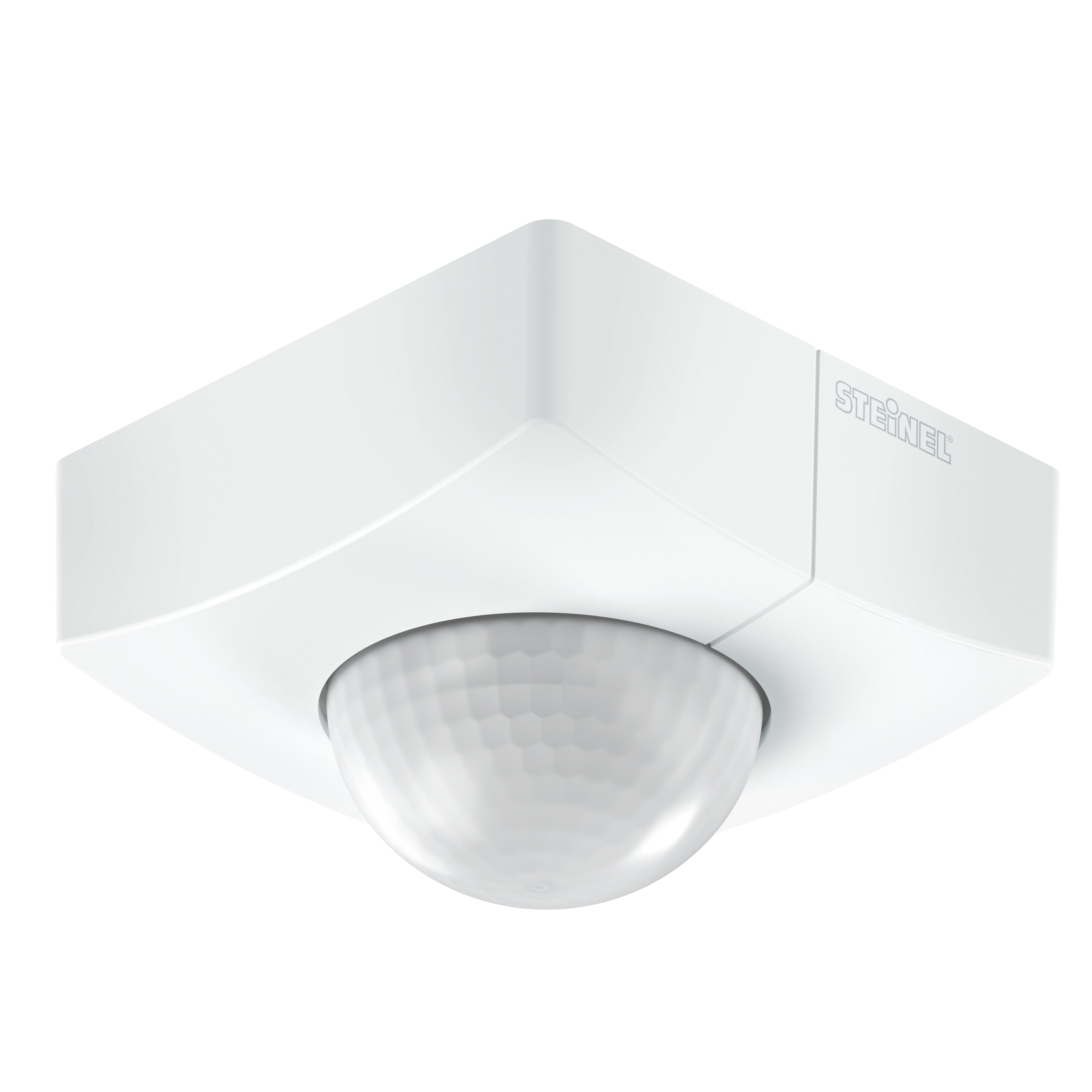

Steinel IS 3360 MX Highbay PF - surface, sq.

Presence detector for warehouses, car parks and production. All-round, also for high ceilings.

ELDAS® no. 535 946 407

EAN-No. 4007841 033583

Price: Please log in to see prices

Mounting type

Surface mounting

Colour

White

Variant

230V, 1 channel DALI-2 Application Controller DALI-2 Input Device KNX PF (Potential Free)

Max. mounting height

14,00 m

Version

Motion detectors

The ceilings are generally quite high in industrial halls and business premises. Good to know then that even high ceilings do not present a problem to the IS 3360 MX Highbay. The long-reach motion detector has an extra-large detection zone and remains absolutely alert even when it is installed at a height of up to 14 metres. The IS 3360 MX Highbay is highly reliable.

Variants

Version PF (Potential Free)

Colour White

Mounting type Surface mounted

Mounting height Mounting height 4 to 14 metres

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 14 m (154 m²)

Tangential range Ø 36 m (1018 m²)

Switching zones 1416 switching zones

Mounting height 4,0 – 14,0 m

Optimal mounting height 12,0 m

Connectivity

Networking Yes

Type of networking Master/Master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Manual ON / ON-OFF

Settings via Remote control, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20...+50 °C

Housing material Plastic

Cover material Opal plastic

Cover material (scope of delivery) Cover clips

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, high-bay warehouse, sports hall

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

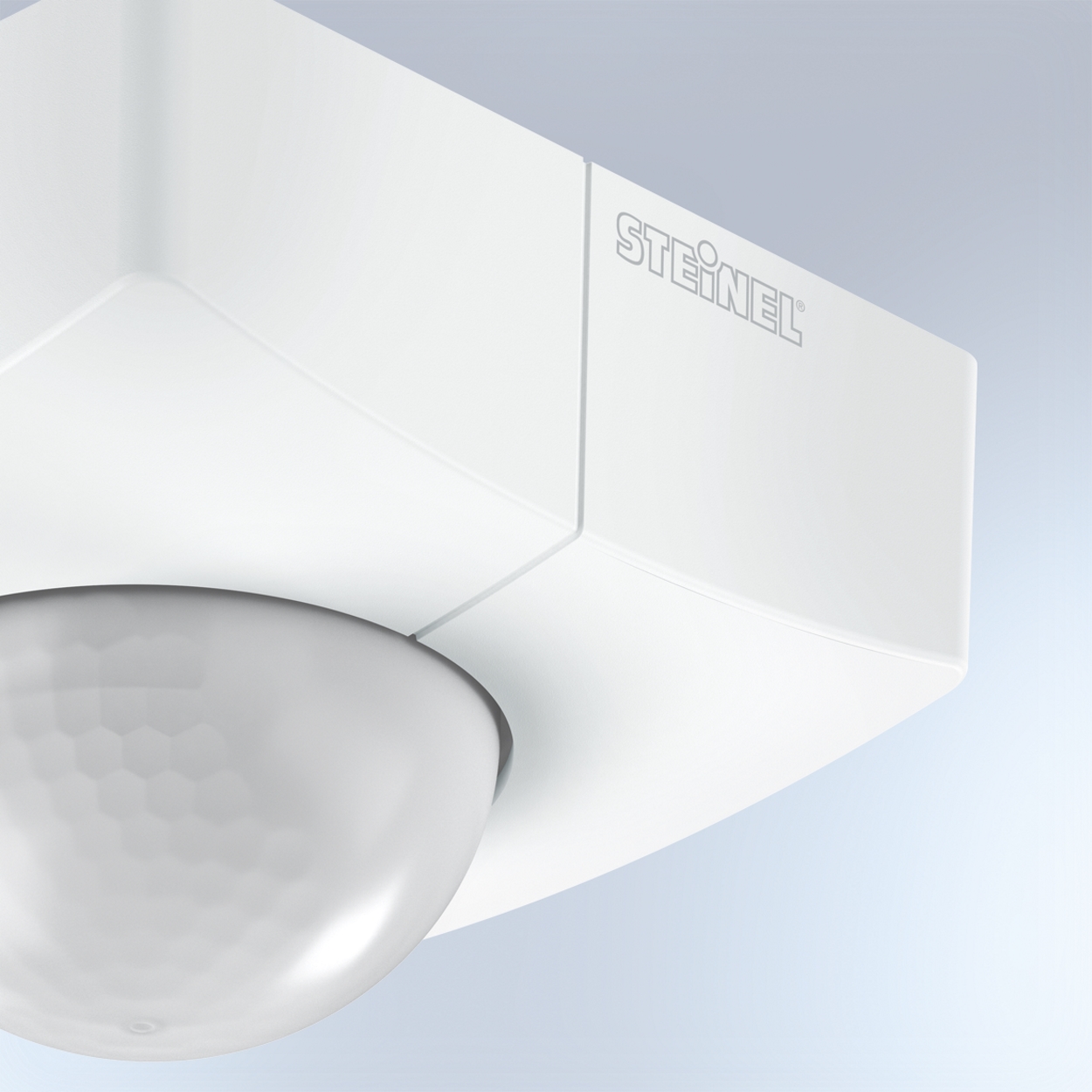

UV-resistant plastic

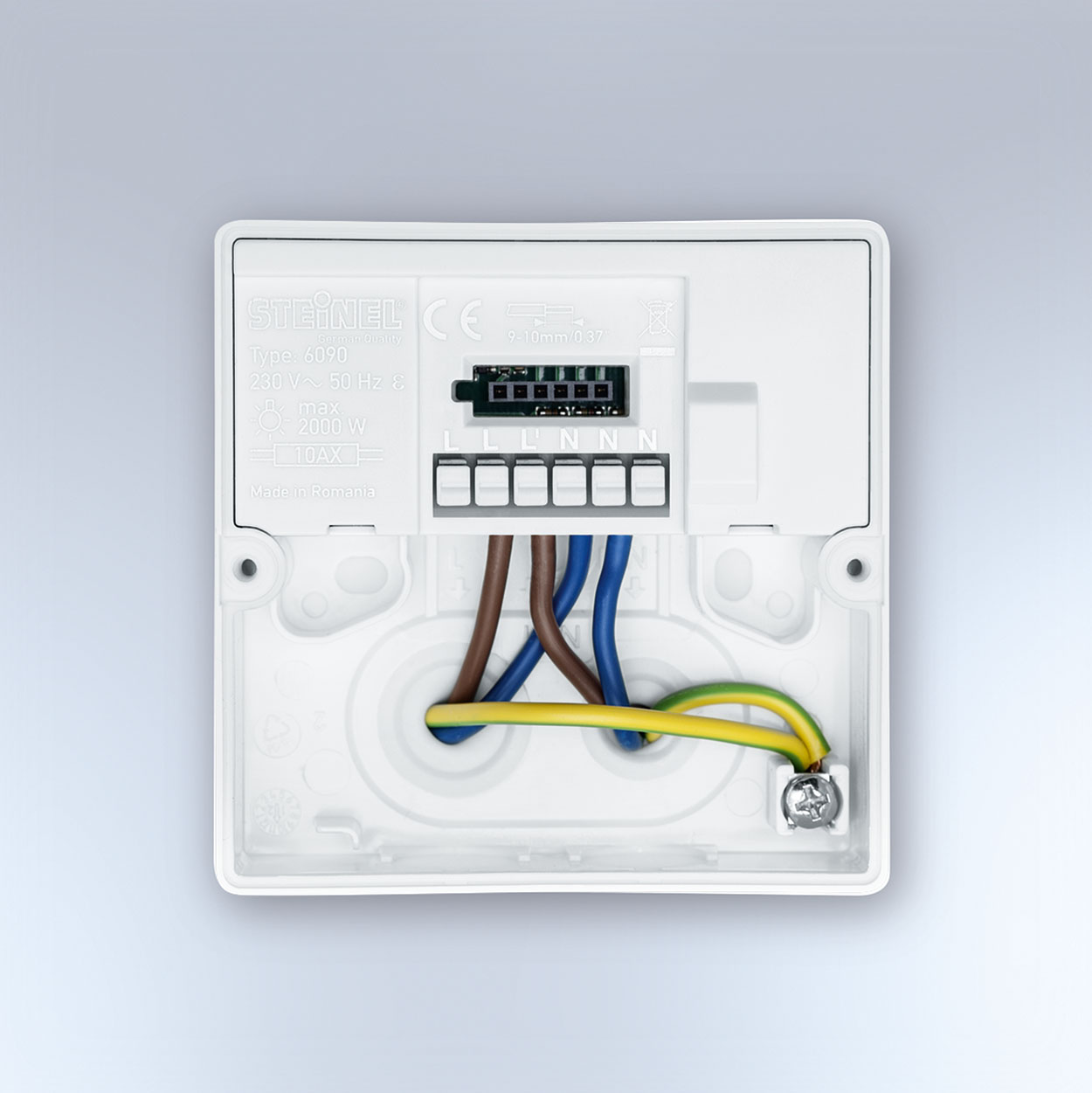

Large terminal compartment

Optional remote controls

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151

Service remote control RC8

Item no. 559410

Black cover for IR-sensors surface, sq.

Item no. 056711

Black cover for IR-sensors surface, rd.

Item no. 056735
