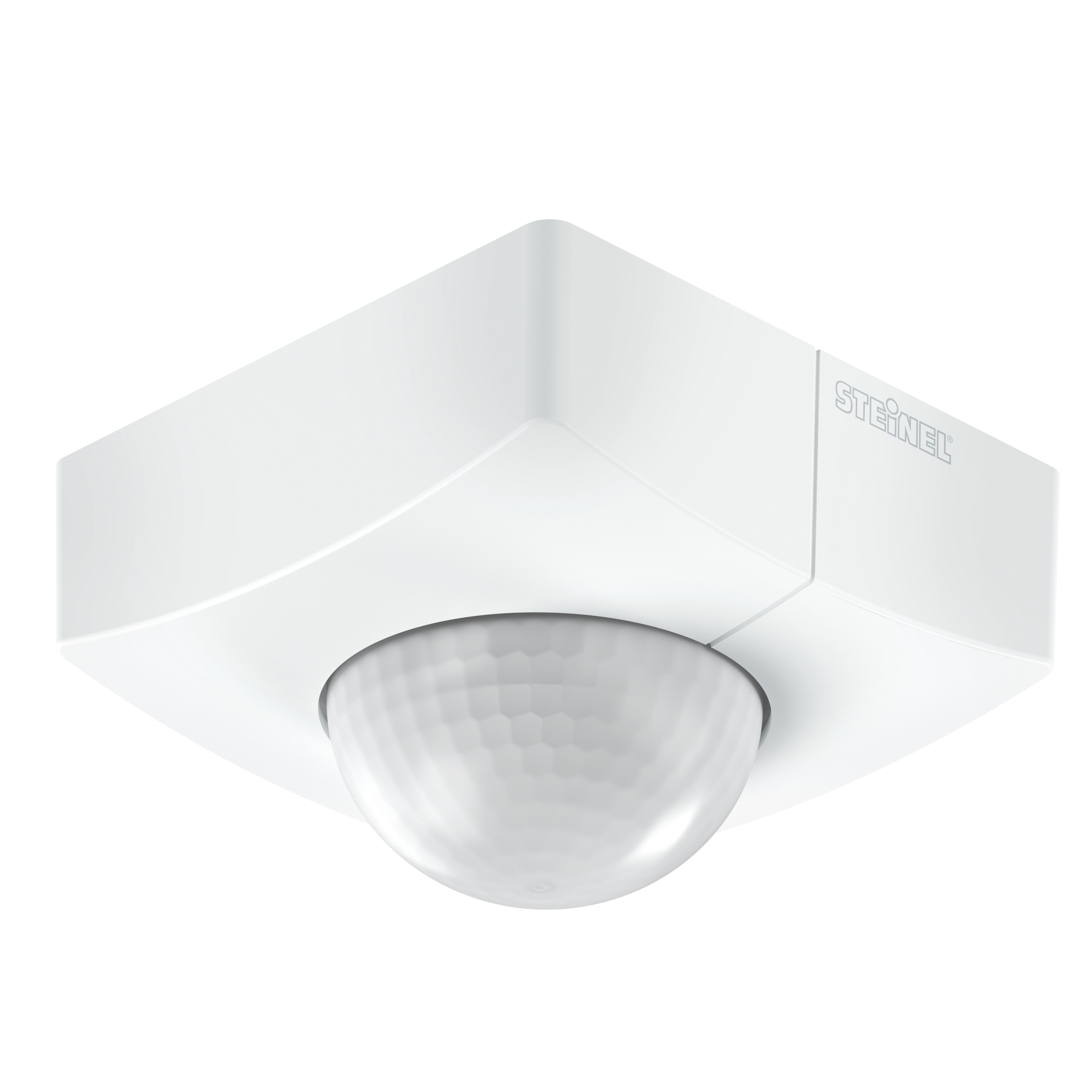

Steinel IS 3360 MX Highbay DALI-2 APC - surface, sq.

Presence detector for warehouses, car parks and production. All-round, also for high ceilings.

ELDAS® no. 535 946 406

EAN-No. 4007841 010577

Price: Please log in to see prices

Mounting type

Surface mounting

Colour

White

Variant

230V, 1 channel DALI-2 Application Controller DALI-2 Input Device KNX PF (Potential Free)

Max. mounting height

14,00 m

Version

Motion detectors

The ceilings are generally quite high in industrial halls and business premises. Good to know then that even high ceilings do not present a problem to the IS 3360 MX Highbay. The long-reach motion detector has an extra-large detection zone and remains absolutely alert even when it is installed at a height of up to 14 metres. The IS 3360 MX Highbay is highly reliable.

Variants

Version DALI-2 Application Controller

Colour White

Mounting type Surface mounted

Mounting height Mounting height 4 to 14 metres

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Control output DALI Broadcast 1x30 electronic ballasts

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 14 m (154 m²)

Tangential range Ø 36 m (1018 m²)

Switching zones 1416 switching zones

Mounting height 4,0 – 14,0 m

Optimal mounting height 12,0 m

Connectivity

Networking Yes

Type of networking Master/Slave

Networking via DALI 2

Lighting technology

Soft light start Yes

Continuous light selectable, 4h

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 min

Base light function Yes

Base light function time 1-30 min, all night

Main light adjustable 50 - 100 %

Functions Normal / test mode, Manual ON / ON-OFF, Constant-lighting control ON-OFF

Settings via Remote control, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP54

Ambient temperature -20...+50 °C

Housing material Plastic

Cover material Opal plastic

Cover material (scope of delivery) Cover clips

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, high-bay warehouse, sports hall

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

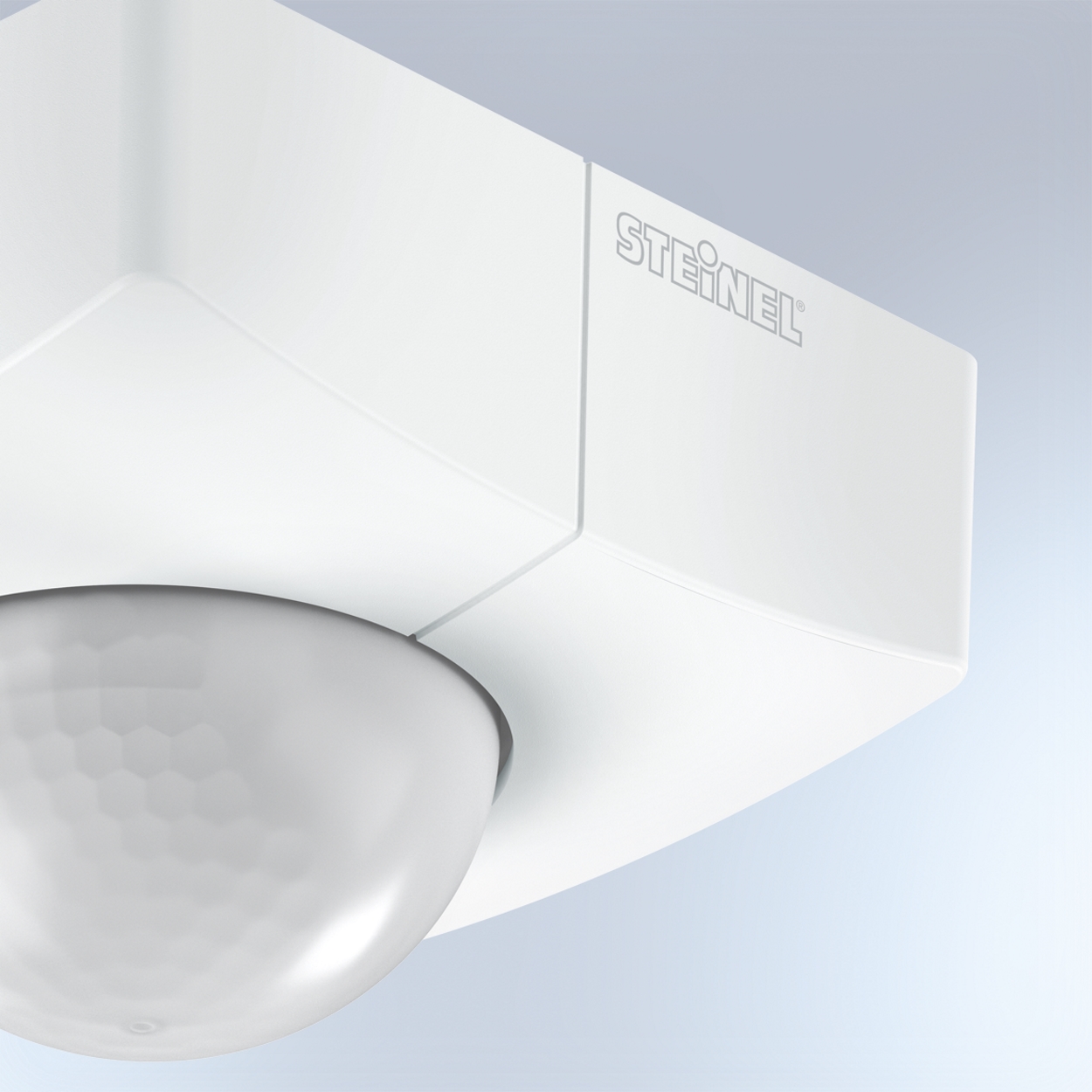

UV-resistant plastic

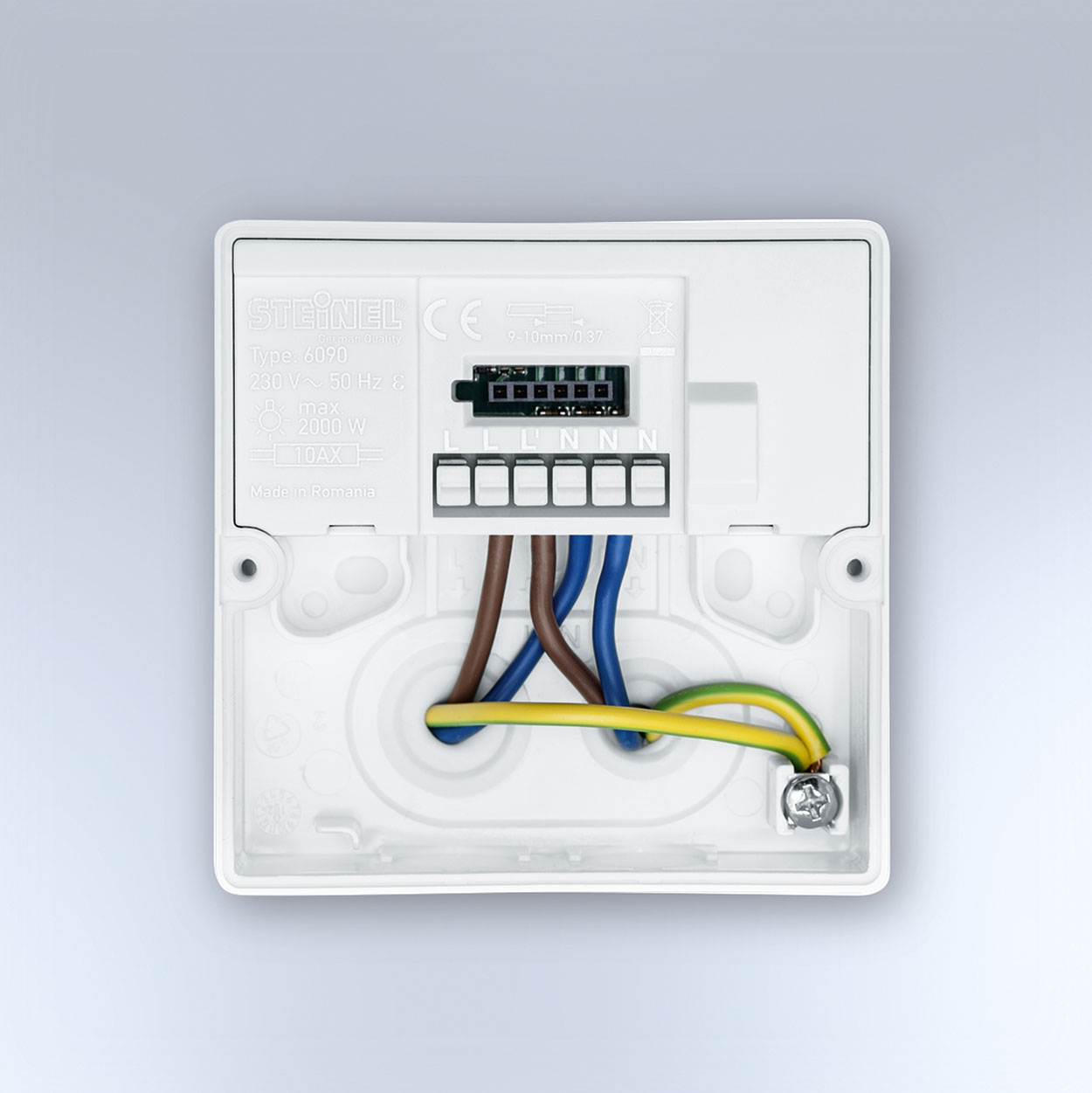

Large terminal compartment

Optional remote controls

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Circuit diagram for interconnecting DALI-2 APC with DALI-2 IPD
