Steinel IS 345 KNX - concealed, sq. black

Steinel IS 345 KNX - concealed, sq. black

ELDAS® no. 535 918 142 · EAN-No. 4007841 084141

Technical data Highlights Illustrations Downloads
Steinel

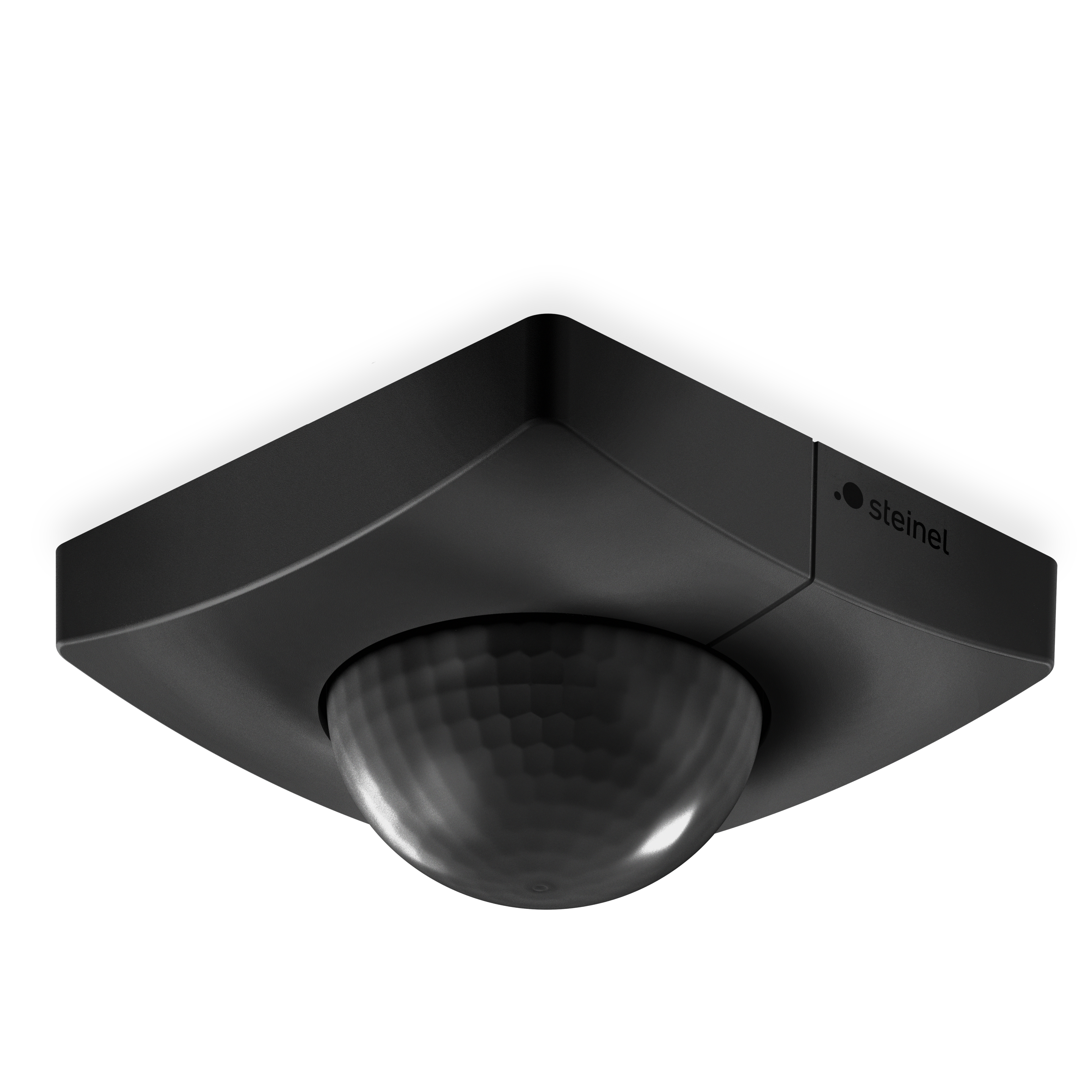

Steinel IS 345 KNX - concealed, sq. black

Motion detector for aisles, car parks and halls. Long, narrow detection, splash-proof.

ELDAS® no. 535 918 142

EAN-No. 4007841 084141

Price: Please log in to see prices

Mounting type

Concealed mounting Surface mounting

Variant

KNX

Max. mounting height

5,00 m

Colour

Black White

Corridors and long hallways have special requirements for the performance of sensors. The detection field of the sensor must be narrow but long. This is the only way to cover long sections with as few sensors as possible. The IS 345 is the tried and tested specialist for such applications in indoor areas. It has a special aisle detection and an opening angle of 45°. This allows it to monitor tangentially up to 23 x 6 metres.

Identification

Version Motion detectors

Variants

Version KNX
Colour Black
Mounting type Flush-mounted
Mounting height Mounting height 2.5 to 4 metres

Dimensions

Dimensions L × W × H 78 x 94 x 94 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Sensor technology passive infrared
Detection angle 360 °, Corridor
Opening angle 45 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range 12 x 6 m (72 m²)
Tangential range 23 x 6 m (138 m²)
Switching zones 280 switching zones
Mounting height 2,5 – 5,0 m
Optimal mounting height 2,5 m

Connectivity

Networking Yes
Type of networking Master/Slave
KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 2x Presence output Day / night function Logic gate
With bus coupler Yes
Networking via KNX bus

Lighting technology

Soft light start Yes
Continuous light selectable
Constant light regulation Yes

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Time setting 5 s – 15 min
Base light function Yes
Main light adjustable 0 - 100 %
Settings via ETS software, Remote control, Smart Remote
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature -20...+50 °C
Mounting location ceiling
Application location Indoors
Material Plastic
Application room Indoors, corridor / aisle, multi-storey / underground car park
Colour Black
RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

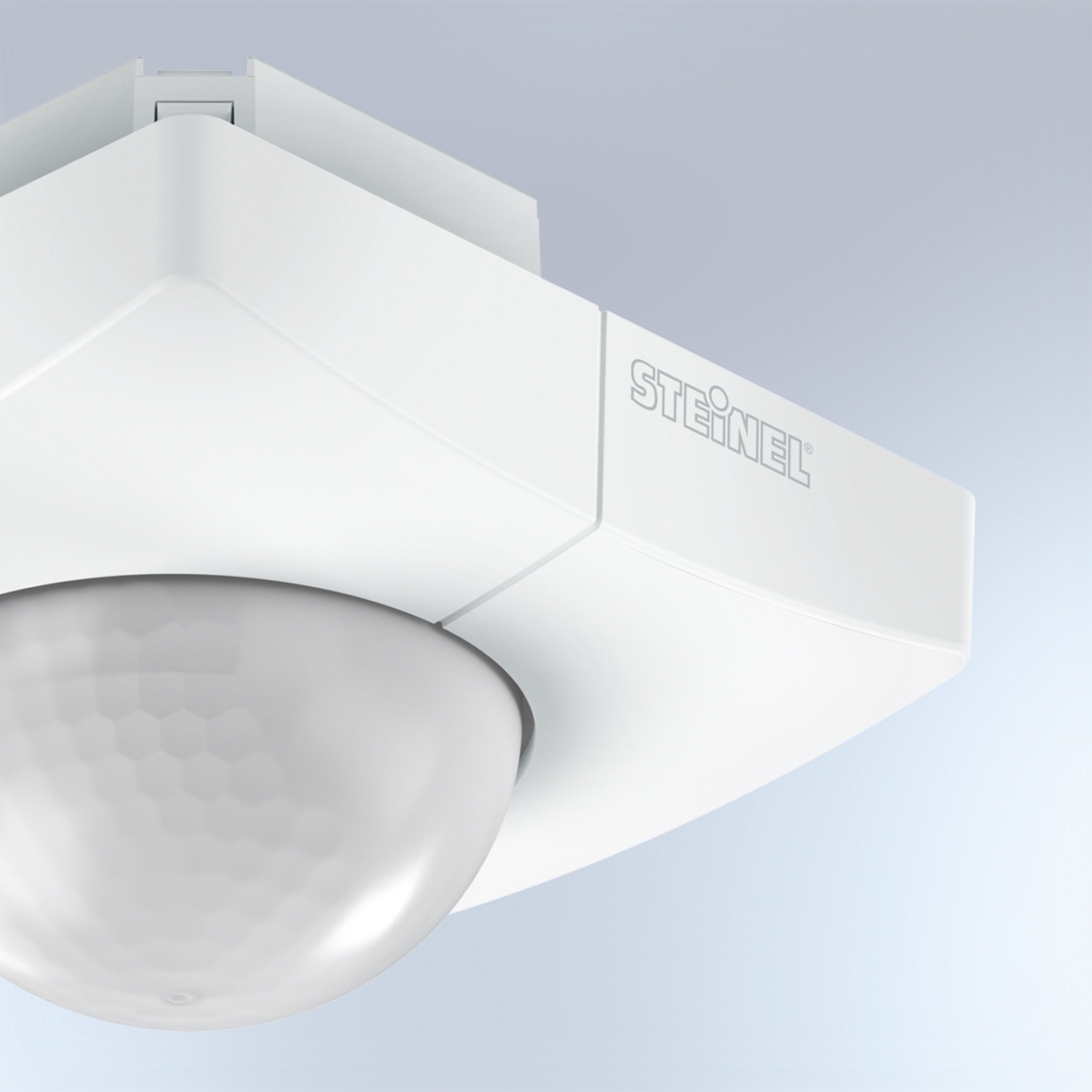

UV-resistant plastic

Optional remote controls

Smart Remote remote control optional

Technical drawing

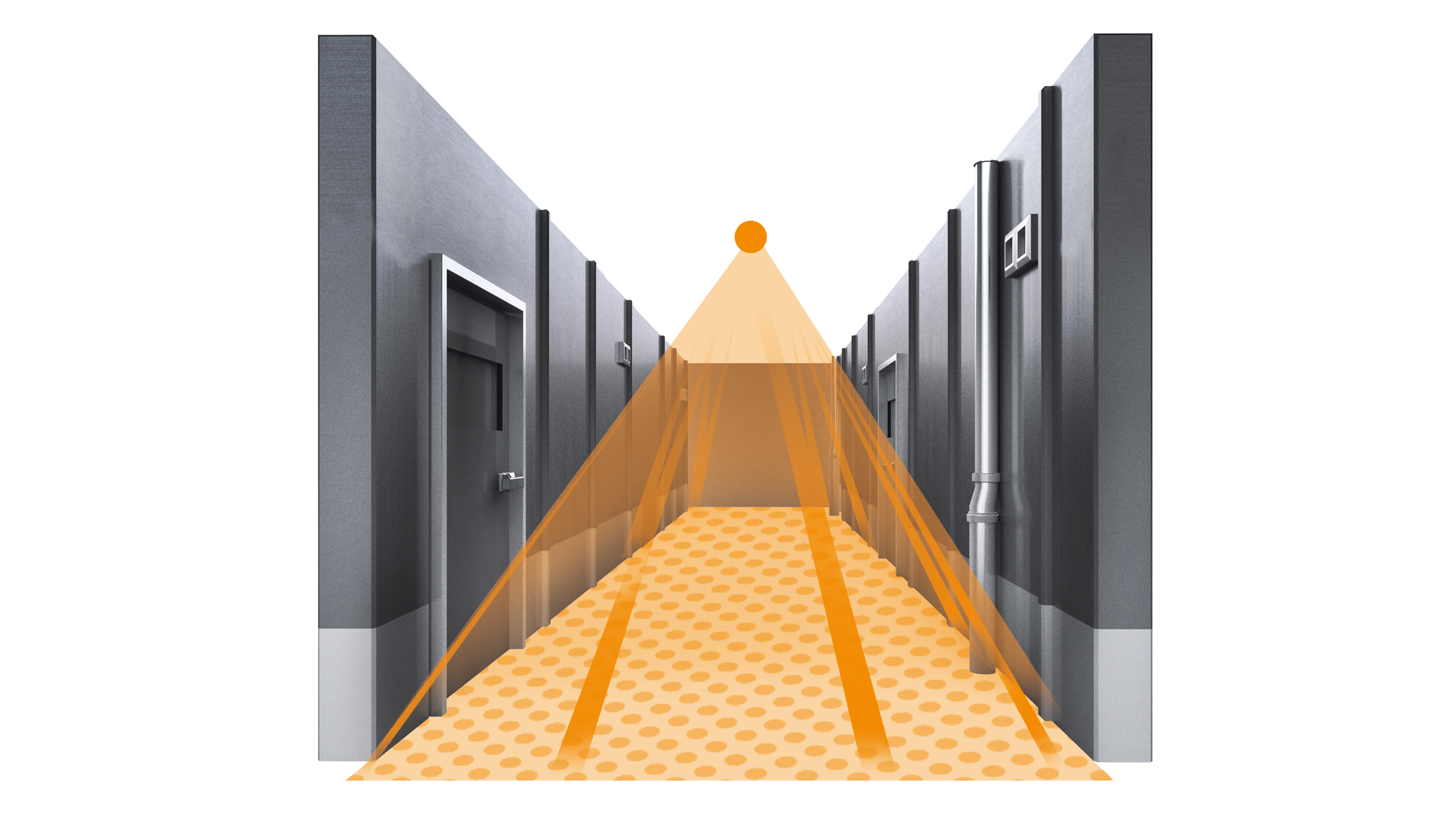

Sensor detection range
