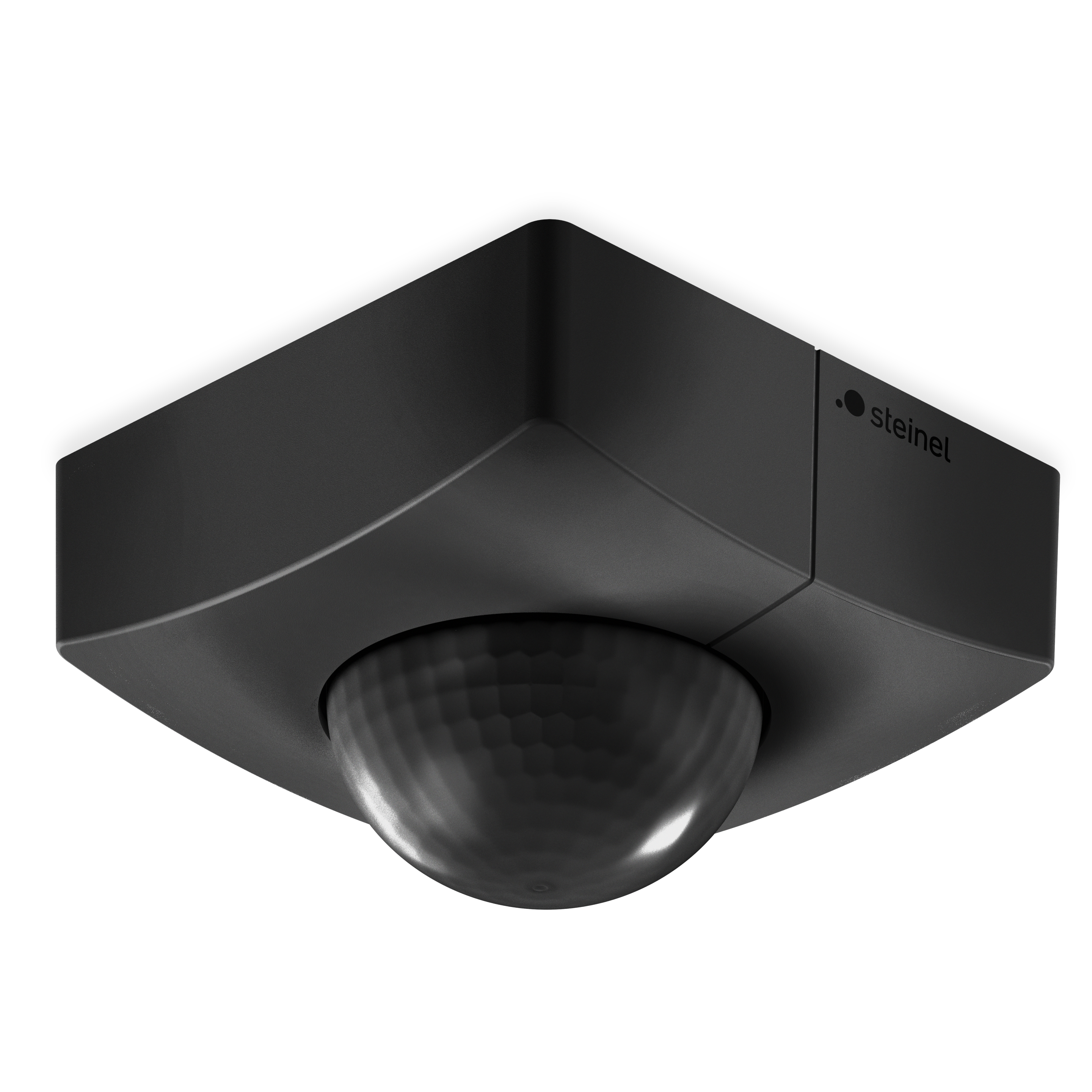

Steinel IS 345 KNX - surface, sq. black

ELDAS® no. 535 918 130

EAN-No. 4007841 084134

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device COM1 PF (Potential Free)

Mounting type

Flush-mounted Surface-mounted

Mounting height

Mounting height 2.5 to 4 metres Mounting height 4 to 14 metres

Shape

Angular Round

Corridors and long hallways have special requirements for the performance of sensors. The detection field of the sensor must be narrow but long. This is the only way to cover long sections with as few sensors as possible. The IS 345 is the tried and tested specialist for such applications in indoor areas. It has a special aisle detection and an opening angle of 45°. This allows it to monitor up to 23 x 6 metres tangentially.

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 45 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 12 x 6 m (72 m²)

Tangential range 23 x 6 m (138 m²)

Switching zones 280 switching zones

Mounting height 2,50 – 5,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 2x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Main light adjustable 0 - 100 %

Settings via ETS software Remote control Bus Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Protection class II

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room Indoors corridor / aisle multi-storey / underground car park outdoors

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

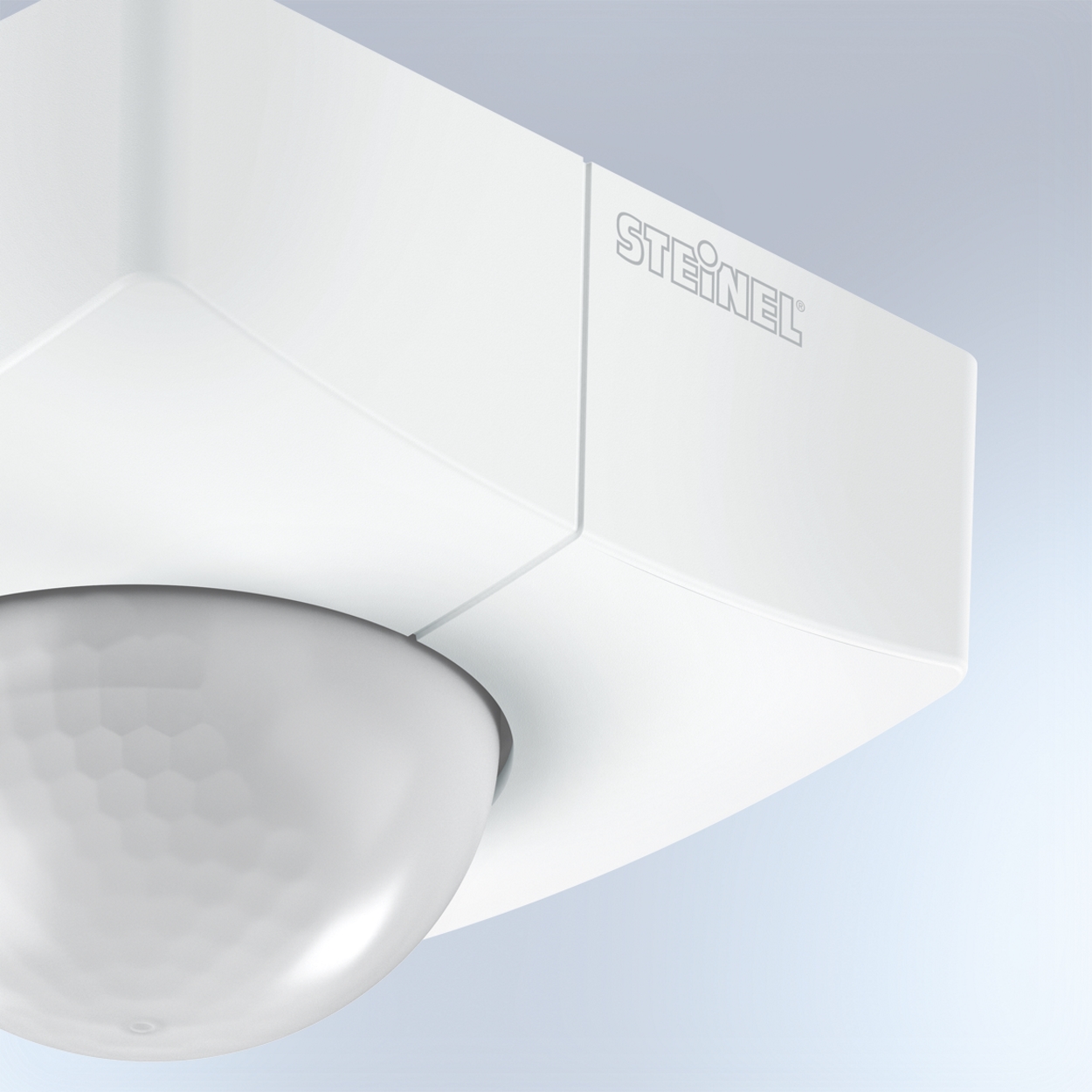

UV-resistant plastic

Large terminal compartment

Optional remote controls

Smart Remote remote control optional

Technical drawing

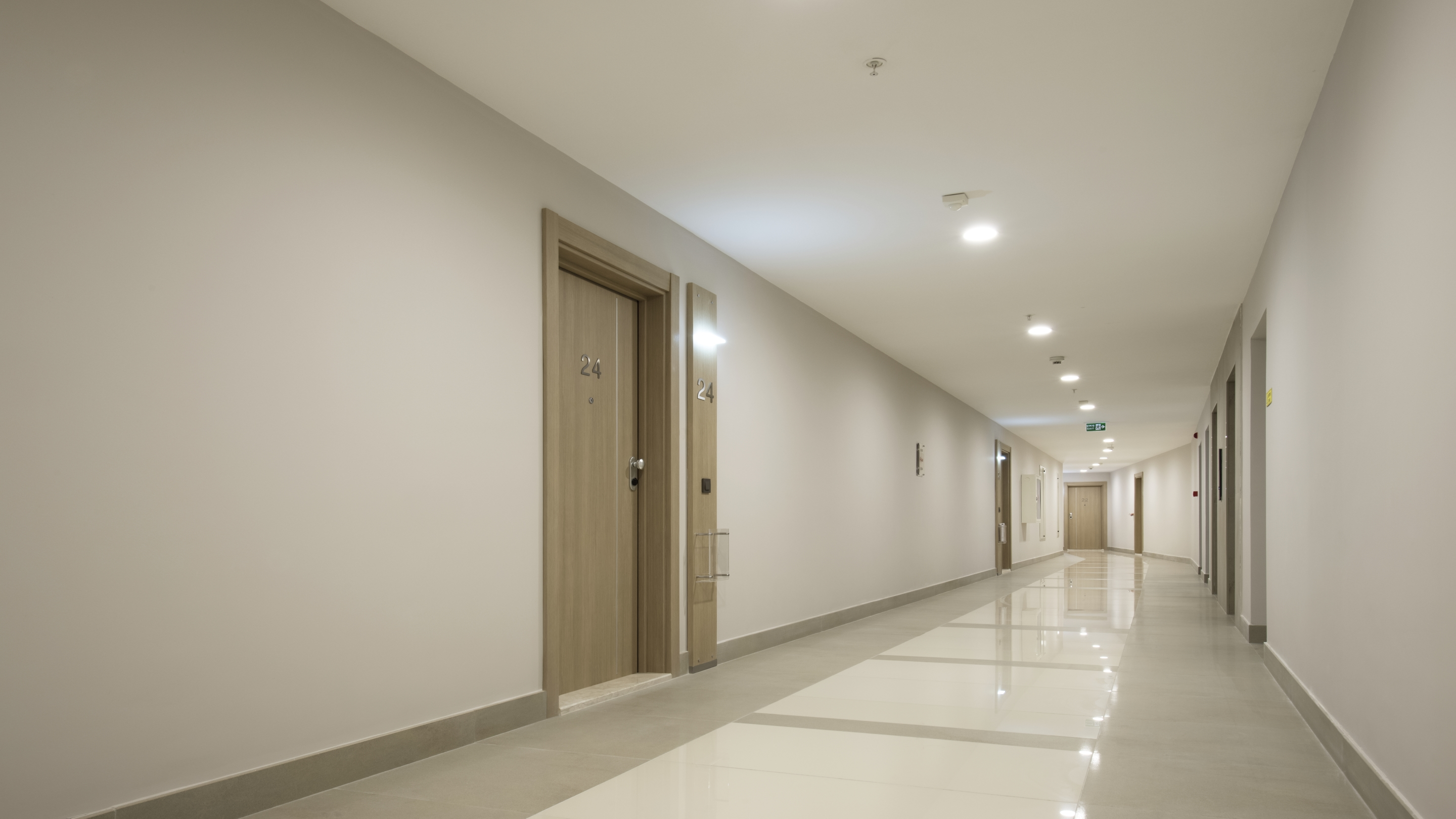

Sensor detection range

Data sheet User manual Declaration of conformity Product brochure
