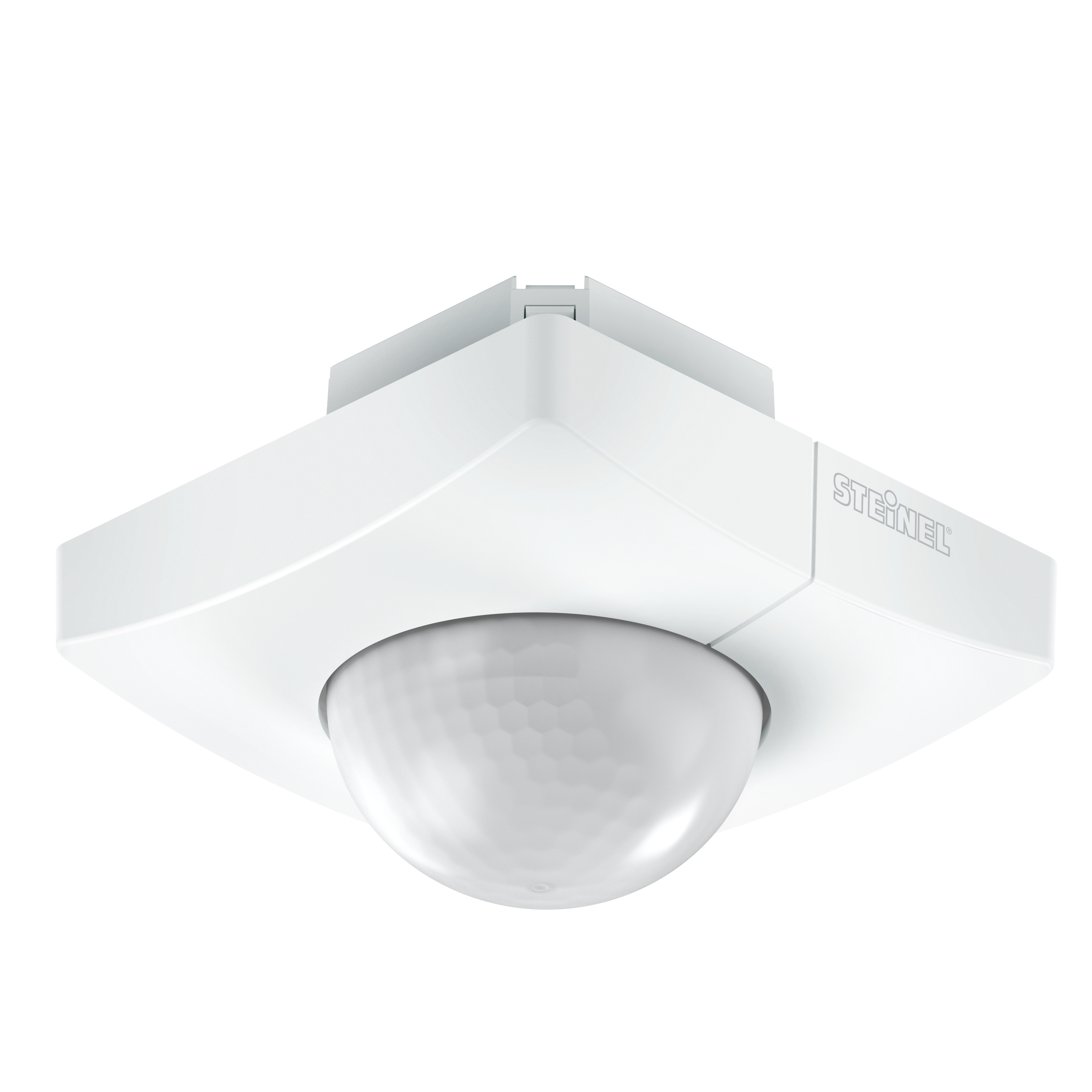

Steinel IS 345 KNX - in-ceiling installation, sq. white

ELDAS® no. 535 918 140

EAN-No. 4007841 079680

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device COM1 PF (Potential Free)

Mounting type

Flush-mounted Surface-mounted

Mounting height

Mounting height 2.5 to 4 metres Mounting height 4 to 14 metres

Shape

Angular Round

Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 121 x 94 x 94 mm

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 45 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 12 x 6 m (72 m²)

Tangential range 23 x 6 m (138 m²)

Mounting height 2,50 – 5,00 m

Optimal mounting height 2,5 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 2x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Time setting 0 s – 1092 Min.

Base light function Yes

Main light adjustable 0 - 100 %

Settings via ETS software Remote control Bus Smart Remote

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room Indoors corridor / aisle multi-storey / underground car park

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

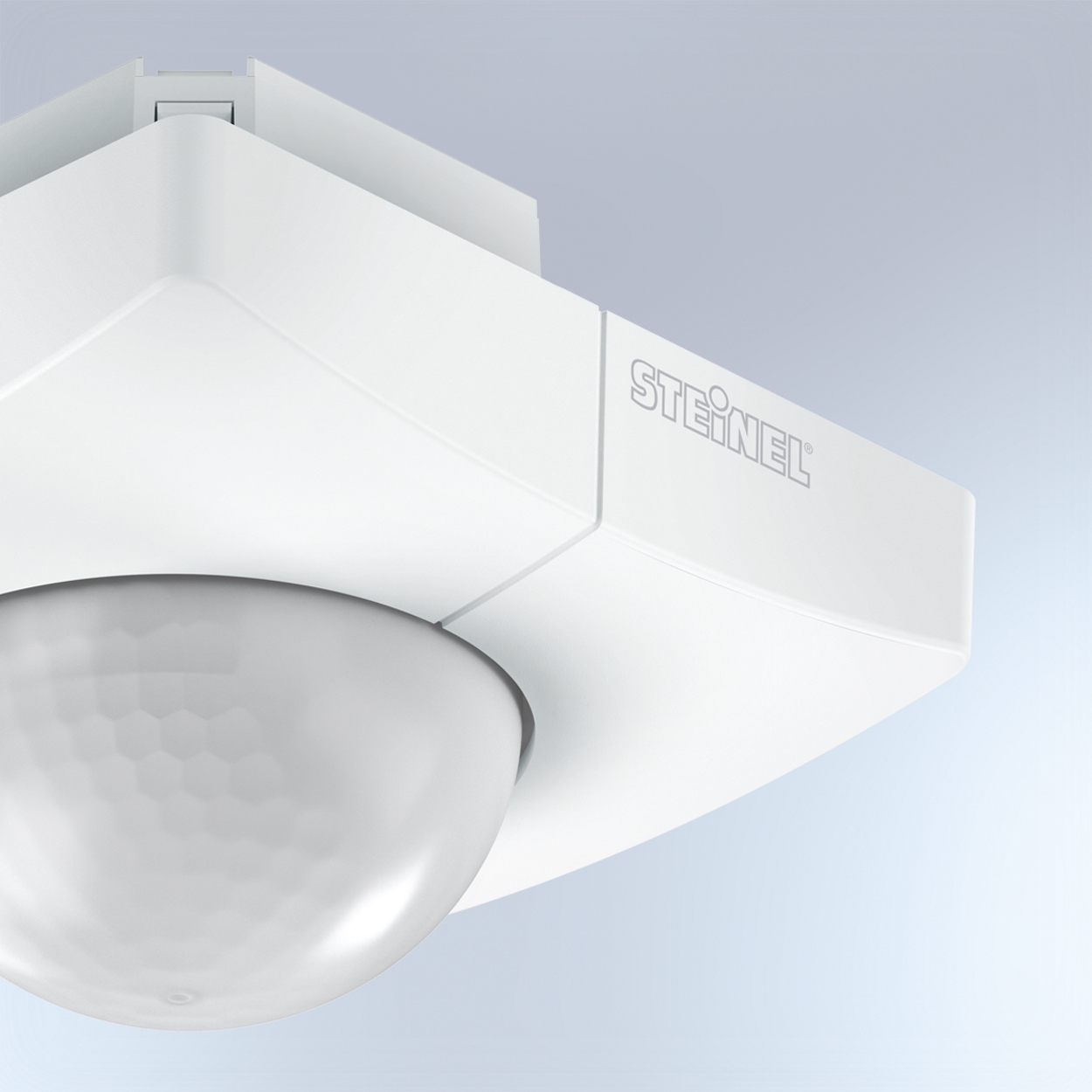

UV-resistant plastic

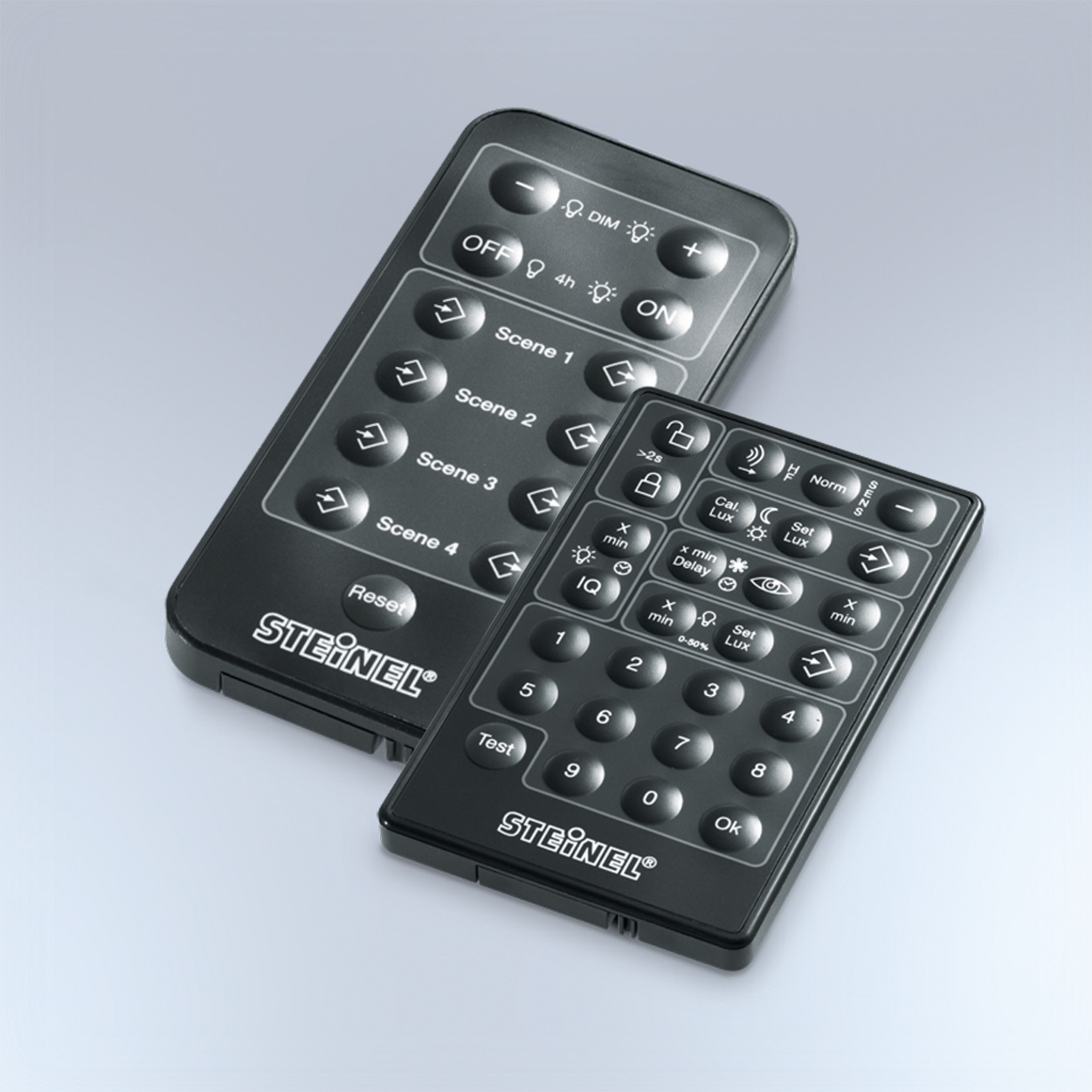

Optional remote controls

Smart Remote remote control optional

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity Product brochure

Remote control Smart Remote

Item no. 009151

Service remote control RC6 KNX

Item no. 4007841593018

User remote control RC7 KNX

Item no. 592912

Black cover for IR-sensors concealed, sq.

Item no. 056728
