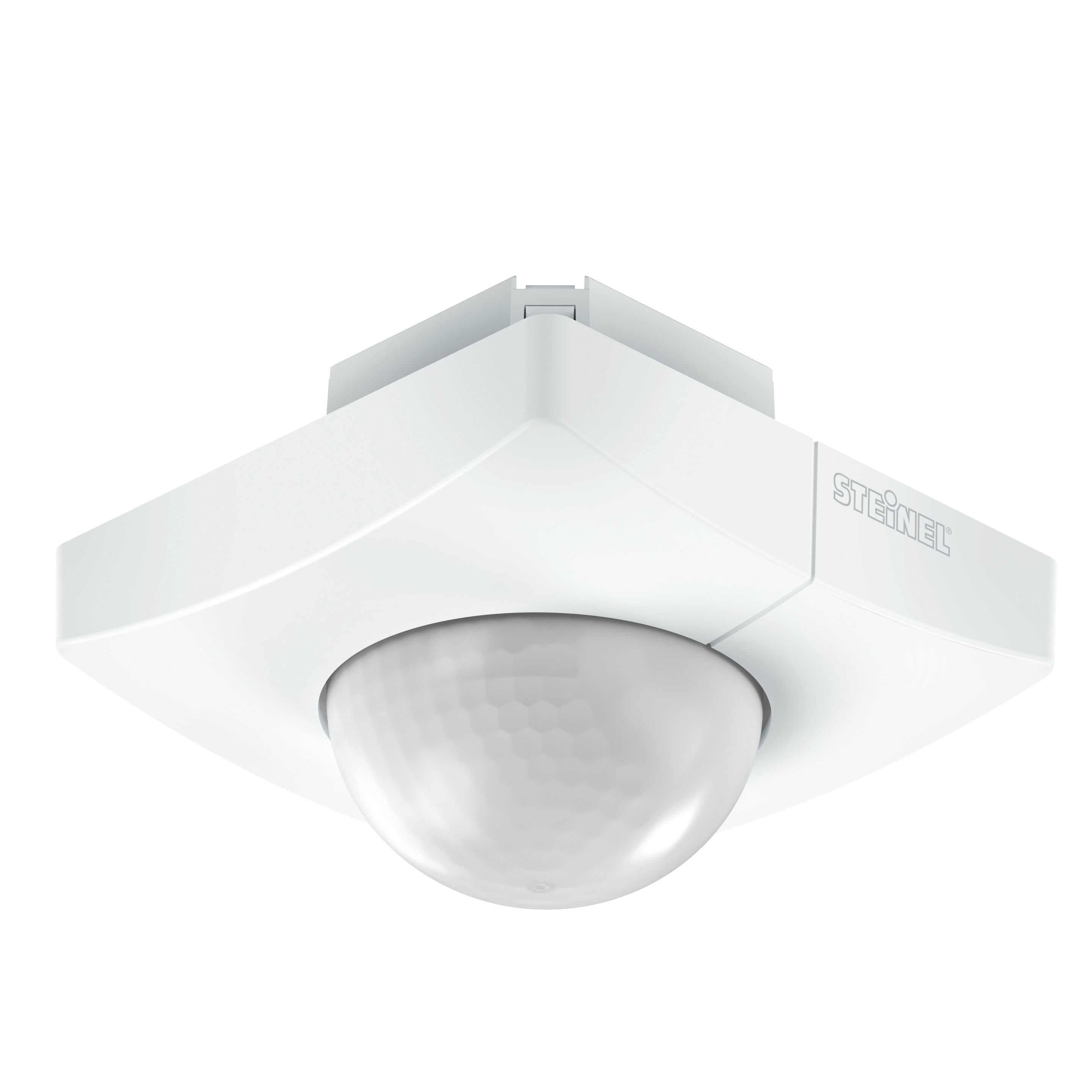

Steinel IS 345 PF - concealed, sq.

Motion detector for aisles, car parks and halls. Long, narrow detection, splash-proof.

ELDAS® no. 535 941 265

EAN-No. 4007841 033835

Price: Please log in to see prices

Mounting type

Concealed mounting Surface mounting

Variant

230V, 1 channel DALI-2 Application Controller DALI-2 Input Device KNX PF (Potential Free)

Max. mounting height

5,00 m

Colour

White

Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.

Identification

Version Motion detectors

Variants

Version PF (Potential Free)

Colour White

Mounting type Flush-mounted

Mounting height Mounting height 2.5 to 4 metres

Dimensions

Dimensions L × W × H 78 x 94 x 94 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Sensor technology

Sensor technology passive infrared

Detection angle 360 °, Corridor

Opening angle 45 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 12 x 6 m (72 m²)

Tangential range 23 x 6 m (138 m²)

Switching zones 280 switching zones

Mounting height 2,5 – 5,0 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Manual ON / ON-OFF

Settings via Remote control, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, corridor / aisle, multi-storey / underground car park

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

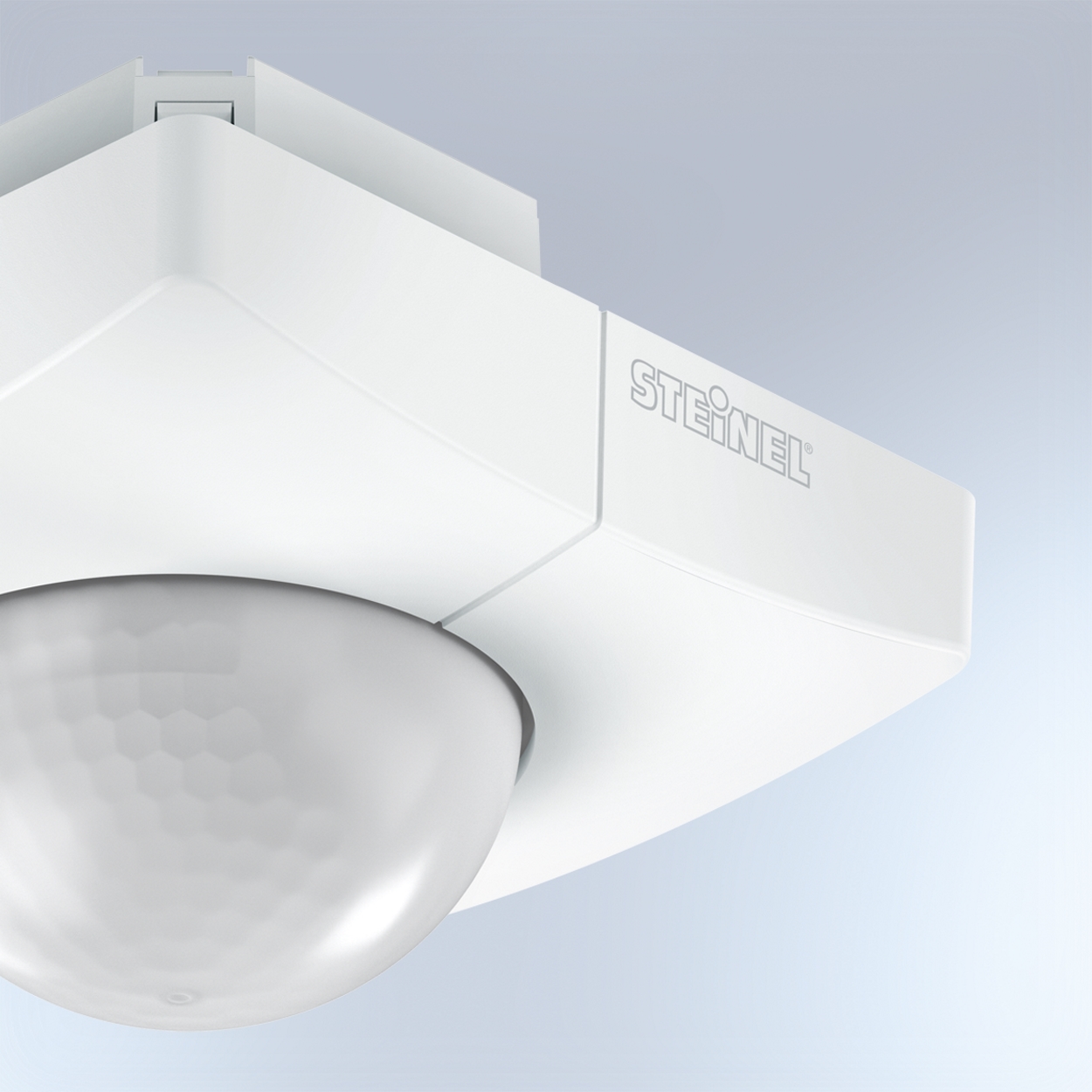

UV-resistant plastic
