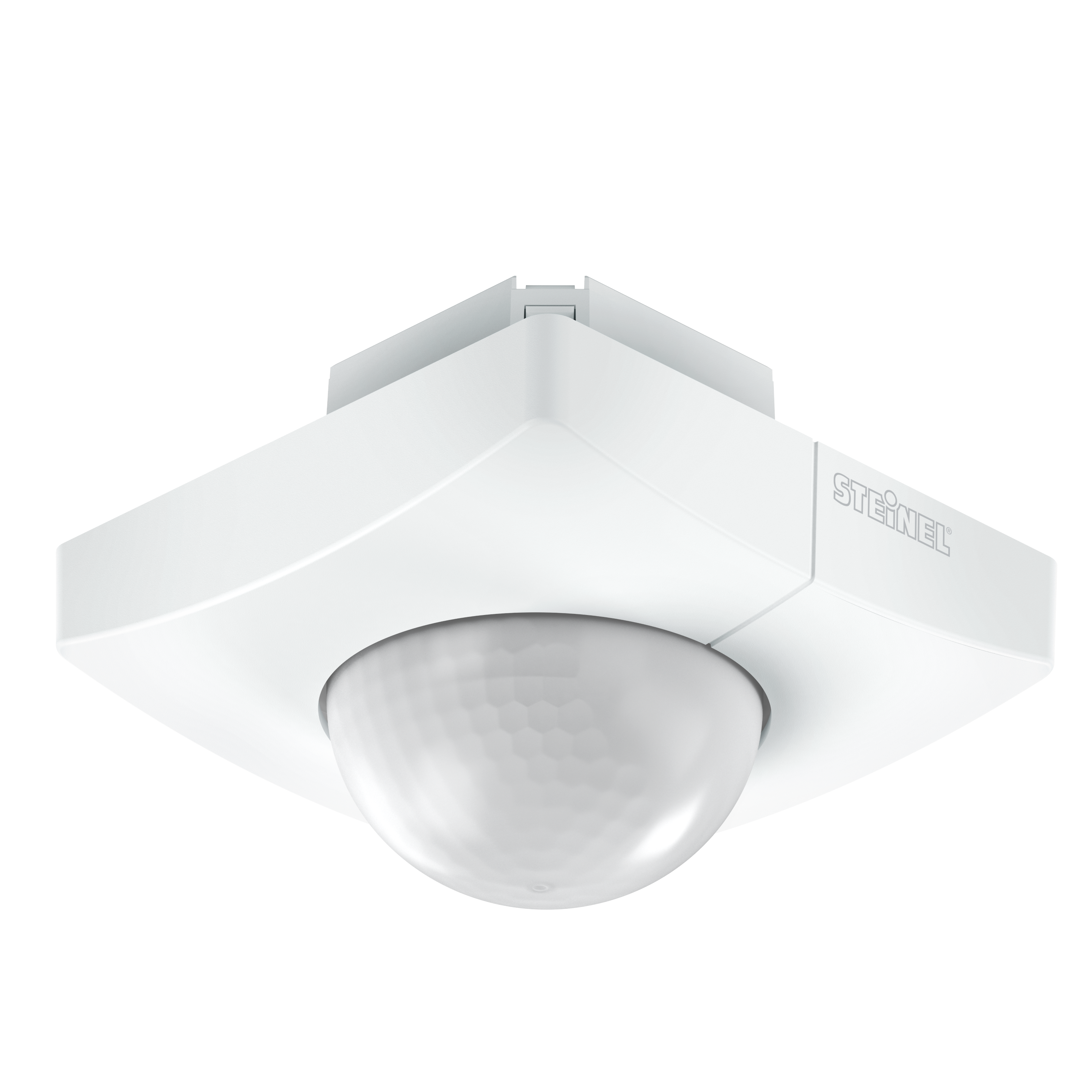

Steinel IS 345 DALI-2 Input Device - concealed, sq.

Motion detector for aisles, car parks and halls. Long, narrow detection, splash-proof.

ELDAS® no. 535 941 105

EAN-No. 4007841 057282

Price: Please log in to see prices

Mounting type

Concealed mounting Surface mounting

Variant

230V, 1 channel DALI-2 Application Controller DALI-2 Input Device KNX PF (Potential Free)

Max. mounting height

5,00 m

Colour

White

Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.

Identification

Version Motion detectors

Variants

Version DALI-2 Input Device

Colour White

Mounting type Flush-mounted

Mounting height Mounting height 2.5 to 4 metres

Dimensions

Dimensions L × W × H 78 x 94 x 94 mm

Electrical

Mains connection 12 – 22,5 V

Supply voltage detail DALI bus

Control output DALI Addressable / slave

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °, Corridor

Opening angle 45 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 12 x 6 m (72 m²)

Tangential range 23 x 6 m (138 m²)

Switching zones 280 switching zones

Mounting height 2,5 – 5,0 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

Number of DALI participants 3

With bus coupler Yes

Networking via DALI 2

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Base light function time 1-30 min, all night

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, corridor / aisle, multi-storey / underground car park

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

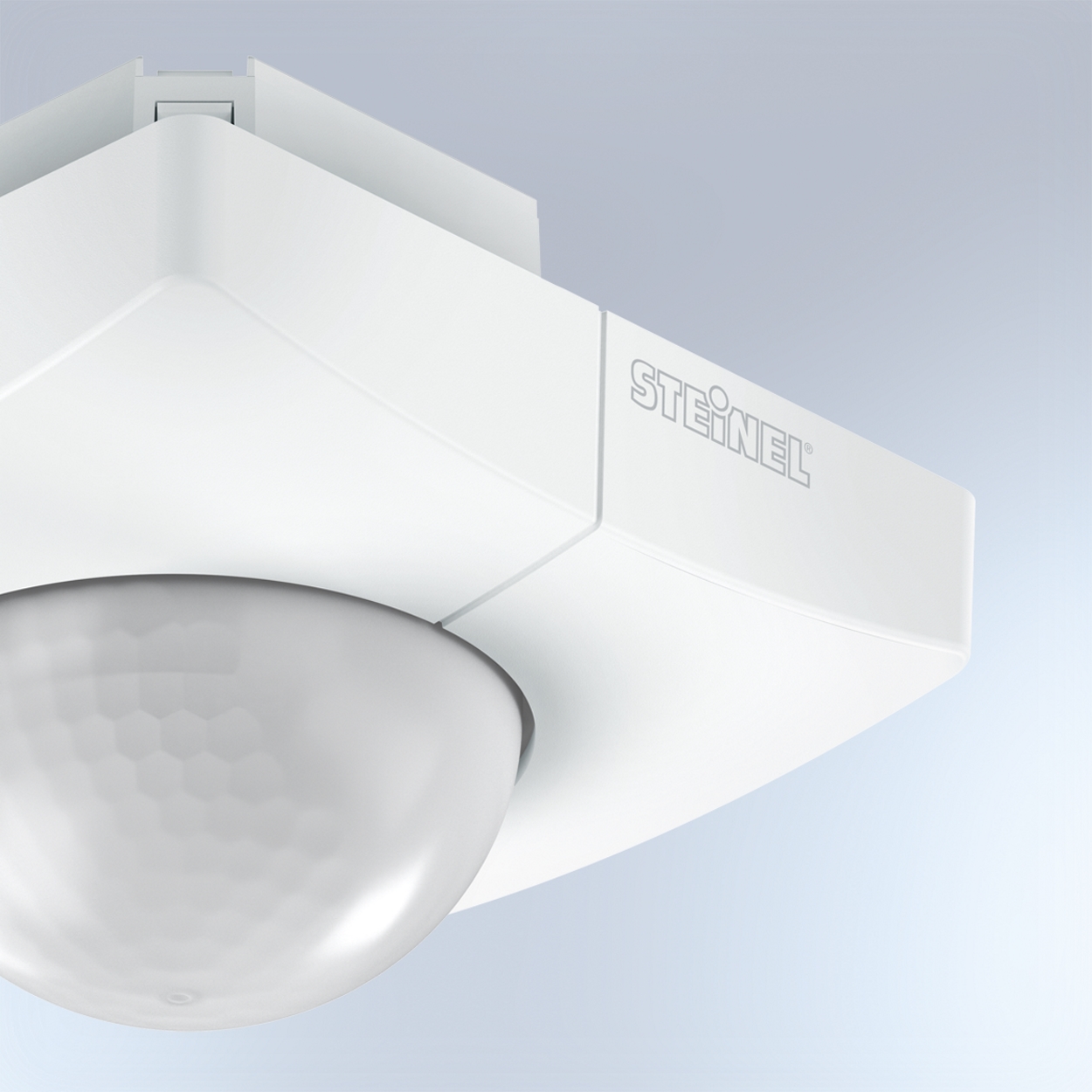

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151

Black cover for IR-sensors concealed, sq.

Item no. 056728
