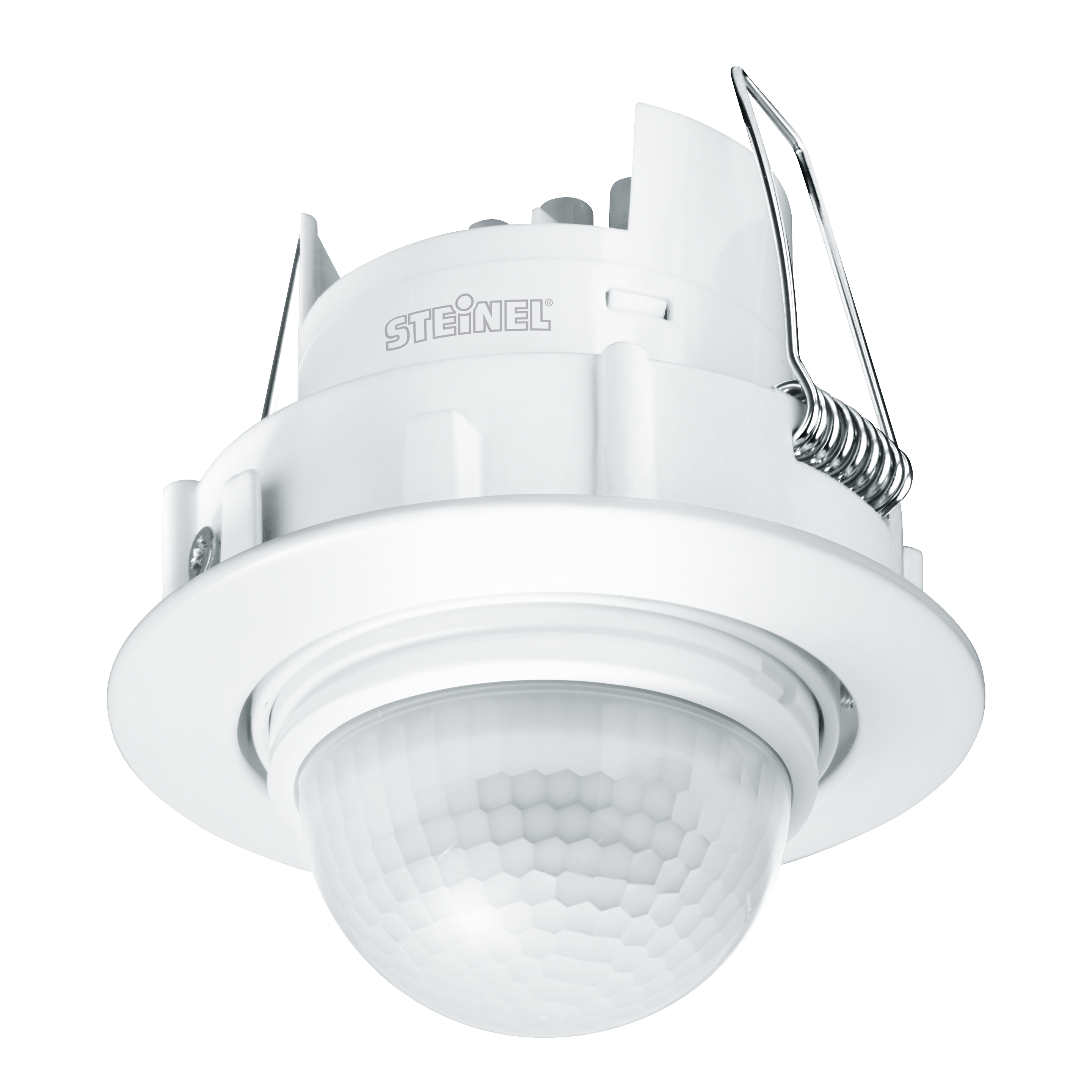

Steinel IS D360 white

ELDAS® no. 535 997 300

EAN-No. 4007841 601317

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Control spotlights in suspended ceilings the more or less invisible way. The IS D360 fits in any standard spotlight surround. This is why at first glance it also looks like a normal lamp (e.g. GU10). The multi-lens only becomes apparent after taking a closer look. Cleverly integrated sensor technology from STEINEL.

Identification

Version Motion detectors

Dimensions

Dimensions Ø × H 83 x 82 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 1000 W

Switching output 1 resistive 1000 W

Fluorescent lamps ECG 750 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 900 VA

Switching output 1 low-voltage halogen lamps 1000 VA

LED lamps < 2 W 16 W

LED lamps > 2 W < 8 W 64 W

LED lamps > 8 W 64 W

Capacitive load in µF 88 µF

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 16 m (201 m²)

Detection planes 10

Switching zones 720 switching zones

Mounting height 2,5 – 4,0 m

Optimal mounting height 2,5 m

Connectivity

Networking Yes

Type of networking Master/Master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 20 min

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Mounting type Recessed ceiling

Material Plastic

Application room Indoors, WC / washroom, corridor / aisle, function room / ancillary room

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

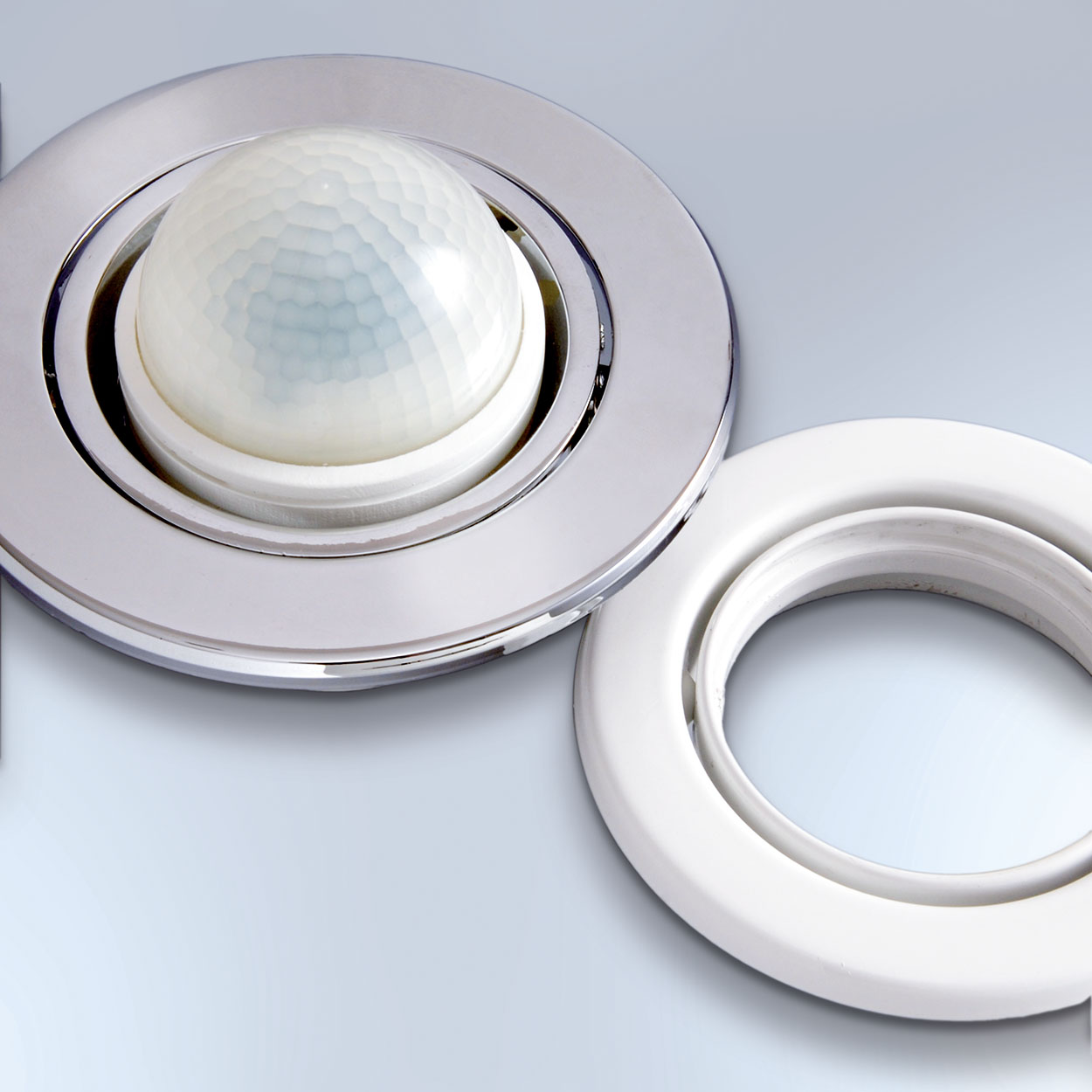

Any surround can be used. Installation dimensions: outer diameter = Ø 73 mm, installation depth = 53 mm

Technical drawing

Sensor detection areas

Wiring diagram 1

Master circuit diagram 230V

Wiring diagram 2

Master circuit diagram PF
