Steinel L 40 C without motion detector, with Bluetooth

Steinel L 40 C without motion detector, with Bluetooth

ELDAS® no. 941 012 879 · EAN-No. 4007841 085230

Technical data Highlights Illustrations Wiring diagrams Downloads Videos Accessories
Steinel Bluetooth Mesh

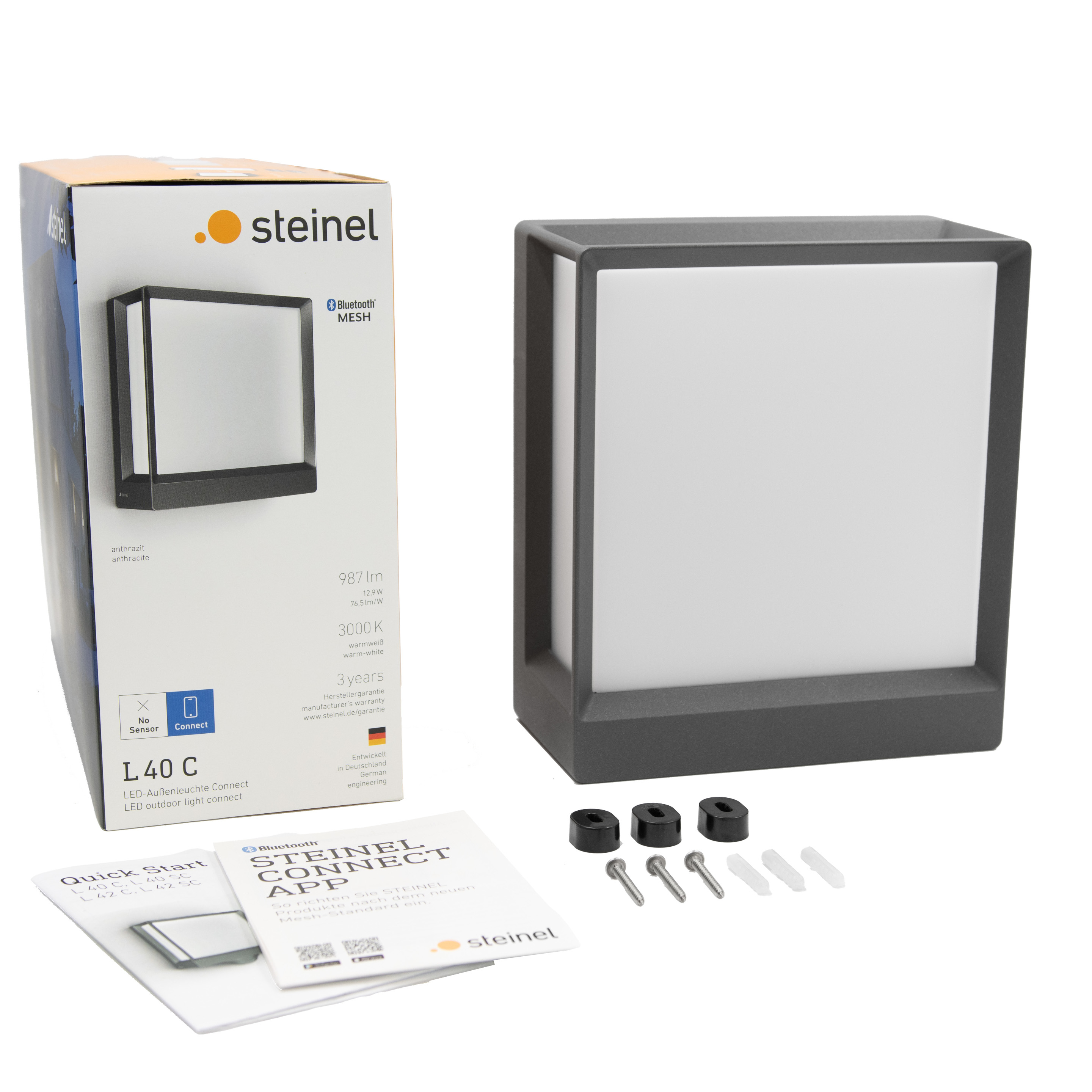

Steinel L 40 C without motion detector, with Bluetooth

Square outdoor light for entrances and terraces. Aluminium housing, Bluetooth Mesh.

ELDAS® no. 941 012 879

EAN-No. 4007841 085230

Price: Please log in to see prices

With motion detector

No

Dimensions L × W × H

105 x 131 x 274 mm 105 x 201 x 229 mm

The LED L 40 C wall light features an aluminium housing that is both robust and visually appealing. With its square dimensions, this modern outdoor light makes a harmonious impression on any house type. Alongside an attractive housing concept, the light particularly stands out when it comes to its inner values. Once installed, the STEINEL LED system is highly durable and, with its warm white colour of 3000 K, will provide the most beautiful light around the house for many years. All settings such as dimming the light can be adjusted quickly and conveniently via the app. The app also makes it possible to network any number of other Bluetooth Mesh lights to control them simultaneously and to assign group functions. The high-quality outdoor light is also available as a Connect version with sensor using the product name L 40 SC – and can be easily networked via the new Connect Bluetooth Mesh standard. The lights are delivered in plastic-free packaging.

  • Outdoor light without motion detector, with high-quality, square aluminium housing
  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App
  • Functions: adjustable basic and main light (basic light only in combination with a Bluetooth sensor luminaire), scheduling function
  • Warm white light (3000 K) and long-life 12,9 W LEDs with 869 lm
  • Incl. mounting accessories - plastic-free packaging

Variants

Version Without sensor, with Bluetooth

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 12,9 W

Connectivity

Networking Yes
Type of networking Master/Slave, Master/Master
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 869 lm
Efficiency 67,4 lm/W
Colour temperature 3000 K
Colour rendering index 80 - 89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h
Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight switch Yes
Base light function Yes
Base light function detail only in combination with the SC version
Main light adjustable 5 - 100 %
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach Yes
Base light function in percent 10 – 100 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class I
Ambient temperature -20...+40 °C
Housing material Aluminium
Cover material Opal plastic
Mounting location Wall
Application location Outdoors
Mounting type Surface mounting
Material Aluminium
Application room all round the building, front door, outdoors, terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

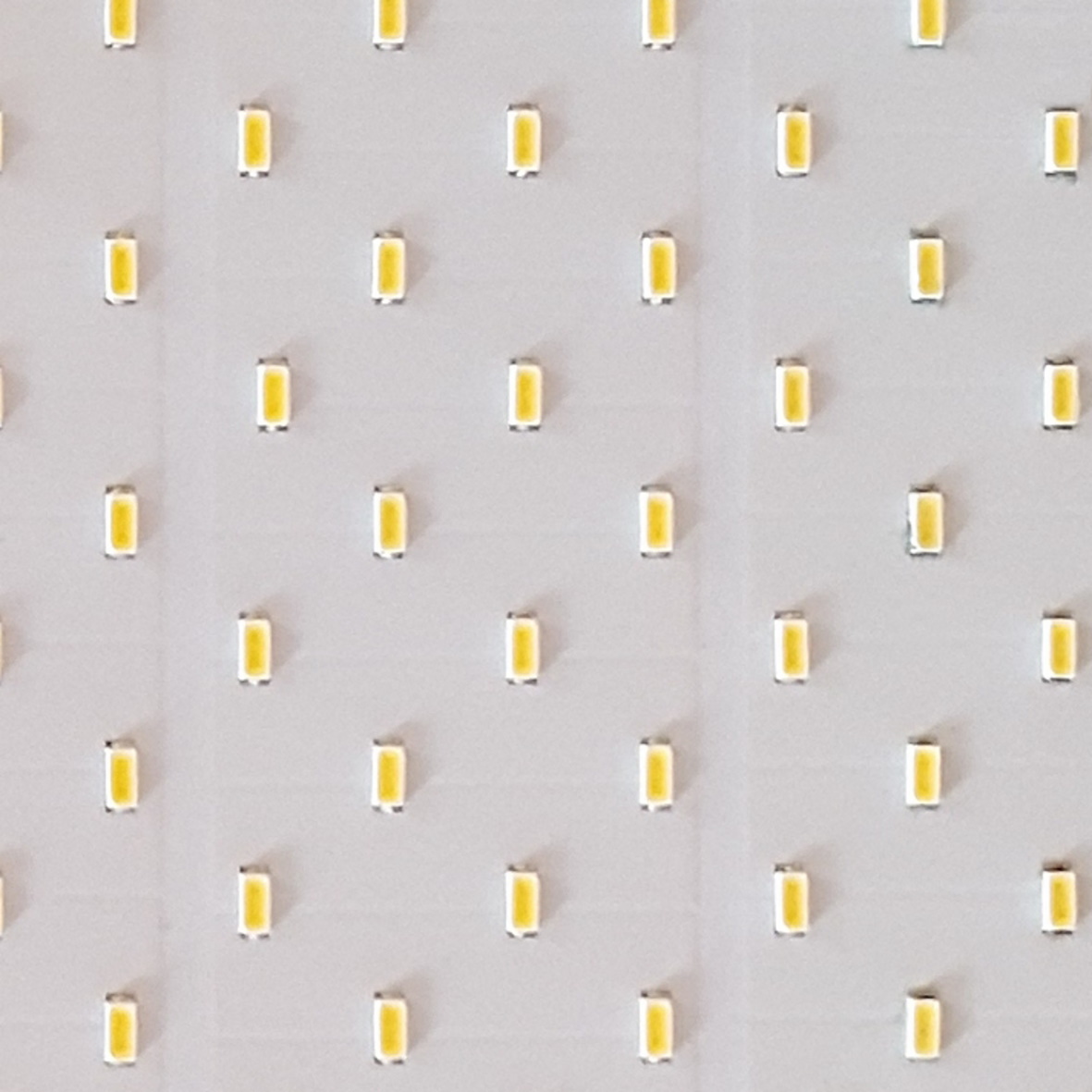

Including STEINEL LED system

Intelligent soft light start

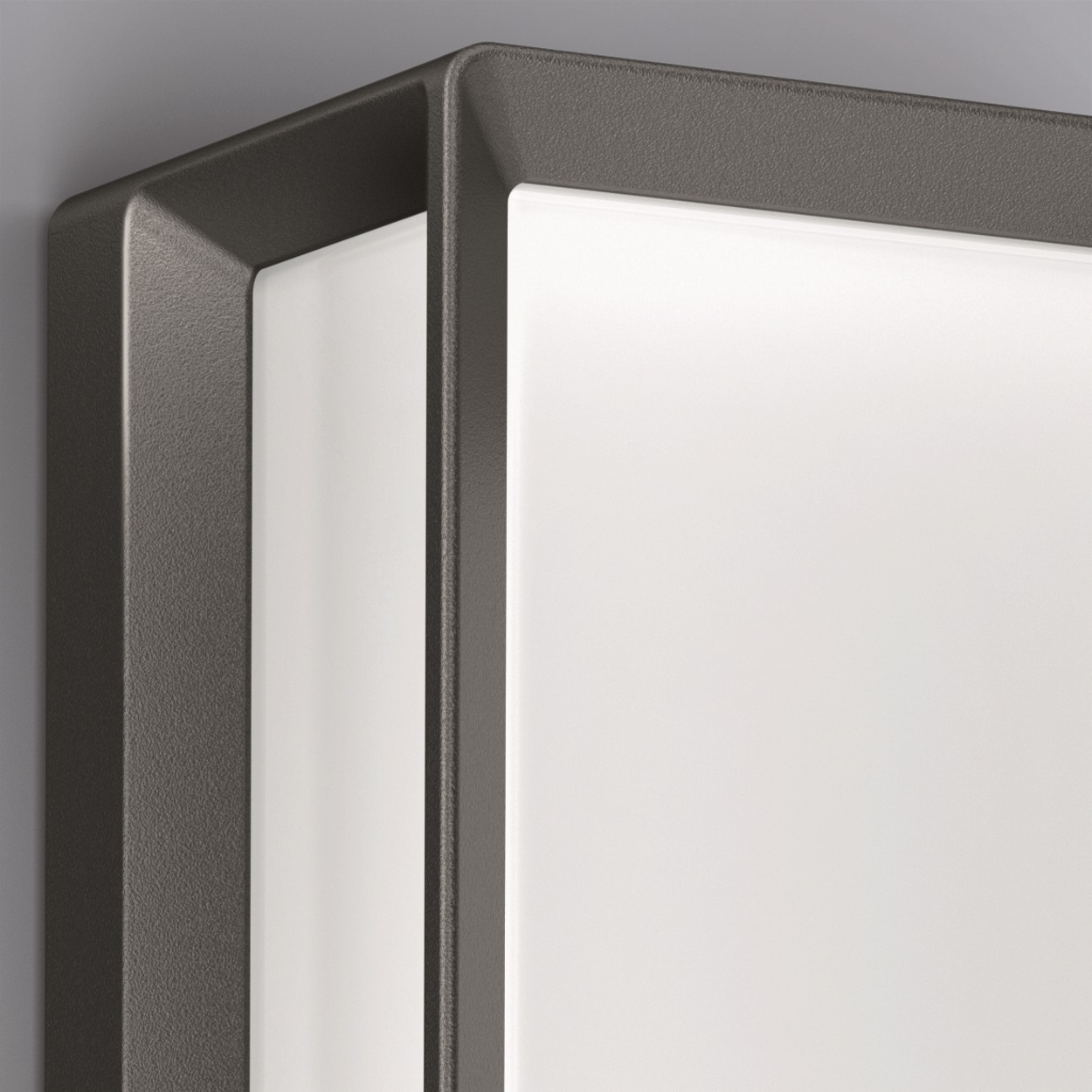

High-quality aluminium

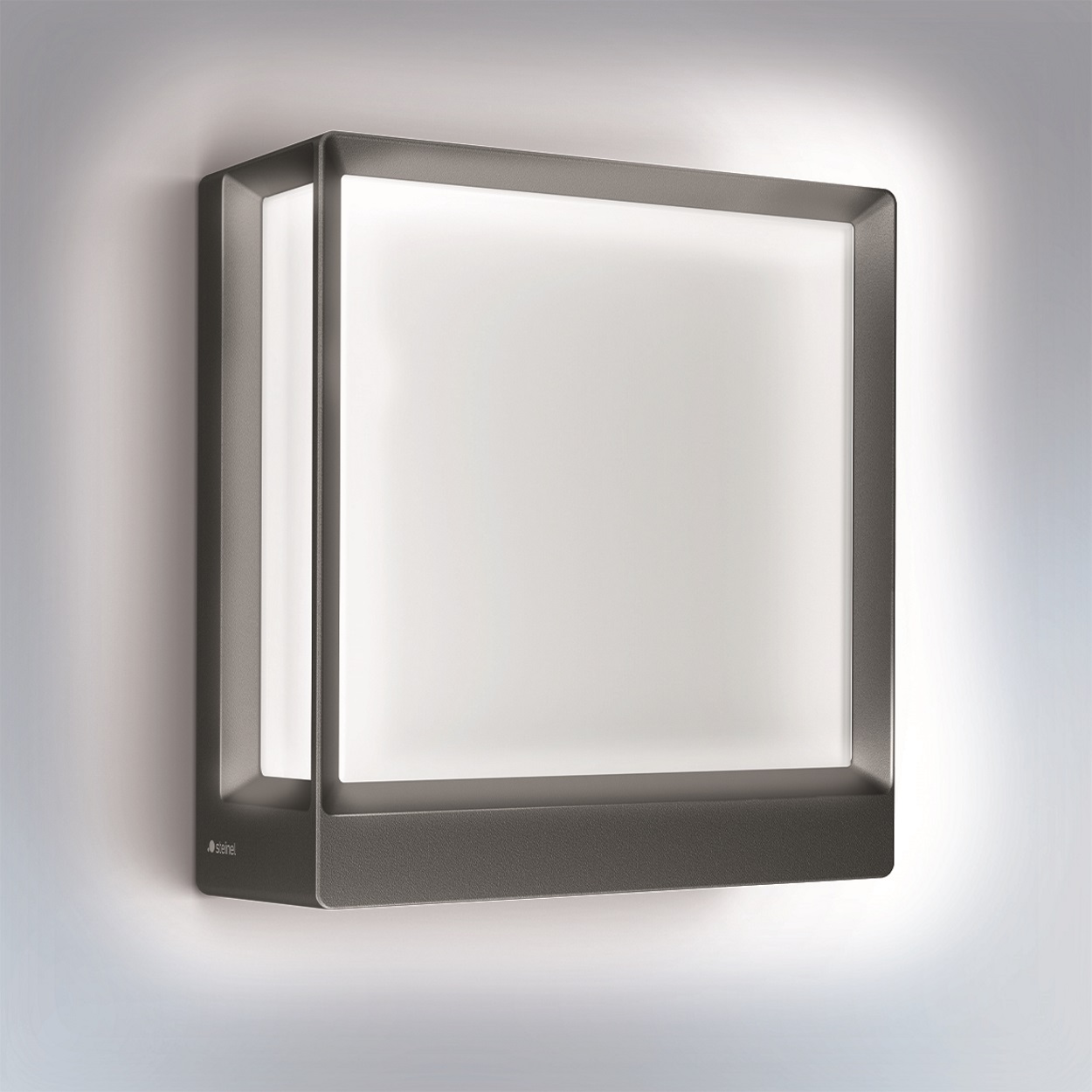

LED ambient light

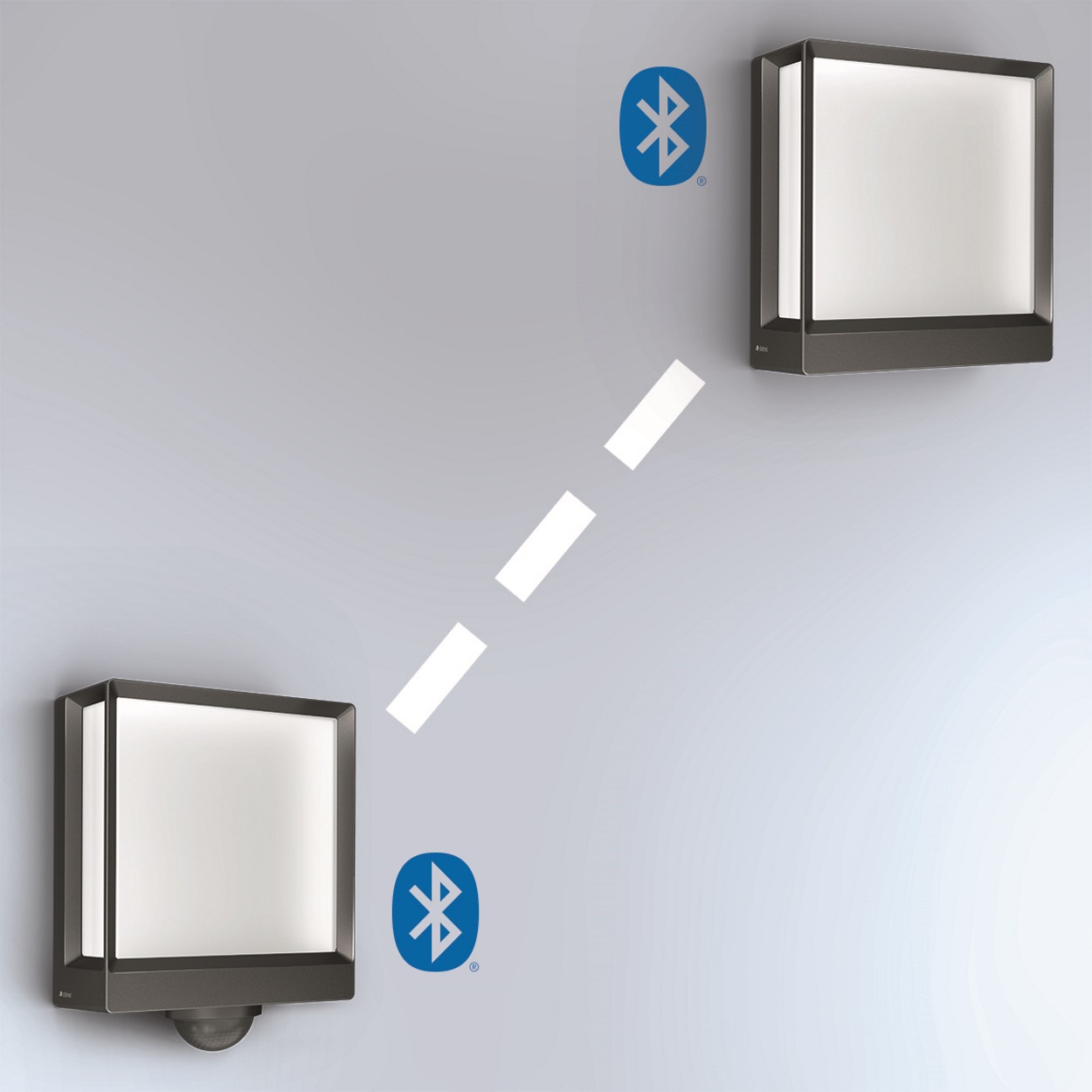

Interconnectable and adjustable via Bluetooth

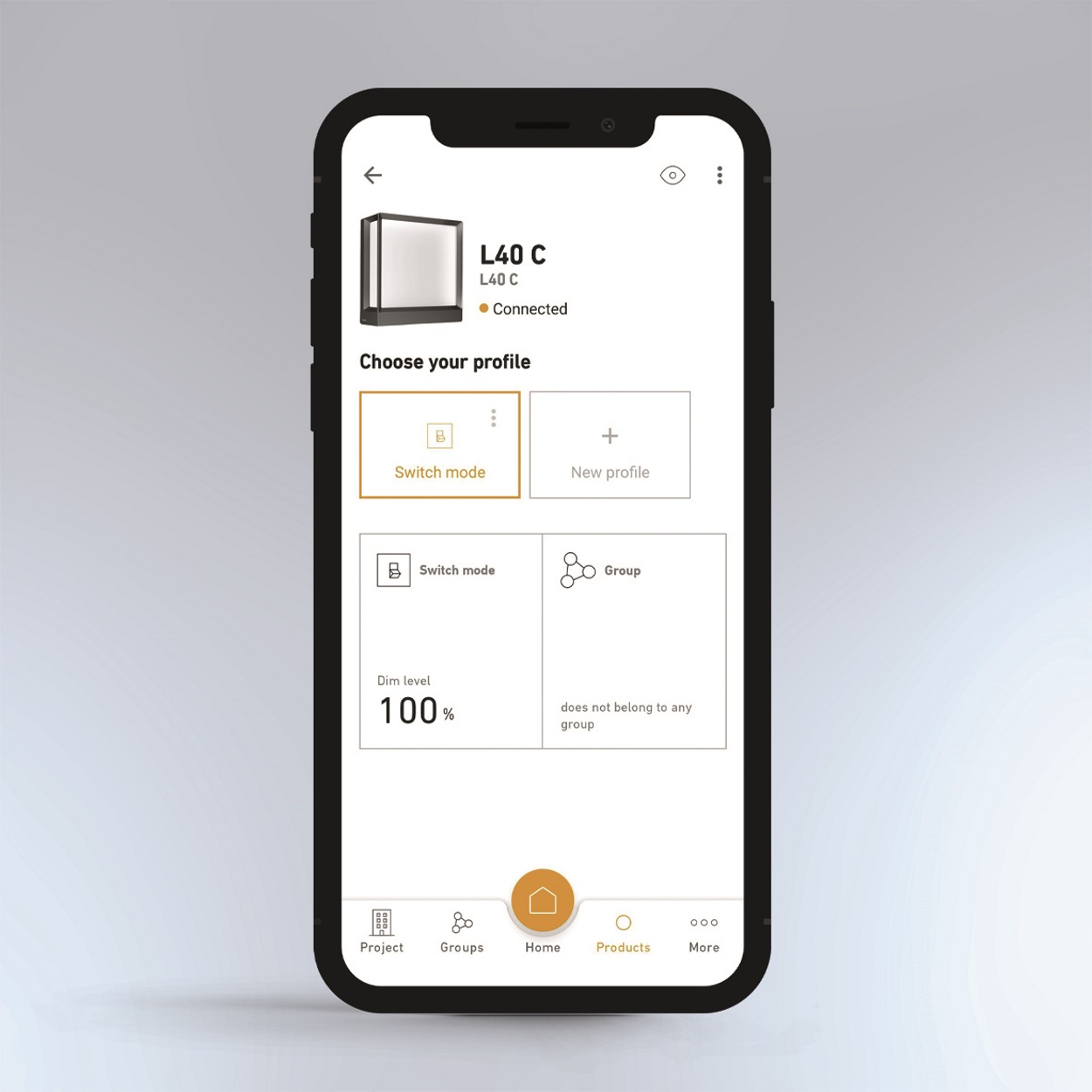

Operatable via app

Adjustable main light brighness (5 - 100%)

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth

Wireless pushbutton TapDuo C

Wireless pushbutton TapDuo C

Item no. 088620
