Steinel L 42 C without motion detector, with Bluetooth

Steinel L 42 C without motion detector, with Bluetooth

ELDAS® no. 941 012 829 · EAN-No. 4007841 085254

Technical data Highlights Illustrations Wiring diagrams Downloads Videos Accessories
Steinel Bluetooth Mesh

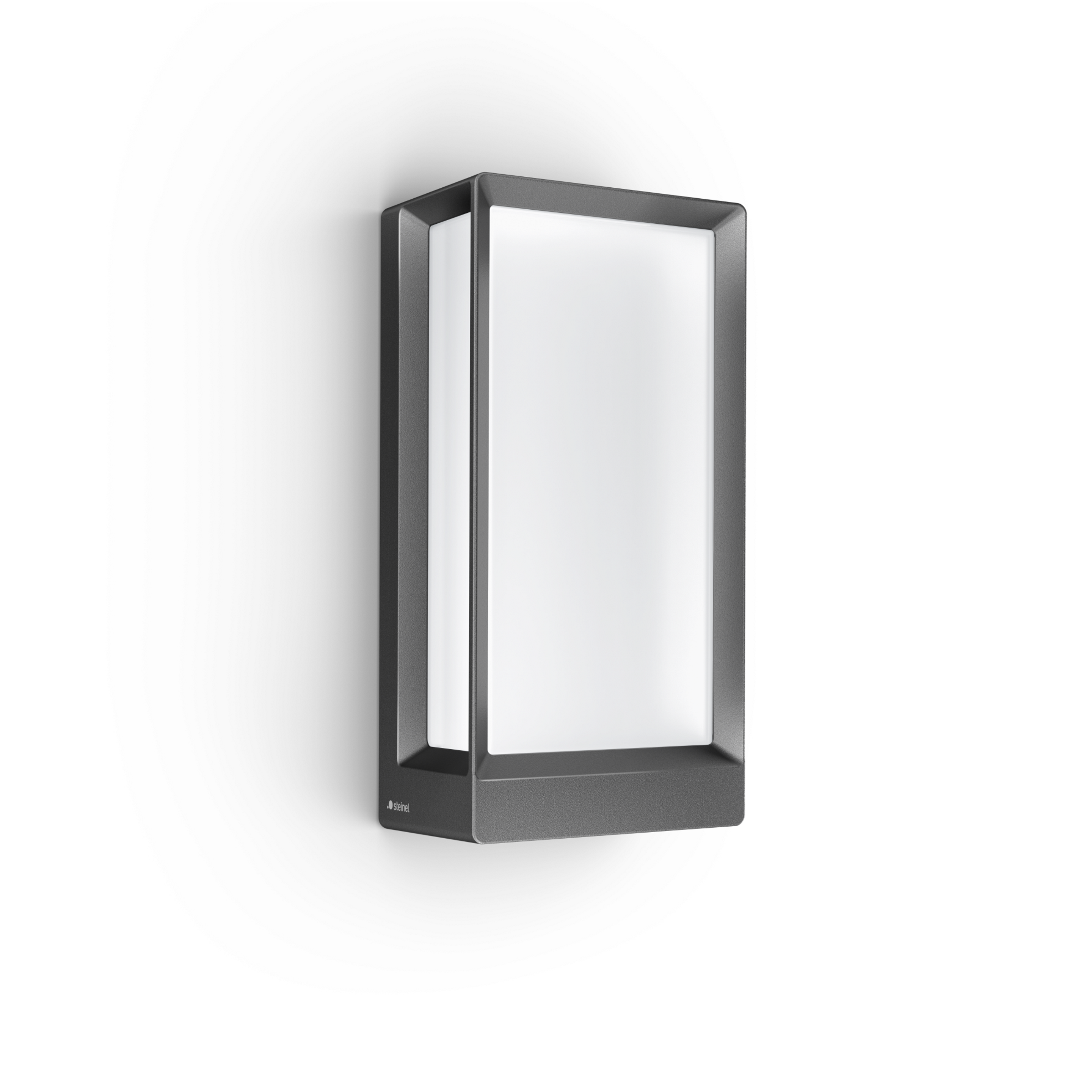

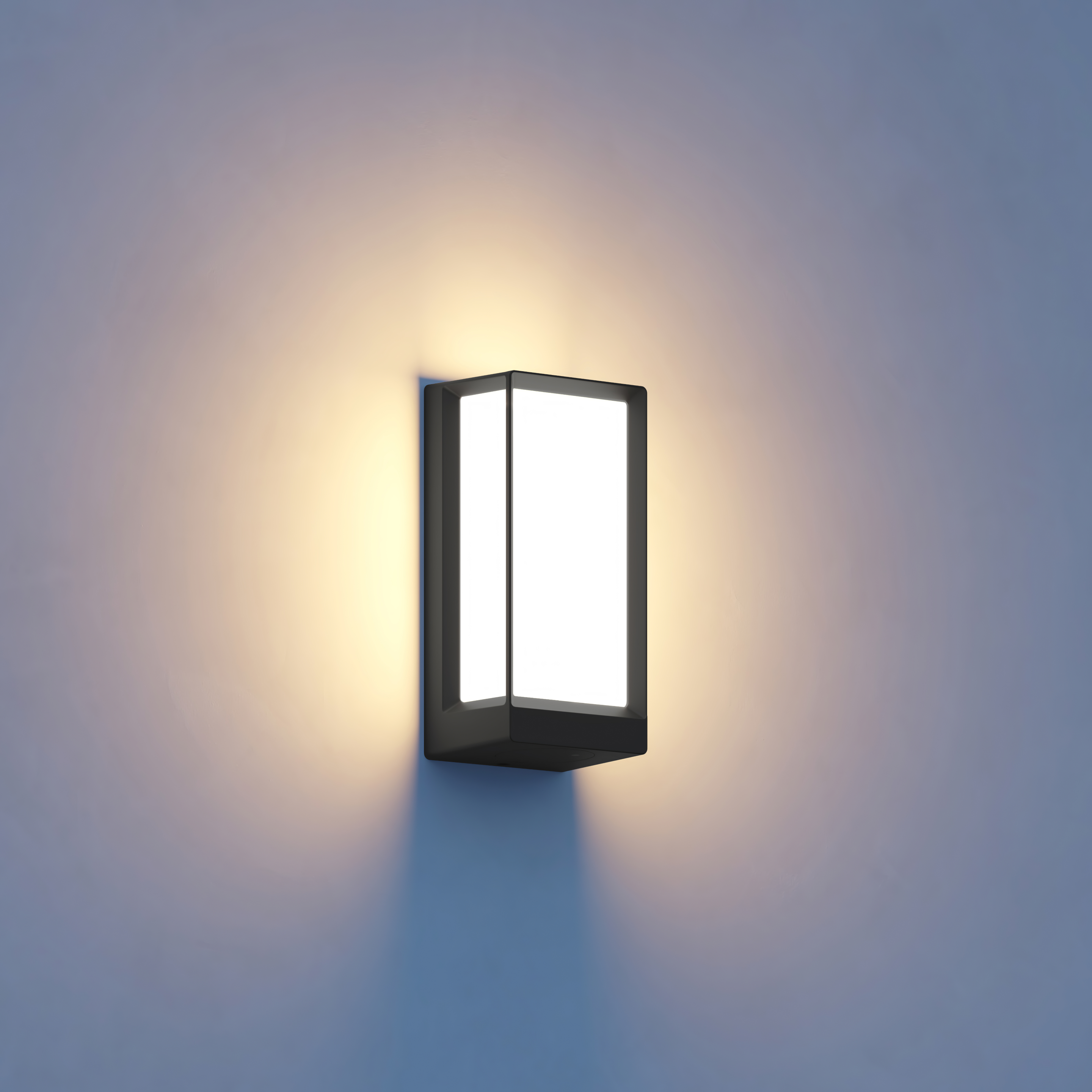

Steinel L 42 C without motion detector, with Bluetooth

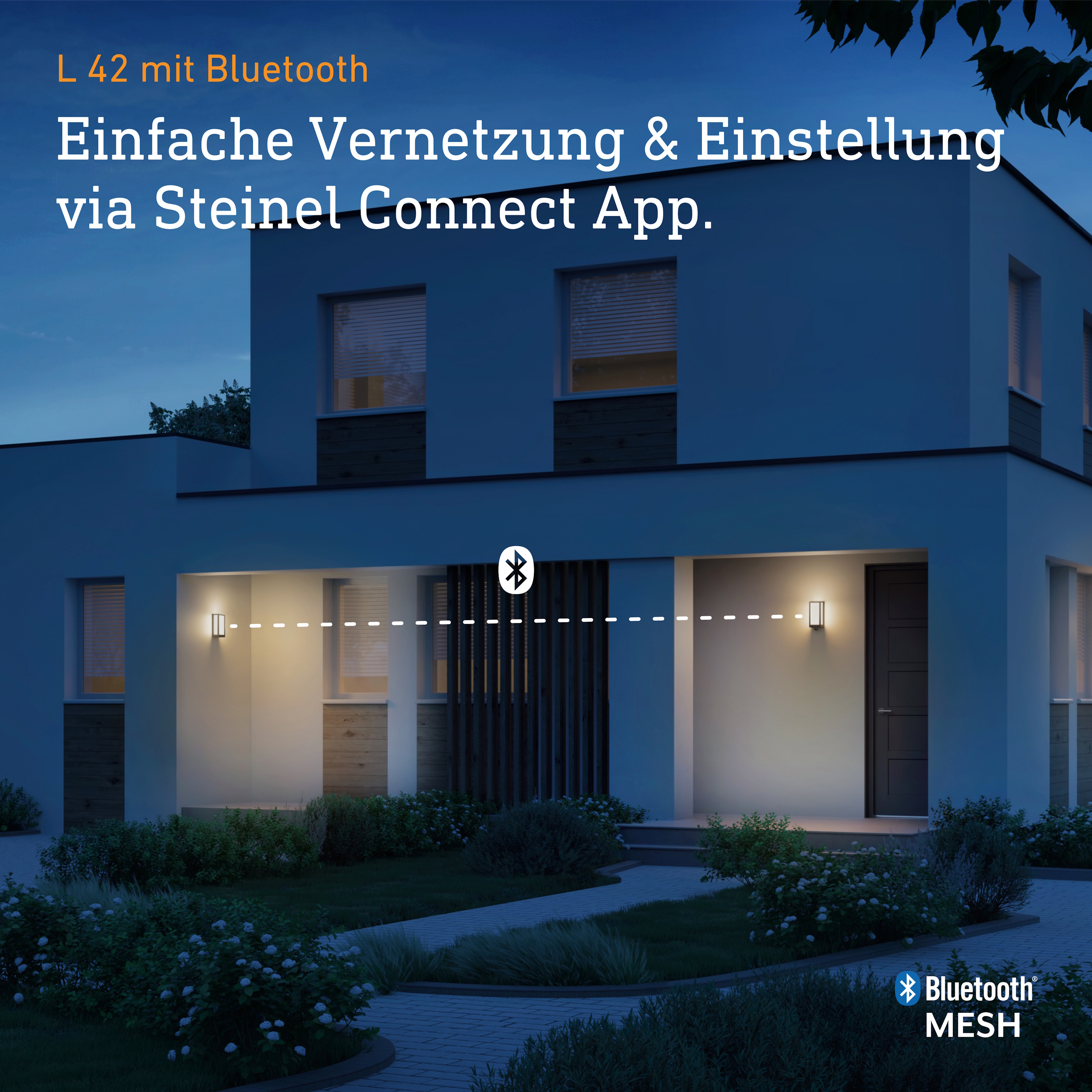

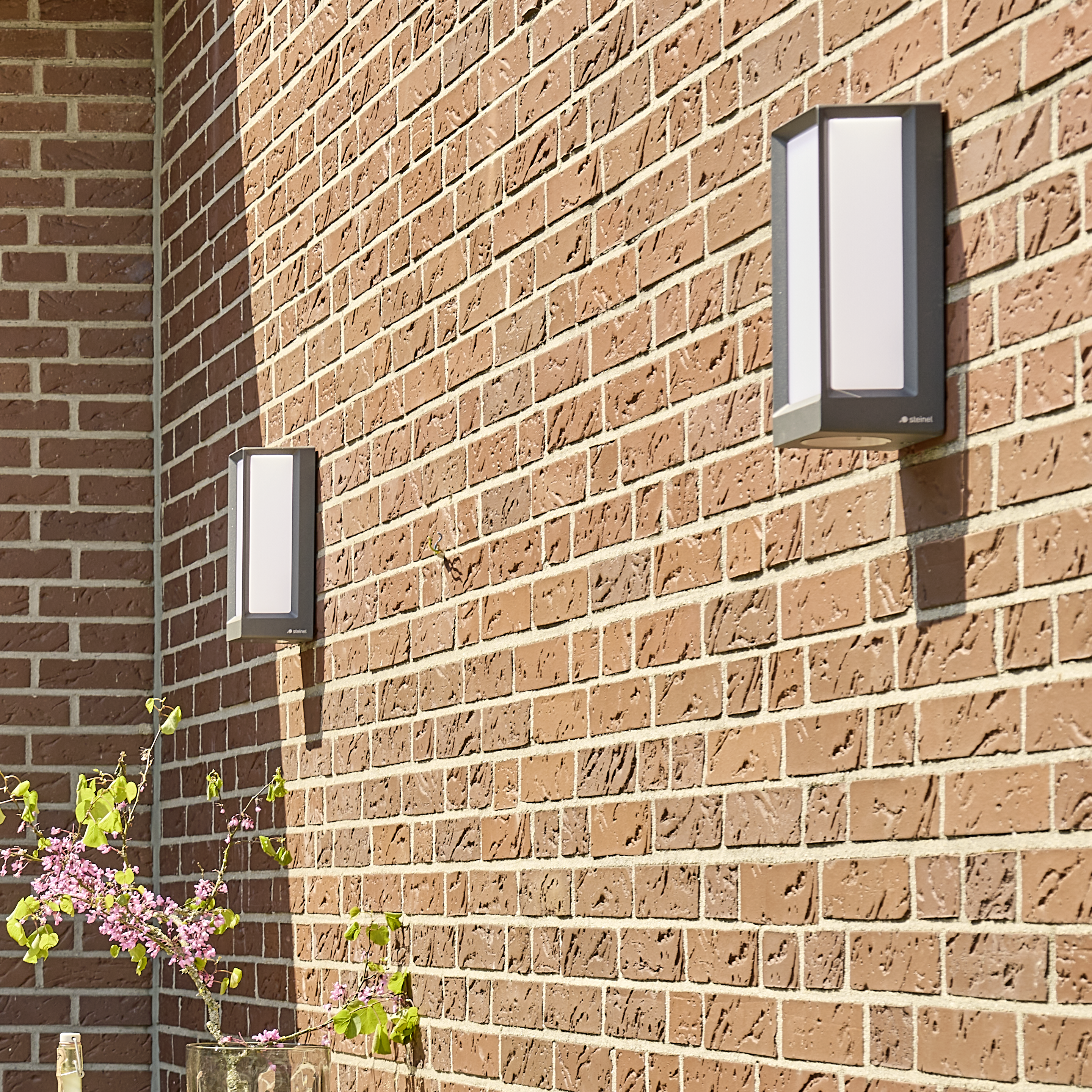

Square outdoor light for entrances and terraces. Aluminium housing, Bluetooth Mesh.

ELDAS® no. 941 012 829

EAN-No. 4007841 085254

Price: Please log in to see prices

With motion detector

No

Dimensions L × W × H

105 x 131 x 274 mm 105 x 201 x 229 mm

The high-quality L 42 C outdoor light long-life STEINEL LED system stands out thanks to its no-frills design and beautifully sets the scene for houses with its warm white 3000 K. The rectangular aluminium housing not only looks very elegant, but is also extremely robust. Thanks to the Bluetooth Mesh standard combined with the free STEINEL app, commissioning, networking and grouping with other Bluetooth Mesh lights as well as setting functions such as soft light start, basic light and main light levels are particularly easy and take very little time. Thanks to the Bluetooth Mesh standard combined with the free STEINEL app, commissioning, networking and grouping with other Bluetooth Mesh lights as well as setting the dimming function are particularly easy and take very little time. The outdoor light is supplied in plastic-free packaging and is also available as a Connect version without sensor using the product name L 42 C – it can be networked effortlessly using the new Connect Bluetooth Mesh standard.

  • Outdoor light without motion detector, with high-quality, robust aluminium housing
  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App
  • Functions: adjustable basic and main light (basic light only in combination with a Bluetooth sensor luminaire), scheduling function
  • Warm white light (3000 K) and long-life 12,6 W LEDs with 871 lm

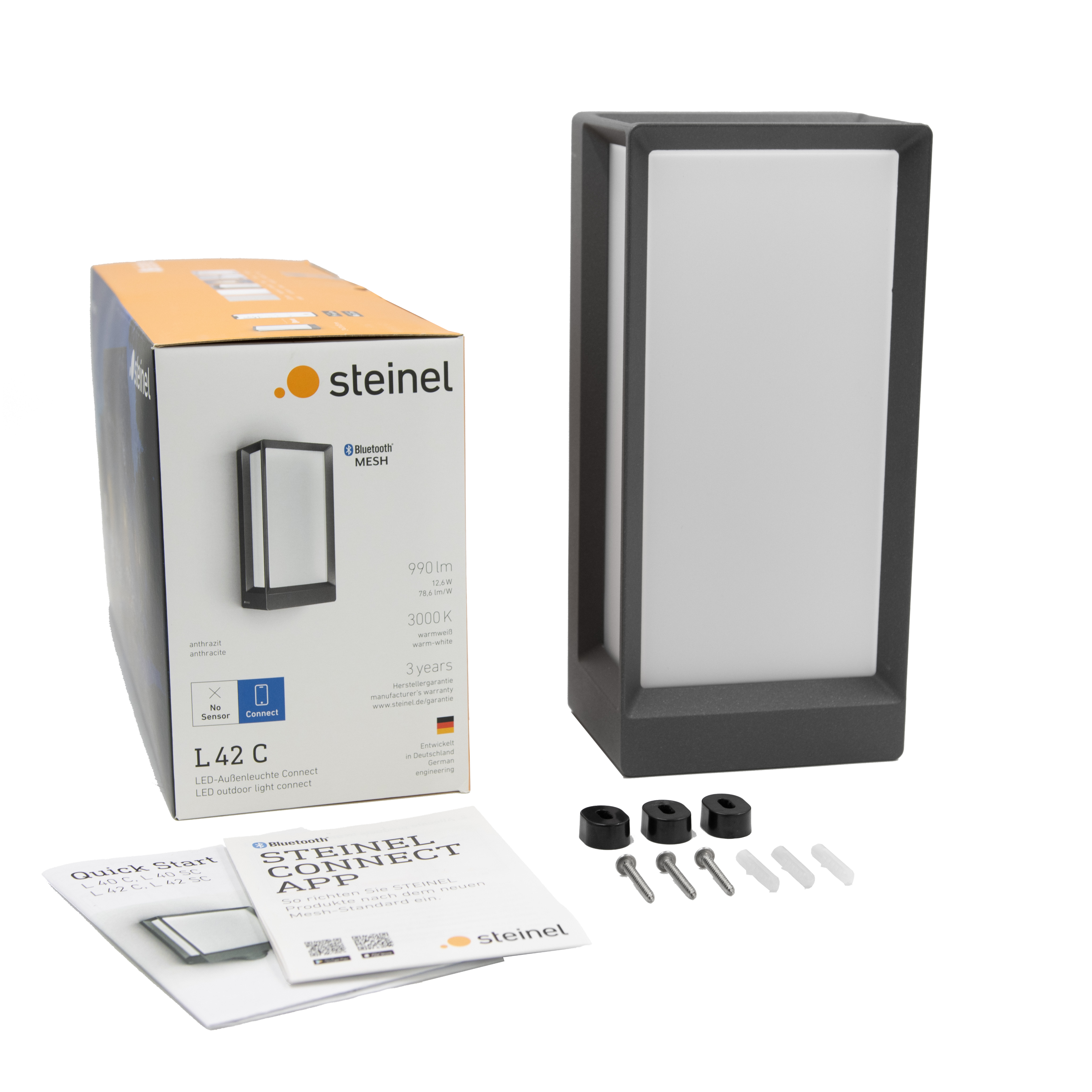

  • Incl. mounting accessories - plastic-free packaging

Variants

Version Without sensor, with Bluetooth

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 12,6 W

Connectivity

Networking Yes
Type of networking Master/Slave, Master/Master
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 871 lm
Efficiency 69,1 lm/W
Colour temperature 3000 K
Colour rendering index 80 - 89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h
Average rated power supply lifetime at 25 °C > 60000 h

Settings

Main light adjustable 5 - 100 %
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class I
Ambient temperature -20...+40 °C
Housing material Aluminium
Cover material Opal plastic
Cover material (scope of delivery) Cover clips
Mounting location Wall
Application location Outdoors
Mounting type Surface mounting
Material Aluminium
Application room all round the building, front door, outdoors, terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

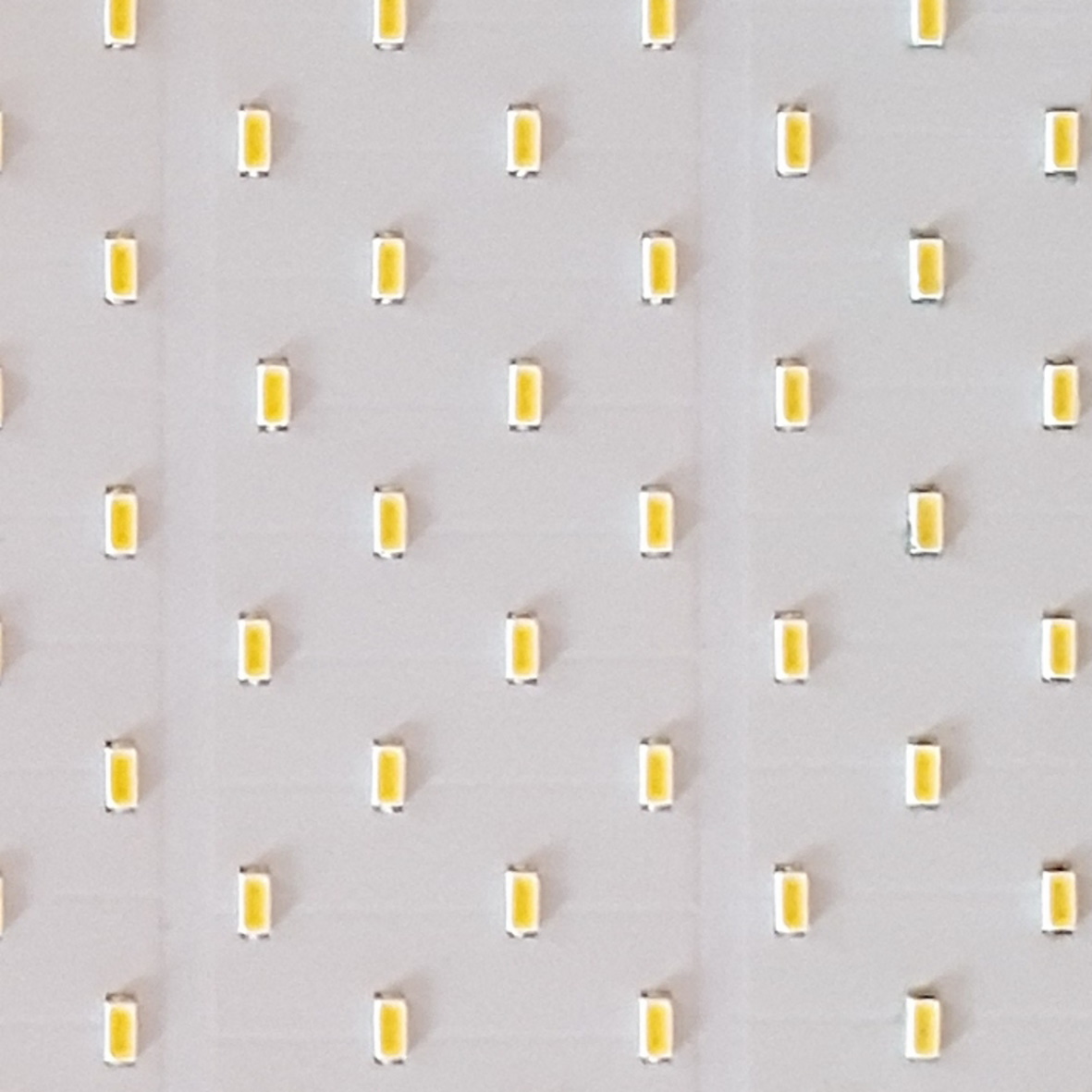

Including STEINEL LED system

Intelligent soft light start

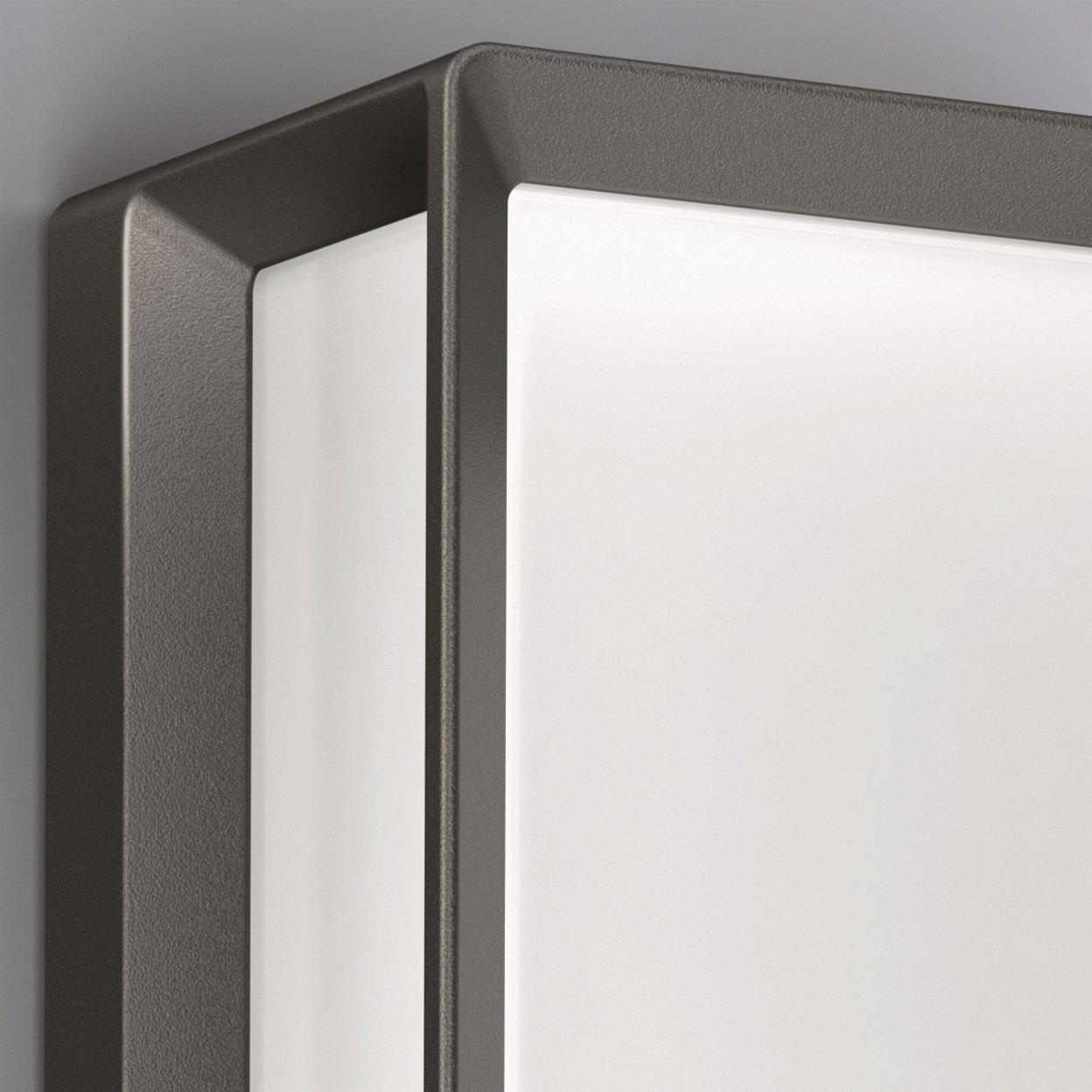

High-quality aluminium

LED ambient light

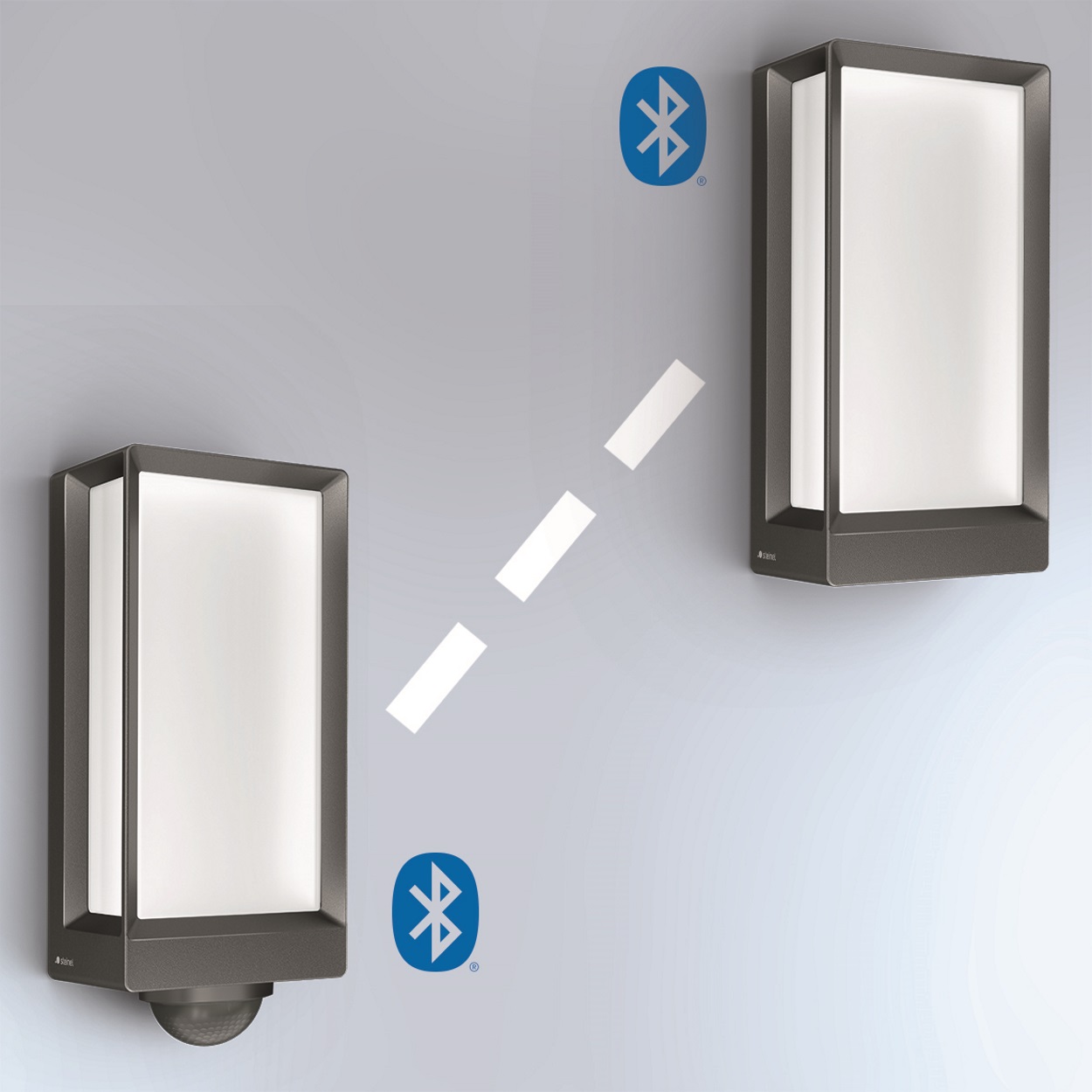

Interconnectable and adjustable via Bluetooth

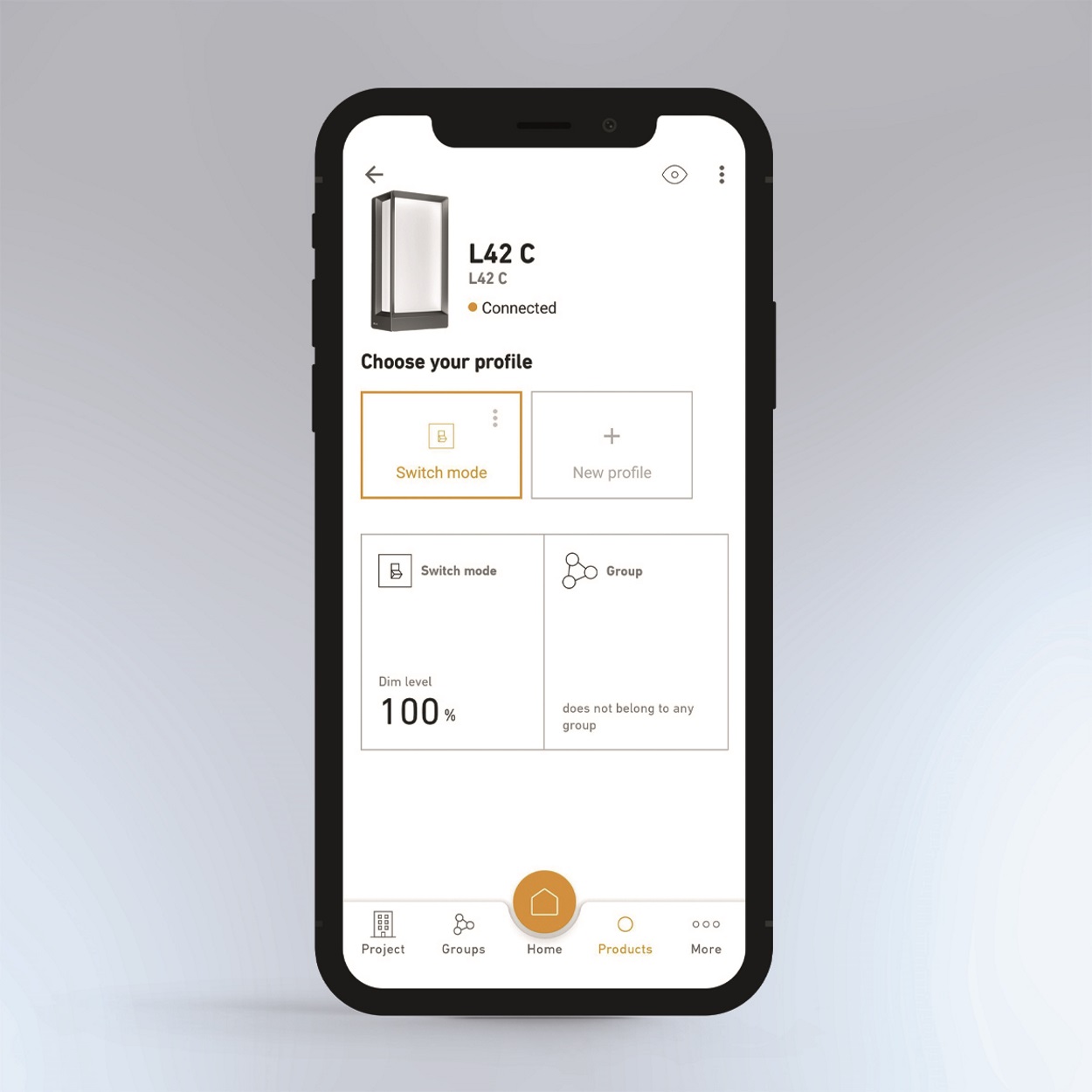

Operatable via app

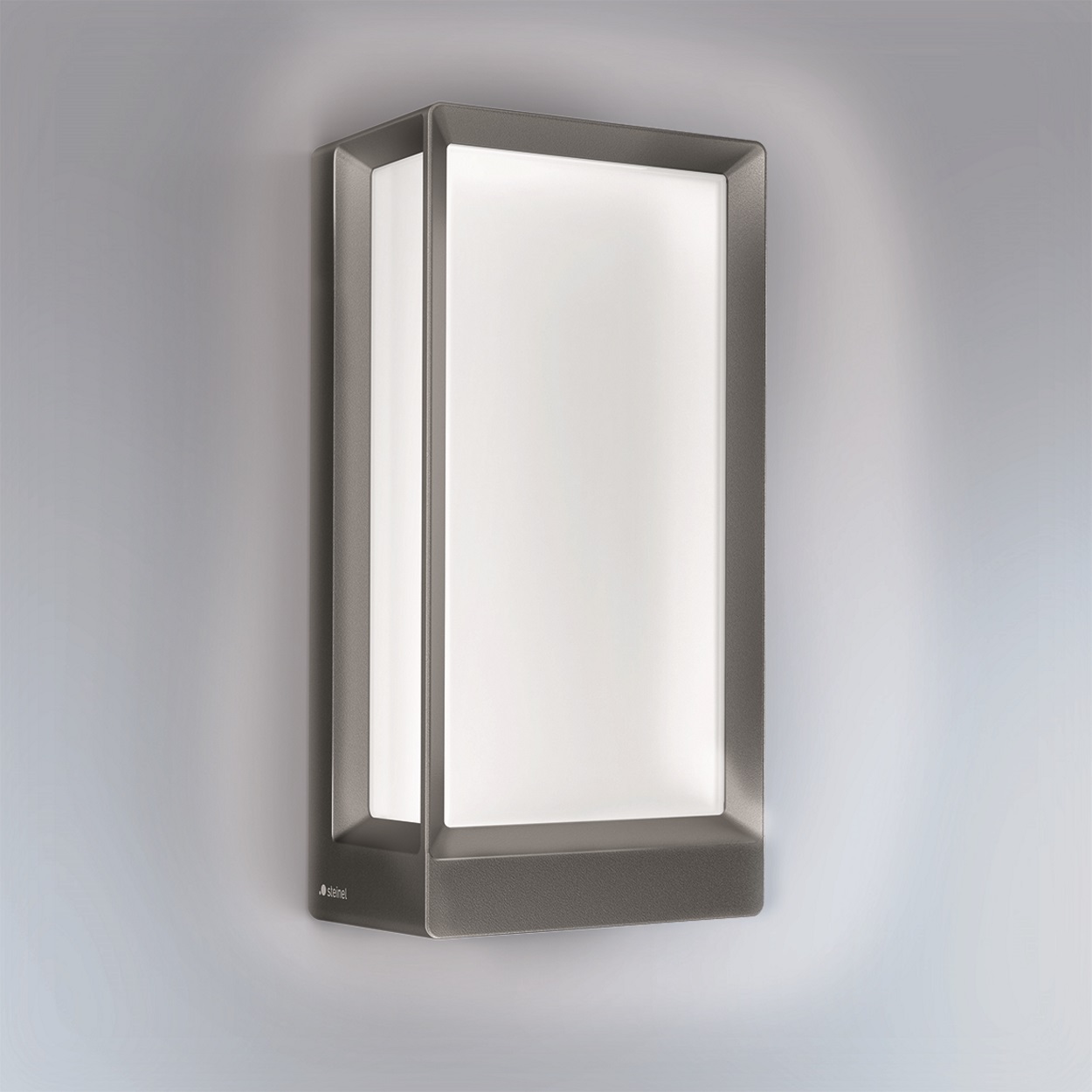

Adjustable main light brighness (5 - 100%)

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth

Wireless pushbutton TapDuo C

Wireless pushbutton TapDuo C

Item no. 088620
